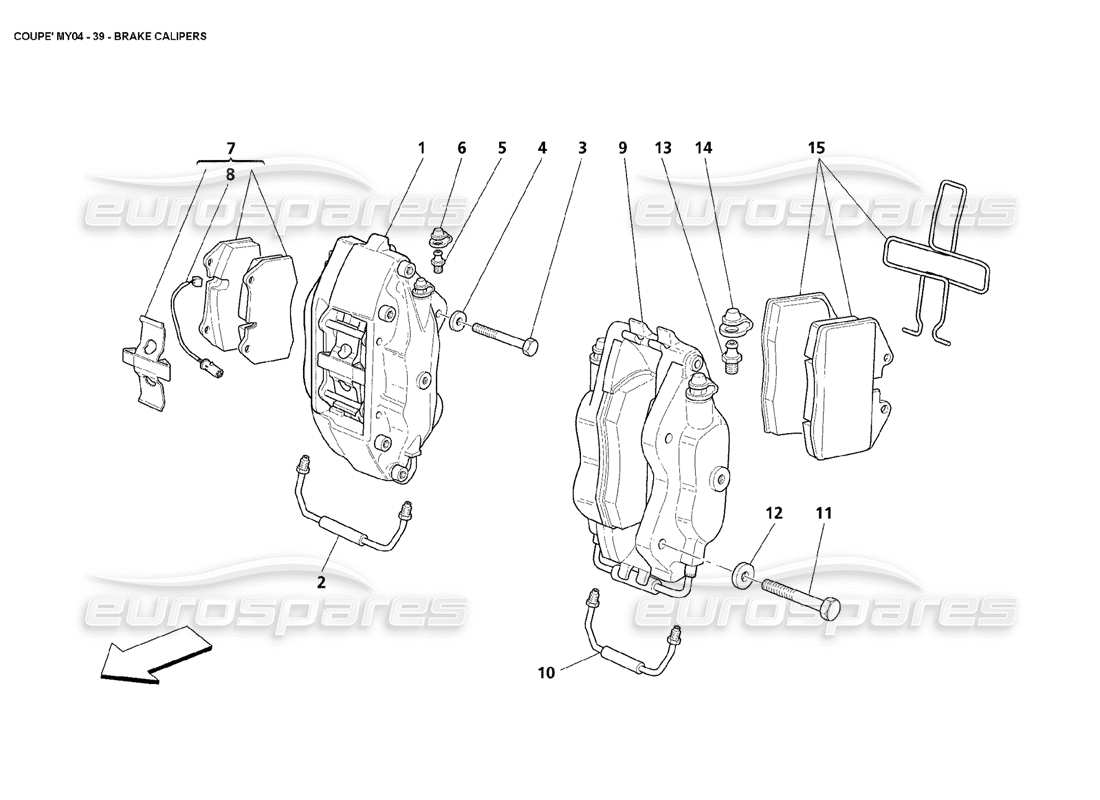

039 - Brake Calipers

Maserati 4200 Coupe (2004) Brake Calipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 200045
                        LH FRONT CALIPER
                        - Standard
                        from £308.22
                        from £308.22
                        This part replaces part number 387201107 which we have in stock
                        # 001
                        MPN: 200046
                        RH FRONT CALIPER
                        - Standard
                        from £319.88
                        from £319.88
                        This part replaces part number 387201108 which we have in stock
                        # 001
                        MPN: 200047
                        LH FRONT CALIPER
                        - Optional - Red
                        from £218.01
                        from £218.01
                        This part replaces part number 387201117 which we have in stock - and 1 more. Click to view details
                        # 001
                        MPN: 200048
                        RH FRONT CALIPER
                        - Optional - Red
                        from £205.68
                        from £205.68
                        This part replaces part number 387201118 which we have in stock - and 1 more. Click to view details
                        # 001
                        MPN: 200049
                        LH FRONT CALIPER
                        Optional - Silver
                        from £244.36
                        from £244.36
                        This part replaces part number 387201119 which we have in stock - and 1 more. Click to view details
                        # 001
                        MPN: 200050
                        RH FRONT CALIPER
                        - Optional - Silver
                        from £215.26
                        from £215.26
                        This part replaces part number 387201120 which we have in stock - and 1 more. Click to view details
                        # 001
                        MPN: 206221
                        LH FRONT CALIPER
                        Optional - Titanium
                        from £215.88
                        from £215.88
                        # 001
                        MPN: 206222
                        RH FRONT CALIPER
                        - Optional - Titanium
                        from £374.59
                        from £374.59
                        # 002
                        MPN: 172868
                        CONNECTION PIPE
                        from £31.27
                        from £31.27
                        # 003
                        MPN: 377200319
                        CALIPERS FIXING SCREEW
                        from £11.43
                        from £11.43
                        This part replaces part number 387200319
                        # 004
                        MPN: 12601579
                        WASHER
                        from £14.76
                        from £14.76
                        This part replaces part number 138420120
                        # 005
                        MPN: 152954
                        BLEEDER SCREW
                        from £3.18
                        from £3.18
                        # 006
                        MPN: 152955
                        PROTECTION BOOT
                        from £2.95
                        from £2.95
                        # 007
                        MPN: 380201039
                        KIT OF FRONT PADS
                        - Standard
                        from £78.75
                        from £78.75
                        This part replaces part number 380200039 which we have in stock
                        # 007
                        MPN: 380201044
                        KIT OF FRONT PADS
                        - Optional - Yellow pagid
                        from £514.50
                        from £514.50
                        This part replaces part number 380200044
                        # 008
                        MPN: 383300215
                        BRAKE PADS WEAR SENSOR
                        from £15.14
                        from £15.14
                        # 009
                        MPN: 200051
                        LH REAR CALIPER
                        - Standard
                        from £374.59
                        from £374.59
                        This part replaces part number 387201111 which we have in stock
                        # 009
                        MPN: 200052
                        RH REAR CALIPER
                        - Standard
                        from £360.10
                        from £360.10
                        This part replaces part number 387201112 which we have in stock
                        # 009
                        MPN: 200053
                        RH REAR CALIPER
                        - Optional - Red
                        from £232.46
                        from £232.46
                        This part replaces part number 387201122 which we have in stock - and 1 more. Click to view details
                        # 009
                        MPN: 200055
                        RH REAR CALIPER
                        - Optional - Silver
                        from £206.45
                        from £206.45
                        This part replaces part number 387201124 which we have in stock - and 1 more. Click to view details
                        # 009
                        MPN: 200056
                        LH REAR CALIPER
                        - Optional - Red
                        from £240.44
                        from £240.44
                        This part replaces part number 387201121 which we have in stock - and 1 more. Click to view details
                        # 009
                        MPN: 200058
                        LH REAR CALIPER
                        - Optional - Silver
                        from £216.31
                        from £216.31
                        This part replaces part number 387201123 which we have in stock - and 1 more. Click to view details
                        # 009
                        MPN: 206224
                        LH REAR CALIPER
                        - Optional - Titanium
                        from £181.65
                        from £181.65
                        # 009
                        MPN: 206225
                        RH REAR CALIPER
                        - Optional - Titanium
                        from £215.88
                        from £215.88
                        # 010
                        MPN: 152957
                        CONNECTION PIPE
                        from £17.65
                        from £17.65
                        # 011
                        MPN: 377200319
                        CALIPERS FIXING SCREEW
                        from £11.43
                        from £11.43
                        This part replaces part number 387200319
                        # 012
                        MPN: 12601579
                        WASHER
                        from £14.76
                        from £14.76
                        This part replaces part number 138420120
                        # 013
                        MPN: 152954
                        BLEEDER SCREW
                        from £3.18
                        from £3.18
                        # 014
                        MPN: 152955
                        PROTECTION BOOT
                        from £2.95
                        from £2.95
                        # 015
                        MPN: 380201042
                        REAR BRAKE PADS (STD.)
                        - Standard - use part number: 70000875 as alternative
                        from £175.80
                        from £175.80
                        This part replaces part number 380200042
                        # 015
                        MPN: 380201045
                        KIT OF REAR PADS
                        - Optional - Yellow pagid
                        from £429.96
                        from £429.96
