maserati 4200 coupe (2004) steering column parts diagram

043 - Steering Column

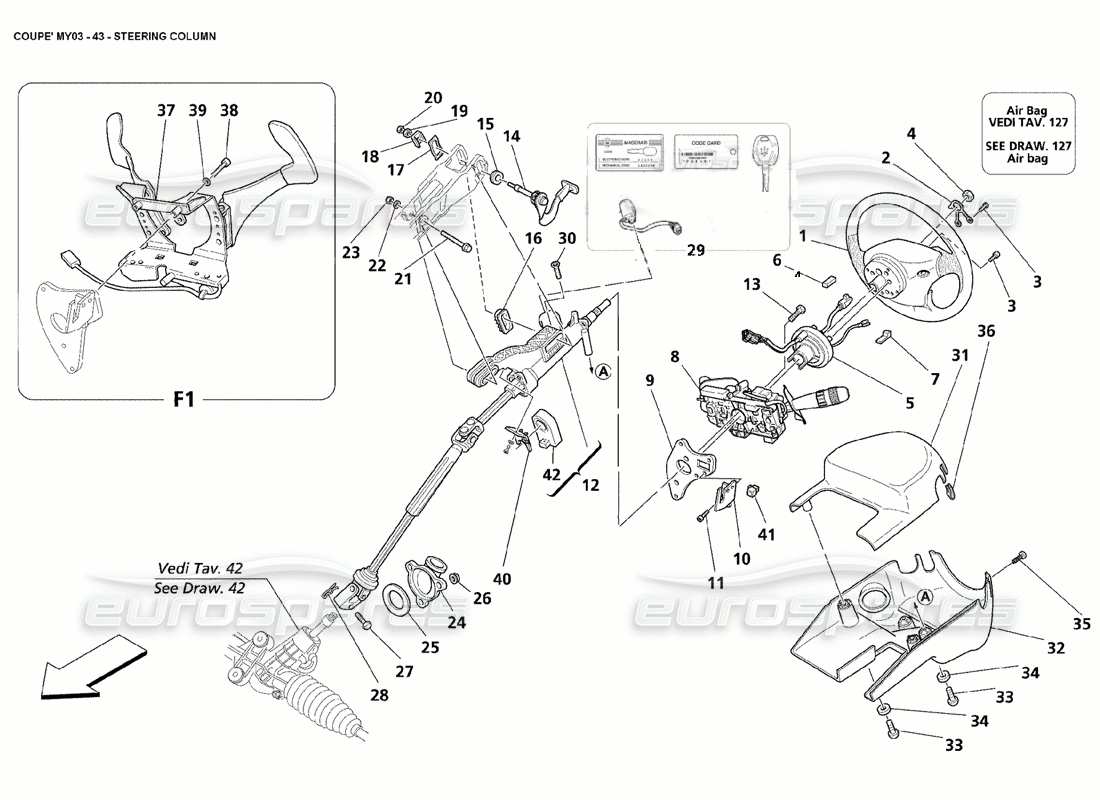

Maserati 4200 Coupe (2004) Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 183514
                                                                    STEERING WHEEL
                                                                    - Standard - Black leather
                                                                    from £775.23
                                                                    from £775.23
                                                                    This part replaces part number 18351400 - and 2 more. Click to view details
                                                                    # 001
                                                                    MPN: 183514
                                                                    STEERING WHEEL
                                                                    - Optional - Coloured leather
                                                                    from £775.23
                                                                    from £775.23
                                                                    This part replaces part number 18351400 - and 2 more. Click to view details
                                                                    # 001
                                                                    MPN: 188822
                                                                    STEERING WHEEL
                                                                    - Optional - Brier
                                                                    from £714.78
                                                                    from £714.78
                                                                    # 001
                                                                    MPN: 188823
                                                                    STEERING WHEEL
                                                                    - Optional - Carbon
                                                                    from £2,009.98
                                                                    from £2,009.98
                                                                    # 002
                                                                    MPN: 373300338
                                                                    SPRING
                                                                    from £3.28
                                                                    from £3.28
                                                                    # 003
                                                                    MPN: 13271811
                                                                    SCREW
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 004
                                                                    MPN: 56249
                                                                    NUT
                                                                    from £2.53
                                                                    from £2.53
                                                                    # 005
                                                                    MPN: 373301210
                                                                    SPIRAL CONTACT
                                                                    from £199.50
                                                                    from £199.50
                                                                    This part replaces part number 373300210 - and 1 more. Click to view details
                                                                    # 006
                                                                    MPN: 163816
                                                                    RESISTOR FOR SPIRAL CONTACT
                                                                    from £8.84
                                                                    from £8.84
                                                                    # 008
                                                                    MPN: 183025
                                                                    UNHOOK DEVIATION ASSEMBLY
                                                                    - Optional - Cruise Control - Standard for cars USA and CDN
                                                                    from £691.18
                                                                    from £691.18
                                                                    # 008
                                                                    MPN: 185384
                                                                    UNHOOK DEVIATION ASSEMBLY
                                                                    - Standard - Not for USA e CDN
                                                                    from £133.68
                                                                    from £133.68
                                                                    # 010
                                                                    MPN: 190997
                                                                    CRUISE CONNECTORS FIXING BRACKET
                                                                    from £9.12
                                                                    from £9.12
                                                                    # 011
                                                                    MPN: 13273911
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 012
                                                                    MPN: 195590
                                                                    COMPLETE STEERING COLUMN
                                                                    from £550.94
                                                                    from £550.94
                                                                    This part replaces part number 190405 - and 1 more. Click to view details
                                                                    # 013
                                                                    MPN: 14072510
                                                                    SCREW
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 014
                                                                    MPN: 151119000
                                                                    STEERING COLUMN LOCKING LEVER
                                                                    from £24.90
                                                                    from £24.90
                                                                    This part replaces part number 151119080 - and 1 more. Click to view details
                                                                    # 015
                                                                    MPN: 60596509
                                                                    SPACER
                                                                    from £4.45
                                                                    from £4.45
                                                                    # 016
                                                                    MPN: 60605695
                                                                    FIXED TENSION
                                                                    from £2.30
                                                                    from £2.30
                                                                    # 017
                                                                    MPN: 60596513
                                                                    SPRING
                                                                    from £1.40
                                                                    from £1.40
                                                                    # 018
                                                                    MPN: 60605693
                                                                    MOBILE GUIDE SHOE
                                                                    from £2.30
                                                                    from £2.30
                                                                    # 019
                                                                    MPN: 60612341
                                                                    SPECIAL NUT
                                                                    from £3.52
                                                                    from £3.52
                                                                    # 020
                                                                    MPN: 387800325
                                                                    NUT
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 021
                                                                    MPN: 18751924
                                                                    SCREW
                                                                    from £3.60
                                                                    from £3.60
                                                                    # 022
                                                                    MPN: 11193874
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 023
                                                                    MPN: 16104421
                                                                    NUT
                                                                    from £0.81
                                                                    from £0.81
                                                                    # 024
                                                                    MPN: 387800437
                                                                    BOOT SUPPORTING BODY
                                                                    from £7.13
                                                                    from £7.13
                                                                    # 025
                                                                    MPN: 377800438
                                                                    GASKET
                                                                    from £2.83
                                                                    from £2.83
                                                                    # 026
                                                                    MPN: 14058411
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 027
                                                                    MPN: 387800431
                                                                    SCREW
                                                                    from £10.96
                                                                    from £10.96
                                                                    # 028
                                                                    MPN: 58841309
                                                                    SAFETY CLIP
                                                                    from £1.98
                                                                    from £1.98
                                                                    This part replaces part number 670000498 - and 2 more. Click to view details
                                                                    # 029
                                                                    MPN: 82484559
                                                                    IGNITION SWITCH
                                                                    - Not for USA and CDN
                                                                    from £48.64
                                                                    from £48.64
                                                                    # 029
                                                                    MPN: 82484559/a
                                                                    IGNITION SWITCH ASSY
                                                                    Not for USA and CDN
                                                                    from £362.25
                                                                    from £362.25
                                                                    # 030
                                                                    MPN: 60811485
                                                                    SPECIAL SCREW
                                                                    from £10.73
                                                                    from £10.73
                                                                    # 031
                                                                    MPN: 66192300
                                                                    STEERING COLUMN UPPER SHIELD
                                                                    - Valid for F1
                                                                    from £93.65
                                                                    from £93.65
                                                                    # 031
                                                                    MPN: 80095800
                                                                    STEERING COLUMN UPPER SHIELD
                                                                    - Not for F1
                                                                    from £119.04
                                                                    from £119.04
                                                                    This part replaces part number 66192200
                                                                    # 032
                                                                    MPN: 66192500
                                                                    STEERING COLUMN LOWER SHIELD
                                                                    - Valid for F1
                                                                    from £100.38
                                                                    from £100.38
                                                                    # 032
                                                                    MPN: 80095700
                                                                    STEERING COLUMN LOWER SHIELD
                                                                    - Not for F1
                                                                    from £137.30
                                                                    from £137.30
                                                                    This part replaces part number 66192100
                                                                    # 033
                                                                    MPN: 13218027
                                                                    SCREW
                                                                    from £2.45
                                                                    from £2.45
                                                                    # 034
                                                                    MPN: 13577707
                                                                    WASHER
                                                                    from £0.71
                                                                    from £0.71
                                                                    # 035
                                                                    MPN: 15915877
                                                                    SCREW
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 036
                                                                    MPN: 67110400
                                                                    BRACKET
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 037
                                                                    MPN: 190717
                                                                    GEARBOX CONTROL LEVERS ASSEMBLY
                                                                    - Optional - Carbon - Valid for F1
                                                                    from £482.17
                                                                    from £482.17
                                                                    # 037
                                                                    MPN: 192012
                                                                    GEARBOX CONTROL LEVERS ASSEMBLY
                                                                    - Standard - Valid for F1
                                                                    from £96.60
                                                                    from £96.60
                                                                    # 037
                                                                    MPN: 204134
                                                                    GEARBOX CONTROL LEVERS ASSEMBLY
                                                                    - Optional - Gray color - Valid for F1
                                                                    from £1,182.34
                                                                    from £1,182.34
                                                                    # 038
                                                                    MPN: 13274611
                                                                    SCREW
                                                                    - Valid for F1
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 13274517
                                                                    # 039
                                                                    MPN: 12601174
                                                                    WASHER
                                                                    - Valid for F1
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 675000100
                                                                    # 040
                                                                    MPN: 197119
                                                                    CLIP
                                                                    from £1.07
                                                                    from £1.07
                                                                    # 041
                                                                    MPN: 188535
                                                                    CONNECTOR
                                                                    - Valid for standard unhook deviation
                                                                    from £1.77
                                                                    from £1.77
