046 - Rear Suspension Shock Absorber and Brake Disk

Maserati 4200 Coupe (2004) Rear Suspension Shock Absorber and Brake Disk Parts Diagram

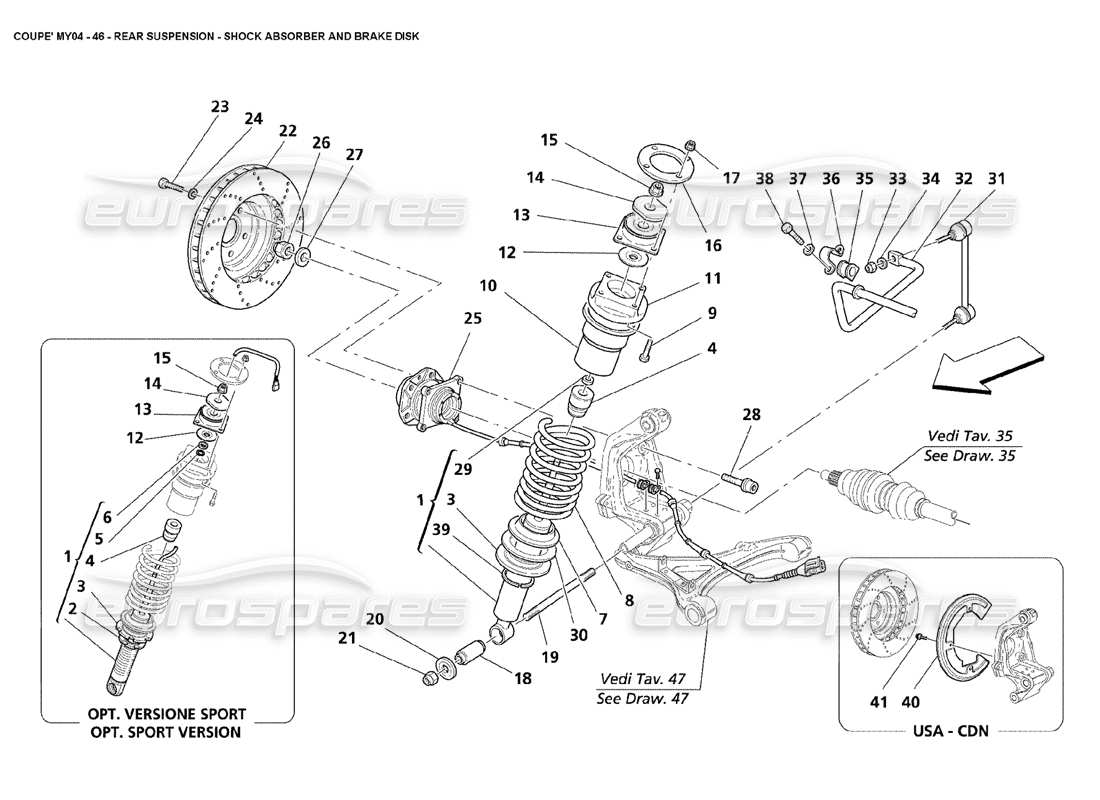

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 197912
                                                    REAR SHOCK ABSORBER
                                                    - Optional - Version sport
                                                    from £922.68
                                                    from £922.68
                                                    # 001
                                                    MPN: 200241
                                                    REAR SHOCK ABSORBER
                                                    - Standard
                                                    from £395.49
                                                    from £395.49
                                                    This part replaces part number 197919
                                                    # 001
                                                    MPN: 220939
                                                    REAR SHOCK ABSORBER
                                                    Optional - Version sport
                                                    from £986.31
                                                    from £986.31
                                                    # 002
                                                    MPN: 174726
                                                    RING NUT
                                                    - Optional - Version sport
                                                    from £38.48
                                                    from £38.48
                                                    # 003
                                                    MPN: 183020
                                                    LOWER SPACER
                                                    - Optional - Version sport
                                                    from £381.40
                                                    from £381.40
                                                    # 003
                                                    MPN: 386601380
                                                    LOWER SPACER
                                                    - Standard
                                                    from £63.44
                                                    from £63.44
                                                    # 004
                                                    MPN: 197897
                                                    SHOCK ABSORBER PAD
                                                    from £119.16
                                                    from £119.16
                                                    # 005
                                                    MPN: 183594
                                                    FLEXIBLE RING
                                                    - Optional - Version sport
                                                    from £21.56
                                                    from £21.56
                                                    # 006
                                                    MPN: 183595

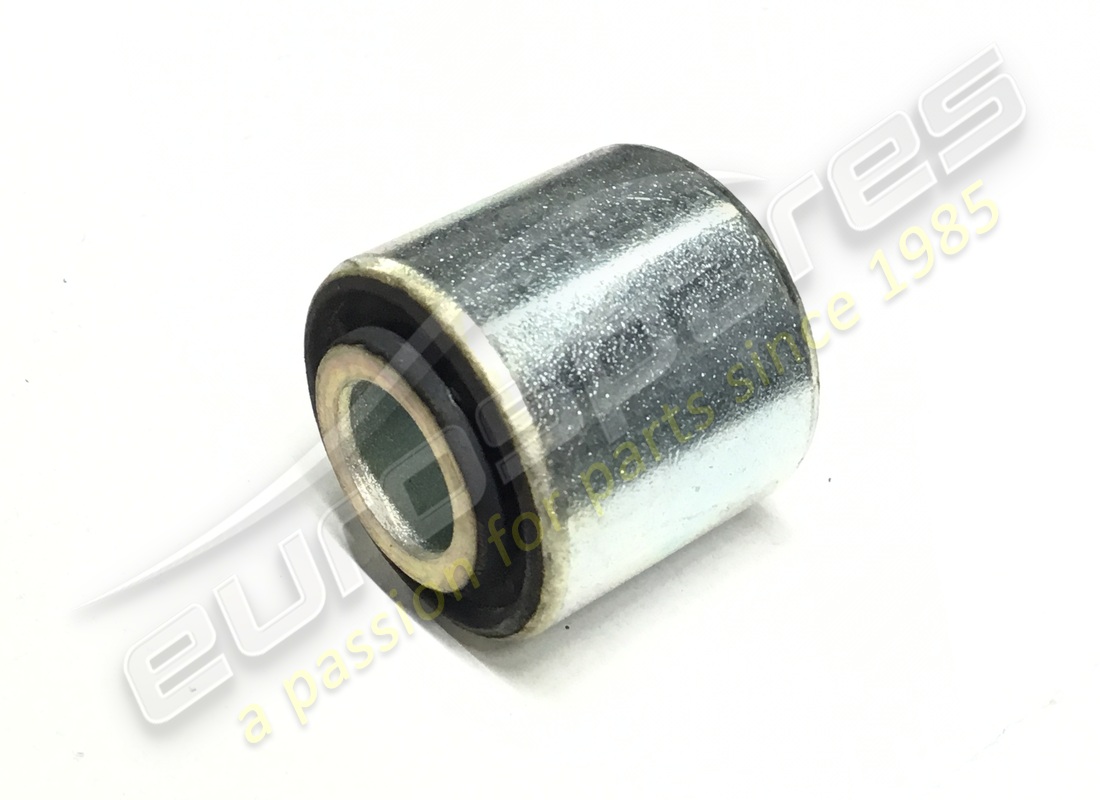

                                                    BUSHING
                                                    - Optional - Version sport
                                                    from £32.38
                                                    from £32.38
                                                    # 008
                                                    MPN: 197896
                                                    SUSPENSION SPRING
                                                    from £110.18
                                                    from £110.18
                                                    # 009
                                                    MPN: 16044324
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    # 010
                                                    MPN: 188995
                                                    UPPER SPACER
                                                    from £7.73
                                                    from £7.73
                                                    # 011
                                                    MPN: 198056
                                                    SPRING SUPPORT SPACER
                                                    from £10.04
                                                    from £10.04
                                                    # 012
                                                    MPN: 183016
                                                    WASHER
                                                    - Optional - Version sport
                                                    from £15.53
                                                    from £15.53
                                                    # 012
                                                    MPN: 193235
                                                    WASHER
                                                    - Standard
                                                    from £3.17
                                                    from £3.17
                                                    # 013
                                                    MPN: 183015
                                                    HYPERBLOCK
                                                    - Optional - Version sport
                                                    from £42.96
                                                    from £42.96
                                                    # 013
                                                    MPN: 386600109
                                                    HYPERBLOCK
                                                    - Standard
                                                    from £83.87
                                                    from £83.87
                                                    This part replaces part number 114812 which we have in stock
                                                    # 014
                                                    MPN: 189110
                                                    WASHER
                                                    - Optional - Version sport
                                                    from £3.86
                                                    from £3.86
                                                    # 014
                                                    MPN: 387000340
                                                    WASHER
                                                    - Standard
                                                    from £3.17
                                                    from £3.17
                                                    # 015
                                                    MPN: 137826
                                                    NUT
                                                    - Standard
                                                    from £1.74
                                                    from £1.74
                                                    # 015
                                                    MPN: 183417
                                                    NUT
                                                    - Optional - Version sport
                                                    Supersession
                                                    Supersession
                                                    # 016
                                                    MPN: 191055
                                                    SPACER FOR SHOCK ABSORBER
                                                    - Thickness mm. 6
                                                    from £25.50
                                                    from £25.50
                                                    # 016
                                                    MPN: 198719
                                                    SPACER FOR SHOCK ABSORBER
                                                    - Thickness mm. 4
                                                    from £6.34
                                                    from £6.34
                                                    # 017
                                                    MPN: 14058521
                                                    NUT
                                                    from £0.97
                                                    from £0.97
                                                    # 018
                                                    MPN: 163918
                                                    LOWER SHOCK ABSORBER BUSH
                                                    from £75.40
                                                    from £75.40
                                                    This part replaces part number 387000375
                                                    # 018
                                                    MPN: 194971
                                                    BALL JOINT
                                                    - Valid after stock exhaustion of 163918
                                                    from £10.57
                                                    from £10.57
                                                    # 019
                                                    MPN: 13531734
                                                    STUD
                                                    from £17.15
                                                    from £17.15
                                                    This part replaces part number 13531634
                                                    # 020
                                                    MPN: 387000329
                                                    CUP
                                                    from £3.64
                                                    from £3.64
                                                    # 021
                                                    MPN: 14048825
                                                    NUT
                                                    from £4.56
                                                    from £4.56
                                                    # 022
                                                    MPN: 192996
                                                    REAR BRAKE DISC
                                                    from £166.27
                                                    from £166.27
                                                    This part replaces part number 387210351
                                                    # 023
                                                    MPN: 16043421
                                                    SCREW
                                                    from £2.54
                                                    from £2.54
                                                    This part replaces part number 16043411
                                                    # 024
                                                    MPN: 10571779
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 025
                                                    MPN: 197064
                                                    BEARING FOR WHEEL
                                                    from £519.68
                                                    from £519.68
                                                    # 026
                                                    MPN: 183320
                                                    NUT
                                                    from £5.10
                                                    from £5.10
                                                    # 027
                                                    MPN: 196577
                                                    WASHER
                                                    from £2.08
                                                    from £2.08
                                                    This part replaces part number 183321
                                                    # 028
                                                    MPN: 190723
                                                    SCREW
                                                    from £5.09
                                                    from £5.09
                                                    This part replaces part number 14834021 - and 1 more. Click to view details
                                                    # 029
                                                    MPN: 386600329
                                                    SPACER FOR PAD SUPPORT
                                                    - Standard
                                                    from £17.77
                                                    from £17.77
                                                    # 030
                                                    MPN: 386601382
                                                    THICKNESS
                                                    -MM. 2 -Standard
                                                    from £2.31
                                                    from £2.31
                                                    # 030
                                                    MPN: 386601397
                                                    THICKNESS
                                                    -MM. 4 -Standard
                                                    from £4.09
                                                    from £4.09
                                                    # 031
                                                    MPN: 193729
                                                    TIE-RODS
                                                    from £57.41
                                                    from £57.41
                                                    This part replaces part number 387000126
                                                    # 032
                                                    MPN: 194049
                                                    REAR ANTI ROLL BAR
                                                    from £248.59
                                                    from £248.59
                                                    # 033
                                                    MPN: 12575621
                                                    NUT
                                                    from £1.41
                                                    from £1.41
                                                    This part replaces part number 98095 which we have in stock
                                                    # 034
                                                    MPN: 13550421
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 035
                                                    MPN: 195916
                                                    RUBBER PAD
                                                    from £8.55
                                                    from £8.55
                                                    # 036
                                                    MPN: 397050368
                                                    RETAINER
                                                    from £2.85
                                                    from £2.85
                                                    # 037
                                                    MPN: 10571779
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 038
                                                    MPN: 16043321
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 039
                                                    MPN: 386601381
                                                    SPACER STOP RING
                                                    - Standard
                                                    from £4.17
                                                    from £4.17
                                                    # 040
                                                    MPN: 193732
                                                    LH REAR BRAKE DISC SHIELD
                                                    - Valid for USA and CDN
                                                    from £40.65
                                                    from £40.65
                                                    # 040
                                                    MPN: 193733
                                                    RH REAR BRAKE DISC SHIELD
                                                    - Valid for USA and CDN
                                                    from £40.97
                                                    from £40.97
                                                    # 041
                                                    MPN: 193737
                                                    SCREW
                                                    - Valid for USA and CDN
                                                    Supersession
                                                    Supersession
