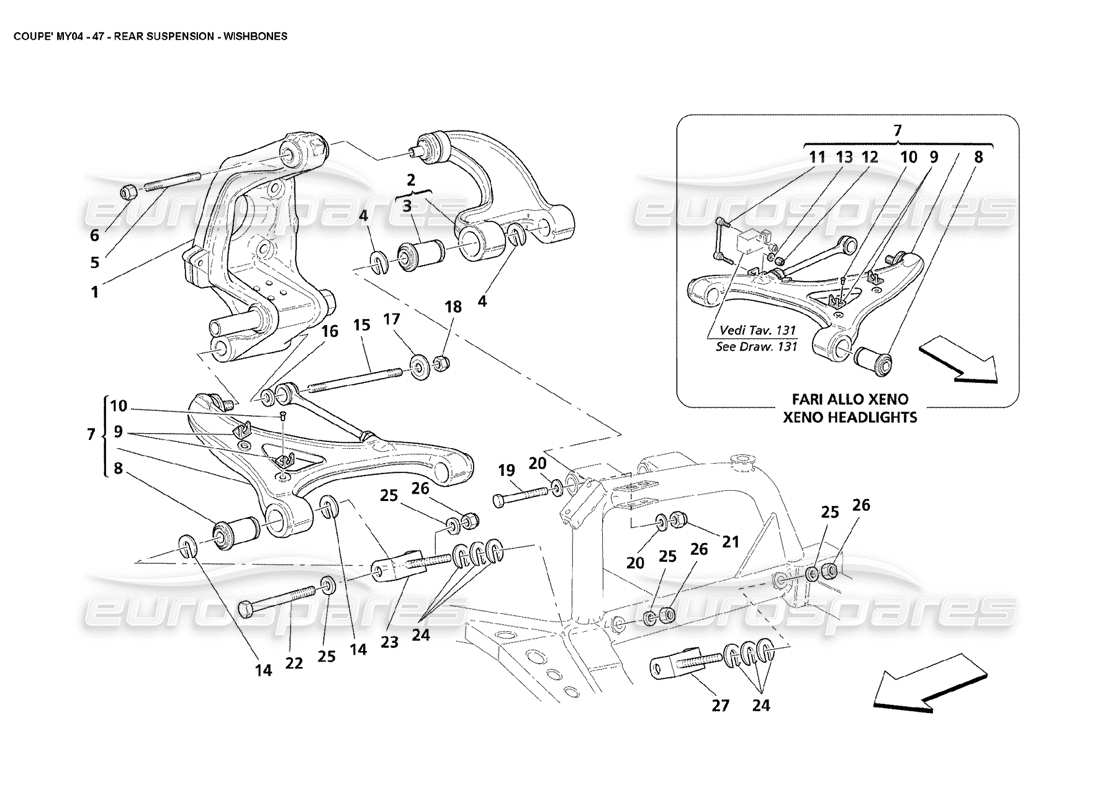

maserati 4200 coupe (2004) rear suspension wishbones parts diagram

047 - Rear Suspension Wishbones

Maserati 4200 Coupe (2004) Rear Suspension Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 189334
                                      RH REAR HUB HOLDER
                                      from £336.00
                                      from £336.00
                                      # 001
                                      MPN: 189335
                                      LH REAR HUB HOLDER
                                      from £355.38
                                      from £355.38
                                      # 003
                                      MPN: 186496
                                      FLANBLOC
                                      from £117.60
                                      from £117.60
                                      # 004
                                      MPN: 377030378
                                      WASHER
                                      - Thickness mm. 0,50
                                      from £3.16
                                      from £3.16
                                      # 004
                                      MPN: 377030379
                                      WASHER
                                      - Thickness mm. 0,75
                                      from £3.86
                                      from £3.86
                                      # 004
                                      MPN: 377030380
                                      WASHER
                                      - Thickness mm. 1,00
                                      from £17.23
                                      from £17.23
                                      # 004
                                      MPN: 377030381
                                      WASHER
                                      - Thickness mm. 1,75
                                      from £3.86
                                      from £3.86
                                      # 004
                                      MPN: 377030382
                                      WASHER
                                      - Thickness mm. 3,00
                                      from £4.57
                                      from £4.57
                                      # 005
                                      MPN: 13530624
                                      STUD
                                      from £21.56
                                      from £21.56
                                      # 006
                                      MPN: 14048825
                                      NUT
                                      from £4.57
                                      from £4.57
                                      # 007
                                      MPN: 196776
                                      COMPLETE LH LOWER LEVER
                                      - Standard
                                      from £190.68
                                      from £190.68
                                      This part replaces part number 196038
                                      # 007
                                      MPN: 198027
                                      COMPLETE RH LOWER LEVER
                                      from £190.68
                                      from £190.68
                                      This part replaces part number 196037
                                      # 007
                                      MPN: 198501
                                      LH REAR LOWER LEVER
                                      from £190.68
                                      from £190.68
                                      This part replaces part number 196039 - and 1 more. Click to view details
                                      # 007
                                      MPN: 198503
                                      RH REAR LOWER LEVER
                                      from £190.68
                                      from £190.68
                                      This part replaces part number 196034 - and 1 more. Click to view details
                                      # 008
                                      MPN: 186494
                                      FLANBLOC
                                      from £106.03
                                      from £106.03
                                      # 009
                                      MPN: 387000393
                                      ABS CABLE BRACKET
                                      from £72.34
                                      from £72.34
                                      # 010
                                      MPN: 13684370
                                      RIVET
                                      from £1.39
                                      from £1.39
                                      # 011
                                      MPN: 188632
                                      TIE ROD
                                      - Valid for opt. Xeno headlights - Not for USA and CDN
                                      from £66.30
                                      from £66.30
                                      # 012
                                      MPN: 12574215
                                      NUT
                                      - Valid for opt. Xeno headlights - Not for USA and CDN
                                      from £1.23
                                      from £1.23
                                      # 013
                                      MPN: 14498805
                                      WASHER
                                      - Valid for opt. Xeno headlights - Not for USA and CDN
                                      from £0.54
                                      from £0.54
                                      # 014
                                      MPN: 377030378
                                      WASHER
                                      - Thickness mm. 0,50
                                      from £3.16
                                      from £3.16
                                      # 014
                                      MPN: 377030379
                                      WASHER
                                      - Thickness mm. 0,75
                                      from £3.86
                                      from £3.86
                                      # 014
                                      MPN: 377030380
                                      WASHER
                                      - Thickness mm. 1,00
                                      from £17.23
                                      from £17.23
                                      # 014
                                      MPN: 377030381
                                      WASHER
                                      - Thickness mm. 1,75
                                      from £3.86
                                      from £3.86
                                      # 014
                                      MPN: 377030382
                                      WASHER
                                      - Thickness mm. 3,00
                                      from £4.57
                                      from £4.57
                                      # 015
                                      MPN: 13531734
                                      STUD
                                      from £17.16
                                      from £17.16
                                      This part replaces part number 13531634
                                      # 016
                                      MPN: 13507521
                                      WASHER
                                      from £2.32
                                      from £2.32
                                      # 017
                                      MPN: 387000329
                                      CUP
                                      from £3.63
                                      from £3.63
                                      # 018
                                      MPN: 14048825
                                      NUT
                                      from £4.57
                                      from £4.57
                                      # 019
                                      MPN: 196071
                                      SCREW
                                      from £4.24
                                      from £4.24
                                      # 020
                                      MPN: 14496825
                                      WASHER
                                      from £1.11
                                      from £1.11
                                      # 021
                                      MPN: 15503915
                                      NUT
                                      from £1.63
                                      from £1.63
                                      # 022
                                      MPN: 196071
                                      SCREW
                                      from £4.24
                                      from £4.24
                                      # 023
                                      MPN: 196521
                                      FRONT FORK
                                      from £51.82
                                      from £51.82
                                      # 024
                                      MPN: 199644
                                      WASHER
                                      - Thickness mm. 0,20
                                      from £2.32
                                      from £2.32
                                      # 024
                                      MPN: 199645
                                      WASHER
                                      - Thickness mm. 0,30
                                      from £2.32
                                      from £2.32
                                      # 024
                                      MPN: 199646
                                      WASHER
                                      - Thickness mm. 0,40
                                      from £2.32
                                      from £2.32
                                      # 024
                                      MPN: 377030378
                                      WASHER
                                      - Thickness mm. 0,50
                                      from £3.16
                                      from £3.16
                                      # 024
                                      MPN: 377030379
                                      WASHER
                                      - Thickness mm. 0,75
                                      from £3.86
                                      from £3.86
                                      # 024
                                      MPN: 377030380
                                      WASHER
                                      - Thickness mm. 1,00
                                      from £17.23
                                      from £17.23
                                      # 024
                                      MPN: 377030381
                                      WASHER
                                      - Thickness mm. 1,75
                                      from £3.86
                                      from £3.86
                                      # 024
                                      MPN: 377030382
                                      WASHER
                                      - Thickness mm. 3,00
                                      from £4.57
                                      from £4.57
                                      # 025
                                      MPN: 14496825
                                      WASHER
                                      from £1.14
                                      from £1.14
                                      # 026
                                      MPN: 15503915
                                      NUT
                                      from £1.63
                                      from £1.63
