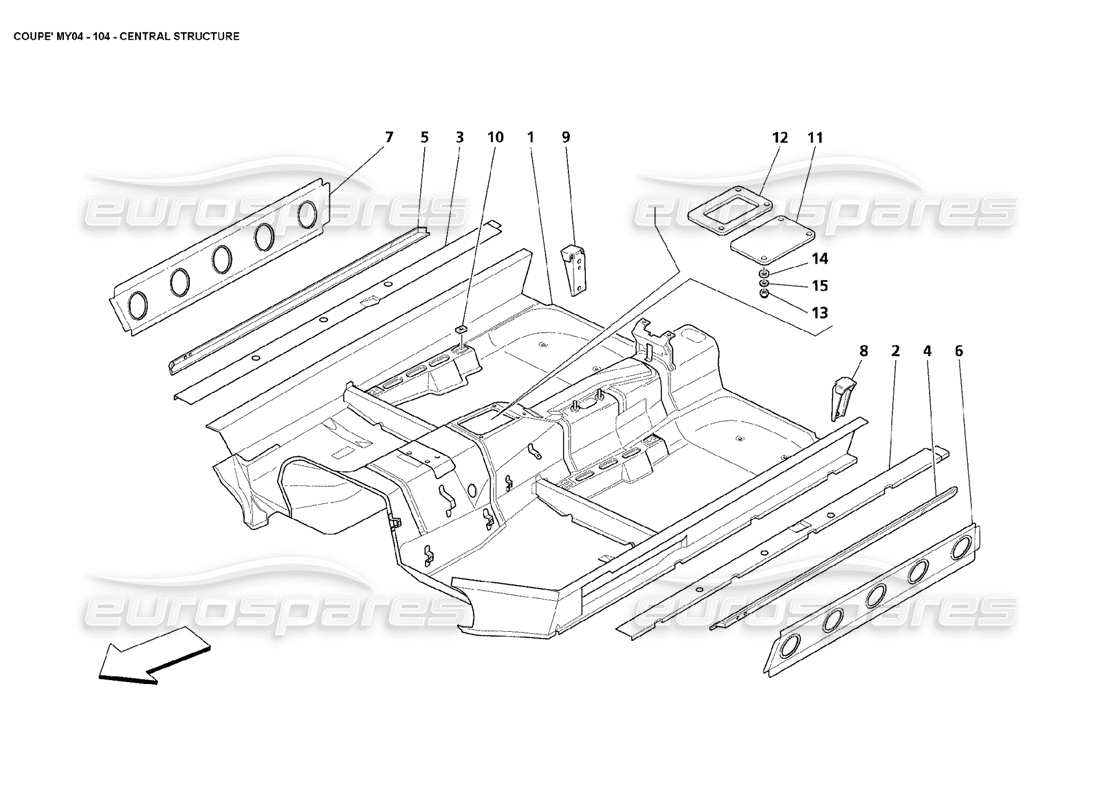

maserati 4200 coupe (2004) central structure parts diagram

104 - central structure

Maserati 4200 Coupe (2004) Central Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 980138030
                  COMPLETE CENTRAL FLOOR
                  from £3,416.90
                  from £3,416.90
                  # 002
                  MPN: 66133900
                  LH UNDERDOOR LOWER LONGITUDINAL MEMBER
                  from £19.24
                  from £19.24
                  # 003
                  MPN: 66133800
                  RH UNDERDOOR LOWER LONGITUDINAL MEMBER
                  from £15.79
                  from £15.79
                  # 004
                  MPN: 381300425
                  LH LATERAL FRONT FLOOR ASSEMBLY
                  from £19.61
                  from £19.61
                  # 005
                  MPN: 381300426
                  RH LATERAL FRONT FLOOR ASSEMBLY
                  from £19.61
                  from £19.61
                  # 006
                  MPN: 66427500
                  LH LONGITUDINAL FRONT MEMBER
                  from £16.63
                  from £16.63
                  # 007
                  MPN: 66427400
                  RH LONGITUDINAL FRONT MEMBER
                  from £51.29
                  from £51.29
                  # 008
                  MPN: 66666300
                  LH BRACKET FOR SIDE SUPPORTING
                  - BAG SENSOR
                  from £26.98
                  from £26.98
                  # 009
                  MPN: 66666200
                  RH BRACKET FOR SIDE SUPPORTING
                  - BAG SENSOR
                  from £26.98
                  from £26.98
                  # 010
                  MPN: 66422200
                  NUT
                  from £5.57
                  from £5.57
                  # 011
                  MPN: 66423900
                  PLATE FOR GEAR CONTROL TONER
                  - Valid for F1 - Not for USA and CDN
                  from £3.71
                  from £3.71
                  # 011
                  MPN: 67970100
                  PLATE FOR GEAR CONTROL TONER
                  - Valid for F1 - Valid for USA and CDN
                  from £10.89
                  from £10.89
                  # 012
                  MPN: 66424000
                  PLATE GASKET
                  - Valid for F1
                  from £2.85
                  from £2.85
                  # 013
                  MPN: 16100814
                  NUT
                  - Valid for F1
                  from £0.71
                  from £0.71
                  # 014
                  MPN: 12625224
                  WASHER
                  - Valid for F1
                  from £0.53
                  from £0.53
                  This part replaces part number 12625221
                  # 015
                  MPN: 12601374
                  WASHER
                  - Valid for F1
                  from £0.54
                  from £0.54
