maserati 4200 coupe (2004) trunk hood bonnet and gas door parts diagram

115 - Trunk Hood Bonnet and Gas Door

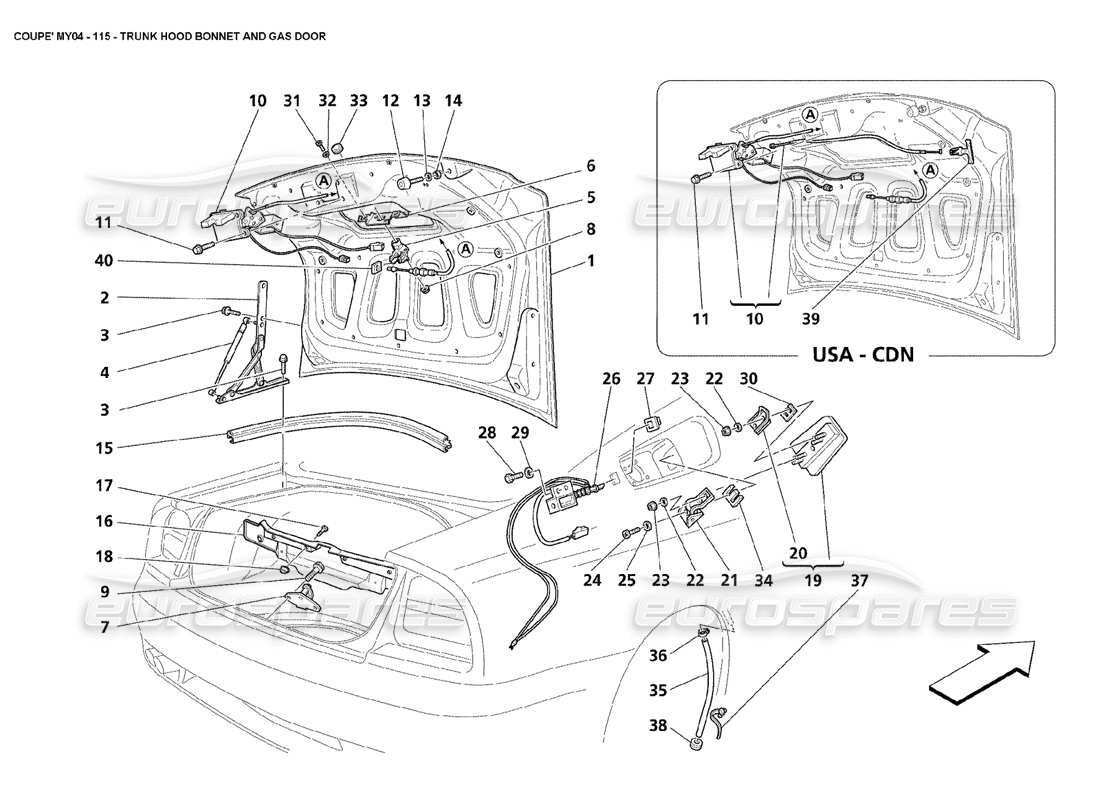

Maserati 4200 Coupe (2004) Trunk Hood Bonnet and Gas Door Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price

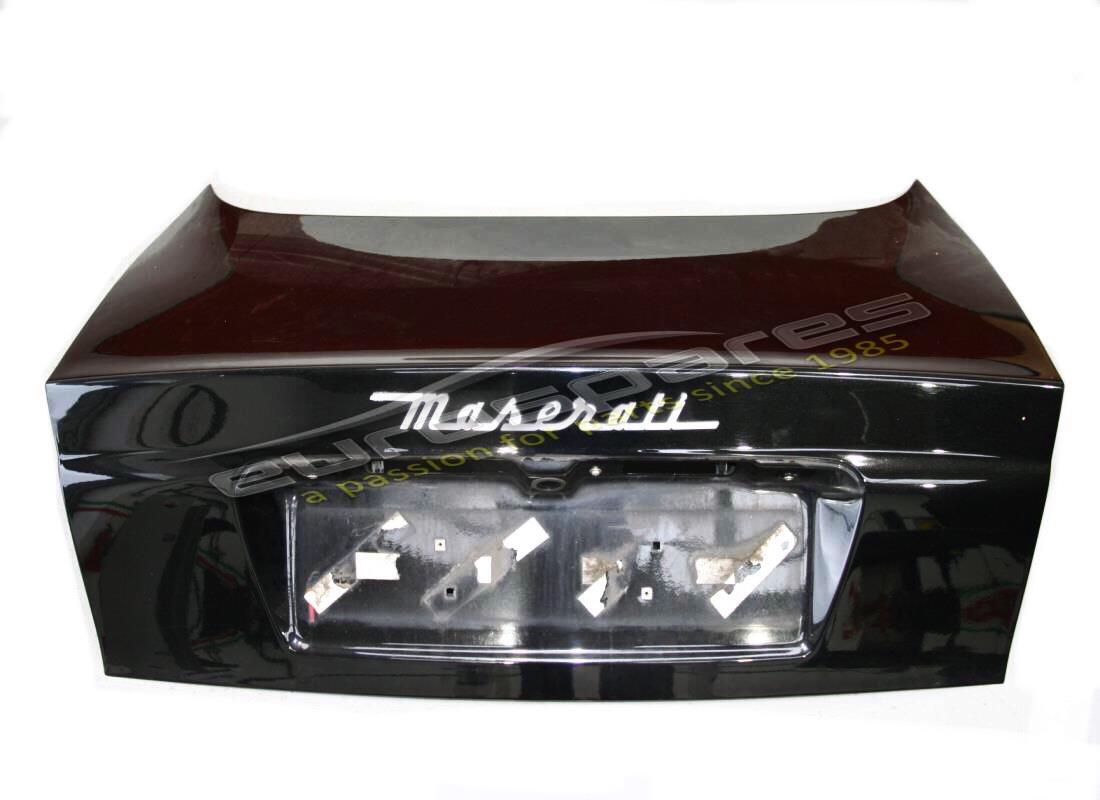

                                                                        # 001
                                                                        MPN: 67372600
                                                                        COMPLETE REAR DOOR
                                                                        - Not for USA and CDN
                                                                        from £2,356.15
                                                                        from £2,356.15
                                                                        This part replaces part number 66603300 - and 1 more. Click to view details
                                                                        # 001
                                                                        MPN: 67372700
                                                                        COMPLETE REAR DOOR
                                                                        - Valid for USA and CDN
                                                                        from £1,089.08
                                                                        from £1,089.08
                                                                        This part replaces part number 67026800
                                                                        # 002
                                                                        MPN: 384700105
                                                                        LH HINGE
                                                                        from £56.41
                                                                        from £56.41
                                                                        # 002
                                                                        MPN: 384700106
                                                                        RH HINGE
                                                                        from £56.41
                                                                        from £56.41
                                                                        # 003
                                                                        MPN: 82448954
                                                                        SCREW
                                                                        from £4.24
                                                                        from £4.24
                                                                        This part replaces part number 18770424
                                                                        # 004
                                                                        MPN: 384700118
                                                                        LUGGAGE COMPARTMENT STRUT
                                                                        from £53.83
                                                                        from £53.83

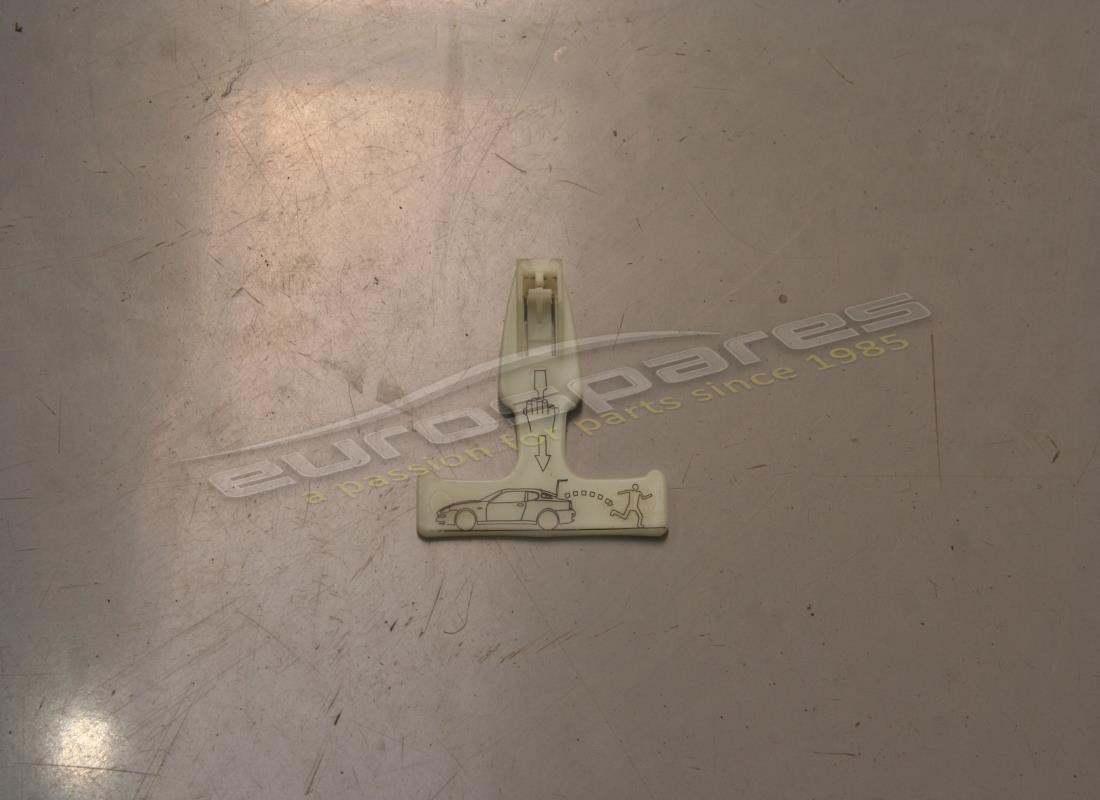

                                                                        # 005
                                                                        MPN: 82484270
                                                                        TRUNK HOOD OPENING CONTROL
                                                                        from £10.97
                                                                        from £10.97
                                                                        # 007
                                                                        MPN: 82487413
                                                                        BOOT LOCK STRIKER
                                                                        from £4.63
                                                                        from £4.63
                                                                        # 008
                                                                        MPN: 13046114
                                                                        NUT
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 009
                                                                        MPN: 10704324
                                                                        SCREW
                                                                        from £1.85
                                                                        from £1.85
                                                                        # 010
                                                                        MPN: 384700125
                                                                        COMPLETE BOOT LOCK BOWDEN CABLE
                                                                        - Not for USA and CDN -
                                                                        from £280.93
                                                                        from £280.93
                                                                        # 010
                                                                        MPN: 67554600
                                                                        COMPLETE BOOT LOCK BOWDEN CABLE
                                                                        - Valid for USA and CDN
                                                                        from £319.87
                                                                        from £319.87
                                                                        This part replaces part number 66914200 - and 2 more. Click to view details
                                                                        # 011
                                                                        MPN: 10704324
                                                                        SCREW
                                                                        from £1.85
                                                                        from £1.85
                                                                        # 012
                                                                        MPN: 60616619
                                                                        FLEXIBLE PAD
                                                                        from £3.59
                                                                        from £3.59
                                                                        # 013
                                                                        MPN: 11182277
                                                                        WASHER
                                                                        from £1.85
                                                                        from £1.85
                                                                        # 014
                                                                        MPN: 16102311
                                                                        NUT
                                                                        from £0.42
                                                                        from £0.42

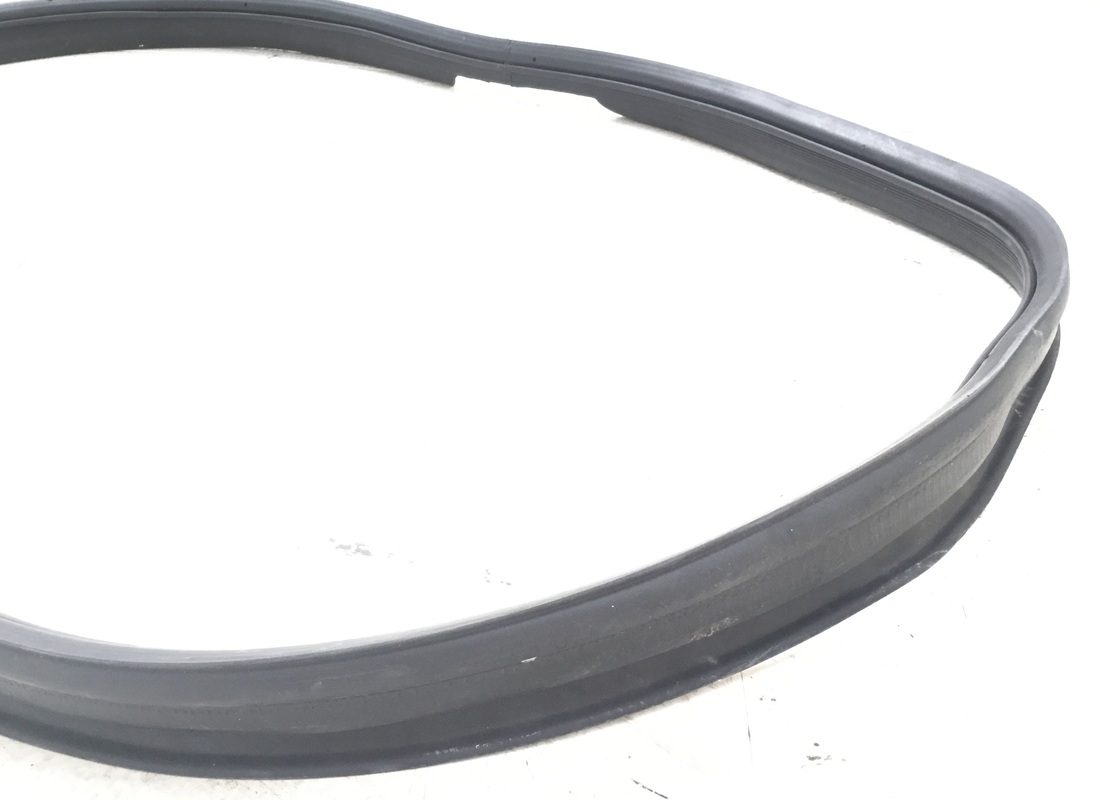

                                                                        # 015
                                                                        MPN: 68084300
                                                                        GASKET FOR TRUNK HOOD
                                                                        - Valid till stock exhaustion
                                                                        from £35.88
                                                                        from £35.88
                                                                        This part replaces part number 384700130 - and 1 more. Click to view details
                                                                        # 015
                                                                        MPN: 68084300
                                                                        GASKET FOR TRUNK HOOD
                                                                        - Valid after stock exhaustion of 384700130
                                                                        from £35.88
                                                                        from £35.88
                                                                        This part replaces part number 384700130 - and 1 more. Click to view details
                                                                        # 016
                                                                        MPN: 66244100
                                                                        REAR TRIM
                                                                        from £53.26
                                                                        from £53.26
                                                                        # 017
                                                                        MPN: 15783507
                                                                        SCREW
                                                                        from £1.11
                                                                        from £1.11
                                                                        # 018
                                                                        MPN: 7754387
                                                                        BLOCK
                                                                        Supersession
                                                                        Supersession
                                                                        # 019
                                                                        MPN: 382500050
                                                                        COMPLETE FUEL INLET LID
                                                                        See also 382501050
                                                                        from £91.25
                                                                        from £91.25

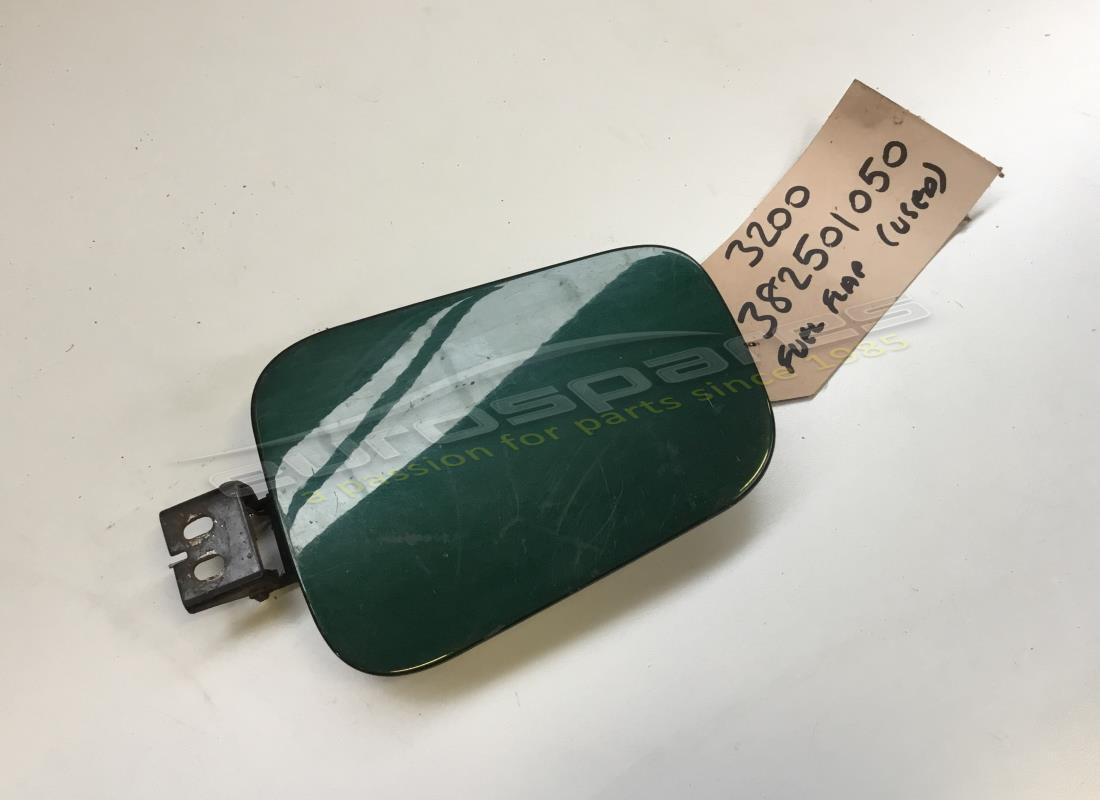

                                                                        # 019
                                                                        MPN: 382501050
                                                                        COMPLETE FUEL INLET LID
                                                                        from £78.75
                                                                        from £78.75
                                                                        This part replaces part number 382500050 which we have in stock - and 1 more. Click to view details
                                                                        # 020
                                                                        MPN: 67502500
                                                                        WIRE ROD
                                                                        from £11.82
                                                                        from £11.82
                                                                        # 021
                                                                        MPN: 382500201
                                                                        HINGE FOR GAS UNION DOOR
                                                                        from £35.41
                                                                        from £35.41
                                                                        # 022
                                                                        MPN: 12638104
                                                                        WASHER
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 023
                                                                        MPN: 14075611
                                                                        NUT
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 024
                                                                        MPN: 13283214
                                                                        SCREW
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 025
                                                                        MPN: 10519304
                                                                        WASHER
                                                                        from £0.85
                                                                        from £0.85
                                                                        This part replaces part number 14496304
                                                                        # 026
                                                                        MPN: 383300195
                                                                        FUEL INLET LID ACTUATOR
                                                                        from £69.22
                                                                        from £69.22
                                                                        # 027
                                                                        MPN: 388100355
                                                                        RUBBER
                                                                        from £6.81
                                                                        from £6.81
                                                                        # 028
                                                                        MPN: 10977624
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 029
                                                                        MPN: 135600050
                                                                        WASHER
                                                                        from £0.84
                                                                        from £0.84
                                                                        # 030
                                                                        MPN: 382500554
                                                                        ADJUSTING PLATE
                                                                        from £2.85
                                                                        from £2.85
                                                                        This part replaces part number 66193600
                                                                        # 031
                                                                        MPN: 13283514
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 032
                                                                        MPN: 12642801
                                                                        WASHER
                                                                        from £0.54
                                                                        from £0.54
                                                                        # 033
                                                                        MPN: 82484271
                                                                        GASKET
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 034
                                                                        MPN: 66919100
                                                                        SHIMMING PLATE
                                                                        from £1.93
                                                                        from £1.93
                                                                        # 035
                                                                        MPN: 388100356
                                                                        LIQUID OUTLET HOSE
                                                                        from £3.24
                                                                        from £3.24
                                                                        # 036
                                                                        MPN: 13000290
                                                                        SCREW COLLAR
                                                                        from £0.56
                                                                        from £0.56

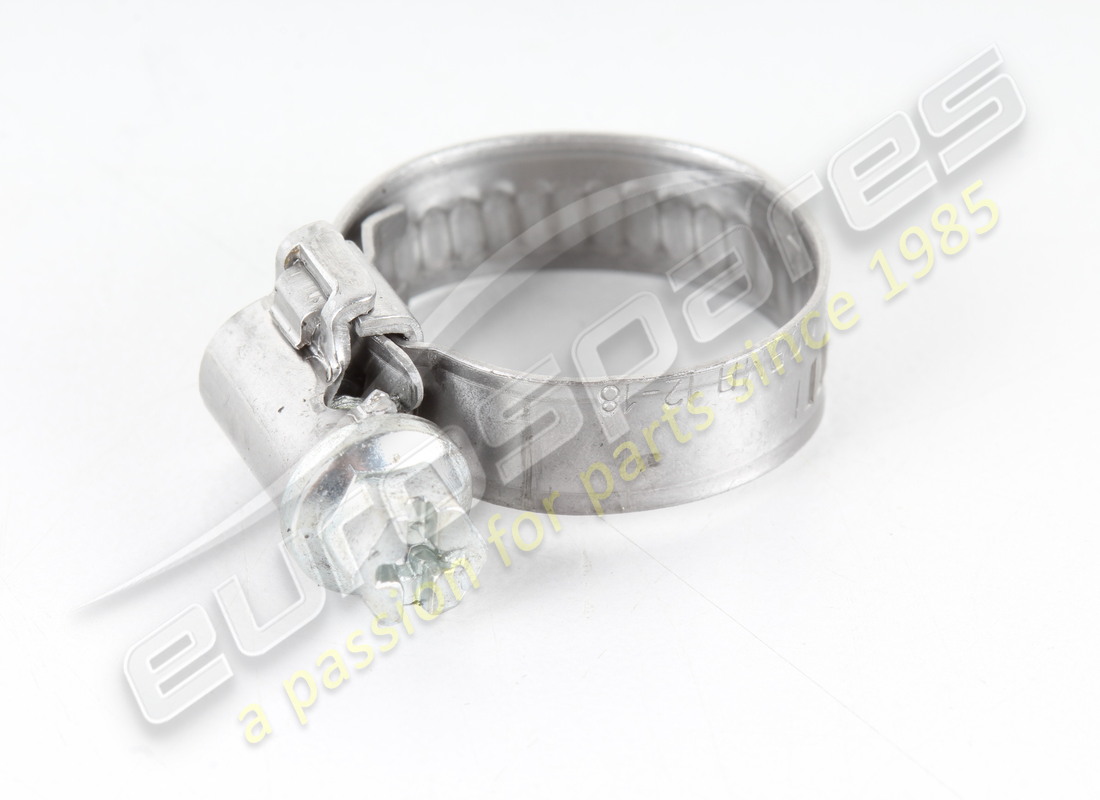

                                                                        # 037
                                                                        MPN: 7601962
                                                                        CLAMP
                                                                        Supersession
                                                                        Supersession
                                                                        # 038
                                                                        MPN: 53241312
                                                                        CABLE BUSHING
                                                                        from £1.09
                                                                        from £1.09
                                                                        # 039
                                                                        MPN: 67232100
                                                                        HANDLE
                                                                        - Valid for USA and CDN
                                                                        from £12.47
                                                                        from £12.47
                                                                        # 040
                                                                        MPN: 67587700
                                                                        NUT
                                                                        from £3.16
                                                                        from £3.16
