maserati 4200 coupe (2004) rear seat and seat belt parts diagram

122 - Rear Seat and Seat Belt

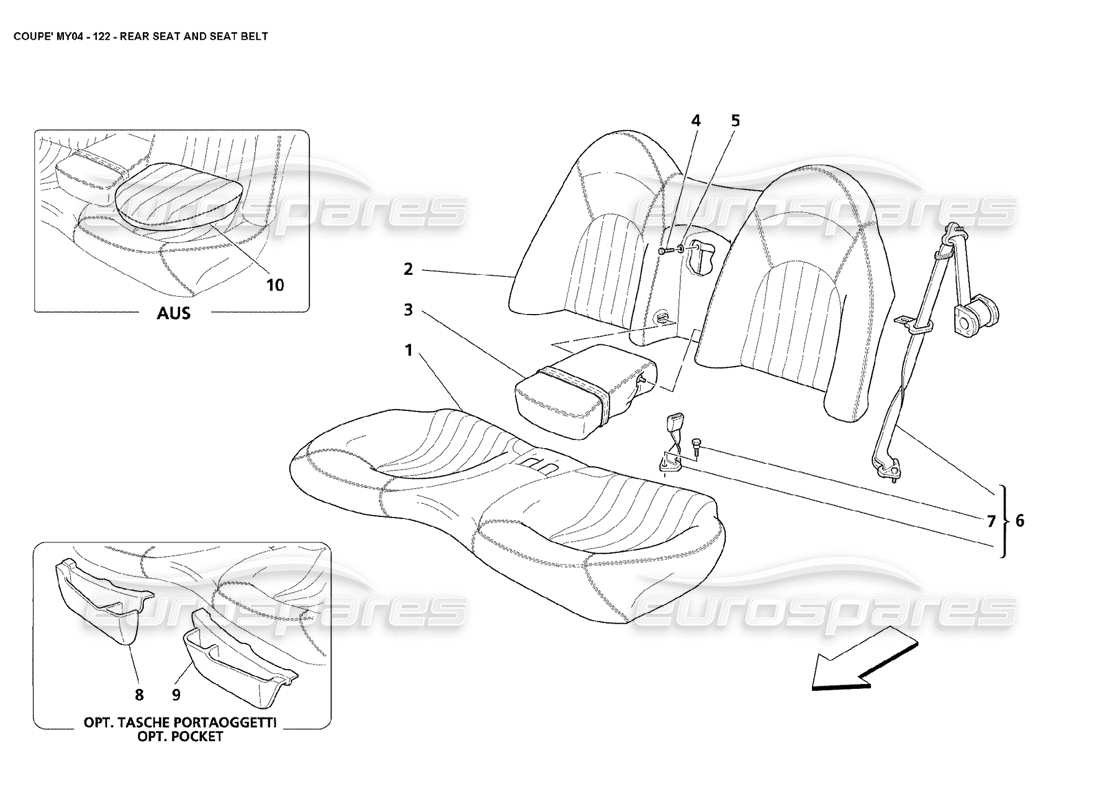

Maserati 4200 Coupe (2004) Rear Seat and Seat Belt Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 675134..
          COMPLETE REAR SEAT CUSHION
          - Optional - Leather drilled
          Supersession
          Supersession
          # 001
          MPN: 9812030..
          COMPLETE REAR SEAT CUSHION
          - Standard
          Supersession
          Supersession
          # 002
          MPN: 675135..
          COMPLETE REAR SEAT BACK
          - Optional - Leather drilled - REST
          Supersession
          Supersession
          # 002
          MPN: 9812031..
          COMPLETE REAR SEAT BACK
          - Standard
          Supersession
          Supersession
          # 003
          MPN: 9812032..
          COMPLETE REAR ARM
          Supersession
          Supersession
          # 004
          MPN: 16288321
          SCREW
          from £0.53
          from £0.53
          # 005
          MPN: 12646821
          WASHER
          from £0.53
          from £0.53
          # 006
          MPN: 66193900
          COMPLETE SEAT BELT
          - Valid for USA and CDN
          from £100.35
          from £100.35
          # 006
          MPN: 66311700
          COMPLETE SEAT BELT
          - Not for USA and CDN
          from £84.21
          from £84.21
          # 007
          MPN: 66414600
          SCREW
          from £1.84
          from £1.84
          This part replaces part number 80521300
          # 008
          MPN: 388300292
          RH REAR POCKET
          - Optional - Pockets - Specify the color in the order
          from £432.70
          from £432.70
          # 009
          MPN: 388300293
          LH REAR POCKET
          - Optional - Pockets - Specify the color in the order
          from £432.70
          from £432.70
          # 010
          MPN: 675071..
          CUSHION
          - Valid for AUS
          Supersession
          Supersession
          # 010
          MPN: 675072..
          CUSHION
          - Valid for AUS
          Supersession
          Supersession
