maserati 4200 coupe (2004) air conditioning system parts diagram

144 - air conditioning system

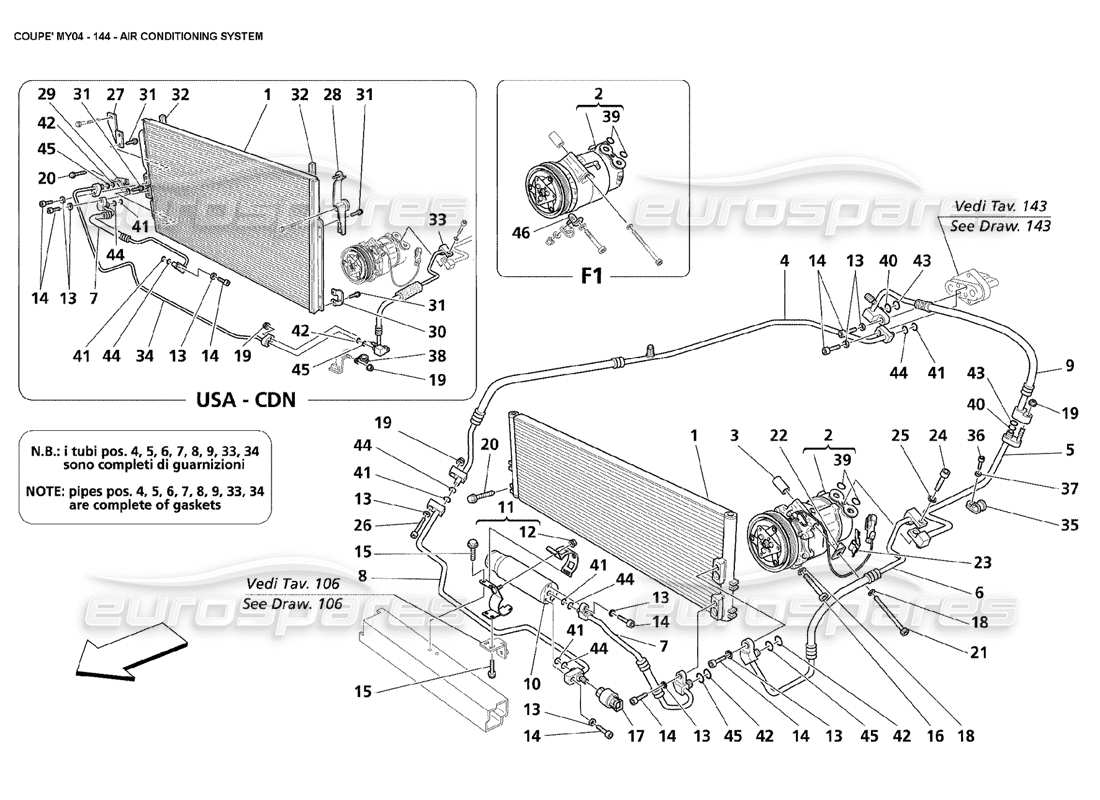

Maserati 4200 Coupe (2004) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 181106
                                                A.C. CONDENSER
                                                - Not for USA and CDN
                                                from £430.17
                                                from £430.17
                                                # 001
                                                MPN: 189215
                                                A.C. CONDENSER
                                                - Valid for USA and CDN
                                                from £393.25
                                                from £393.25
                                                This part replaces part number 193547
                                                # 002
                                                MPN: 183309
                                                AIR CONDITIONING COMPRESSOR
                                                - Not for F1, Sanden Version
                                                from £1,789.07
                                                from £1,789.07
                                                # 002
                                                MPN: 263172
                                                AIR CONDITIONING COMPRESSOR
                                                Delphi Version
                                                from £703.38
                                                from £703.38
                                                This part replaces part number 242595
                                                # 004
                                                MPN: 66244200
                                                PIPE FROM UNION TO EVAPORATOR
                                                - Not for GD
                                                from £146.18
                                                from £146.18
                                                # 004
                                                MPN: 66765700
                                                PIPE FROM UNION TO EVAPORATOR
                                                - Valid for GD
                                                from £100.14
                                                from £100.14
                                                # 005
                                                MPN: 67028000
                                                PIPE FROM UNION TO COMPRESSOR
                                                - Not for F1
                                                from £64.30
                                                from £64.30
                                                # 005
                                                MPN: 67813600
                                                PIPE FROM UNION TO COMPRESSOR
                                                - Valid for F1
                                                from £36.27
                                                from £36.27
                                                # 006
                                                MPN: 66707600
                                                PIPE FROM COMPRESSOR TO CONDENSER
                                                - Not for USA and CDN - Not for F1
                                                from £209.39
                                                from £209.39
                                                # 006
                                                MPN: 67813400
                                                PIPE FROM COMPRESSOR TO CONDENSER
                                                - Not for USA and CDN - Valid for F1
                                                from £74.72
                                                from £74.72
                                                # 007
                                                MPN: 66063100
                                                PIPE FROM CONDENSER TO FILTER
                                                - Not for USA and CDN
                                                from £107.66
                                                from £107.66
                                                # 007
                                                MPN: 67193700
                                                PIPE FROM CONDENSER TO FILTER
                                                - Valid for USA and CDN
                                                from £102.18
                                                from £102.18
                                                # 008
                                                MPN: 66063200
                                                PIPE FROM FILTER TO UNION
                                                - Not for GD
                                                from £44.57
                                                from £44.57
                                                # 008
                                                MPN: 66765800
                                                PIPE FROM FILTER TO UNION
                                                - Valid for GD
                                                from £74.41
                                                from £74.41
                                                # 009
                                                MPN: 66063300
                                                PIPE FROM EVAPORATOR TO UNION
                                                - Not for GD
                                                from £55.30
                                                from £55.30
                                                # 009
                                                MPN: 66722700
                                                PIPE FROM EVAPORATOR TO UNION
                                                - Valid for GD
                                                from £71.35
                                                from £71.35
                                                # 010
                                                MPN: 67110900
                                                DEHYDRATING FILTER
                                                from £41.04
                                                from £41.04
                                                This part replaces part number 385500174 - and 1 more. Click to view details
                                                # 011
                                                MPN: 66247100
                                                COMPLETE DEHYDRATING FILTER SUPPORT BRACKET
                                                from £7.69
                                                from £7.69
                                                This part replaces part number 66247200 - and 1 more. Click to view details
                                                # 013
                                                MPN: 12601274
                                                WASHER
                                                from £0.52
                                                from £0.52
                                                This part replaces part number 12601270
                                                # 014
                                                MPN: 14305424
                                                SCREW
                                                from £0.50
                                                from £0.50
                                                # 015
                                                MPN: 11612626
                                                SCREW
                                                from £2.47
                                                from £2.47
                                                # 016
                                                MPN: 14307124
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 017
                                                MPN: 46476438
                                                PRESSOSTAT
                                                from £42.82
                                                from £42.82
                                                # 018
                                                MPN: 11193874
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                # 019
                                                MPN: 14059214

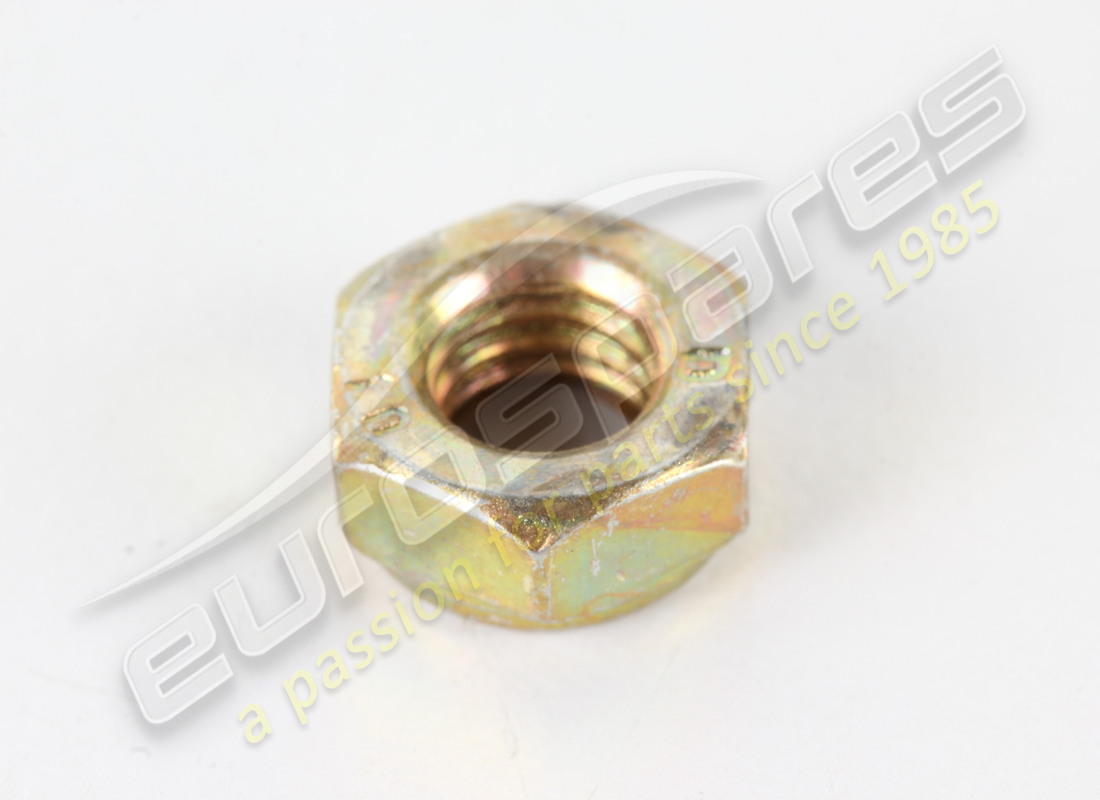

                                                NUT M6
                                                - (Quantity 3 for cars USA and CDN)
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12578121
                                                # 020
                                                MPN: 15698204
                                                SCREW
                                                - Not for USA and CDN
                                                from £1.31
                                                from £1.31
                                                # 020
                                                MPN: 15699804
                                                SCREW
                                                - Valid for USA and CDN
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 15534501
                                                # 021
                                                MPN: 175428
                                                SCREW
                                                from £1.04
                                                from £1.04
                                                # 022
                                                MPN: 185556
                                                CABLES FIXING BRACKET
                                                - Not for F1
                                                from £1.55
                                                from £1.55
                                                # 023
                                                MPN: 155978
                                                CLIP
                                                - Not for F1
                                                from £0.54
                                                from £0.54
                                                # 025
                                                MPN: 11198579
                                                WASHER
                                                from £1.08
                                                from £1.08
                                                # 026
                                                MPN: 14305821
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 027
                                                MPN: 193551
                                                RH UPPER BRACKET
                                                - Valid for USA and CDN
                                                from £4.63
                                                from £4.63
                                                # 028
                                                MPN: 193552
                                                LH UPPER BRACKET
                                                - Valid for USA and CDN
                                                from £16.31
                                                from £16.31
                                                # 029
                                                MPN: 193553
                                                RH LOWER BRACKET
                                                - Valid for USA and CDN
                                                from £3.63
                                                from £3.63
                                                # 030
                                                MPN: 193554
                                                LH LOWER BRACKET
                                                - Valid for USA and CDN
                                                from £3.63
                                                from £3.63
                                                # 031
                                                MPN: 165137
                                                SCREW
                                                - Valid for USA and CDN
                                                from £1.31
                                                from £1.31
                                                # 032
                                                MPN: 193556
                                                RUBBER PROFILE
                                                - Valid for USA and CDN
                                                from £1.55
                                                from £1.55
                                                # 033
                                                MPN: 67193500
                                                PIPE FROM COMPRESSOR TO UNION
                                                - Valid for USA and CDN - Not for F1
                                                from £370.14
                                                from £370.14
                                                # 033
                                                MPN: 67813500
                                                PIPE FROM COMPRESSOR TO UNION
                                                - Valid for USA and CDN - Valid for F1
                                                from £53.60
                                                from £53.60
                                                # 034
                                                MPN: 67193600
                                                PIPE FROM UNION TO CONDENSER
                                                - Valid for USA and CDN
                                                from £190.14
                                                from £190.14
                                                # 035
                                                MPN: 10441590
                                                BRACKET WITH SHEATH
                                                from £0.53
                                                from £0.53
                                                # 036
                                                MPN: 14433124
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 037
                                                MPN: 127494
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                # 038
                                                MPN: 10441690
                                                BRACKET WITH SHEATH
                                                from £1.08
                                                from £1.08
                                                # 039
                                                MPN: 194993
                                                O.R. GASKET
                                                from £12.68
                                                from £12.68
                                                # 040
                                                MPN: 67641500
                                                O.R. GASKET
                                                from £2.32
                                                from £2.32
                                                # 041
                                                MPN: 67641000
                                                O.R. GASKET
                                                - (Quantity 5 for cars USA and CDN)
                                                from £2.32
                                                from £2.32
                                                # 042
                                                MPN: 67641100
                                                O.R. GASKET
                                                from £2.32
                                                from £2.32
                                                # 043
                                                MPN: 67641200
                                                O.R. GASKET
                                                from £2.85
                                                from £2.85
                                                # 044
                                                MPN: 67641300
                                                O.R. GASKET
                                                - (Quantity 5 for cars USA and CDN)
                                                from £1.93
                                                from £1.93
                                                # 045
                                                MPN: 67641400
                                                O.R. GASKET
                                                from £2.32
                                                from £2.32
                                                # 046
                                                MPN: 149694
                                                BRACKET
                                                - Valid for F1
                                                from £3.84
                                                from £3.84
