maserati 4200 coupe (2005) exhaust system -variations for usa and cdn- parts diagram

015 - Exhaust System -Variations for USA and CDN-

Maserati 4200 Coupe (2005) Exhaust System -Variations for USA and CDN- Parts Diagram

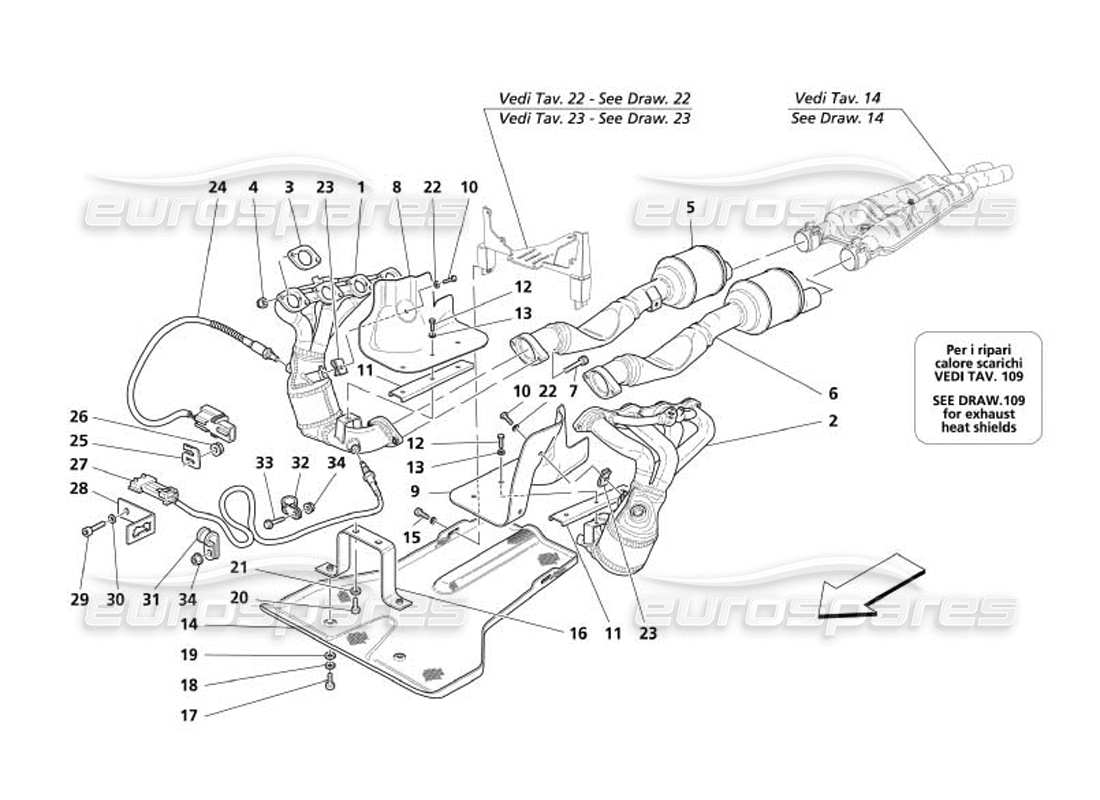

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 188103
                                                                    RH EXHAUST MANIFOLD
                                                                    from £1,502.54
                                                                    from £1,502.54
                                                                    # 002
                                                                    MPN: 188102
                                                                    LH EXHAUST MANIFOLD
                                                                    from £1,291.19
                                                                    from £1,291.19
                                                                    # 003
                                                                    MPN: 182868
                                                                    GASKET
                                                                    Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
                                                                    from £2.84
                                                                    from £2.84
                                                                    # 004
                                                                    MPN: 138392
                                                                    NUT
                                                                    from £0.58
                                                                    from £0.58
                                                                    # 005

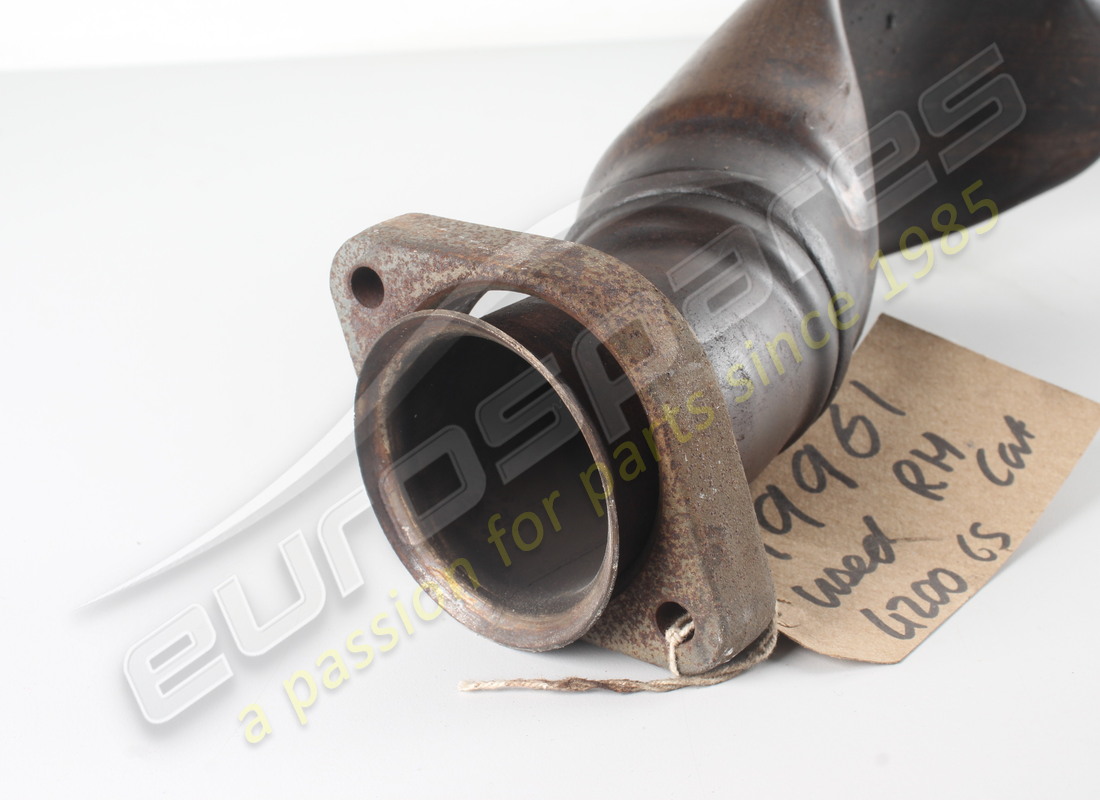

                                                                    MPN: 199961
                                                                    RH CATALYST
                                                                    from £587.54
                                                                    from £587.54
                                                                    # 006
                                                                    MPN: 199962
                                                                    LH CATALYST
                                                                    from £557.53
                                                                    from £557.53
                                                                    # 007
                                                                    MPN: 195285
                                                                    SCREW
                                                                    from £7.70
                                                                    from £7.70
                                                                    This part replaces part number 14306934
                                                                    # 008
                                                                    MPN: 190192
                                                                    RH UNDERMOTOR SHIELD
                                                                    from £12.71
                                                                    from £12.71
                                                                    # 009
                                                                    MPN: 190122
                                                                    LH UNDERMOTOR SHIELD
                                                                    from £12.71
                                                                    from £12.71
                                                                    # 010
                                                                    MPN: 10902124
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 011
                                                                    MPN: 191320
                                                                    BRACKET
                                                                    from £11.76
                                                                    from £11.76
                                                                    # 012
                                                                    MPN: 10902124
                                                                    SCREW
                                                                    from £0.50
                                                                    from £0.50
                                                                    # 013
                                                                    MPN: 12620474
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 014
                                                                    MPN: 190270
                                                                    UNDER EXHAUST SHIELD
                                                                    from £221.59
                                                                    from £221.59
                                                                    # 015
                                                                    MPN: 10902024
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 016
                                                                    MPN: 190271
                                                                    BRACKET
                                                                    from £31.24
                                                                    from £31.24
                                                                    # 017
                                                                    MPN: 14305724
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 018
                                                                    MPN: 12639724
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 019
                                                                    MPN: 12601274
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12601270
                                                                    # 020
                                                                    MPN: 16043224
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 021
                                                                    MPN: 14496524
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 022
                                                                    MPN: 12639724
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 023
                                                                    MPN: 66704600
                                                                    CLIP
                                                                    from £1.93
                                                                    from £1.93
                                                                    # 025
                                                                    MPN: 175856
                                                                    CONNECTORS FIXING BRACKET
                                                                    from £1.19
                                                                    from £1.19
                                                                    This part replaces part number 155752
                                                                    # 027
                                                                    MPN: 191412
                                                                    REAR LAMBDA FEELER
                                                                    from £104.94
                                                                    from £104.94
                                                                    # 028
                                                                    MPN: 178366
                                                                    CONNECTORS FIXING BRACKET
                                                                    from £2.31
                                                                    from £2.31
                                                                    # 029
                                                                    MPN: 14305724
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 030
                                                                    MPN: 11197774
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 031
                                                                    MPN: 10441590
                                                                    BRACKET WITH SHEATH
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 032
                                                                    MPN: 67190200
                                                                    BRACKET WITH SHEATH
                                                                    from £1.33
                                                                    from £1.33
                                                                    # 033
                                                                    MPN: 16296924
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 034
                                                                    MPN: 67190100
                                                                    NUT
                                                                    from £1.07
                                                                    from £1.07
