maserati 4200 coupe (2005) water-oil pump parts diagram

018 - Water-Oil Pump

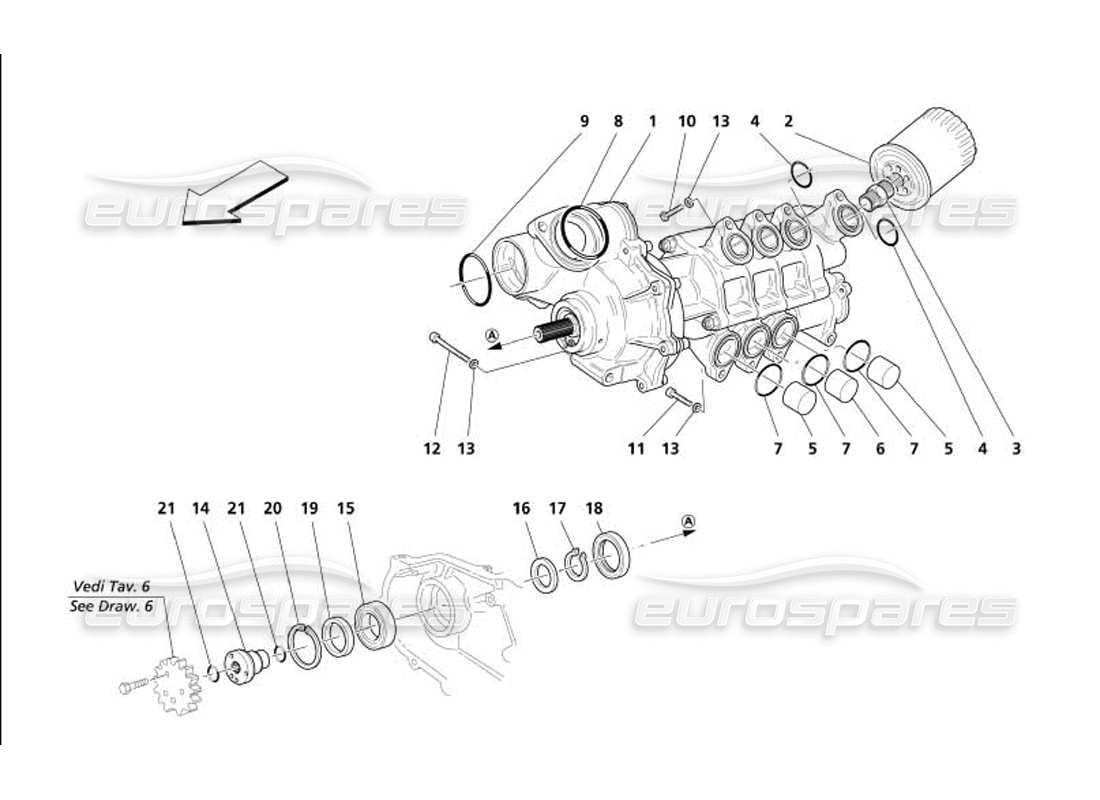

Maserati 4200 Coupe (2005) Water-Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 202976
                              COMPLETE WATER AND OIL PUMP
                              Valid for USA and CDN
                              from £1,495.25
                              from £1,495.25
                              This part replaces part number 194460
                              # 001
                              MPN: 213259
                              COMPLETE WATER AND OIL PUMP
                              Not for USA and CDN
                              from £2,404.36
                              from £2,404.36
                              This part replaces part number 194458
                              # 002
                              MPN: 188814
                              OIL FILTER CARTRIDGE
                              from £20.49
                              from £20.49
                              This part replaces part number 130623
                              # 003
                              MPN: 177604
                              THREADED UNION
                              from £7.47
                              from £7.47
                              # 004
                              MPN: 133938
                              O.R. GASKET
                              Supplied also in the crankcasegasket revision kit (cod. 980020004)
                              from £0.47
                              from £0.47
                              This part replaces part number 166655
                              # 005
                              MPN: 187051
                              LATERAL OIL RECOVERY FILTER
                              from £10.46
                              from £10.46
                              # 006
                              MPN: 187162
                              CENTRAL OIL RECOVERY FILTER
                              from £16.03
                              from £16.03
                              # 007
                              MPN: 148225
                              O.R. GASKET
                              Supplied also in the crankcasegasket revision kit (cod. 980020004)
                              from £0.53
                              from £0.53
                              # 008
                              MPN: 132829
                              O.R. GASKET
                              Supplied also in the crankcasegasket revision kit (cod. 980020004)
                              from £0.74
                              from £0.74
                              # 009
                              MPN: 141250
                              O.R. GASKET
                              from £0.54
                              from £0.54
                              # 010
                              MPN: 185345
                              SCREW
                              M 8X25
                              from £1.47
                              from £1.47
                              # 011
                              MPN: 14306424
                              SCREW
                              M 8X25
                              from £0.47
                              from £0.47
                              This part replaces part number 14306421
                              # 011
                              MPN: 14306524
                              SCREW
                              M 8X30
                              from £0.47
                              from £0.47
                              This part replaces part number 14306521
                              # 012
                              MPN: 14359324
                              SCREW
                              M 8X65
                              from £0.53
                              from £0.53
                              # 013
                              MPN: 11198074
                              WASHER
                              from £0.47
                              from £0.47
                              # 014
                              MPN: 189778
                              COUPLING
                              from £17.93
                              from £17.93
                              # 015
                              MPN: 155996
                              BALL BEARING
                              from £6.51
                              from £6.51
                              # 017
                              MPN: 11067276
                              SEEGER RING
                              from £0.53
                              from £0.53
                              # 018
                              MPN: 121276
                              OIL SEAL
                              from £10.09
                              from £10.09
                              # 020
                              MPN: 11381076
                              SEEGER RING
                              from £0.81
                              from £0.81
                              # 021
                              MPN: 186272
                              O.R. GASKET
                              from £0.47
                              from £0.47
