102 - boby - rear outer trims

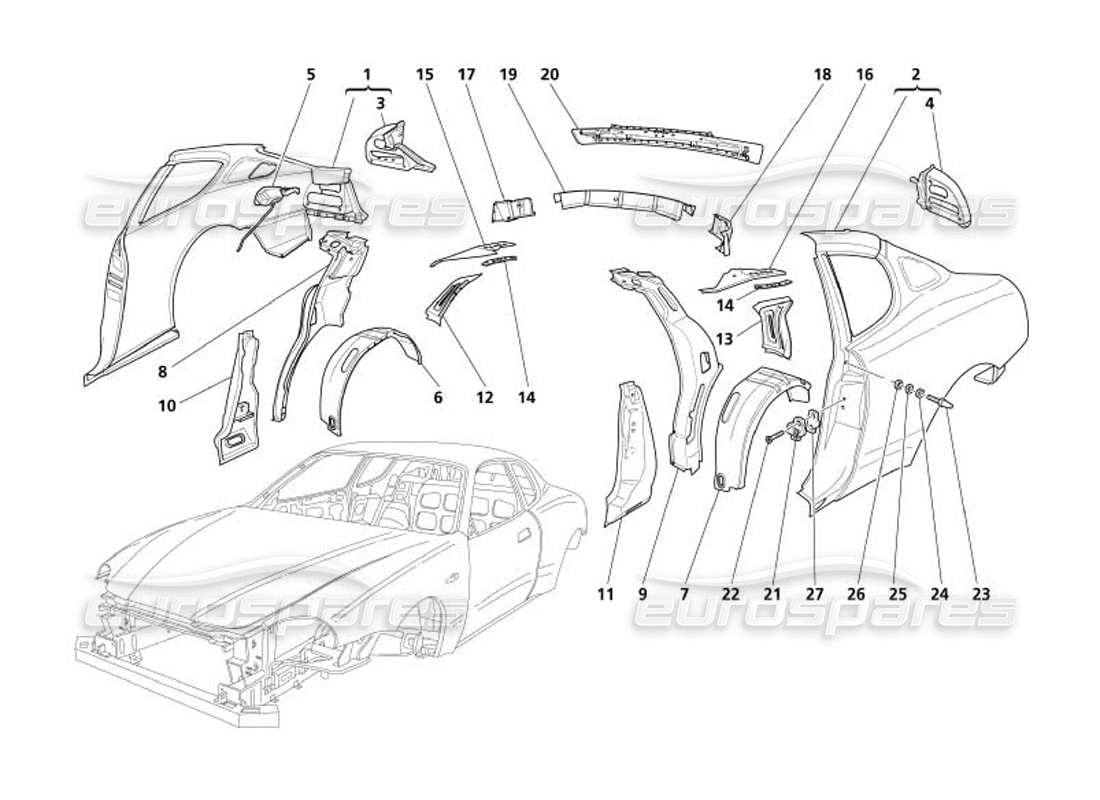

Maserati 4200 Coupe (2005) Boby - Rear Outer Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980138016
COMPLETE RH REAR FENDER
from £4,291.36
from £4,291.36
# 002
MPN: 980138015
COMPLETE LH REAR FENDER
from £4,291.36
from £4,291.36
# 003
MPN: 980138022
RH REAR LIGHT FRAME
from £1,070.39
from £1,070.39
# 004
MPN: 980138021
LH REAR LIGHT FRAME
from £1,070.39
from £1,070.39
# 005
MPN: 382500051
COMPLETE FUEL UNION SEAT
from £243.83
from £243.83
# 006
MPN: 382500406
RH OUTER REAR WHEEL HOUSE
from £987.88
from £987.88
# 007
MPN: 382500405
LH OUTER REAR WHELL HOUSE
from £987.88
from £987.88
# 008
MPN: 382500404
RH INNER LATERAL FRAME
from £187.71
from £187.71
# 009
MPN: 382500403
LH INNER LATERAL FRAME
from £187.71
from £187.71
# 010
MPN: 980138014
RH CENTRAL ROD
from £186.86
from £186.86
# 011
MPN: 980138013
LH CENTRAL ROD
from £186.86
from £186.86
# 012
MPN: 382500412
INSERT FOR RH REAR INNER SIDE
from £22.95
from £22.95
# 013
MPN: 382500411
INSERT FOR LH REAR INNER SIDE
from £24.82
from £24.82
# 014
MPN: 82431114
COMPLETE PLATE
from £0.93
from £0.93
# 015
MPN: 382500382
RH REINFORCEMENT FOR TRUNK HOOD HINGE FIXING
from £26.36
from £26.36
# 016
MPN: 382500381
LH REINFORCEMENT FOR TRUNK HOOD HINGE FIXING
from £26.36
from £26.36
# 017
MPN: 382500392
RH LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE
from £17.55
from £17.55
# 018
MPN: 382500391
LH LATERAL INSERT FOR UNDER REAR-WINDOW CROSSPIECE
from £234.96
from £234.96
# 019
MPN: 382500380
TRUNK CENTRAL RACEWAY
from £109.83
from £109.83
# 020
MPN: 66499200
COMPLETE REAR CROSS MEMBER
from £927.42
from £927.42
This part replaces part number 381700228
# 021
MPN: 82487460
DOORS LOCK STRIKER
from £3.75
from £3.75
# 022
MPN: 7789185
SPECIAL SCREW
from £1.31
from £1.31
# 023
MPN: 60593447
CENTERING PIN
from £20.11
from £20.11
# 024
MPN: 12646707
WASHER
from £0.85
from £0.85
# 025
MPN: 12647004
WASHER
from £1.08
from £1.08
# 026
MPN: 60623675
THREADED BUSHING
from £2.85
from £2.85
# 027
MPN: 67235900
THICKNESS
Possible fitting
from £3.24
from £3.24
