111 - Inner Covering - Central and Front Post Covering - Side Rail Cover

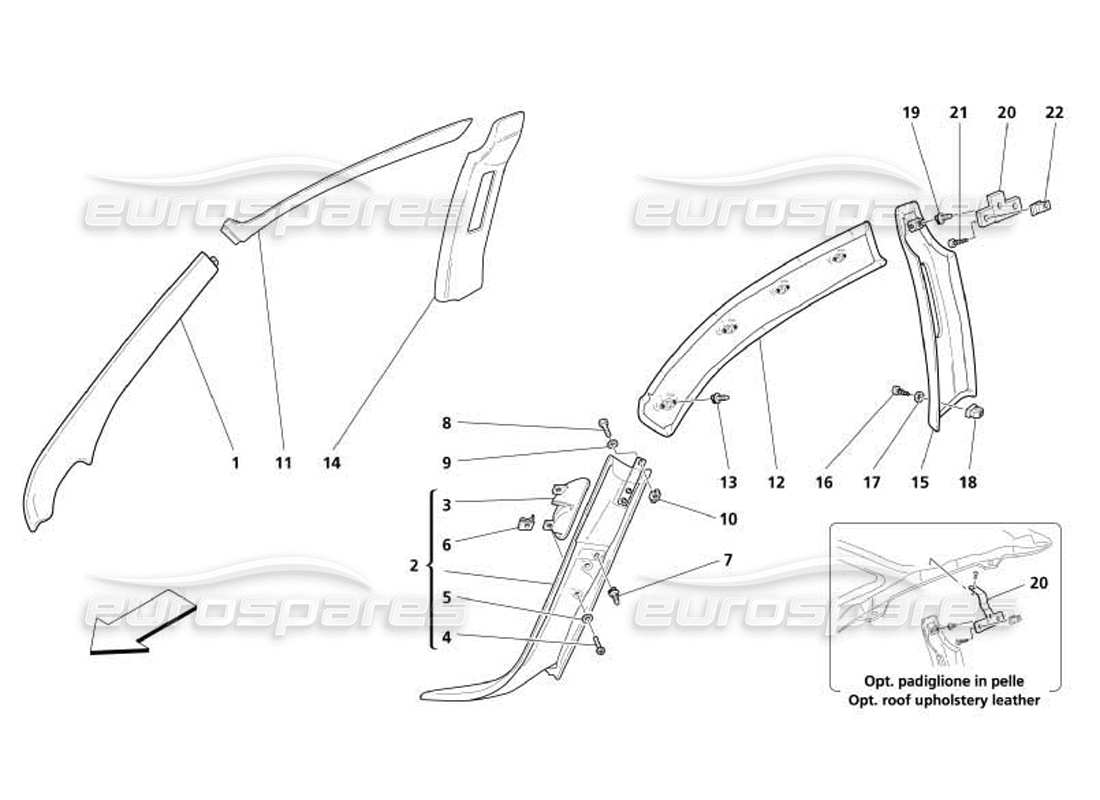

Maserati 4200 Coupe (2005) Inner Covering - Central and Front Post Covering - Side Rail Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 9812102..
COMPLETE FRONT RH POST COVERING
For order specify car number
Supersession
Supersession
# 002
MPN: 9812101..
COMPLETE FRONT LH POST COVERING
For order specify car number
Supersession
Supersession
# 003
MPN: 388300607
LH AIR DIFFUSER
Supersession
Supersession
This part replaces part number 388300647
# 003
MPN: 388300608
RH AIR DIFFUSER
Supersession
Supersession
This part replaces part number 388300648
# 004
MPN: 15901401
SCREW
from £0.47
from £0.47
# 005
MPN: 12639901
WASHER
from £0.53
from £0.53
# 006
MPN: 14368871
FIXING CLIP
from £3.24
from £3.24
# 007
MPN: 14188181
RETAINER
from £0.51
from £0.51
# 008
MPN: 10977724
SCREW
from £0.53
from £0.53
# 009
MPN: 12620374
WASHER
from £0.53
from £0.53
# 010
MPN: 14647490
NUT WITH CAGE
from £0.53
from £0.53
# 011
MPN: 981210402
RH LATERAL SIDE RAIL COVER
(Ivory colour)
from £178.48
from £178.48
# 012
MPN: 981210300
LH LATERAL SIDE RAIL COVER
from £178.48
from £178.48
# 013
MPN: 14188181
RETAINER
from £0.48
from £0.48
# 014
MPN: 9812106..
RH CENTRAL POST COVERING
Supersession
Supersession
# 015
MPN: 9812105..
LH CENTRAL POST COVERING
Supersession
Supersession
# 016
MPN: 12678707
SCREW
from £1.08
from £1.08
# 017
MPN: 388300580
WASHER
from £4.57
from £4.57
This part replaces part number 13336207
# 018
MPN: 7622606
BLOCK
from £0.69
from £0.69
# 019
MPN: 14188181
RETAINER
from £0.51
from £0.51
# 020
MPN: 388300387
LH BRACKET
Valid for cars with Leatherroof upholstery
from £5.09
from £5.09
# 020
MPN: 388300388
RH BRACKET
Valid for cars with Leatherroof upholstery
from £5.09
from £5.09
# 020
MPN: 66669400
RH BRACKET
Not for cars with Leatherroof upholstery
from £3.63
from £3.63
# 020
MPN: 66669500
LH BRACKET
Not for cars with Leatherroof upholstery
from £3.63
from £3.63
# 021
MPN: 15784101
SCREW
from £1.08
from £1.08
# 022
MPN: 14211686
BLOCK
from £0.47
from £0.47
