maserati 4200 coupe (2005) engine bonnet and opening device parts diagram

114 - Engine Bonnet and Opening Device

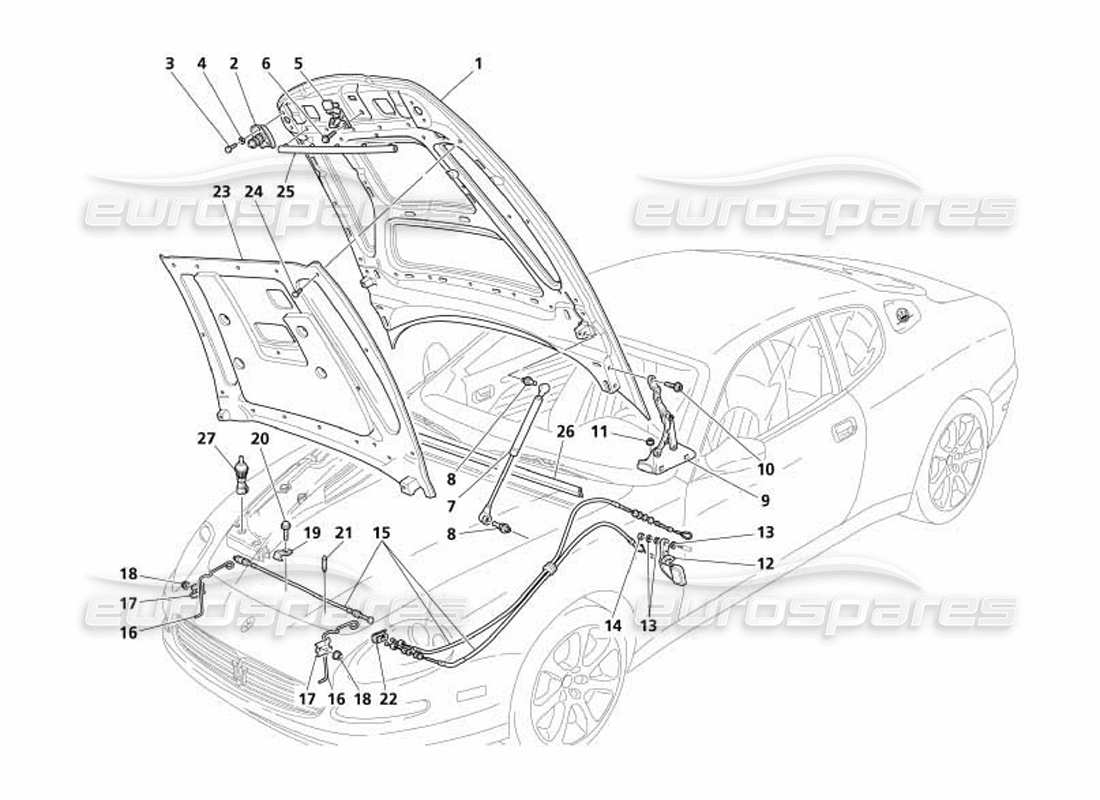

Maserati 4200 Coupe (2005) Engine Bonnet and Opening Device Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 65966300
                                                      ENGINE HOOD BONNET
                                                      from £1,049.93
                                                      from £1,049.93
                                                      # 002
                                                      MPN: 60608477
                                                      ENGINE BONNET LOCK
                                                      from £31.45
                                                      from £31.45
                                                      # 003
                                                      MPN: 16132324
                                                      SCREW
                                                      from £0.51
                                                      from £0.51
                                                      # 004
                                                      MPN: 12647724
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 005
                                                      MPN: 67119900
                                                      SAFETY HOOK FOR BONNET
                                                      from £3.75
                                                      from £3.75
                                                      # 006
                                                      MPN: 11730624
                                                      SCREW
                                                      from £0.54
                                                      from £0.54
                                                      # 007
                                                      MPN: 384300122
                                                      ENGINE COVER STRUT
                                                      from £49.68
                                                      from £49.68
                                                      # 008
                                                      MPN: 384300322
                                                      BALL PIN
                                                      from £8.27
                                                      from £8.27
                                                      # 009
                                                      MPN: 384300115
                                                      LH HINGE
                                                      from £128.62
                                                      from £128.62
                                                      # 009
                                                      MPN: 384300116
                                                      RH HINGE
                                                      from £128.62
                                                      from £128.62
                                                      # 010
                                                      MPN: 18770424
                                                      SCREW
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 14300924
                                                      # 011
                                                      MPN: 13046314
                                                      NUT
                                                      from £0.53
                                                      from £0.53
                                                      # 012
                                                      MPN: 156016380
                                                      COMPLETE HANDLE FOR ENGINE BONNET OPENING
                                                      from £7.22
                                                      from £7.22
                                                      # 013
                                                      MPN: 46411398
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      # 014
                                                      MPN: 14059311
                                                      NUT
                                                      from £0.54
                                                      from £0.54
                                                      # 015
                                                      MPN: 66070800
                                                      TIE ROD KIT FOR FRONT HOOD OPENING
                                                      Not for GD
                                                      from £76.67
                                                      from £76.67
                                                      # 015
                                                      MPN: 66721700
                                                      TIE ROD KIT FOR FRONT HOOD OPENING
                                                      Valid for GD
                                                      from £107.58
                                                      from £107.58
                                                      # 016
                                                      MPN: 60540718
                                                      BONNET HOOKING SPRING
                                                      from £5.08
                                                      from £5.08
                                                      # 017
                                                      MPN: 82475483
                                                      BRACKET
                                                      from £18.09
                                                      from £18.09
                                                      # 018
                                                      MPN: 14084211
                                                      NUT
                                                      from £0.71
                                                      from £0.71
                                                      This part replaces part number 14084217
                                                      # 019
                                                      MPN: 384300305
                                                      PLATE
                                                      from £4.58
                                                      from £4.58
                                                      # 020
                                                      MPN: 46401657
                                                      SCREW
                                                      from £0.54
                                                      from £0.54
                                                      # 021
                                                      MPN: 374330426
                                                      SMALL BUFFER
                                                      from £1.08
                                                      from £1.08
                                                      This part replaces part number 53431319
                                                      # 022
                                                      MPN: 384300372
                                                      BRACKET
                                                      from £1.08
                                                      from £1.08
                                                      # 023
                                                      MPN: 67247400
                                                      BONNET DEADENING SHIELD
                                                      from £63.10
                                                      from £63.10
                                                      # 024
                                                      MPN: 14593487
                                                      FIXING BUTTON
                                                      from £10.58
                                                      from £10.58
                                                      # 024
                                                      MPN: 7560860
                                                      FIXING BUTTON
                                                      from £1.70
                                                      from £1.70
                                                      # 025
                                                      MPN: 384300171
                                                      DUST SEAL
                                                      from £13.86
                                                      from £13.86
                                                      # 026
                                                      MPN: 384300410
                                                      ENGINE BONNET GASKET
                                                      Supersession
                                                      Supersession
                                                      # 027
                                                      MPN: 383300244
                                                      SWITCH FOR OPEN HOOD BONNET SIGNAL
                                                      from £12.74
                                                      from £12.74
