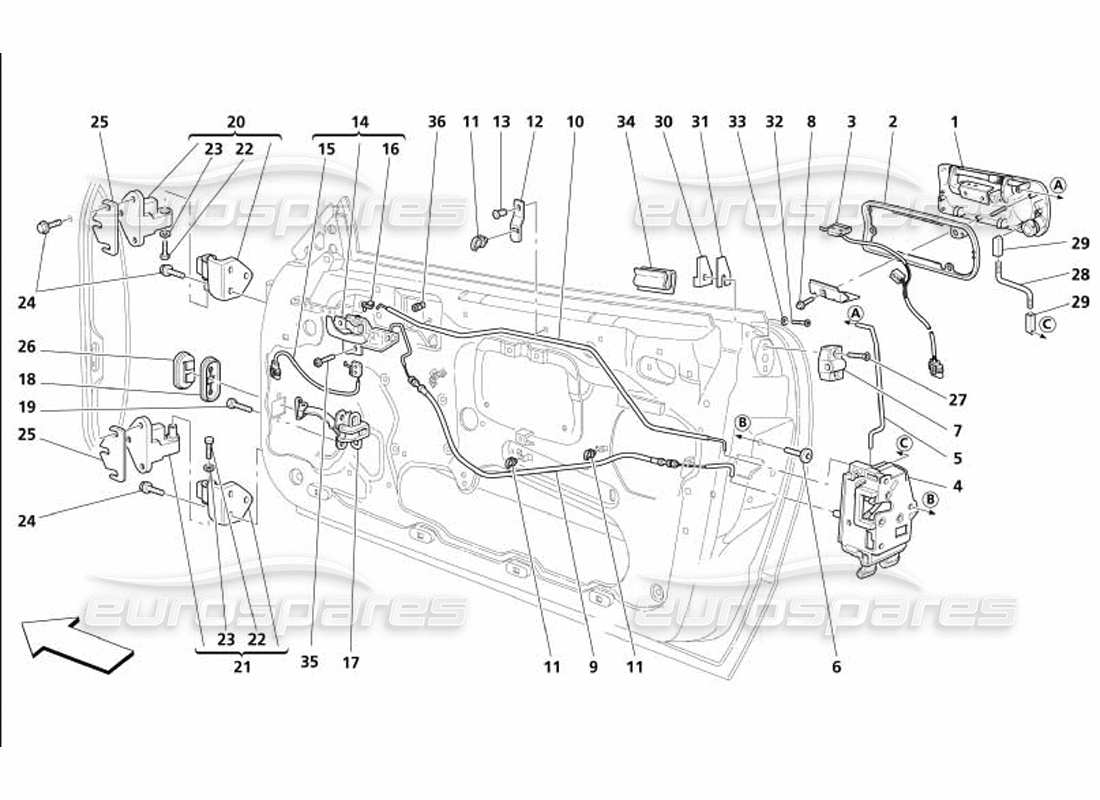

117 - Doors - Opening Control and Hinges

Maserati 4200 Coupe (2005) Doors - Opening Control and Hinges Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 67811600
                                                                        RH DOOR OUTSIDE HANDLE
                                                                        Optional - Vintage version
                                                                        from £222.03
                                                                        from £222.03
                                                                        # 001
                                                                        MPN: 67811700
                                                                        LH DOOR OUTSIDE HANDLE
                                                                        Optional - Vintage version
                                                                        from £222.03
                                                                        from £222.03
                                                                        # 001
                                                                        MPN: 980000917
                                                                        LH DOOR OUTSIDE HANDLE
                                                                        STANDARD
                                                                        from £122.54
                                                                        from £122.54
                                                                        This part replaces part number 384500015 - and 1 more. Click to view details
                                                                        # 001
                                                                        MPN: 980000918
                                                                        RH DOOR OUTSIDE HANDLE
                                                                        STANDARD
                                                                        from £122.54
                                                                        from £122.54
                                                                        This part replaces part number 384500016 - and 1 more. Click to view details
                                                                        # 002
                                                                        MPN: 980000965
                                                                        LH HANDLE GASKET
                                                                        from £37.72
                                                                        from £37.72
                                                                        # 002
                                                                        MPN: 980000966
                                                                        RH HANDLE GASKET
                                                                        from £29.06
                                                                        from £29.06
                                                                        # 003
                                                                        MPN: 980000963
                                                                        LH MICROSWITCH AND CABLE
                                                                        from £83.16
                                                                        from £83.16
                                                                        # 003
                                                                        MPN: 980000964
                                                                        RH MICROSWITCH AND CABLE
                                                                        from £112.16
                                                                        from £112.16
                                                                        # 004
                                                                        MPN: 67294800
                                                                        RH DOOR LOCK
                                                                        from £62.38
                                                                        from £62.38
                                                                        This part replaces part number 82487456
                                                                        # 004
                                                                        MPN: 67294900
                                                                        LH DOOR LOCK
                                                                        from £93.57
                                                                        from £93.57
                                                                        This part replaces part number 82487457
                                                                        # 005
                                                                        MPN: 384500395
                                                                        LH DOOR HANDLE LOCK TIE ROD
                                                                        from £3.06
                                                                        from £3.06
                                                                        # 005
                                                                        MPN: 384500396
                                                                        RH DOOR HANDLE LOCK TIE ROD
                                                                        from £5.72
                                                                        from £5.72
                                                                        # 006
                                                                        MPN: 46401658
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 007
                                                                        MPN: 60594692
                                                                        FLEXIBLE BLOCK
                                                                        from £10.16
                                                                        from £10.16
                                                                        # 008
                                                                        MPN: 16284914
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        This part replaces part number 16284911
                                                                        # 009
                                                                        MPN: 67237000
                                                                        RH DOOR INSIDE RELEASE BOWDEN
                                                                        from £22.87
                                                                        from £22.87
                                                                        # 009
                                                                        MPN: 67237100
                                                                        LH DOOR INSIDE RELEASE BOWDEN
                                                                        from £12.84
                                                                        from £12.84
                                                                        # 010
                                                                        MPN: 66132400
                                                                        RH DOOR SAFETY TIE ROD
                                                                        from £8.02
                                                                        from £8.02
                                                                        # 010
                                                                        MPN: 66132500
                                                                        LH DOOR SAFETY TIE ROD
                                                                        from £8.02
                                                                        from £8.02
                                                                        # 011
                                                                        MPN: 14572587
                                                                        CABLES RETAINING CLIP
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 012
                                                                        MPN: 66061400
                                                                        BRACKET
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 013
                                                                        MPN: 15624311
                                                                        RIVET
                                                                        from £1.85
                                                                        from £1.85
                                                                        # 014
                                                                        MPN: 67236800
                                                                        COMPLETE RH DOOR INSIDE HANDLE
                                                                        from £344.24
                                                                        from £344.24
                                                                        # 014
                                                                        MPN: 67236900
                                                                        COMPLETE LH DOOR INSIDE HANDLE
                                                                        from £344.24
                                                                        from £344.24
                                                                        # 015
                                                                        MPN: 388300615
                                                                        SWITCH
                                                                        from £40.35
                                                                        from £40.35
                                                                        # 016
                                                                        MPN: 82377992
                                                                        CABLES RETAINING CLIP
                                                                        from £0.69
                                                                        from £0.69
                                                                        # 017
                                                                        MPN: 60624357
                                                                        STOP TIE ROD
                                                                        from £39.88
                                                                        from £39.88
                                                                        This part replaces part number 46420413
                                                                        # 018
                                                                        MPN: 60624899
                                                                        LH GASKET FOR STOP TIE ROD
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 019
                                                                        MPN: 11620021
                                                                        SCREW
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 020
                                                                        MPN: 67358200
                                                                        COMPLETE RH UPPER HINGE
                                                                        from £544.93
                                                                        from £544.93
                                                                        This part replaces part number 384500114 which we have in stock - and 3 more. Click to view details
                                                                        # 020
                                                                        MPN: 67358300
                                                                        COMPLETE LH UPPER HINGE
                                                                        from £184.43
                                                                        from £184.43
                                                                        This part replaces part number 384500113 - and 3 more. Click to view details
                                                                        # 021
                                                                        MPN: 67358000
                                                                        COMPLETE RH LOWER HINGE
                                                                        from £597.13
                                                                        from £597.13
                                                                        This part replaces part number 384500118 which we have in stock - and 1 more. Click to view details
                                                                        # 021
                                                                        MPN: 67358100
                                                                        COMPLETE LH LOWER HINGE
                                                                        from £306.60
                                                                        from £306.60
                                                                        This part replaces part number 384500117 - and 1 more. Click to view details
                                                                        # 022
                                                                        MPN: 10902434
                                                                        SCREW
                                                                        from £0.51
                                                                        from £0.51
                                                                        # 023
                                                                        MPN: 11197774
                                                                        WASHER
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 024
                                                                        MPN: 11586024
                                                                        SCREW
                                                                        from £3.63
                                                                        from £3.63
                                                                        # 025
                                                                        MPN: 382500536
                                                                        SHIMMING PLATE
                                                                        from £36.85
                                                                        from £36.85
                                                                        This part replaces part number 314520402 - and 1 more. Click to view details
                                                                        # 026
                                                                        MPN: 60624898
                                                                        RH GASKET FOR STOP TIE ROD
                                                                        from £1.55
                                                                        from £1.55
                                                                        # 027
                                                                        MPN: 67420200
                                                                        SCREW
                                                                        from £1.31
                                                                        from £1.31
                                                                        This part replaces part number 67048300
                                                                        # 028
                                                                        MPN: 384500390
                                                                        TIE ROD
                                                                        from £3.88
                                                                        from £3.88
                                                                        # 029
                                                                        MPN: 53451352
                                                                        ELASTIC CONNECTION
                                                                        from £0.69
                                                                        from £0.69
                                                                        # 030
                                                                        MPN: 387700404
                                                                        RH REAR GUIDE SHOE
                                                                        from £5.09
                                                                        from £5.09
                                                                        # 030
                                                                        MPN: 387700405
                                                                        LH REAR GUIDE SHOE
                                                                        from £5.96
                                                                        from £5.96
                                                                        # 031
                                                                        MPN: 387700406
                                                                        THICKNESS
                                                                        from £12.90
                                                                        from £12.90
                                                                        # 032
                                                                        MPN: 13271617
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 033
                                                                        MPN: 14496207
                                                                        WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        # 034
                                                                        MPN: 66133300
                                                                        CLIP
                                                                        from £2.32
                                                                        from £2.32
                                                                        # 035
                                                                        MPN: 15689907
                                                                        SCREW
                                                                        from £1.08
                                                                        from £1.08
                                                                        # 036
                                                                        MPN: 60585246
                                                                        NUT SCREW
                                                                        from £0.69
                                                                        from £0.69
                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
