126 - Tunnel - Framework and Accessories

Maserati 4200 Coupe (2005) Tunnel - Framework and Accessories Parts Diagram

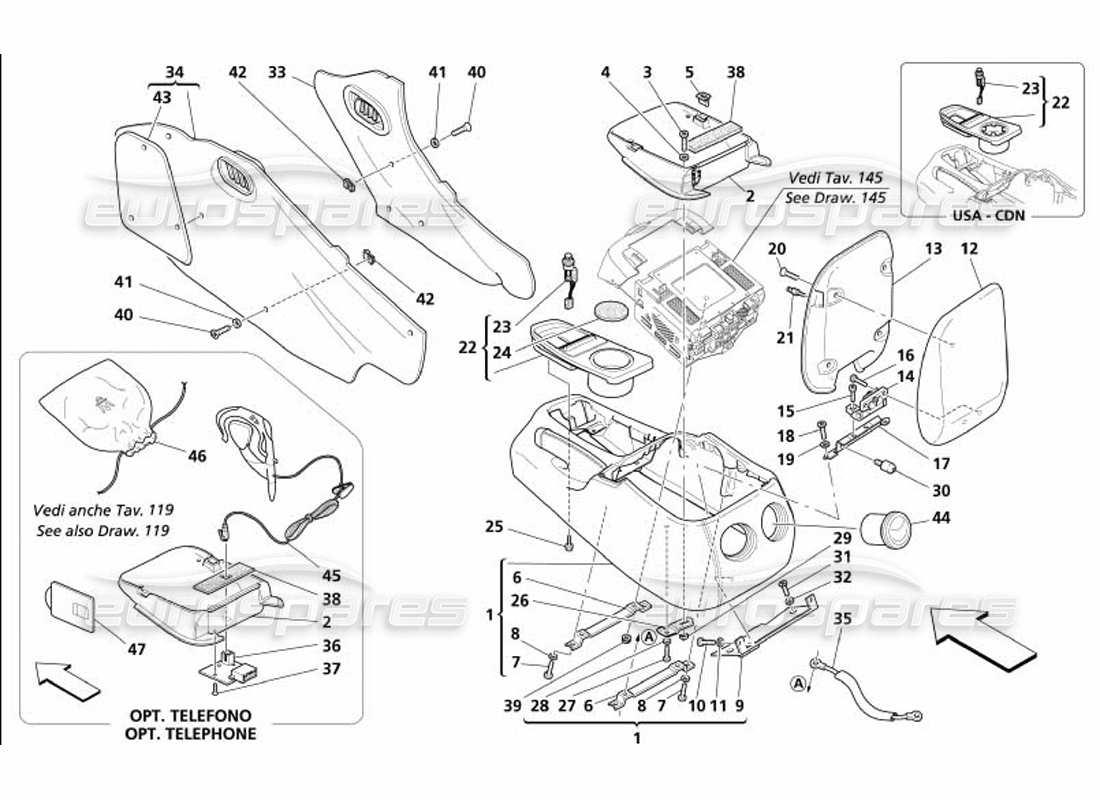

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 676966..
                                                              COMPLETE TUNNEL COVER CONSOLE
                                                              For order specify car number
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 68328700
                                                              CONTAINER BOX
                                                              STANDARD
                                                              from £12.59
                                                              from £12.59
                                                              # 002
                                                              MPN: 68329000
                                                              CONTAINER BOX
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £6.92
                                                              from £6.92
                                                              This part replaces part number 66724100 - and 1 more. Click to view details
                                                              # 003
                                                              MPN: 13274014
                                                              SCREW
                                                              from £3.54
                                                              from £3.54
                                                              # 004
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 005
                                                              MPN: 66498900
                                                              CLIP
                                                              from £1.55
                                                              from £1.55
                                                              # 006
                                                              MPN: 66060100
                                                              BRACKET
                                                              from £4.17
                                                              from £4.17
                                                              # 007
                                                              MPN: 13273811
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 008
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 009
                                                              MPN: 388300403
                                                              BRACKET
                                                              from £5.09
                                                              from £5.09
                                                              # 010
                                                              MPN: 15901501
                                                              SCREW
                                                              from £0.54
                                                              from £0.54
                                                              # 011
                                                              MPN: 12639924
                                                              WASHER
                                                              from £0.85
                                                              from £0.85
                                                              # 012
                                                              MPN: 66772800
                                                              UPPER GLOVE BOX SHUTTER
                                                              For order specify car number
                                                              from £231.00
                                                              from £231.00
                                                              # 013
                                                              MPN: 68328800
                                                              Door Frame
                                                              from £112.55
                                                              from £112.55
                                                              This part replaces part number 66191400
                                                              # 014
                                                              MPN: 66493600
                                                              BOX HINGE
                                                              from £85.79
                                                              from £85.79
                                                              # 015
                                                              MPN: 13272011
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 016
                                                              MPN: 13272011
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 017
                                                              MPN: 66061700
                                                              BRACKET
                                                              from £130.69
                                                              from £130.69
                                                              # 018
                                                              MPN: 13273911
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 019
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 020
                                                              MPN: 13299177
                                                              SCREW
                                                              from £1.85
                                                              from £1.85
                                                              # 021
                                                              MPN: 66498800
                                                              PIN
                                                              from £3.16
                                                              from £3.16
                                                              # 022
                                                              MPN: 68338000
                                                              COMPLETE FRONT PLATE
                                                              Black color - Not for USA and CDN
                                                              from £196.35
                                                              from £196.35
                                                              # 022
                                                              MPN: 68338026
                                                              COMPLETE FRONT PLATE
                                                              Bordeaux color - Not for USA and CDN
                                                              from £196.35
                                                              from £196.35
                                                              # 022
                                                              MPN: 68338027
                                                              COMPLETE FRONT PLATE
                                                              Gray color - Not for USA and CDN
                                                              from £196.35
                                                              from £196.35
                                                              # 022
                                                              MPN: 68341500
                                                              COMPLETE FRONT PLATE
                                                              Black color - Valid for USA and CDN
                                                              from £327.83
                                                              from £327.83
                                                              # 022
                                                              MPN: 68341526
                                                              COMPLETE FRONT PLATE
                                                              Bordeaux color - Valid for USA and CDN
                                                              from £344.23
                                                              from £344.23
                                                              # 022
                                                              MPN: 68341527
                                                              COMPLETE FRONT PLATE
                                                              Gray color - Valid for USA and CDN
                                                              from £344.23
                                                              from £344.23
                                                              # 023
                                                              MPN: 373380115
                                                              ELECTRONIC CIGAR LIGHTER
                                                              from £19.46
                                                              from £19.46
                                                              # 024
                                                              MPN: 68345900
                                                              CARPET
                                                              Not for USA and CDN
                                                              from £27.85
                                                              from £27.85
                                                              # 025
                                                              MPN: 64460500
                                                              SCREW
                                                              from £0.82
                                                              from £0.82
                                                              # 026
                                                              MPN: 66609000
                                                              BRACKET
                                                              from £5.09
                                                              from £5.09
                                                              # 027
                                                              MPN: 13273911
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 028
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 029
                                                              MPN: 14074490
                                                              NUT WITH CAGE
                                                              from £1.08
                                                              from £1.08
                                                              # 030
                                                              MPN: 66734000
                                                              ADJUSTMENT PIN
                                                              from £16.07
                                                              from £16.07
                                                              # 031
                                                              MPN: 13273911
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 032
                                                              MPN: 12637824
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 033
                                                              MPN: 675102..
                                                              RH TUNNEL LATERAL COVER
                                                              Not for GD
                                                              Supersession
                                                              Supersession
                                                              # 033
                                                              MPN: 675108..
                                                              RH TUNNEL LATERAL COVER
                                                              Valid for GD
                                                              from £50.40
                                                              from £50.40
                                                              # 034
                                                              MPN: 675103..
                                                              LH TUNNEL LATERAL COVER
                                                              Not for GD
                                                              Supersession
                                                              Supersession
                                                              # 034
                                                              MPN: 675109..
                                                              LH TUNNEL LATERAL COVER
                                                              Valid for GD
                                                              from £50.40
                                                              from £50.40
                                                              # 035
                                                              MPN: 199416
                                                              GROUND CABLE
                                                              from £4.31
                                                              from £4.31
                                                              # 036
                                                              MPN: 189555
                                                              INTIMITY BOOT DEVICE SHEETS
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £22.57
                                                              from £22.57
                                                              # 037
                                                              MPN: 15901401
                                                              SCREW
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £0.47
                                                              from £0.47
                                                              # 038
                                                              MPN: 66241000
                                                              CARPET
                                                              STANDARD
                                                              from £8.31
                                                              from £8.31
                                                              # 038
                                                              MPN: 66728600
                                                              CARPET
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £12.29
                                                              from £12.29
                                                              # 040
                                                              MPN: 15908807
                                                              SCREW
                                                              Valid for GD
                                                              from £1.10
                                                              from £1.10
                                                              # 040
                                                              MPN: 15909977
                                                              SCREW
                                                              Not for GD
                                                              from £1.08
                                                              from £1.08
                                                              # 041
                                                              MPN: 13336207
                                                              WASHER
                                                              Valid for GD
                                                              from £4.57
                                                              from £4.57
                                                              # 041
                                                              MPN: 388300580
                                                              WASHER
                                                              Not for GD
                                                              from £4.57
                                                              from £4.57
                                                              This part replaces part number 13336207
                                                              # 042
                                                              MPN: 14371971
                                                              CLIP
                                                              Valid for GD
                                                              from £0.48
                                                              from £0.48
                                                              # 042
                                                              MPN: 386300326
                                                              CLIP
                                                              Not for GD
                                                              from £3.24
                                                              from £3.24
                                                              # 043
                                                              MPN: 382300295
                                                              ACCELERATOR PROTECTION PLATE
                                                              Not for GD
                                                              from £56.19
                                                              from £56.19
                                                              # 044
                                                              MPN: 382300802
                                                              REAR AIR OPENING
                                                              from £81.69
                                                              from £81.69
                                                              This part replaces part number 382300596
                                                              # 045
                                                              MPN: 193493
                                                              BOOT INTIMITY
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £178.68
                                                              from £178.68
                                                              # 046
                                                              MPN: 193495
                                                              CASE FOR BOOT INTIMITY
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £21.51
                                                              from £21.51
                                                              # 047
                                                              MPN: 193494
                                                              ADAPTER FOR SIM CARD
                                                              Optional - Telephone - Not for USA, CDN and J
                                                              from £25.42
                                                              from £25.42
