maserati 4200 coupe (2005) xenon headligths and headlights washer -optional- parts diagram

131 - Xenon Headligths and Headlights Washer -Optional-

Maserati 4200 Coupe (2005) Xenon Headligths and Headlights Washer -Optional- Parts Diagram

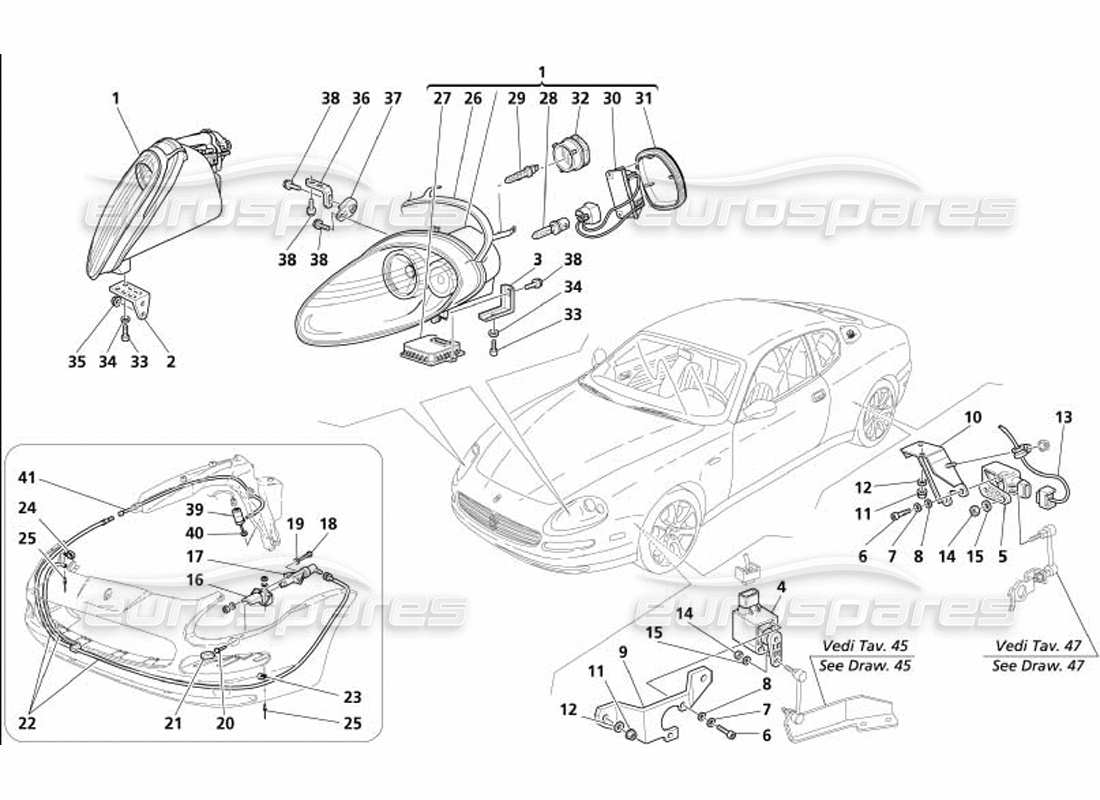

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 208127...
                                                    RH FRONT HEADLIGHT
                                                    Not for USA, CDN, GD and J
                                                    # 001
                                                    MPN: 208128...
                                                    LH FRONT HEADLIGHT
                                                    Not for USA, CDN, GD and J
                                                    # 001
                                                    MPN: 209680...
                                                    RH FRONT HEADLIGHT
                                                    Valid for GD and J
                                                    # 001
                                                    MPN: 209680037
                                                    RHS FRONT HEADLIGHT (XENON) IN MED BLUE
                                                    Valid for GD and J
                                                    from £1,673.34
                                                    from £1,673.34
                                                    # 001
                                                    MPN: 209682...
                                                    LH FRONT HEADLIGHT
                                                    Valid for GD and J
                                                    from £472.50
                                                    from £472.50
                                                    # 001
                                                    MPN: 209682021
                                                    LHS FRONT HEADLIGHT (XENON) IN RED
                                                    Valid for GD and J
                                                    from £1,673.34
                                                    from £1,673.34
                                                    # 001
                                                    MPN: 210571...
                                                    RH FRONT HEADLIGHT
                                                    Valid for USA and CDN
                                                    # 001
                                                    MPN: 210573...
                                                    LH FRONT HEADLIGHT
                                                    Valid for USA and CDN
                                                    # 002
                                                    MPN: 383100312
                                                    FRONT BRACKET
                                                    from £9.12
                                                    from £9.12
                                                    # 003
                                                    MPN: 383100161
                                                    REAR BRACKET
                                                    from £16.55
                                                    from £16.55
                                                    # 004
                                                    MPN: 188659
                                                    LIGHT ATTITUDE FRONT POTENTIOMETER
                                                    Not for USA and CDN
                                                    from £259.38
                                                    from £259.38
                                                    # 005
                                                    MPN: 184943
                                                    LIGHT ATTITUDE REAR POTENTIOMETER
                                                    Not for USA and CDN
                                                    from £101.94
                                                    from £101.94
                                                    # 006
                                                    MPN: 14304024
                                                    SCREW
                                                    Not for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    # 007
                                                    MPN: 10519301
                                                    WASHER
                                                    Not for USA and CDN
                                                    from £12.57
                                                    from £12.57
                                                    # 008
                                                    MPN: 11199274
                                                    WASHER
                                                    Not for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    # 009
                                                    MPN: 190218
                                                    FRONT BRACKET
                                                    Not for USA and CDN
                                                    from £13.86
                                                    from £13.86
                                                    # 010
                                                    MPN: 188406
                                                    REAR BRACKET
                                                    Not for USA and CDN
                                                    from £6.24
                                                    from £6.24
                                                    # 011
                                                    MPN: 13832101
                                                    NUT
                                                    Not for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    # 012
                                                    MPN: 12644401
                                                    WASHER
                                                    Not for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    # 013
                                                    MPN: 210289
                                                    BRIDLE FOR POTENTIOMETER
                                                    Not for USA and CDN
                                                    from £23.91
                                                    from £23.91
                                                    # 014
                                                    MPN: 12575415
                                                    NUT
                                                    Not for USA and CDN
                                                    from £1.07
                                                    from £1.07
                                                    # 015
                                                    MPN: 14498805
                                                    WASHER
                                                    Not for USA and CDN
                                                    from £0.54
                                                    from £0.54
                                                    # 016
                                                    MPN: 66372000
                                                    RH HEADLIGHTS WASHER SUPPORT BRACKET
                                                    from £11.42
                                                    from £11.42
                                                    # 016
                                                    MPN: 66372100
                                                    LH HEADLIGHTS WASHER SUPPORT BRACKET
                                                    from £20.08
                                                    from £20.08
                                                    # 017
                                                    MPN: 980002001
                                                    COMPLETE PUMP FOR COUPLING
                                                    from £69.98
                                                    from £69.98
                                                    # 018
                                                    MPN: 14305324
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    This part replaces part number 14305321
                                                    # 019
                                                    MPN: 11188079
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    # 020
                                                    MPN: 900028018
                                                    LH COUPLING FOR PLUG
                                                    from £77.92
                                                    from £77.92
                                                    This part replaces part number 66371600
                                                    # 020
                                                    MPN: 900028019
                                                    RH COUPLING FOR PLUG
                                                    from £146.13
                                                    from £146.13
                                                    This part replaces part number 66371500
                                                    # 020
                                                    MPN: 900028019
                                                    RH COUPLING FOR PLUG (COPY)
                                                    from £146.13
                                                    from £146.13
                                                    This part replaces part number 66371500
                                                    # 021
                                                    MPN: 66371700
                                                    RH PLUG
                                                    from £138.36
                                                    from £138.36
                                                    # 021
                                                    MPN: 66371800
                                                    LH PLUG
                                                    from £69.18
                                                    from £69.18
                                                    # 022
                                                    MPN: 66371900
                                                    HEADLIGHT WASHER PIPES (ASSEM.)
                                                    from £89.62
                                                    from £89.62
                                                    # 023
                                                    MPN: 10441590
                                                    BRACKET WITH SHEATH
                                                    from £0.50
                                                    from £0.50
                                                    # 025
                                                    MPN: 14642893
                                                    RIVET
                                                    # 026
                                                    MPN: 980000951
                                                    LH HEADLAMP EXTERNAL GASKET
                                                    from £28.26
                                                    from £28.26
                                                    This part replaces part number 94074245
                                                    # 026
                                                    MPN: 980000952
                                                    RH HEADLAMP EXTERNAL GASKET
                                                    from £28.26
                                                    from £28.26
                                                    This part replaces part number 94074244
                                                    # 027
                                                    MPN: 980001133
                                                    XENO LIGHT CONTROL STATION
                                                    from £679.66
                                                    from £679.66
                                                    # 028
                                                    MPN: 980001138
                                                    LOW BEAM BULB
                                                    from £134.11
                                                    from £134.11
                                                    # 029
                                                    MPN: 980000953
                                                    HIGH BEAM BULB
                                                    Valid for USA and CDN
                                                    from £20.04
                                                    from £20.04
                                                    # 029
                                                    MPN: 980001139
                                                    HIGH BEAM BULB
                                                    Not for USA and CDN
                                                    from £16.84
                                                    from £16.84
                                                    # 030
                                                    MPN: 980001134
                                                    XENO LIGHT IGNITOR
                                                    from £123.47
                                                    from £123.47
                                                    # 031
                                                    MPN: 980001136
                                                    LOW BEAM BULB CAP
                                                    from £20.08
                                                    from £20.08
                                                    This part replaces part number 980001135
                                                    # 032
                                                    MPN: 980001141
                                                    HIGH BEAM BULB CAP
                                                    from £21.38
                                                    from £21.38
                                                    # 033
                                                    MPN: 11730924
                                                    SCREW
                                                    from £1.54
                                                    from £1.54
                                                    # 034
                                                    MPN: 12644424
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13550214
                                                    # 035
                                                    MPN: 13046114
                                                    NUT
                                                    from £0.53
                                                    from £0.53
                                                    # 036
                                                    MPN: 66379100
                                                    LAMP FIXING UPPET BRACKET
                                                    from £5.52
                                                    from £5.52
                                                    # 037
                                                    MPN: 66320000
                                                    LH BRACKET
                                                    from £11.72
                                                    from £11.72
                                                    # 037
                                                    MPN: 66379200
                                                    RH BRACKET
                                                    from £28.81
                                                    from £28.81
                                                    # 038
                                                    MPN: 11730624
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    # 039
                                                    MPN: 65164700
                                                    HEADLIGHTS WASHER PUMP
                                                    from £41.17
                                                    from £41.17
