maserati 4200 coupe (2005) shields and finishing parts diagram

132 - Shields and Finishing

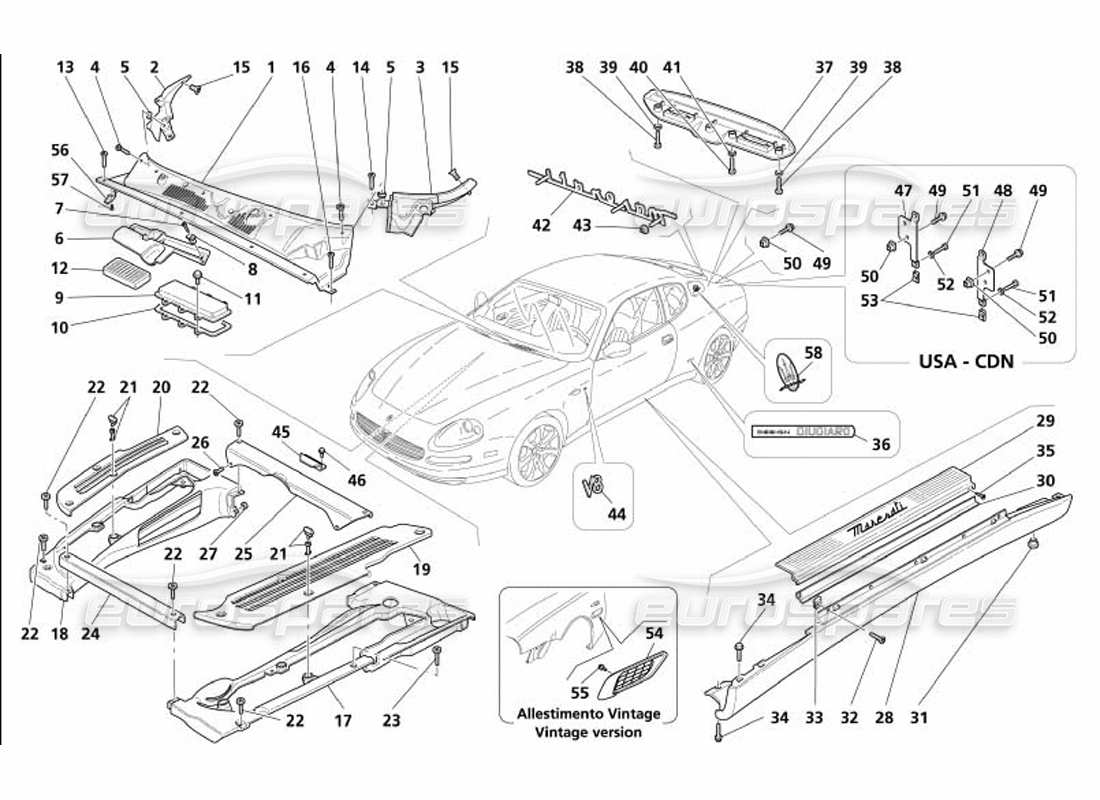

Maserati 4200 Coupe (2005) Shields and Finishing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 184922015
RH HEADLIGHT
Valid for RHD and J - BOLOGNA RED
from £1,438.18
from £1,438.18
# 001
MPN: 66365800
CENTRAL UNDER WINDSHIELD PLATE
Not for GD
from £16.87
from £16.87
# 001
MPN: 66664400
CENTRAL UNDER WINDSHIELD PLATE
Valid for GD
from £41.04
from £41.04
# 002
MPN: 66373400
RH UNDER WINDSHIELD PLATE
Not for GD
from £8.16
from £8.16
# 002
MPN: 66664200
RH UNDER WINDSHIELD PLATE
Valid for GD
from £31.59
from £31.59
# 003
MPN: 66373600
LH UNDER WINDSHIELD PLATE
Not for GD
from £4.19
from £4.19
# 003
MPN: 66664300
LH UNDER WINDSHIELD PLATE
Valid for GD
from £33.32
from £33.32
# 004
MPN: 15672777
SCREW
from £0.71
from £0.71
# 005
MPN: 7754387
BLOCK
Supersession
Supersession
# 006
MPN: 66413900
SHIELD FOR WATER
Not for GD
from £25.72
from £25.72
# 006
MPN: 66664500
SHIELD FOR WATER
Valid for GD
from £16.36
from £16.36
# 007
MPN: 15783377
SCREW
from £1.55
from £1.55
# 008
MPN: 14214880
BLOCK
from £0.50
from £0.50
# 009
MPN: 388100435
ANTIPOLLEN FILTER SHIELD
Not for GD
from £13.35
from £13.35
# 009
MPN: 388110436
ANTIPOLLEN FILTER SHIELD
Valid for GD
from £7.39
from £7.39
This part replaces part number 388110435 - and 1 more. Click to view details
# 010
MPN: 388300489
GASKET
from £4.64
from £4.64
# 011
MPN: 10711227
SCREW
from £1.55
from £1.55
# 012
MPN: 386100170
AIR INTAKE GRILL
Not for GD
from £39.82
from £39.82
# 012
MPN: 386110170
AIR INTAKE GRILL
Valid for GD
from £20.73
from £20.73
# 013
MPN: 15783377
SCREW
from £1.55
from £1.55
# 014
MPN: 15783377
SCREW
from £1.55
from £1.55
# 015
MPN: 15917217
SCREW
from £1.08
from £1.08
# 016
MPN: 15783377
SCREW
from £1.55
from £1.55
# 017
MPN: 67247500
LH Side Cover
Not for GD
from £35.85
from £35.85
# 017
MPN: 67402000
LH Side Cover
Valid for GD
from £40.80
from £40.80
# 018
MPN: 67240000
RH SIDE COVER
Not for GD
from £53.78
from £53.78
# 018
MPN: 67401900
RH SIDE COVER
Valid for GD
from £40.80
from £40.80
# 019
MPN: 67247600
LH GRILL
from £71.42
from £71.42
This part replaces part number 66492600
# 020
MPN: 66492500
RH GRILL
from £168.20
from £168.20
# 021
MPN: 68503400
PIN
from £5.51
from £5.51
This part replaces part number 66603000
# 021
MPN: 68503400
PIN
from £5.51
from £5.51
This part replaces part number 66603000
# 022
MPN: 67194000
SCREW
from £2.78
from £2.78
# 023
MPN: 67194100
SCREW
from £1.55
from £1.55
# 024
MPN: 66069100
ENGINE COMPARTMENT FRONT COVER
from £35.85
from £35.85
# 025
MPN: 66110800
ENGINE COMPARTMENT REAR COVER
from £35.85
from £35.85
# 026
MPN: 13299177
SCREW
from £1.85
from £1.85
# 027
MPN: 15896411
NUT
Supersession
Supersession
# 028
MPN: 980001073
LH LATERAL SHIELD
from £268.17
from £268.17
# 028
MPN: 980001074
RH LATERAL SHIELD
from £194.25
from £194.25
# 029
MPN: 386100313
LH UNDER DOOR MOULDING
STANDARD
from £136.92
from £136.92
# 029
MPN: 386100314
RH UNDER DOOR MOULDING
STANDARD
from £136.92
from £136.92
# 029
MPN: 386100393
LH UNDER DOOR MOULDING
Optional - Customized silk-screen process
from £779.40
from £779.40
# 029
MPN: 386100394
RH UNDER DOOR MOULDING
Optional - Customized silk-screen process
from £779.40
from £779.40
# 029
MPN: 67690900
RH UNDER DOOR MOULDING
Optional - Carbon
from £790.01
from £790.01
# 029
MPN: 67691000
LH UNDER DOOR MOULDING
Optional - Carbon
from £790.01
from £790.01
# 030
MPN: 386100345
GASKET
from £10.04
from £10.04
# 031
MPN: 66582800
PLUG
from £28.27
from £28.27
# 032
MPN: 15532677
SCREW
from £1.55
from £1.55
# 033
MPN: 7663916
BLOCK
from £0.71
from £0.71
# 034
MPN: 11730624
SCREW
from £0.51
from £0.51
# 035
MPN: 12678870
SCREW
from £1.31
from £1.31
# 036
MPN: 67027100
GIUGIARO DESIGN PLATE
from £10.71
from £10.71
# 037
MPN: 980001202
PLATE
In Primer
from £139.34
from £139.34
# 038
MPN: 13274214
SCREW
from £1.55
from £1.55
# 039
MPN: 12643724
WASHER
from £0.47
from £0.47
# 040
MPN: 13283514
SCREW
from £1.55
from £1.55
# 041
MPN: 12638124
WASHER
from £0.47
from £0.47
# 042
MPN: 67361800
Maserati MARK
from £41.88
from £41.88
# 043
MPN: 60324506
CLIP
from £1.55
from £1.55
# 044
MPN: 67559200
ORNAMENT
from £18.23
from £18.23
# 045
MPN: 67032700
BRACKET
from £5.10
from £5.10
# 046
MPN: 10711227
SCREW
from £1.55
from £1.55
# 047
MPN: 67516600
RH BRACKET FOR FIXING NUMBER PLATE
Valid for USA and CDN
from £31.75
from £31.75
# 048
MPN: 67516700
LH BRACKET FOR FIXING NUMBER PLATE
Valid for USA and CDN
from £34.38
from £34.38
# 049
MPN: 15688070
SCREW
from £0.47
from £0.47
# 050
MPN: 319220324
CLIP
from £0.64
from £0.64
This part replaces part number 82457087
# 051
MPN: 14775211
SCREW
Valid for USA and CDN
from £0.47
from £0.47
# 052
MPN: 12642801
WASHER
Valid for USA and CDN
from £0.47
from £0.47
# 053
MPN: 14370571
BRACKET
Valid for USA and CDN
from £0.47
from £0.47
# 054
MPN: 980138219
LH GRILL FOR AIR OUTLET
Optional - Vintage version
from £235.51
from £235.51
# 054
MPN: 980138220
RH GRILL FOR AIR OUTLET
Optional - Vintage version
from £235.51
from £235.51
# 055
MPN: 15688875
SCREW
Optional - Vintage version
from £0.54
from £0.54
# 056
MPN: 66058000
BRACKET
from £2.31
from £2.31
# 057
MPN: 15918177
SCREW
from £1.31
from £1.31
# 058
MPN: 89095300
RH EMBLEM
from £35.17
from £35.17
This part replaces part number 67861400
# 058
MPN: 89095400
LH EMBLEM
from £35.17
from £35.17
This part replaces part number 67861500
