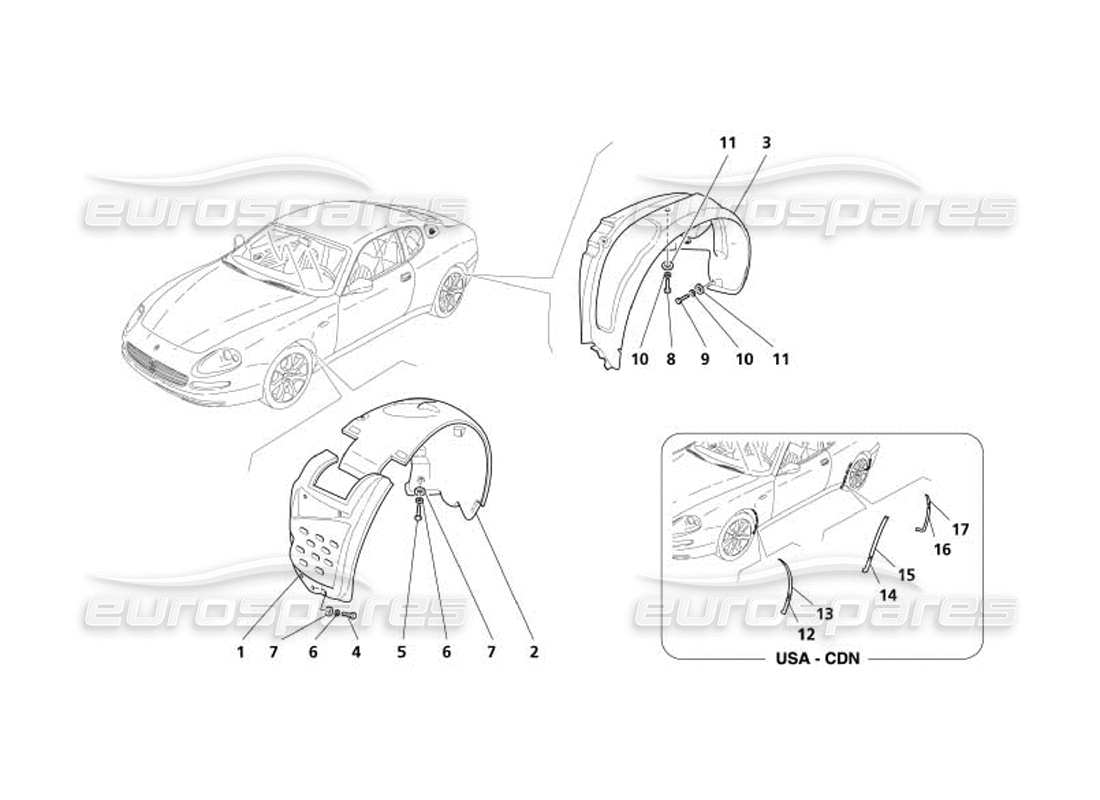

133 - Shields and Protections for Wheel Compartment
Maserati 4200 Coupe (2005) Shields and Protections for Wheel Compartment Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 68337500
RH FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
from £33.09
from £33.09
# 001
MPN: 68337600
LH FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
from £33.09
from £33.09
# 002
MPN: 67529100
RH FRONT WHEEL COMPARTMENT GRAVEL GUARD REAR SIDE
from £66.18
from £66.18
This part replaces part number 386101366
# 002
MPN: 67529200
LH FRONT WHEEL COMPARMENT GRAVEL GUARD FRONT SIDE
from £33.09
from £33.09
This part replaces part number 386101365
# 003
MPN: 68337700
RH WHEEL GRAVEL GUARD
from £33.76
from £33.76
# 003
MPN: 68337800
LH WHEEL GRAVEL GUARD
from £33.76
from £33.76
# 004
MPN: 13274417
SCREW
from £1.08
from £1.08
# 005
MPN: 15689807
SCREW
from £1.08
from £1.08
This part replaces part number 15689675
# 006
MPN: 12638177
WASHER
from £1.08
from £1.08
# 007
MPN: 67806700
GASKET
from £1.39
from £1.39
This part replaces part number 312552529
# 008
MPN: 13274417
SCREW
from £1.08
from £1.08
# 009
MPN: 15689807
SCREW
from £1.08
from £1.08
This part replaces part number 15689675
# 010
MPN: 12638177
WASHER
from £1.08
from £1.08
# 011
MPN: 67806700
GASKET
from £1.39
from £1.39
This part replaces part number 312552529
# 012
MPN: 67294100
RH LOWER FRONT WHEELHOUSE PROTECTION
Valid for USA and CDN
from £64.81
from £64.81
# 012
MPN: 67296200
LH LOWER FRONT WHEELHOUSE PROTECTION
Valid for USA and CDN
from £4.80
from £4.80
# 013
MPN: 67294200
RH UPPER FRONT WHEELHOUSE PROTECTION
Valid for USA and CDN
from £76.88
from £76.88
# 013
MPN: 67296300
LH UPPER FRONT WHEELHOUSE PROTECTION
Valid for USA and CDN
from £11.65
from £11.65
# 014
MPN: 67294500
RH LOWER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £64.81
from £64.81
# 014
MPN: 67296600
LH LOWER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £5.00
from £5.00
# 015
MPN: 67294600
RH UPPER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £76.88
from £76.88
# 015
MPN: 67296700
LH UPPER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £13.50
from £13.50
# 016
MPN: 67294300
RH LOWER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £64.81
from £64.81
# 016
MPN: 67296400
LH LOWER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £64.81
from £64.81
# 017
MPN: 67294400
RH UPPER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £76.88
from £76.88
# 017
MPN: 67296500
LH UPPER REAR WHEELHOUSE PROTECTION
Valid for USA and CDN
from £4.24
from £4.24
