038 - Hand-Brake Control

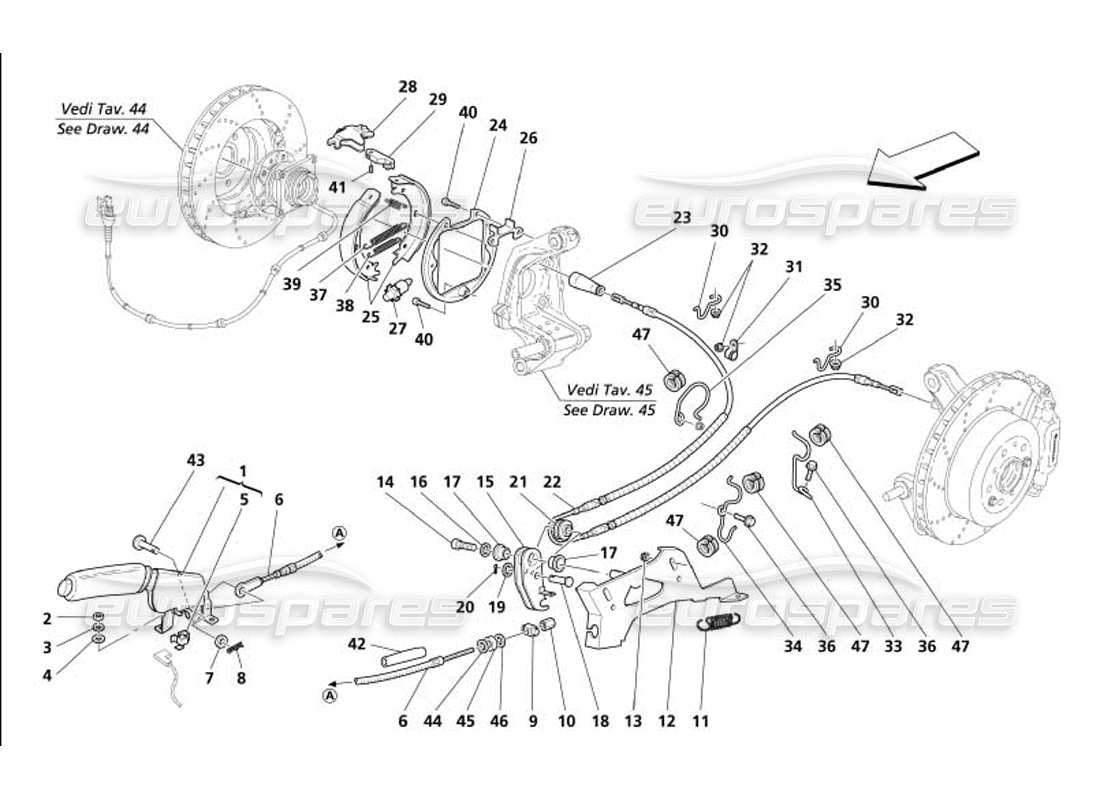

Maserati 4200 Gransport (2005) Hand-Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 200889
COMPLETE HAND BRAKE LEVER
from £50.40
from £50.40
# 002
MPN: 16104421
NUT
from £0.81
from £0.81
# 003
MPN: 14496521
WASHER
from £0.53
from £0.53
# 004
MPN: 12628924
WASHER
from £1.90
from £1.90
# 005
MPN: 176118
MICRO-SWITCH
from £47.61
from £47.61
# 006
MPN: 200777
FRONT CABLE
from £47.80
from £47.80
# 007
MPN: 12646604
WASHER
from £0.47
from £0.47
# 008
MPN: 10734101
SPLIT PIN
from £1.55
from £1.55
# 009
MPN: 208466
PAWL
from £5.95
from £5.95
# 010
MPN: 208475
FRONT CABLE REGISTER
from £3.51
from £3.51
# 011
MPN: 101305
SPRING
from £8.36
from £8.36
# 012
MPN: 208426
BRACKET
from £95.55
from £95.55
# 013
MPN: 14040715
NUT
from £1.11
from £1.11
# 014
MPN: 14306224
SCREW
from £0.47
from £0.47
# 015
MPN: 208422
BRAKE TRANSMISSION LEVER
from £23.55
from £23.55
# 016
MPN: 10519601
WASHER
from £0.53
from £0.53
# 017
MPN: 175729
BUSHING
from £6.58
from £6.58
# 018
MPN: 10050811
PIN
from £5.22
from £5.22
# 019
MPN: 10519601
WASHER
from £0.53
from £0.53
# 020
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 021
MPN: 188587
CABLE TRANSMISSION PULLEY
from £11.26
from £11.26
# 022
MPN: 206724
REAR CABLE
from £79.65
from £79.65
# 023
MPN: 143938
CABLE SHEATH
from £16.73
from £16.73
This part replaces part number 388000341
# 024
MPN: 186574
SHOES SUPPORT SPACER
from £43.14
from £43.14
# 025
-
COMPLETE BRAKE SHOE SET
# 025
MPN: 248418
HAND BRAKE SHOE
from £98.83
from £98.83
This part replaces part number 235894
# 026
MPN: 190814
SMALL BLOCK
from £37.66
from £37.66
# 027
MPN: 186572
REGISTER FOR HAND BRAKE
from £22.61
from £22.61
This part replaces part number 388000113
# 028
MPN: 190782
HAND BRAKE CONTROL DEVICE
from £24.97
from £24.97
This part replaces part number 388001155
# 029
MPN: 105270
FORK
from £14.95
from £14.95
This part replaces part number 388000364
# 030
MPN: 186933
LH AND RH BRAKE CABLE SPRING
from £1.45
from £1.45
# 031
MPN: 10441190
BRACKET WITH SHEATH
from £0.47
from £0.47
# 032
MPN: 14058411
NUT
from £0.47
from £0.47
# 033
MPN: 204538
BRAKE CABLE SPRING
from £3.40
from £3.40
# 034
MPN: 204536
BRAKE CABLE FRONT SPRING
from £4.84
from £4.84
# 035
MPN: 204537
BRAKE CABLE REAR SPRING
from £3.04
from £3.04
# 036
MPN: 11730624
SCREW
from £0.47
from £0.47
# 037
MPN: 190776
RETURN SPRING FOR BRAKE SHOES
from £9.57
from £9.57
# 038
MPN: 190779
RETURN SPRING FOR BRAKE SHOES
from £1.86
from £1.86
# 039
MPN: 190780
SPRING FOR SHOES
from £1.71
from £1.71
# 040
MPN: 190870
SCREW
from £1.15
from £1.15
This part replaces part number 193737 - and 1 more. Click to view details
# 041
MPN: 101282
PIN
from £4.02
from £4.02
# 042
MPN: 199471
SILENCER
from £0.86
from £0.86
# 043
MPN: 200774
PIN
from £6.19
from £6.19
# 044
MPN: 204412
FRONT SPACER
from £8.49
from £8.49
# 045
MPN: 204413
RUBBER SPACER
from £4.20
from £4.20
# 046
MPN: 204410
REAR SPACER
from £13.24
from £13.24
# 047
MPN: 184519
PAD
from £1.57
from £1.57
