120 - Front Seat and Seat Belts

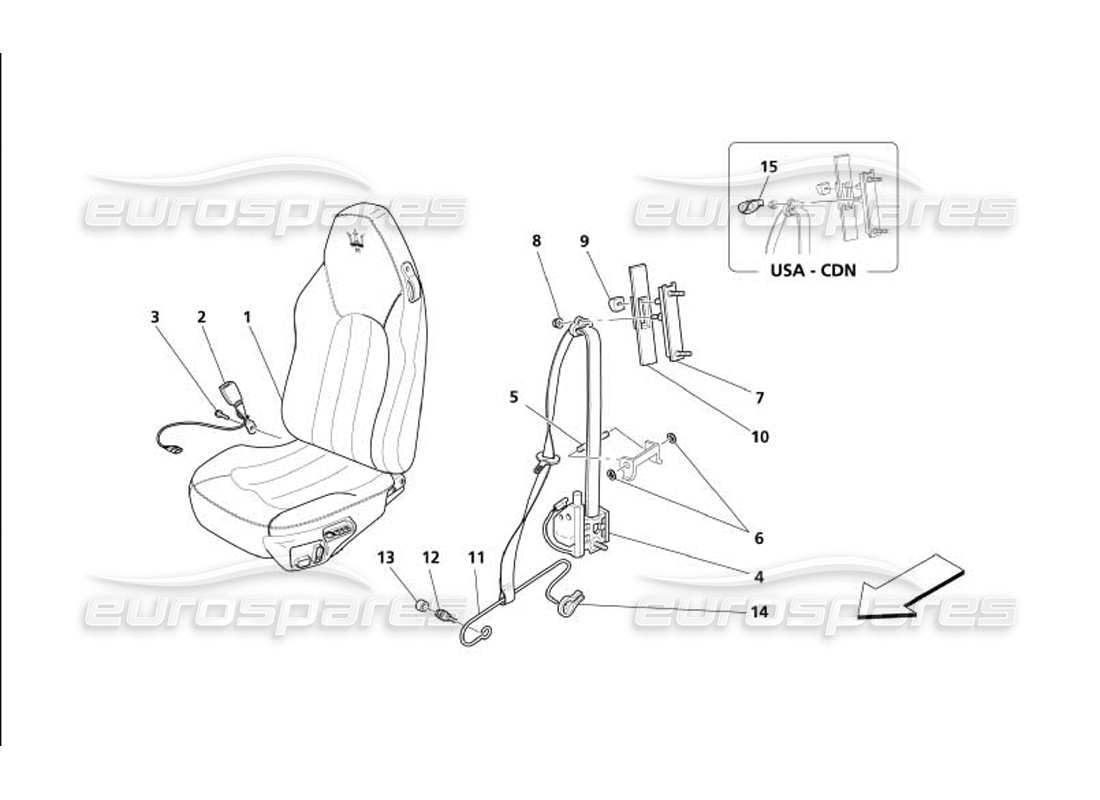

Maserati 4200 Gransport (2005) Front Seat and Seat Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 4200GSPORTBLACK
COMPLETE INTERIOR, BLACK LEATHER WITH WHITE STITCHING
# 000
MPN: 4200GSPORTINT
LHD INTERIOR, BLACK LEATHER WITH RED STITCHING
# 000
MPN: 4200USAGS
Complete Interior, Blue & Grey Leather With Red Piping
# 001
MPN: 98243....
LH FRONT SEAT
Standard - Not for GD
Supersession
Supersession
# 001
MPN: 98244....
LH FRONT SEAT
Optional - Heater and memory - Not for GD
Supersession
Supersession
# 001
MPN: 98245....
RH FRONT SEAT
Standard - Not for GD
Supersession
Supersession
# 001
MPN: 98246....
RH FRONT SEAT
Optional - Heater - Not for GD
Supersession
Supersession
# 001
MPN: 98247....
LH FRONT SEAT
Standard - Valid for GD
# 001
MPN: 98249....
RH FRONT SEAT
Standard - Valid for GD
# 001
MPN: 984100000
LH FRONT SEAT IN BLACK
Optional - Heater - Valid for GD
# 001
MPN: 984120000
RH FRONT SEAT IN BLACK
Optional - Heater and memory - Valid for GD
# 002
MPN: 388100336
PASSENGER SEAT BELT LOCK
from £26.53
from £26.53
# 002
MPN: 388100337
PILOT SEAT BELT LOCK
from £107.43
from £107.43
# 003
MPN: 386900301
SCREW
from £13.80
from £13.80
# 004
MPN: 66310300
RH ROLLER
Not for USA and CDN
from £78.75
from £78.75
# 004
MPN: 66310400
LH ROLLER
Not for USA e CDN
from £172.89
from £172.89
# 004
MPN: 66310500
RH ROLLER
Valid for USA and CDN
from £170.30
from £170.30
# 004
MPN: 67190800
LH ROLLER
Valid for USA e CDN
from £161.92
from £161.92
# 005
MPN: 30921336
DOWEL BOLT
from £3.74
from £3.74
# 006
MPN: 11087770
FLEXIBLE RING
from £0.71
from £0.71
# 007
MPN: 66873400
SEAT BELT REGULATOR
from £9.56
from £9.56
# 008
MPN: 388100335
NUT
from £1.11
from £1.11
# 009
MPN: 388100333
KNOB
from £1.11
from £1.11
# 010
MPN: 388300100
SLIT SHIELD
from £5.30
from £5.30
# 011
MPN: 386100369
LH HOOK BAR FOR SEAT BELT
from £5.45
from £5.45
# 011
MPN: 386100370
RH HOOK BAR FOR SEAT BELT
from £5.45
from £5.45
# 012
MPN: 388100331
SCREW
from £9.28
from £9.28
# 013
MPN: 388100330
CAP FOR SCREW
from £0.71
from £0.71
# 014
MPN: 568100343
PLATE
from £1.88
from £1.88
# 015
MPN: 67418700
COVER
Valid for USA and CDN
from £8.34
from £8.34
This part replaces part number 66663000
