135 - electrical system

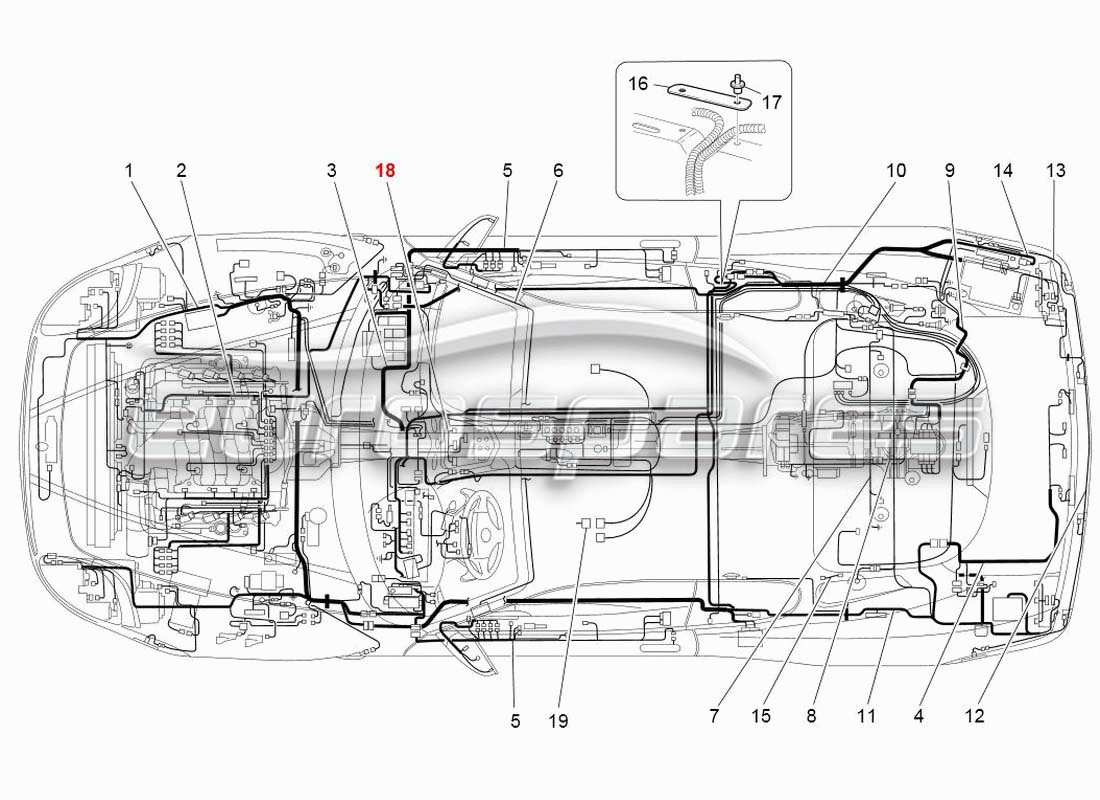

Maserati 4200 Gransport (2005) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#

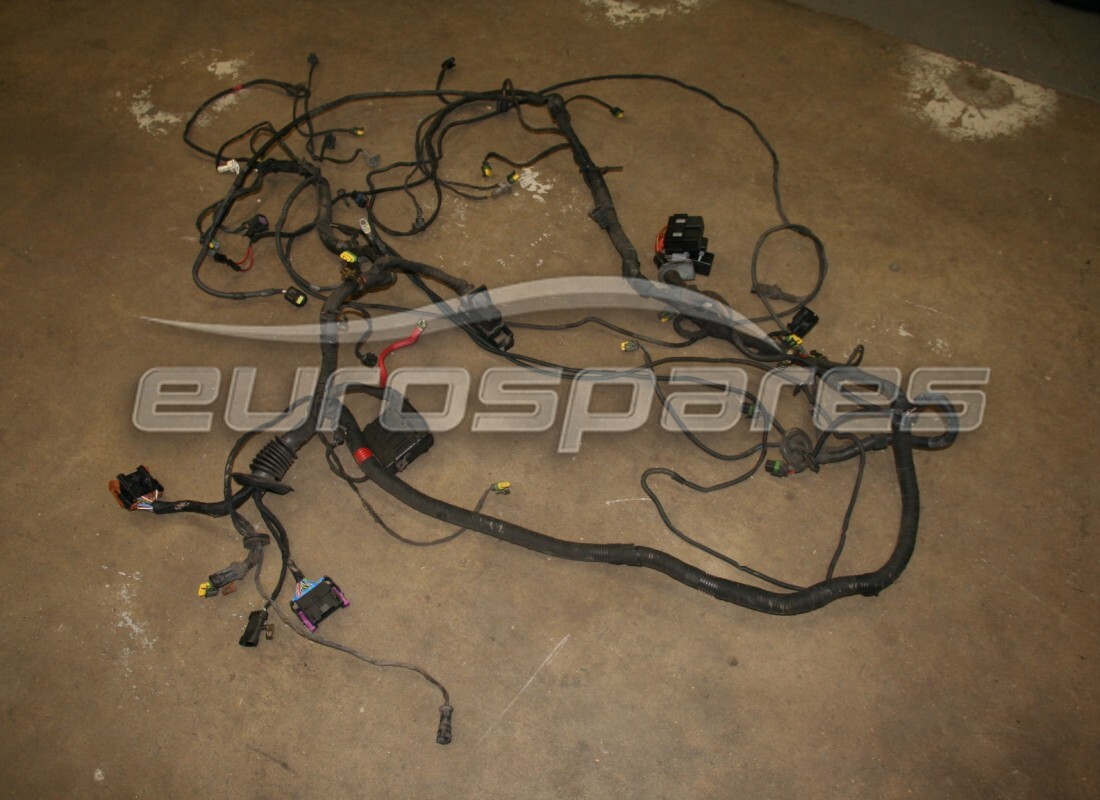

001
MPN:
200488
ENGINE COMPARTMENT CABLES
Not for USA, CDN and GD
from
£657.02
from
£657.02
This part replaces part number 196119
#
001
MPN:
200494
ENGINE COMPARTMENT CABLES
Valid for USA and CDN
from
£358.04
from
£358.04
#
001
MPN:
200496
ENGINE COMPARTMENT CABLES
Valid for GD
from
£355.49
from
£355.49
This part replaces part number 196120
- and 1 more. Click to view details
#
002
MPN:
209651
INJECTION DEVICE CABLES
Not for USA, CDN and GD
from
£720.86
from
£720.86
#
002
MPN:
209652
IGNITION DEVICE CABLES
Valid for GD
from
£672.21
from
£672.21
#
002
MPN:
209653
IGNITION DEVICE CABLES
Valid for USA and CDN
from
£769.57
from
£769.57
#
003
MPN:
208023
DASHBOARD CABLE
Not for GD
from
£828.05
from
£828.05
#
003
MPN:
208025
DASHBOARD CABLE
Valid for GD
from
£677.49
from
£677.49
#
004
MPN:
200492
TRUNK CABLE
from
£30.78
from
£30.78
This part replaces part number 190152
- and 1 more. Click to view details
#
005
MPN:
200490
DOOR CABLE
from
£145.15
from
£145.15
This part replaces part number 182221
- and 1 more. Click to view details
#
006
MPN:
200491
ROOF LIGHT CABLE
Not for GD
from
£20.53
from
£20.53
This part replaces part number 182217
- and 1 more. Click to view details
#
006
MPN:
200498
ROOF LIGHT CABLE
Valid for GD
from
£24.55
from
£24.55
This part replaces part number 191306
- and 1 more. Click to view details
#
007
MPN:
200499
TANK CABLE
Not for USA and CDN
from
£289.83
from
£289.83
This part replaces part number 193166
- and 1 more. Click to view details
#
007
MPN:
200500
TANK CABLE
Valid for USA and CDN
from
£51.04
from
£51.04
This part replaces part number 193167
#
007
MPN:
219454
TANK CABLE
from
£73.23
from
£73.23
#
008
MPN:
184916
F1 GEAR CABLE ON GEARBOX
from
£175.27
from
£175.27
#
009
MPN:
210287
F1 GEAR CABLE ON BODYWORK
from
£176.93
from
£176.93
#
010
MPN:
208026
RH LONGITUDINAL CABLE
Not for GD
from
£742.93
from
£742.93
#
010
MPN:
208027
RH LONGITUDINAL CABLE
Valid for GD
from
£380.58
from
£380.58
#
010
MPN:
222150
RH WIRING HARNESS CABLE
from
£333.76
from
£333.76
This part replaces part number 219447
- and 1 more. Click to view details
#
010
MPN:
222151
RH WIRING HARNESS CABLE
from
£394.81
from
£394.81
This part replaces part number 219448
- and 1 more. Click to view details
#
011
MPN:
200507
LH LONGITUDINAL CABLE
Optional - Version sport
from
£88.70
from
£88.70
#
011
MPN:
219449
LH WIRING HARNESS CABLE
from
£51.96
from
£51.96
#
012
MPN:
200505
PARKING SENSOR CABLE
Optional - Parking sensor - Not for USA and CDN
from
£118.78
from
£118.78
This part replaces part number 186662
- and 1 more. Click to view details
#
012
MPN:
200509
SIDE MARKERS AND PARKING SENSOR CABLE
Optional - Parking sensor - Valid for USA and CDN
Supersession
Supersession
This part replaces part number 186663 which we have in stock
#
013
MPN:
200510
SIDE MARKER CABLE
Valid for USA and CDN
Supersession
Supersession
#
014
MPN:
200647
AMPLIFIER CABLES
Optional - HI FI system
from
£66.50
from
£66.50
This part replaces part number 192417 which we have in stock
#
015
MPN:
200493
REAR-WINDOW GROUND CABLE
from
£4.48
from
£4.48
This part replaces part number 182227
- and 1 more. Click to view details
#
016
MPN:
329232405
CABLES FIXING BRACKET
from
£3.33
from
£3.33
#
017
MPN:
312025509
button
Supersession
Supersession
#
018
MPN:
209841
CABLES
from
£67.78
from
£67.78
