maserati 4200 spyder (2002) exhaust system parts diagram

014 - Exhaust System

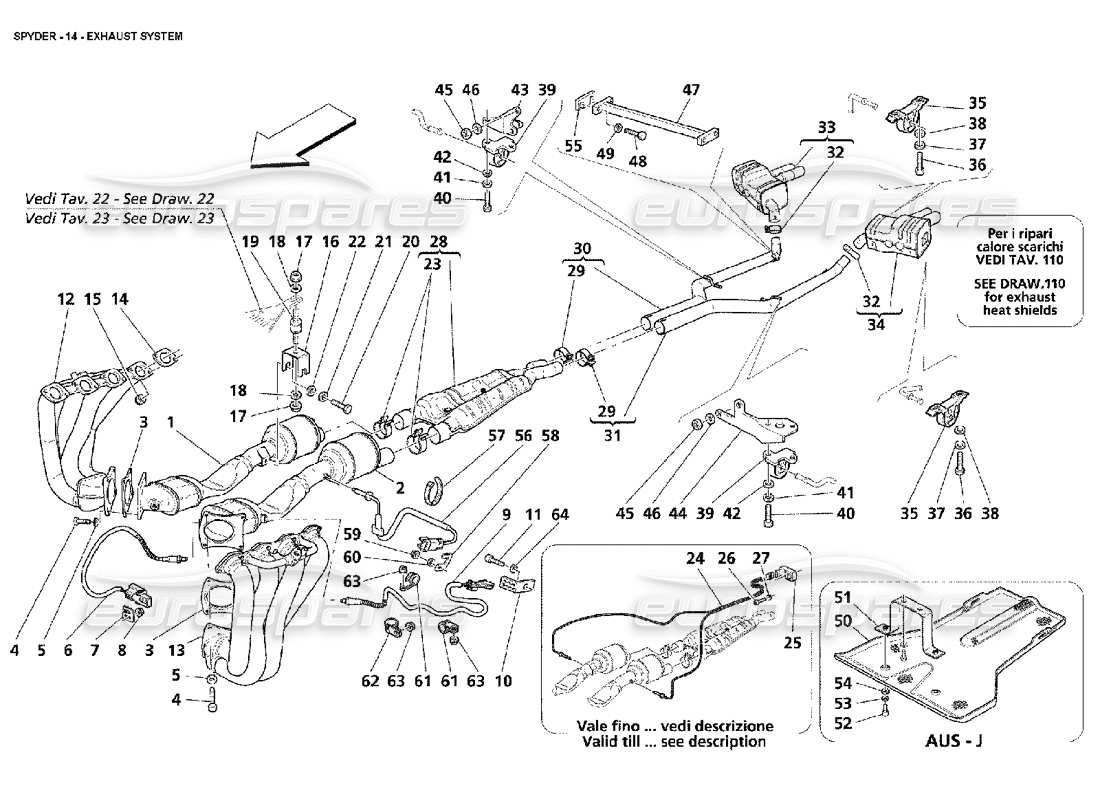

Maserati 4200 Spyder (2002) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 184803
                                                                                      RH CATALYST
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £2,720.74
                                                                                      from £2,720.74
                                                                                      # 001
                                                                                      MPN: 194714
                                                                                      RH CATALYST
                                                                                      - Valid for GS from car Ass. Nr. 9718 - Valid for GD from car Ass. Nr. 9656
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 184804
                                                                                      LH CATALYST
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £2,652.12
                                                                                      from £2,652.12
                                                                                      # 002
                                                                                      MPN: 194715
                                                                                      LH CATALYST
                                                                                      - Valid for GS from car Ass. Nr. 9718 - Valid for GD from car Ass. Nr. 9656
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 003
                                                                                      MPN: 184798
                                                                                      GASKET
                                                                                      - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                      from £18.61
                                                                                      from £18.61
                                                                                      # 004
                                                                                      MPN: 190213
                                                                                      SCREW
                                                                                      from £2.47
                                                                                      from £2.47
                                                                                      # 005
                                                                                      MPN: 11193874
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 007
                                                                                      MPN: 175856
                                                                                      CONNECTORS FIXING BRACKET
                                                                                      from £1.17
                                                                                      from £1.17
                                                                                      This part replaces part number 155752
                                                                                      # 009
                                                                                      MPN: 191412
                                                                                      REAR LAMBDA FEELER
                                                                                      from £106.94
                                                                                      from £106.94
                                                                                      # 010
                                                                                      MPN: 178366
                                                                                      CONNECTORS FIXING BRACKET
                                                                                      from £2.32
                                                                                      from £2.32
                                                                                      # 011
                                                                                      MPN: 14305724
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 012
                                                                                      MPN: 183795
                                                                                      RH EXHAUST MANIFOLD
                                                                                      from £1,251.41
                                                                                      from £1,251.41
                                                                                      # 013
                                                                                      MPN: 183796
                                                                                      LH EXHAUST MANIFOLD
                                                                                      from £1,251.41
                                                                                      from £1,251.41
                                                                                      # 014
                                                                                      MPN: 182868
                                                                                      GASKET
                                                                                      - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      # 015
                                                                                      MPN: 138392
                                                                                      NUT
                                                                                      from £0.73
                                                                                      from £0.73
                                                                                      # 016
                                                                                      MPN: 187827
                                                                                      BRACKET FOR CATALYSTS FIXING
                                                                                      from £11.44
                                                                                      from £11.44
                                                                                      # 017
                                                                                      MPN: 195273
                                                                                      NUT
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      This part replaces part number 10575215
                                                                                      # 018
                                                                                      MPN: 12625221
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 019
                                                                                      MPN: 184333
                                                                                      PAD
                                                                                      from £13.43
                                                                                      from £13.43
                                                                                      # 020
                                                                                      MPN: 16043324
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 021
                                                                                      MPN: 11193874
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 022
                                                                                      MPN: 12625224
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 12625221
                                                                                      # 023
                                                                                      MPN: 185307
                                                                                      CLAMP
                                                                                      from £14.90
                                                                                      from £14.90
                                                                                      This part replaces part number 173896
                                                                                      # 024
                                                                                      MPN: 184926
                                                                                      THERMOCOUPLES SET
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £261.66
                                                                                      from £261.66
                                                                                      # 025
                                                                                      MPN: 187866
                                                                                      CATALYSTS CONTROL STATION
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £171.08
                                                                                      from £171.08
                                                                                      # 026
                                                                                      MPN: 15958407
                                                                                      SCREW
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £0.85
                                                                                      from £0.85
                                                                                      # 027
                                                                                      MPN: 10519304
                                                                                      WASHER
                                                                                      - Valid for GS till car Ass. Nr. 9717 - Valid for GD till car Ass. Nr. 9655
                                                                                      from £0.85
                                                                                      from £0.85
                                                                                      This part replaces part number 14496304
                                                                                      # 028
                                                                                      MPN: 187826
                                                                                      CENTRAL SILENCER
                                                                                      from £876.07
                                                                                      from £876.07
                                                                                      # 030
                                                                                      MPN: 188176
                                                                                      RH EXHAUST EXTENSION
                                                                                      from £173.75
                                                                                      from £173.75
                                                                                      # 031
                                                                                      MPN: 188177
                                                                                      LH EXHAUST EXTENSION
                                                                                      from £187.43
                                                                                      from £187.43
                                                                                      # 032
                                                                                      MPN: 185307
                                                                                      CLAMP
                                                                                      from £14.90
                                                                                      from £14.90
                                                                                      This part replaces part number 173896
                                                                                      # 033
                                                                                      MPN: 184815
                                                                                      RH REAR SILENCER
                                                                                      from £939.75
                                                                                      from £939.75
                                                                                      # 034
                                                                                      MPN: 184816
                                                                                      LH REAR SILENCER
                                                                                      from £972.45
                                                                                      from £972.45
                                                                                      # 035
                                                                                      MPN: 184814
                                                                                      REAR SUPPORT
                                                                                      from £19.06
                                                                                      from £19.06
                                                                                      # 036
                                                                                      MPN: 16043224
                                                                                      SCREW
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      # 037
                                                                                      MPN: 12601374
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 038
                                                                                      MPN: 12638524
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 039
                                                                                      MPN: 187861
                                                                                      ANTI-VIBRATION SUPPORT
                                                                                      from £26.99
                                                                                      from £26.99
                                                                                      # 040
                                                                                      MPN: 16043424
                                                                                      SCREW
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      # 041
                                                                                      MPN: 12601374
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 042
                                                                                      MPN: 14496524
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 043
                                                                                      MPN: 187775
                                                                                      RH SUPPORT
                                                                                      from £11.91
                                                                                      from £11.91
                                                                                      # 044
                                                                                      MPN: 187774
                                                                                      LH SUPPORT
                                                                                      from £16.85
                                                                                      from £16.85
                                                                                      # 045
                                                                                      MPN: 16100814
                                                                                      NUT
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 046
                                                                                      MPN: 14496524
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 048
                                                                                      MPN: 16043124
                                                                                      SCREW
                                                                                      from £0.30
                                                                                      from £0.30
                                                                                      SCREW Genuine Ferrari Part - Used In stock
                                                                                      Removed from 458 engine 178999
                                                                                      # 049
                                                                                      MPN: 12601374
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 050
                                                                                      MPN: 190270
                                                                                      UNDER EXHAUST SHIELD
                                                                                      from £222.59
                                                                                      from £222.59
