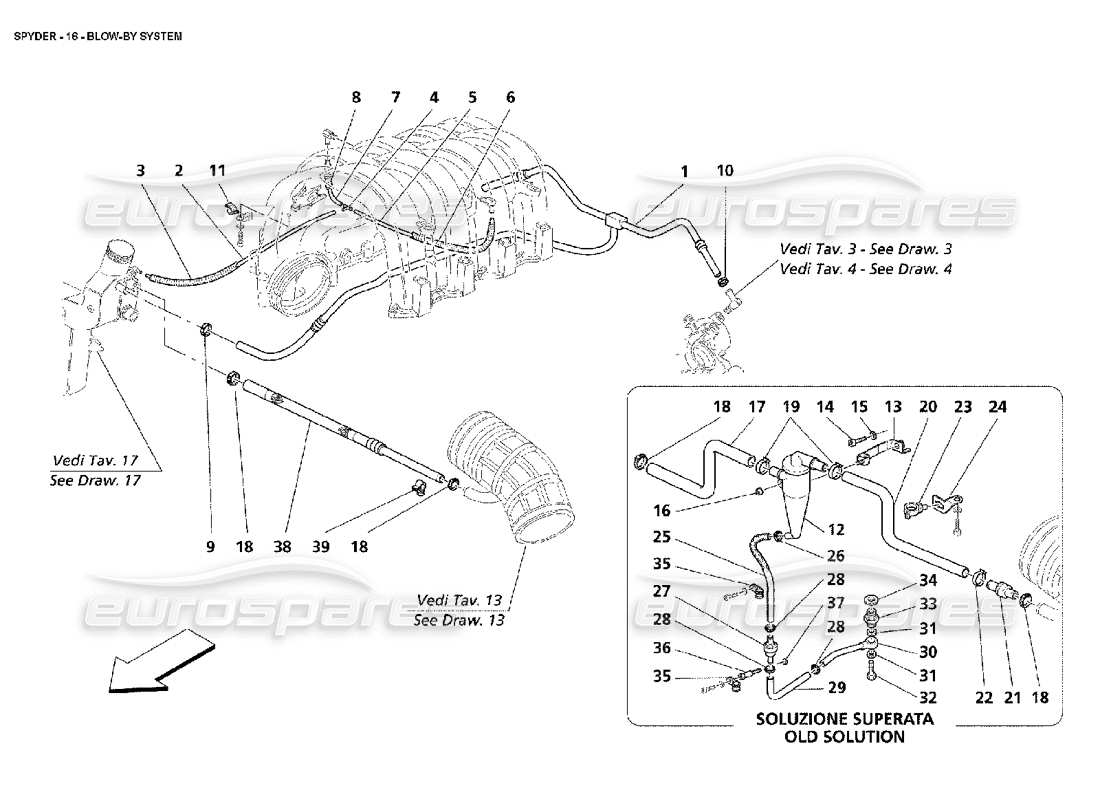

016 - Blow - By System
Maserati 4200 Spyder (2002) Blow - By System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 190120
HEAD COVERS VENT PIPE
from £32.55
from £32.55
# 001
MPN: 198346
HEAD COVERS VENT PIPE
- As an alternative
from £47.13
from £47.13
This part replaces part number 190120 which we have in stock - and 1 more. Click to view details
# 002
MPN: 169700
RUBBER HOSE
from £7.19
from £7.19
# 003
MPN: 97218
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 004
MPN: 146972
3-WAY UNION
from £2.78
from £2.78
# 005
MPN: 194323
RUBBER HOSE
from £6.93
from £6.93
This part replaces part number 192445
# 006
MPN: 97218
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 007
MPN: 165608
RUBBER HOSE
from £1.52
from £1.52
This part replaces part number 235375
# 008
MPN: 97218
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £1.86
from £1.86
This part replaces part number 188340 - and 1 more. Click to view details
# 009
MPN: 177996

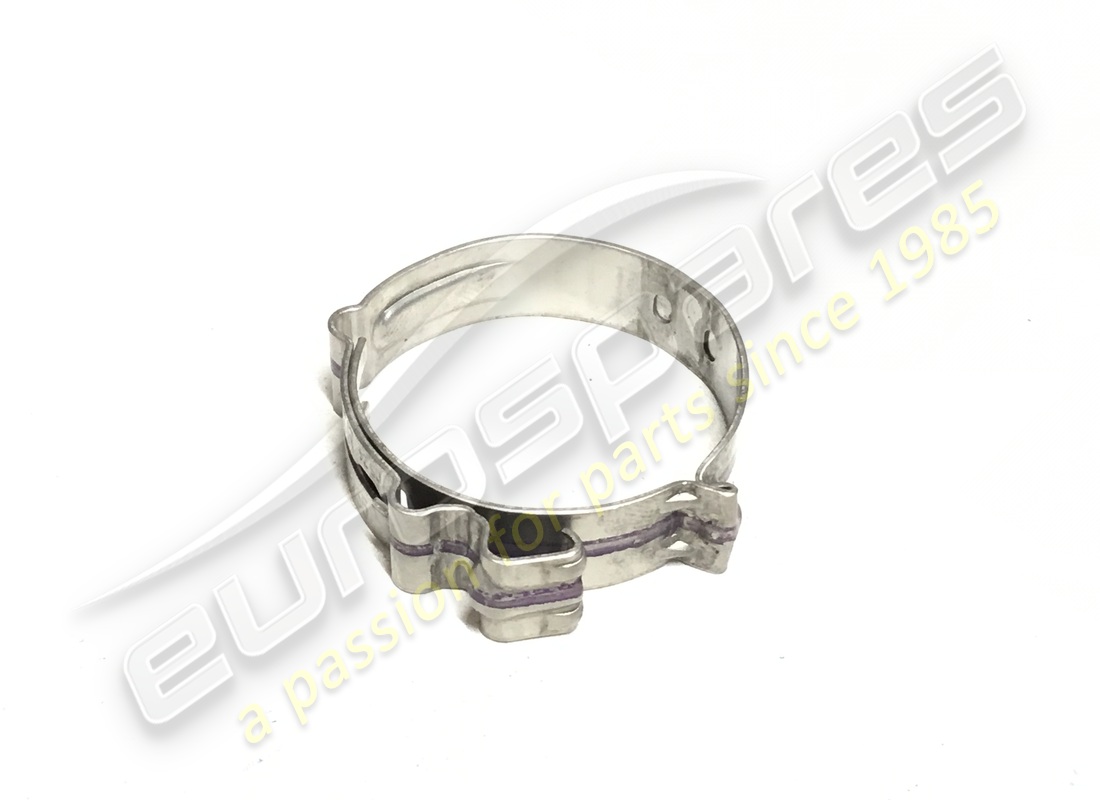

CLAMP
from £3.48
from £3.48
# 010
MPN: 178052
CLAMP
from £0.94
from £0.94
# 011
MPN: 10441590
BRACKET WITH SHEATH
- Not for cars with bracket 191009 - (See draw 13 pos. 30)
from £0.53
from £0.53
# 011
MPN: 191273
CLIP
- Valid for cars with bracket 191009 - (See draw 13 pos. 30)
from £0.71
from £0.71
# 012
MPN: 192651
OIL VAPOURS SEPARATOR
from £10.39
from £10.39
This part replaces part number 191455
# 013
MPN: 192652
BRACKET
- Valid for cars with oil vapours separator - (See pos. 12)
from £8.20
from £8.20
# 014
MPN: 14305524
SCREW
- Valid for cars with oil vapours separator - (See pos. 12)
from £0.54
from £0.54
# 015
MPN: 12620474
WASHER
- Valid for cars with oil vapours separator - (See pos. 12)
from £0.47
from £0.47
# 016
MPN: 14058411
NUT
- Valid for cars with oil vapours separator - (See pos. 12)
from £0.54
from £0.54
# 017
MPN: 191376
SLEEVE
- Valid for cars with oil vapours separator - (See pos. 12)
from £7.21
from £7.21
# 018
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 019
MPN: 13127870
STRAP COLLAR
- Valid for cars with oil vapours separator - (See pos. 12)
Supersession
Supersession
# 020
MPN: 192609
SLEEVE
- Valid for cars with oil vapours separator - (See pos. 12)
from £7.21
from £7.21
# 021
MPN: 585069900
ONE-WAY VALVE
from £19.17
from £19.17
This part replaces part number 191454
# 022
MPN: 13126570
STRAP COLLAR
- Valid for cars with oil vapours separator - (See pos. 12)
from £1.55
from £1.55
# 023
MPN: 189149
CLIP
- Valid for cars with oil vapours separator - (See pos. 12)
from £1.08
from £1.08
# 024
MPN: 191379
BRACKET
- Valid for cars with oil vapours separator - (See pos. 12)
from £88.88
from £88.88
# 025
MPN: 192653
SLEEVE
- Valid for cars with oil vapours separator - (See pos. 12)
from £7.12
from £7.12
# 026
MPN: 13000290
SCREW COLLAR
- Valid for cars with oil vapours separator - (See pos. 12)
from £0.56
from £0.56
# 027
MPN: 191852
ONE-WAY VALVE
- Valid for cars with oil vapours separator - (See pos. 12)
Supersession
Supersession
# 028
MPN: 13000190
SCREW COLLAR
- Valid for cars with oil vapours separator - (See pos. 12)
from £0.53
from £0.53
# 029
MPN: 191440
SLEEVE
from £6.35
from £6.35
