019 - Nourice - Cooling System -Not for GD

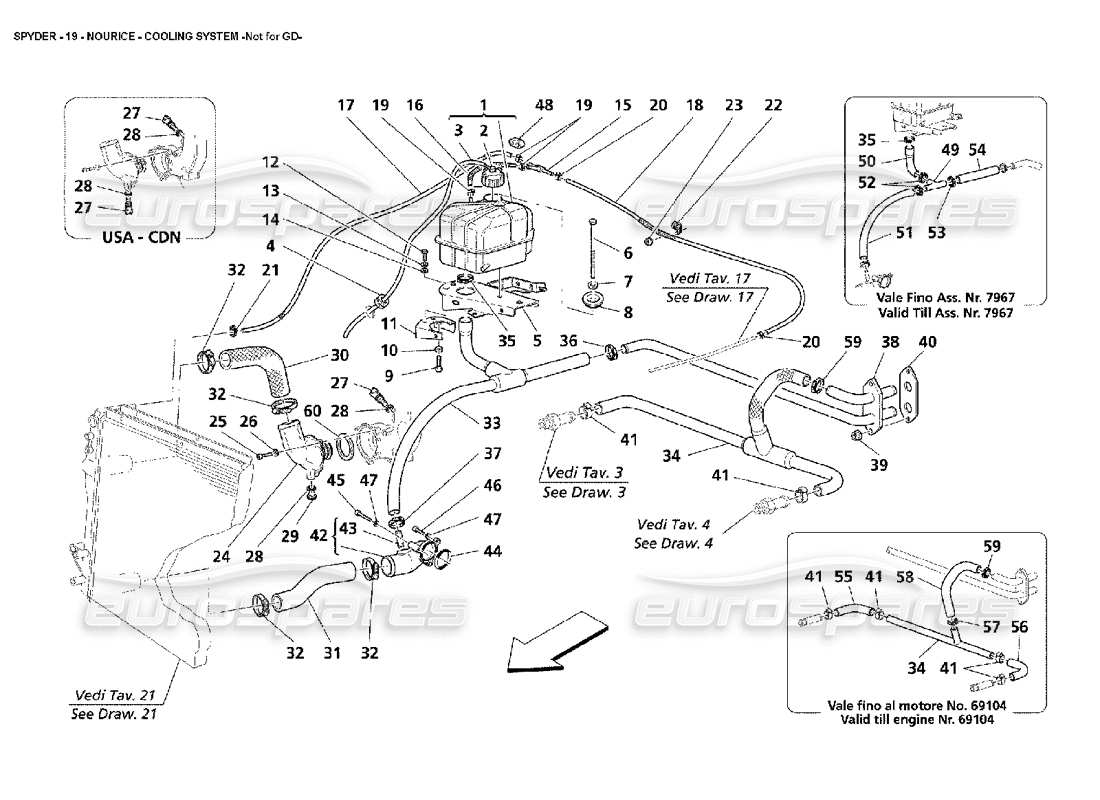

Maserati 4200 Spyder (2002) Nourice - Cooling System -Not for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 384000102
COMPLETE EXPANSION TANK
WITH CAP
from £91.53
from £91.53
This part replaces part number 60597447
# 002
MPN: 980145477
TANK PLUG
from £12.21
from £12.21
This part replaces part number 46556738
# 003
MPN: 384001316
HOSE
from £7.54
from £7.54
# 004
MPN: 10461987
RING
from £1.55
from £1.55
# 005
MPN: 189782
NOURICE SUPPORTING BRACKET
from £22.49
from £22.49
# 006
MPN: 60607472
SPECIAL SCREW
from £4.88
from £4.88
# 007
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601270
# 008
MPN: 82404496
CUP
from £1.89
from £1.89
# 009
MPN: 10979421
SCREW
from £0.47
from £0.47
# 010
MPN: 12620474
WASHER
from £0.47
from £0.47
# 011
MPN: 384000135
SUPPORT FOR BRACKET
from £14.77
from £14.77
# 012
MPN: 14305521
SCREW
from £0.53
from £0.53
# 013
MPN: 12620474
WASHER
from £0.47
from £0.47
# 014
MPN: 12646601
WASHER
from £0.71
from £0.71
# 015
MPN: 189345
3-WAY UNION
from £13.88
from £13.88
# 016
MPN: 192621
RUBBER HOSE
from £19.58
from £19.58
# 017
MPN: 192614
RUBBER HOSE
from £163.12
from £163.12
# 018
MPN: 192615
RUBBER HOSE
from £10.01
from £10.01
# 019
MPN: 13125470
STRAP COLLAR
from £0.52
from £0.52
# 020
MPN: 183919
STRAP COLLAR
from £0.71
from £0.71
# 021
MPN: 13000190
SCREW COLLAR
from £0.54
from £0.54
# 022
MPN: 10441390
BRACKET WITH SHEATH
from £0.53
from £0.53
# 023
MPN: 14058411
NUT
from £0.54
from £0.54
# 024
MPN: 230890
COVER WITH THERMOSTAT
from £87.22
from £87.22
This part replaces part number 224623
# 025
MPN: 14305324
SCREW
from £0.52
from £0.52
This part replaces part number 14305321
# 026
MPN: 11197774
WASHER
from £0.54
from £0.54
# 027
MPN: 180137
WATER TEMPERATURE SENSOR
- (Quantity 2 for cars USA and CDN)
from £9.88
from £9.88
# 028
MPN: 10298460
GASKET
from £0.47
from £0.47
# 029
MPN: 10300540
THREADED PLUG
- Not for USA and CDN
from £2.85
from £2.85
# 030
MPN: 190354
DELIVERY PIPE FROM ENGINE TO RADIATOR
from £77.89
from £77.89
This part replaces part number 181747 - and 1 more. Click to view details
# 031
MPN: 181748
RETURN PIPE FROM RADIATOR TO ENGINE
from £28.75
from £28.75
# 032
MPN: 13000790
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 312420106
# 033
MPN: 187080
RUBBER HOSE
- Valid from car Ass. Nr. 7968
from £8.95
from £8.95
This part replaces part number 186586 which we have in stock - and 3 more. Click to view details
# 034
MPN: 183115
WATER OUTLET PIPE
- Valid till engine Nr. 69104
from £16.32
from £16.32
# 034
MPN: 187082
WATER OUTLET PIPE
- Valid from engine Nr. 69105
from £99.84
from £99.84
# 035
MPN: 13000590
SCREW COLLAR
- Valid from car Ass. Nr. 7968
from £0.47
from £0.47
# 035
MPN: 186680
CLAMP
- Valid till car Ass. Nr. 7967
from £0.86
from £0.86
# 036
MPN: 186680
CLAMP
from £0.86
from £0.86
# 037
MPN: 183126
CLAMP
from £0.87
from £0.87
# 038
MPN: 66069000
COMPLETE RIGID PIPE TO HEATER
from £29.61
from £29.61
# 039
MPN: 12575421
NUT
Supersession
Supersession
This part replaces part number 12575411
# 040
MPN: 385500371
GASKET
from £1.08
from £1.08
# 041
MPN: 178053
CLAMP
- (Quantity 4 for cars with engine till Nr. 69104)
from £0.97
from £0.97
# 042
MPN: 188067
WATER ENTRY COVER
from £200.82
from £200.82
# 043
MPN: 111628
THREADED UNION
from £0.47
from £0.47
# 044
MPN: 154191
GASKET
from £0.79
from £0.79
# 045
MPN: 14306024
SCREW
from £1.31
from £1.31
This part replaces part number 14306034 which we have in stock
# 046
MPN: 14432224
SCREW
from £0.53
from £0.53
# 047
MPN: 11197774
WASHER
from £0.54
from £0.54
# 048
MPN: 192650
CLIP
from £1.08
from £1.08
# 049
MPN: 107394
3-WAY UNION
- Valid till car Ass. Nr. 7967
from £20.45
from £20.45
# 050
MPN: 186586
SLEEVE
- Valid till car Ass. Nr. 7967
Supersession
Supersession
# 051
MPN: 186653
RUBBER HOSE
- Valid till car Ass. Nr. 7967
from £12.74
from £12.74
# 052
MPN: 183126
CLAMP
- Valid till car Ass. Nr. 7967
from £0.86
from £0.86
# 053
MPN: 186680
CLAMP
- Valid till car Ass. Nr. 7967
from £0.86
from £0.86
# 054
MPN: 186654
RUBBER HOSE
- Valid till car Ass. Nr. 7967
from £15.79
from £15.79
# 055
MPN: 185579
RUBBER HOSE
- Valid till engine Nr. 69104
from £6.78
from £6.78
# 056
MPN: 185578
RUBBER HOSE
- Valid till engine Nr. 69104
from £13.04
from £13.04
# 057
MPN: 13000490
SCREW COLLAR
- Valid till engine Nr. 69104
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 058
MPN: 185582
SLEEVE
- Valid till engine Nr. 69104
from £7.61
from £7.61
# 059
MPN: 183126
CLAMP
- Valid till engine Nr. 69104
from £0.87
from £0.87
# 059
MPN: 186680
CLAMP
- Valid from engine Nr. 69105
from £0.86
from £0.86
# 060
MPN: 137873
GASKET
from £2.95
from £2.95
-part-diagram-020.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2002) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2002) BODY - REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2002) PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2002) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2002) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2002) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2002) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2002) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2002) CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2002) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2002) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2002) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2002) WATER-OIL PUMP PARTS DIAGRAM")
