maserati 4200 spyder (2002) nourice - cooling system -valid for gd parts diagram

020 - Nourice - Cooling System -Valid for GD

Maserati 4200 Spyder (2002) Nourice - Cooling System -Valid for GD Parts Diagram

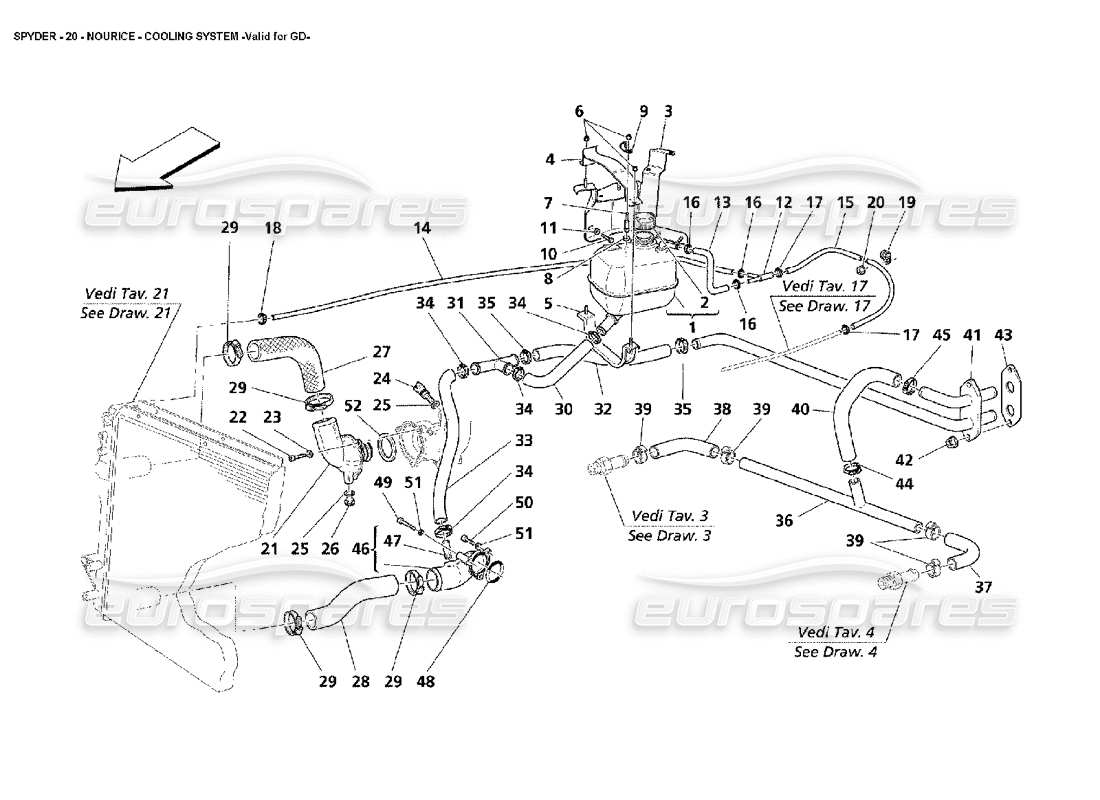

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 192411
                                                                                                        COMPLETE EXPANSION TANK
                                                                                                        Valid to assy n. 10263
                                                                                                        from £50.24
                                                                                                        from £50.24
                                                                                                        # 002
                                                                                                        MPN: 192412
                                                                                                        TANK PLUG
                                                                                                        from £5.96
                                                                                                        from £5.96
                                                                                                        # 003
                                                                                                        MPN: 192933
                                                                                                        NOURICE SUPPORTING BRACKET
                                                                                                        from £17.51
                                                                                                        from £17.51
                                                                                                        # 004
                                                                                                        MPN: 192936
                                                                                                        NOURICE UPPER SUPPORT
                                                                                                        from £6.62
                                                                                                        from £6.62
                                                                                                        # 005
                                                                                                        MPN: 192935
                                                                                                        NOURICE LOWER SUPPORT
                                                                                                        from £10.84
                                                                                                        from £10.84
                                                                                                        # 006
                                                                                                        MPN: 14058411
                                                                                                        NUT
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 007
                                                                                                        MPN: 192953
                                                                                                        STUD
                                                                                                        from £8.20
                                                                                                        from £8.20
                                                                                                        # 008
                                                                                                        MPN: 12601274
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        This part replaces part number 12601270
                                                                                                        # 009
                                                                                                        MPN: 10441590
                                                                                                        BRACKET WITH SHEATH
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 010
                                                                                                        MPN: 10979421
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 011
                                                                                                        MPN: 12620474
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 012
                                                                                                        MPN: 189345
                                                                                                        3-WAY UNION
                                                                                                        from £13.88
                                                                                                        from £13.88
                                                                                                        # 013
                                                                                                        MPN: 192613
                                                                                                        RUBBER HOSE
                                                                                                        from £6.35
                                                                                                        from £6.35
                                                                                                        # 014
                                                                                                        MPN: 192614
                                                                                                        RUBBER HOSE
                                                                                                        from £163.12
                                                                                                        from £163.12
                                                                                                        # 015
                                                                                                        MPN: 192615
                                                                                                        RUBBER HOSE
                                                                                                        from £10.01
                                                                                                        from £10.01
                                                                                                        # 016
                                                                                                        MPN: 13125470
                                                                                                        STRAP COLLAR
                                                                                                        from £0.52
                                                                                                        from £0.52
                                                                                                        # 017
                                                                                                        MPN: 183919
                                                                                                        STRAP COLLAR
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        # 018
                                                                                                        MPN: 13000190
                                                                                                        SCREW COLLAR
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 019
                                                                                                        MPN: 10441390
                                                                                                        BRACKET WITH SHEATH
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 020
                                                                                                        MPN: 14058411
                                                                                                        NUT
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 021
                                                                                                        MPN: 230890
                                                                                                        COVER WITH THERMOSTAT
                                                                                                        from £87.22
                                                                                                        from £87.22
                                                                                                        This part replaces part number 224623
                                                                                                        # 022
                                                                                                        MPN: 14305324
                                                                                                        SCREW
                                                                                                        from £0.52
                                                                                                        from £0.52
                                                                                                        This part replaces part number 14305321
                                                                                                        # 023
                                                                                                        MPN: 11197774
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 025
                                                                                                        MPN: 10298460
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 026
                                                                                                        MPN: 10300540
                                                                                                        THREADED PLUG
                                                                                                        from £2.85
                                                                                                        from £2.85
                                                                                                        # 027
                                                                                                        MPN: 190354
                                                                                                        DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                                        from £77.89
                                                                                                        from £77.89
                                                                                                        This part replaces part number 181747 - and 1 more. Click to view details
                                                                                                        # 028
                                                                                                        MPN: 181748
                                                                                                        RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                                        from £28.75
                                                                                                        from £28.75
                                                                                                        # 029
                                                                                                        MPN: 13000790
                                                                                                        SCREW COLLAR
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 312420106
                                                                                                        # 030
                                                                                                        MPN: 192400
                                                                                                        SLEEVE
                                                                                                        from £45.87
                                                                                                        from £45.87
                                                                                                        # 032
                                                                                                        MPN: 186653
                                                                                                        RUBBER HOSE
                                                                                                        from £12.74
                                                                                                        from £12.74
                                                                                                        # 033
                                                                                                        MPN: 192401
                                                                                                        RUBBER HOSE
                                                                                                        from £47.70
                                                                                                        from £47.70
                                                                                                        # 034
                                                                                                        MPN: 183126
                                                                                                        CLAMP
                                                                                                        from £0.84
                                                                                                        from £0.84
                                                                                                        # 035
                                                                                                        MPN: 186680
                                                                                                        CLAMP
                                                                                                        from £0.85
                                                                                                        from £0.85
                                                                                                        # 036
                                                                                                        MPN: 183115
                                                                                                        WATER OUTER PIPE FROM HEADS
                                                                                                        from £16.32
                                                                                                        from £16.32
                                                                                                        # 037
                                                                                                        MPN: 185578
                                                                                                        RUBBER HOSE
                                                                                                        from £13.04
                                                                                                        from £13.04
                                                                                                        # 039
                                                                                                        MPN: 178053
                                                                                                        CLAMP
                                                                                                        from £0.95
                                                                                                        from £0.95
                                                                                                        # 040
                                                                                                        MPN: 190279
                                                                                                        SLEEVE
                                                                                                        from £11.24
                                                                                                        from £11.24
                                                                                                        # 041
                                                                                                        MPN: 66722300
                                                                                                        COMPLETE RIGID PIPE TO HEATER
                                                                                                        from £77.24
                                                                                                        from £77.24
                                                                                                        # 042
                                                                                                        MPN: 12575421
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 12575411
                                                                                                        # 043
                                                                                                        MPN: 385500371
                                                                                                        GASKET
                                                                                                        from £1.08
                                                                                                        from £1.08
                                                                                                        # 044
                                                                                                        MPN: 13000490
                                                                                                        SCREW COLLAR
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 13127870 - and 1 more. Click to view details
                                                                                                        # 045
                                                                                                        MPN: 183126
                                                                                                        CLAMP
                                                                                                        from £0.87
                                                                                                        from £0.87
                                                                                                        # 046
                                                                                                        MPN: 188067
                                                                                                        WATER ENTRY COVER
                                                                                                        from £200.82
                                                                                                        from £200.82
                                                                                                        # 047
                                                                                                        MPN: 111628
                                                                                                        THREADED UNION
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 048
                                                                                                        MPN: 154191
                                                                                                        GASKET
                                                                                                        from £0.79
                                                                                                        from £0.79
                                                                                                        # 049
                                                                                                        MPN: 14306024
                                                                                                        SCREW
                                                                                                        from £1.31
                                                                                                        from £1.31
                                                                                                        This part replaces part number 14306034 which we have in stock
                                                                                                        # 050
                                                                                                        MPN: 14432224
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 051
                                                                                                        MPN: 11197774
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 052
                                                                                                        MPN: 137873
                                                                                                        GASKET
                                                                                                        from £2.95
                                                                                                        from £2.95
