maserati 4200 spyder (2002) pedals and electronic accelerator control -not for gd parts diagram

024 - Pedals and Electronic Accelerator Control -Not for GD

Maserati 4200 Spyder (2002) Pedals and Electronic Accelerator Control -Not for GD Parts Diagram

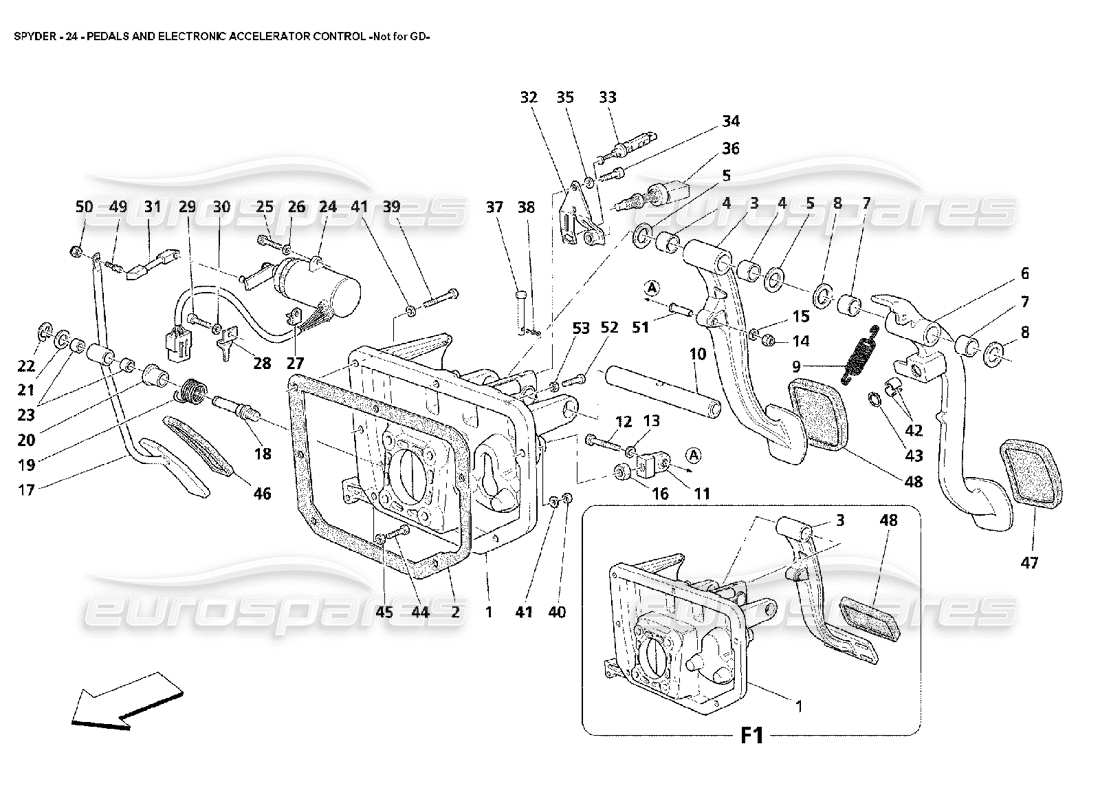

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 183743
                                                                              PEDAL SUPPORT
                                                                              - Not for F1
                                                                              from £1,848.82
                                                                              from £1,848.82
                                                                              # 001
                                                                              MPN: 185180
                                                                              PEDAL SUPPORT
                                                                              - Valid for F1
                                                                              from £113.53
                                                                              from £113.53
                                                                              # 002
                                                                              MPN: 378400348
                                                                              SUPPORT GASKET
                                                                              from £9.66
                                                                              from £9.66
                                                                              # 003
                                                                              MPN: 186859
                                                                              BRAKE PEDAL
                                                                              - Not for F1
                                                                              from £143.69
                                                                              from £143.69
                                                                              # 003
                                                                              MPN: 186861
                                                                              BRAKE PEDAL
                                                                              - Valid for F1
                                                                              from £79.03
                                                                              from £79.03
                                                                              # 004
                                                                              MPN: 318420320
                                                                              BUSHING
                                                                              from £9.66
                                                                              from £9.66
                                                                              # 005
                                                                              MPN: 368402321
                                                                              SPACER WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 006
                                                                              MPN: 186862
                                                                              CLUTCH PEDAL
                                                                              - Not for F1
                                                                              from £232.83
                                                                              from £232.83
                                                                              # 007
                                                                              MPN: 318420320
                                                                              BUSHING
                                                                              - Not for F1
                                                                              from £9.66
                                                                              from £9.66
                                                                              # 008
                                                                              MPN: 368402321
                                                                              SPACER WASHER
                                                                              - Not for F1
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 009
                                                                              MPN: 101305
                                                                              RETUTN SPRING FOR PEDAL
                                                                              - Not for F1
                                                                              from £5.43
                                                                              from £5.43
                                                                              # 010
                                                                              MPN: 388400329
                                                                              PEDALS SUPPORT PIN
                                                                              from £38.08
                                                                              from £38.08
                                                                              # 011
                                                                              MPN: 184749
                                                                              SERVOBRAKE PIN
                                                                              from £50.54
                                                                              from £50.54
                                                                              # 012
                                                                              MPN: 16044421
                                                                              SCREW
                                                                              from £1.31
                                                                              from £1.31
                                                                              # 013
                                                                              MPN: 12654421
                                                                              WASHER
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 014
                                                                              MPN: 147985
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              # 015
                                                                              MPN: 14499401
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 016
                                                                              MPN: 16102324
                                                                              NUT
                                                                              from £1.08
                                                                              from £1.08
                                                                              This part replaces part number 16102311 which we have in stock
                                                                              # 017
                                                                              MPN: 192592
                                                                              Accelerator Pedal
                                                                              from £397.04
                                                                              from £397.04
                                                                              This part replaces part number 186863
                                                                              # 018
                                                                              MPN: 186666
                                                                              ACCELERATOR PEDAL PIN
                                                                              from £50.62
                                                                              from £50.62
                                                                              # 019
                                                                              MPN: 388400364
                                                                              RETUTN SPRING FOR PEDAL
                                                                              from £32.59
                                                                              from £32.59
                                                                              # 020
                                                                              MPN: 388400407
                                                                              BUSHING
                                                                              from £26.10
                                                                              from £26.10
                                                                              # 021
                                                                              MPN: 388400346
                                                                              WASHER
                                                                              from £3.16
                                                                              from £3.16
                                                                              # 022
                                                                              MPN: 11088076
                                                                              FLEXIBLE RING
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 023
                                                                              MPN: 318420334
                                                                              BUSHING
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 024
                                                                              MPN: 183656
                                                                              ACCELERATOR PEDAL POTENTIOMETER
                                                                              from £86.44
                                                                              from £86.44
                                                                              # 025
                                                                              MPN: 14432221
                                                                              SCREW
                                                                              - Not for F1
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 025
                                                                              MPN: 14433121
                                                                              SCREW
                                                                              - Valid for F1
                                                                              from £1.18
                                                                              from £1.18
                                                                              # 026
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12601270
                                                                              # 027
                                                                              MPN: 383000318
                                                                              Retaining Clip
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 028
                                                                              MPN: 383000315
                                                                              PLATE
                                                                              from £4.57
                                                                              from £4.57
                                                                              # 029
                                                                              MPN: 14305121
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 030
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 12601270
                                                                              # 031
                                                                              MPN: 82476740
                                                                              ACCELERATOR PEDALTIE ROD
                                                                              from £33.79
                                                                              from £33.79
                                                                              # 032
                                                                              MPN: 194452
                                                                              SWITCH SUPPORT BRACKET
                                                                              from £35.96
                                                                              from £35.96
                                                                              This part replaces part number 186667 - and 1 more. Click to view details
                                                                              # 033
                                                                              MPN: 334064
                                                                              BRAKE PEDAL SWITCH
                                                                              from £15.43
                                                                              from £15.43
                                                                              This part replaces part number 183433
                                                                              # 034
                                                                              MPN: 14305121
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 035
                                                                              MPN: 127494
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 036
                                                                              MPN: 133555
                                                                              BRAKE PEDAL SWITCH
                                                                              - Not for F1
                                                                              from £18.60
                                                                              from £18.60
                                                                              # 037
                                                                              MPN: 186665
                                                                              PEDALS FIXING PIN
                                                                              from £63.21
                                                                              from £63.21
                                                                              # 038
                                                                              MPN: 58841309
                                                                              SAFETY CLIP
                                                                              from £1.99
                                                                              from £1.99
                                                                              This part replaces part number 670000498 - and 2 more. Click to view details
                                                                              # 039
                                                                              MPN: 16044124
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 040
                                                                              MPN: 16104421
                                                                              NUT
                                                                              from £0.81
                                                                              from £0.81
                                                                              # 041
                                                                              MPN: 14496521
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 042
                                                                              MPN: 186664
                                                                              BUSHING FOR PIN FIXING
                                                                              - Not for F1
                                                                              from £130.69
                                                                              from £130.69
                                                                              # 043
                                                                              MPN: 11057876
                                                                              SEEGER RING
                                                                              - Not for F1
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 044
                                                                              MPN: 10902224
                                                                              SCREW FOR END OF STROKE
                                                                              - Valid for F1
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 044
                                                                              MPN: 10902624
                                                                              SCREW FOR END OF STROKE
                                                                              - Not for F1
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10902621
                                                                              # 045
                                                                              MPN: 15896221
                                                                              NUT
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 046
                                                                              MPN: 318420301
                                                                              ACCELERATOR PEDAL COVER
                                                                              from £1.51
                                                                              from £1.51
                                                                              # 047
                                                                              MPN: 191496
                                                                              CLUTCH PEDAL COVER
                                                                              - Not for F1
                                                                              Supersession
                                                                              Supersession
                                                                              # 048
                                                                              MPN: 191496
                                                                              BRAKE PEDAL COVER
                                                                              - Not for F1
                                                                              Supersession
                                                                              Supersession
                                                                              # 048
                                                                              MPN: 318432300
                                                                              BRAKE PEDAL COVER
                                                                              - Valid for F1
                                                                              from £2.55
                                                                              from £2.55
                                                                              # 049
                                                                              MPN: 318420305
                                                                              BALL PIN
                                                                              Supersession
                                                                              Supersession
                                                                              # 050
                                                                              MPN: 14075611
                                                                              NUT
                                                                              from £1.31
                                                                              from £1.31
                                                                              # 051
                                                                              MPN: 189472
                                                                              BUSHING
                                                                              from £80.76
                                                                              from £80.76
                                                                              # 052
                                                                              MPN: 187014
                                                                              CLUTCH PEDAL ADJUSTEMENT PIN
                                                                              - Not for F1
                                                                              from £23.81
                                                                              from £23.81
                                                                              # 053
                                                                              MPN: 16102314
                                                                              NUT
                                                                              - Not for F1
                                                                              from £0.47
                                                                              from £0.47
