maserati 4200 spyder (2002) engine-transmission connection tube and insulations parts diagram

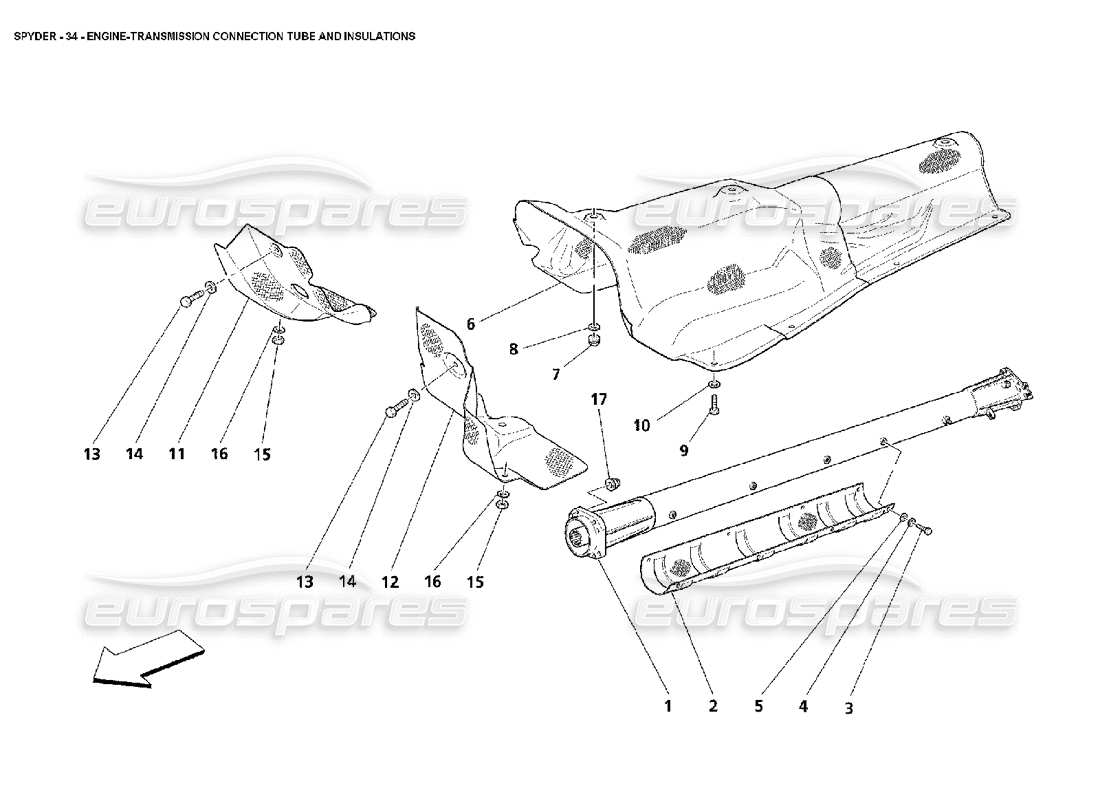

034 - Engine-Transmission Connection Tube and Insulations

Maserati 4200 Spyder (2002) Engine-Transmission Connection Tube and Insulations Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 187532
                                  COMPLETE ENGINE-TRANSMISSION CONNECTION TUBE
                                  - Valid for F1 -
                                  from £4,693.27
                                  from £4,693.27
                                  This part replaces part number 186739 - and 1 more. Click to view details
                                  # 002
                                  MPN: 185559
                                  ANTI-HEAT SHIELD
                                  from £20.15
                                  from £20.15
                                  # 003
                                  MPN: 11635724
                                  SCREW
                                  from £0.48
                                  from £0.48
                                  # 004
                                  MPN: 12601274
                                  WASHER
                                  from £0.51
                                  from £0.51
                                  This part replaces part number 12601270
                                  # 005
                                  MPN: 12644424
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  This part replaces part number 13550214
                                  # 006
                                  MPN: 66065500
                                  TUNNEL HEAT SHIELD
                                  from £97.16
                                  from £97.16
                                  # 007
                                  MPN: 14059111
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 008
                                  MPN: 12624124
                                  WASHER
                                  from £0.95
                                  from £0.95
                                  # 009
                                  MPN: 10977824
                                  SCREW
                                  from £1.04
                                  from £1.04
                                  This part replaces part number 16130321 which we have in stock
                                  # 010
                                  MPN: 12624124
                                  WASHER
                                  from £0.92
                                  from £0.92
                                  # 011
                                  MPN: 66584200
                                  RH SHIELD
                                  from £17.67
                                  from £17.67
                                  # 012
                                  MPN: 66582900
                                  LH SHIELD
                                  from £17.67
                                  from £17.67
                                  # 013
                                  MPN: 10977824
                                  SCREW
                                  from £1.08
                                  from £1.08
                                  This part replaces part number 16130321 which we have in stock
                                  # 014
                                  MPN: 12624124
                                  WASHER
                                  from £0.94
                                  from £0.94
                                  # 015
                                  MPN: 13831811
                                  NUT
                                  from £0.53
                                  from £0.53
                                  # 016
                                  MPN: 12624124
                                  WASHER
                                  from £0.95
                                  from £0.95
