040 - Hand-Brake Control

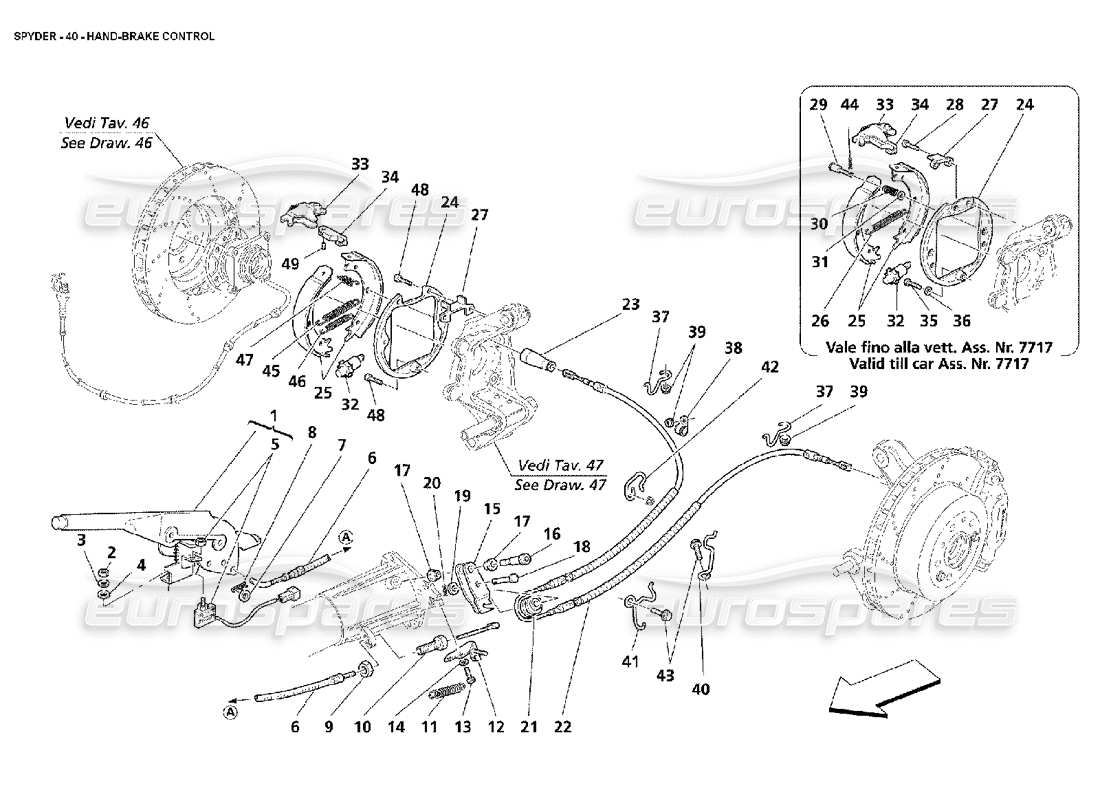

Maserati 4200 Spyder (2002) Hand-Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 188591
HAND BRAKE LEVER
from £118.43
from £118.43
# 002
MPN: 16104421
NUT
from £0.81
from £0.81
# 003
MPN: 14496521
WASHER
from £0.53
from £0.53
# 004
MPN: 12628924
WASHER
from £1.85
from £1.85
# 005
MPN: 383300157
MICRO-SWITCH
from £24.66
from £24.66
This part replaces part number 980000944
# 006
MPN: 187664
FRONT CABLE
- Valid till cars Ass. Nr. 7463 for versions NOT USA and CDN - Valid till car Ass. Nr. 7417 for versions USA and CDN - Valid till stock exhaustion after stock exhaustion replaced by 193302
from £38.60
from £38.60
# 006
MPN: 193302
FRONT CABLE
- Valid from cars Ass. Nr. 7464 for versions NOT USA and CDN - Valid from car Ass. Nr. 7418 for versions USA and CDN
from £40.93
from £40.93
# 007
MPN: 12642701
WASHER
from £0.47
from £0.47
This part replaces part number 12642724
# 008
MPN: 10766301

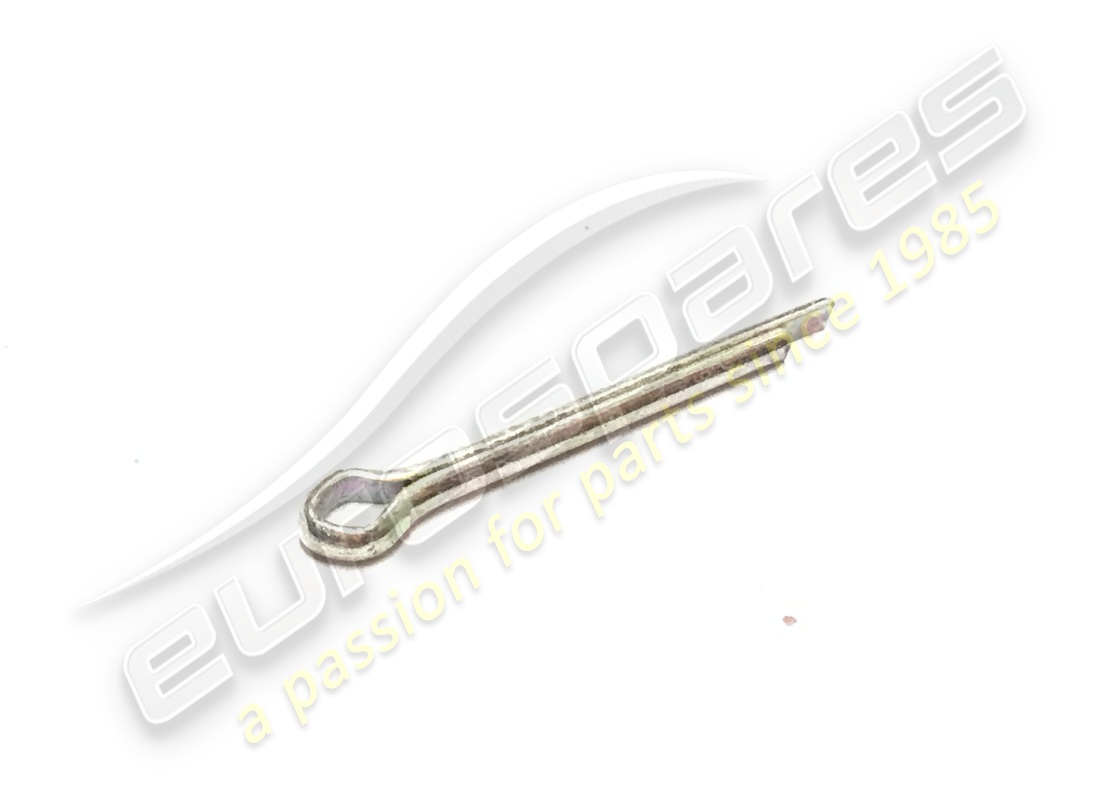

SPLIT PIN
from £0.47
from £0.47
# 009
MPN: 10726824
NUT
from £3.16
from £3.16
# 010
MPN: 185282
CABLE TIGHTENER
from £11.81
from £11.81
# 011
MPN: 101305
SPRING
from £8.10
from £8.10
# 012
MPN: 186208
BRACKET FOR SPRING
from £8.16
from £8.16
# 013
MPN: 10902024

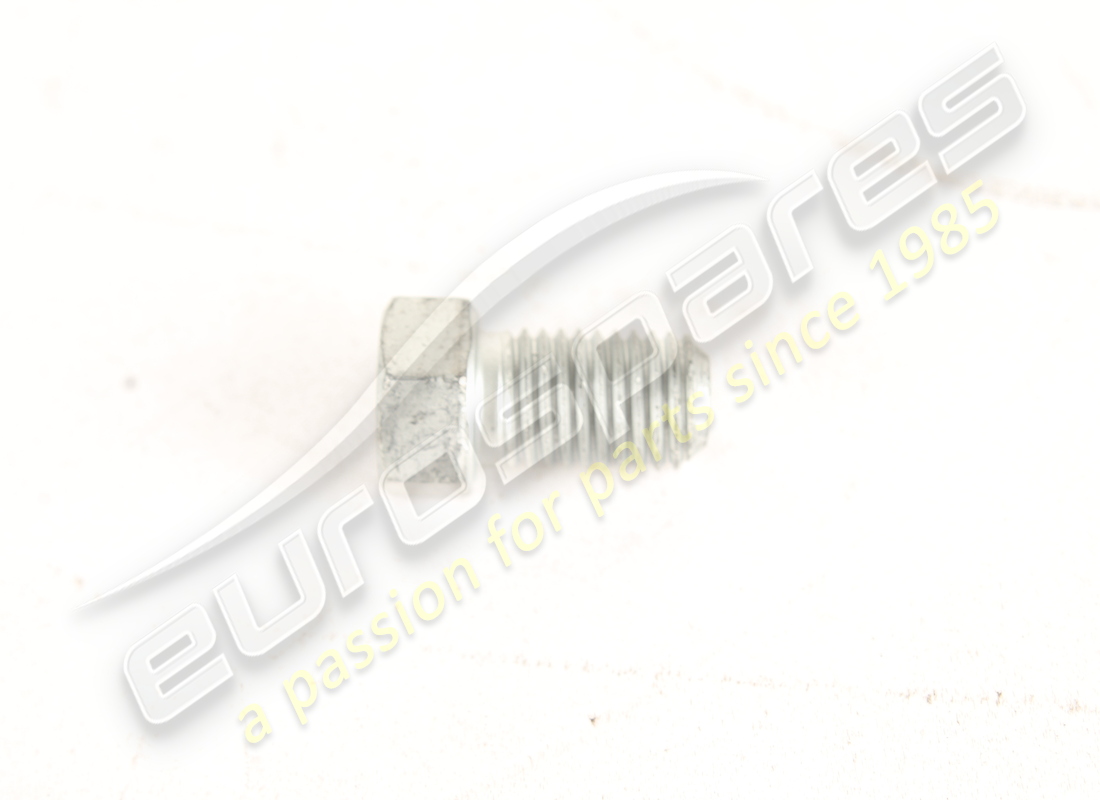

SCREW
from £0.47
from £0.47
# 014
MPN: 11199674
WASHER
from £0.53
from £0.53
# 015
MPN: 188588
BRAKE TRANSMISSION LEVER
from £14.69
from £14.69
# 016
MPN: 185278
TRANSMISSION LEVER PIN
from £14.69
from £14.69
# 017
MPN: 175729
BUSHING
from £6.38
from £6.38
# 018
MPN: 10050811
PIN
from £5.22
from £5.22
# 019
MPN: 10519601
WASHER
from £0.53
from £0.53
# 020
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 021
MPN: 188587
CABLE TRANSMISSION PULLEY
from £10.92
from £10.92
# 022
MPN: 186867
REAR CABLE
- Valid till cars Ass. Nr. 7463 for versions NOT USA and CDN - Valid till car Ass. Nr. 7417 for versions USA and CDN - Valid till stock exhaustion after stock exhaustion replaced by 194875
Supersession
Supersession
# 022
MPN: 193303
REAR CABLE
- Valid from cars Ass. Nr. 7464 for versions NOT USA and CDN - Valid from car Ass. Nr. 7418 for versions USA and CDN - Valid till car Ass. Nr. 7717 Valid till stock exhaustion replaced by 194875 after stock exhaustion
from £72.40
from £72.40
# 022
MPN: 194875
REAR CABLE
from £69.15
from £69.15
This part replaces part number 186867
# 023
MPN: 143938
CABLE SHEATH
from £16.23
from £16.23
This part replaces part number 388000341
# 024
MPN: 186574
SHOES SUPPORT SPACER
- Valid from car Ass. Nr. 7718
from £43.14
from £43.14
# 024
MPN: 388000348
SHOES SUPPORT SPACER
- Valid till car Ass. Nr. 7717
from £26.86
from £26.86
# 025
-
COMPLETE BRAKE SHOE SET
# 025
MPN: 248418

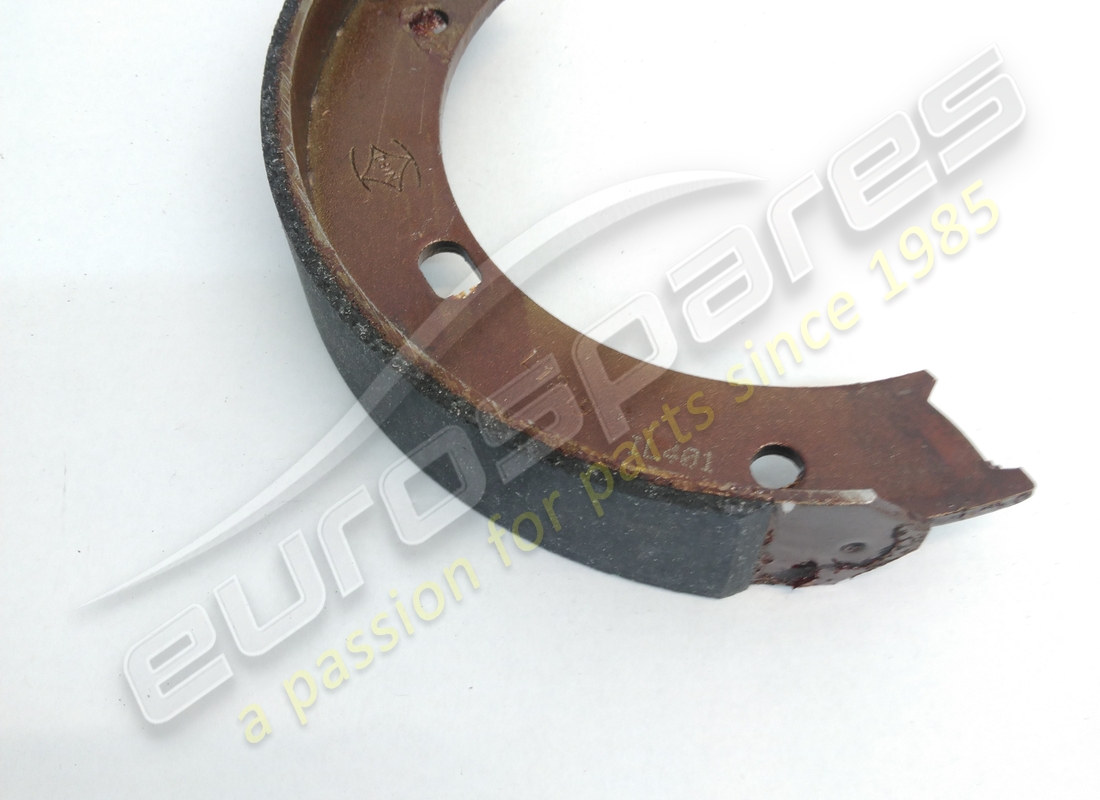

HAND BRAKE SHOE
from £95.89
from £95.89
This part replaces part number 235894
# 025
MPN: 388000111
HAND BRAKE SHOE (1 PIECE) 4 PIECES REQUIRED
- Valid till car Ass. Nr. 7717 - USE PART NUMBER 170701
from £47.70
from £47.70
# 025
MPN: 388000111/A

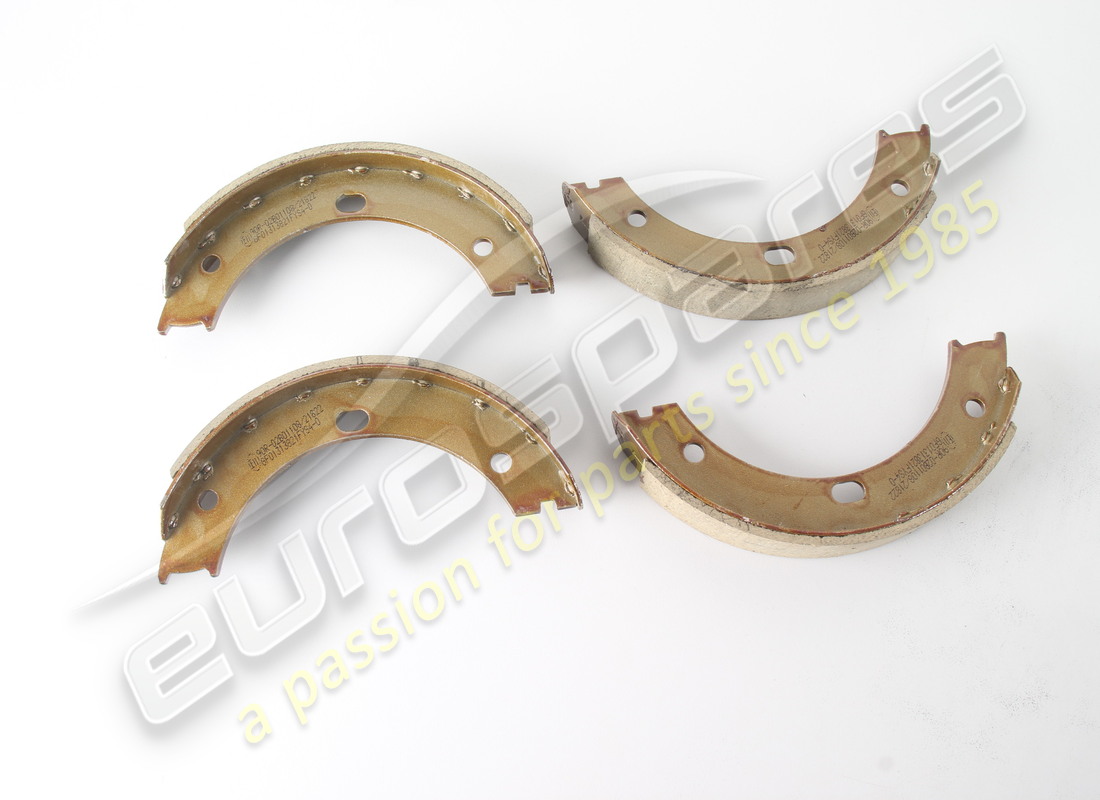

HAND BRAKE SHOES (SET OF 4)
from £96.97
from £96.97
# 026
MPN: 388001334
RETUTN SPRING FOR BRAKE SHOES
- Valid till car Ass. Nr. 7717
Supersession
Supersession
This part replaces part number 388000334
# 027
MPN: 190814
SMALL BLOCK
- Valid from car Ass. Nr. 7718
from £37.66
from £37.66
# 027
MPN: 388000340
SMALL BLOCK
- Valid till car Ass. Nr. 7717
from £19.77
from £19.77
# 028
MPN: 388000342
SCREW
- Valid till car Ass. Nr. 7717
from £7.70
from £7.70
# 029
MPN: 193312
PIN FOR SHOES
- Valid till car Ass. Nr. 7717
from £25.31
from £25.31
# 030
MPN: 318020337
SPRING
- Valid till car Ass. Nr. 7717
from £0.57
from £0.57
# 031
MPN: 14496521
WASHER
- Valid till car Ass. Nr. 7717
from £0.51
from £0.51
# 032
MPN: 186572
REGISTER FOR HAND BRAKE
from £22.61
from £22.61
This part replaces part number 388000113
# 032
MPN: 186572
REGISTER FOR HAND BRAKE
- Valid from car Ass. Nr. 7718
from £22.61
from £22.61
This part replaces part number 388000113
# 033
MPN: 190782
HAND BRAKE CONTROL DEVICE
- Valid from car Ass. Nr. 7718
from £24.24
from £24.24
This part replaces part number 388001155
# 033
MPN: 388001155
HAND BRAKE CONTROL DEVICE
- Valid till car Ass. Nr. 7717
Supersession
Supersession
This part replaces part number 388000155
# 034
MPN: 105270
FORK
- Valid from car Ass. Nr. 7718
from £14.77
from £14.77
This part replaces part number 388000364
# 034
MPN: 388000364
FORK
- Valid till car Ass. Nr. 7717
Supersession
Supersession
# 035
MPN: 14305121
SCREW
- Valid till car Ass. Nr. 7717
from £0.47
from £0.47
# 036
MPN: 10569279
WASHER
- Valid till car Ass. Nr. 7717
from £0.71
from £0.71
# 037
MPN: 186933
LH AND RH BRAKE CABLE SPRING
from £1.40
from £1.40
# 038
MPN: 10441190
BRACKET WITH SHEATH
from £0.47
from £0.47
# 039
MPN: 14058411
NUT
from £0.47
from £0.47
# 040
MPN: 186934
BRAKE CABLE SPRING
from £1.76
from £1.76
# 041
MPN: 186935
BRAKE CABLE FRONT SPRING
- Valid for F1
from £2.18
from £2.18
# 042
MPN: 186936
BRAKE CABLE REAR SPRING
- Valid for F1
from £2.18
from £2.18
# 043
MPN: 11730624
SCREW
from £0.53
from £0.53
# 044
MPN: 58841309
SAFETY CLIP
- Valid till car Ass. Nr. 7717
from £1.83
from £1.83
This part replaces part number 670000498 - and 2 more. Click to view details
# 045
MPN: 190776
RETUTN SPRING FOR BRAKE SHOES
- Valid from car Ass. Nr. 7718
from £9.57
from £9.57
# 046
MPN: 190779
RETUTN SPRING FOR BRAKE SHOES
- Valid from car Ass. Nr. 7718
from £1.86
from £1.86
# 047
MPN: 190780
SPRING FOR SHOES
- Valid from car Ass. Nr. 7718
from £1.71
from £1.71
# 048
MPN: 190870
SCREW
- Valid from car Ass. Nr. 7718
from £1.15
from £1.15
This part replaces part number 193737 - and 1 more. Click to view details
# 049
MPN: 101282
PIN
- Valid from car Ass. Nr. 7718
from £8.04
from £8.04
-part-diagram-041.webp "MASERATI 4200 SPYDER (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2002) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2002) BODY - REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2002) PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2002) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2002) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2002) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2002) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2002) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2002) CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2002) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2002) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2002) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2002) BRAKE CALIPERS PARTS DIAGRAM")
