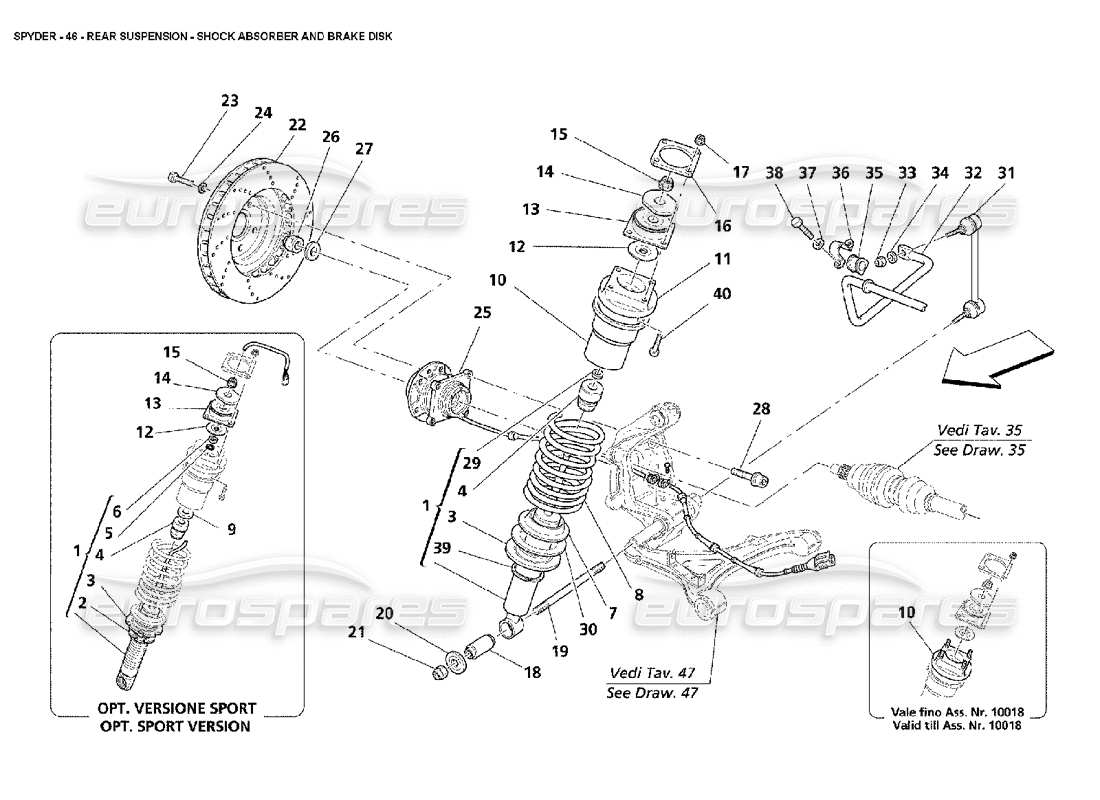

046 - Rear Suspension - Shock Absorber and Brake Disk
Maserati 4200 Spyder (2002) Rear Suspension - Shock Absorber and Brake Disk Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182778
REAR SHOCK ABSORBER
- Optional - Version sport
from £1,007.06
from £1,007.06
# 001
MPN: 191391
REAR SHOCK ABSORBER
- Standard
from £292.72
from £292.72
# 001
MPN: 220939
REAR SHOCK ABSORBER
Optional - Version sport
from £986.53
from £986.53
# 002
MPN: 174726
RING NUT
- Optional - Version sport
from £38.49
from £38.49
# 003
MPN: 183020
LOWER SPACER
- Optional - Version sport
from £381.48
from £381.48
# 003
MPN: 386601380
LOWER SPACER
- Standard
from £63.46
from £63.46
# 004
MPN: 189997
SHOCK ABSORBER PAD
- Optional - Version sport
from £21.14
from £21.14
# 004
MPN: 387000327
SHOCK ABSORBER PAD
- Standard
from £21.30
from £21.30
# 005
MPN: 183594
FLEXIBLE RING
- Optional - Version sport
from £21.56
from £21.56
# 006
MPN: 183595
BUSHING
- Optional - Version sport
from £32.38
from £32.38
# 007
MPN: 188996
LOWER SPACER
from £4.82
from £4.82
# 008
MPN: 163653
SUSPENSION SPRING
from £244.87
from £244.87
This part replaces part number 387000336
# 009
MPN: 189507
SPACER
- Optional - Version sport
from £13.52
from £13.52
# 010
MPN: 188995
UPPER SPACER
from £7.73
from £7.73
# 011
MPN: 191056
SPRING SUPPORT SPACER
- Valid till car Ass. Nr. 10018
from £39.53
from £39.53
# 011
MPN: 192645
SPRING SUPPORT SPACER
- Valid from car Ass. Nr. 10019
from £9.66
from £9.66
# 012
MPN: 183016
WASHER
- Optional - Version sport
from £15.54
from £15.54
# 012
MPN: 193235
WASHER
- Standard
from £3.16
from £3.16
# 013
MPN: 183015
HYPERBLOCK
- Optional - Version sport
from £42.96
from £42.96
# 013
MPN: 386600109
HYPERBLOCK
- Standard
from £83.87
from £83.87
This part replaces part number 114812 which we have in stock
# 014
MPN: 189110
WASHER
- Optional - Version sport
from £3.86
from £3.86
# 014
MPN: 387000340
WASHER
- Standard
from £3.16
from £3.16
# 015
MPN: 137826
NUT
- Standard
from £2.31
from £2.31
# 015
MPN: 183417
NUT
- Optional - Version sport
Supersession
Supersession
# 016
MPN: 191055
SPACER FOR SHOCK ABSORBER
from £25.51
from £25.51
# 017
MPN: 14058521
NUT
from £0.97
from £0.97
# 018
MPN: 163918
LOWER SHOCK ABSORBER BUSH
from £77.62
from £77.62
This part replaces part number 387000375
# 019
MPN: 13531734
STUD
from £17.16
from £17.16
This part replaces part number 13531634
# 020
MPN: 387000329
CUP
from £3.63
from £3.63
# 021
MPN: 14048825
NUT
from £4.57
from £4.57
# 022
MPN: 192996
REAR BRAKE DISC
from £166.31
from £166.31
This part replaces part number 387210351
# 022
MPN: 387210351
REAR BRAKE DISC
- Valid till stock exhaustion - on exhaustion use 192996
Supersession
Supersession
# 023
MPN: 16043421
SCREW
from £2.54
from £2.54
This part replaces part number 16043411
# 024
MPN: 10571779
WASHER
from £0.47
from £0.47
# 025
MPN: 185564
BEARING FOR WHEEL
(early 2002 model only)
from £773.59
from £773.59
# 026
MPN: 183320
NUT
from £5.09
from £5.09
# 027
MPN: 183321
WASHER
Supersession
Supersession
# 028
MPN: 190723
SCREW
from £5.26
from £5.26
This part replaces part number 14834021 - and 1 more. Click to view details
# 029
MPN: 386600329
SPACER FOR PAD SUPPORT
- Standard
from £17.78
from £17.78
# 030
MPN: 386601382
THICKNESS - MM. 2
- Standard
from £2.32
from £2.32
# 030
MPN: 386601397
THICKNESS - MM. 4
- Standard
from £4.09
from £4.09
# 031
MPN: 193729
TIE-RODS
from £57.42
from £57.42
This part replaces part number 387000126
# 031
MPN: 193729
TIE-RODS
from £57.42
from £57.42
This part replaces part number 387000126
# 032
MPN: 188654
Rear Anti-Roll Bar
from £54.44
from £54.44
# 033
MPN: 12575621
NUT
from £1.41
from £1.41
This part replaces part number 98095 which we have in stock
# 034
MPN: 13550421
WASHER
from £0.47
from £0.47
# 035
MPN: 193662
RUBBER PAD
from £9.09
from £9.09
# 036
MPN: 397050368
RETAINER
from £2.85
from £2.85
# 037
MPN: 10571779
WASHER
from £0.47
from £0.47
# 038
MPN: 16043321
SCREW
from £1.08
from £1.08
# 039
MPN: 386601381
SPACER STOP RING
- Standard
from £4.17
from £4.17
# 040
MPN: 16044224
SCREW
- Valid from car Ass. Nr. 10019
from £0.51
from £0.51
-part-diagram-047.webp "MASERATI 4200 SPYDER (2002) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI 4200 SPYDER (2002) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI 4200 SPYDER (2002) SPARE WHEEL AND EQUIPMENT -OPTIONAL PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI 4200 SPYDER (2002) BATTERY PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI 4200 SPYDER (2002) CURRENT GENERATOR-STARTING MOTOR PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI 4200 SPYDER (2002) TOOLS EQUIPMENT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-100.webp "MASERATI 4200 SPYDER (2002) BODY - OUTER TRIMS PARTS DIAGRAM")
-part-diagram-101.webp "MASERATI 4200 SPYDER (2002) BODY - REAR OUTER TRIMS PARTS DIAGRAM")
-part-diagram-102.webp "MASERATI 4200 SPYDER (2002) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-103.webp "MASERATI 4200 SPYDER (2002) CENTRAL STRUCTURE PARTS DIAGRAM")
-part-diagram-104.webp "MASERATI 4200 SPYDER (2002) REAR STRUCTURE PARTS DIAGRAM")
-part-diagram-105.webp "MASERATI 4200 SPYDER (2002) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-106.webp "MASERATI 4200 SPYDER (2002) REAR BUMPER PARTS DIAGRAM")
-part-diagram-107.webp "MASERATI 4200 SPYDER (2002) PASSENGERS COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-108.webp "MASERATI 4200 SPYDER (2002) ROOF PANEL UPHOLSTERY AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-109.webp "MASERATI 4200 SPYDER (2002) PASSEGERS COMPARTMENT UPHOLSTERY ACCESSORIES PARTS DIAGRAM")
-part-diagram-110.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS PARTS DIAGRAM")
-part-diagram-111.webp "MASERATI 4200 SPYDER (2002) CAPOTE CLOTH - GASKET PARTS DIAGRAM")
-part-diagram-112.webp "MASERATI 4200 SPYDER (2002) CAPOTE FRONT CLOSING PARTS DIAGRAM")
-part-diagram-113.webp "MASERATI 4200 SPYDER (2002) CAPOTE STRUCTURE PARTS DIAGRAM")
-part-diagram-114.webp "MASERATI 4200 SPYDER (2002) CAPOTE CONTROL STATION - RELAY - MICROSWITCH PARTS DIAGRAM")
-part-diagram-115.webp "MASERATI 4200 SPYDER (2002) CAPOTE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-116.webp "MASERATI 4200 SPYDER (2002) CLOSINGS AND COVER PARTS DIAGRAM")
-part-diagram-117.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET AND OPENING DEVICE PARTS DIAGRAM")
-part-diagram-118.webp "MASERATI 4200 SPYDER (2002) TRUNK HOOD BONNET AND GAS DOOR PARTS DIAGRAM")
-part-diagram-119.webp "MASERATI 4200 SPYDER (2002) DOORS - FRAMEWORK AND COVERINGS PARTS DIAGRAM")
-part-diagram-120.webp "MASERATI 4200 SPYDER (2002) DOORS - OPENING CONTROL AND HINGES PARTS DIAGRAM")
-part-diagram-121.webp "MASERATI 4200 SPYDER (2002) DOORS - POWER WINDOW AND REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-122.webp "MASERATI 4200 SPYDER (2002) GLASSES WINDSHIELD - GASKETS AND INNER REARWIEW MIRROR PARTS DIAGRAM")
-part-diagram-123.webp "MASERATI 4200 SPYDER (2002) ELECRICAL SEAT-SAFETY BELTS PARTS DIAGRAM")
-part-diagram-124.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SEAT-GUIDE AND MOVEMENT PARTS DIAGRAM")
-part-diagram-125.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -NOT FOR GD PARTS DIAGRAM")
-part-diagram-126.webp "MASERATI 4200 SPYDER (2002) DASHBOARD -VALID FOR GD PARTS DIAGRAM")
-part-diagram-127.webp "MASERATI 4200 SPYDER (2002) DASHBOARD DRAWER PARTS DIAGRAM")
-part-diagram-128.webp "MASERATI 4200 SPYDER (2002) TUNNEL - FRAMEWORK AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-129.webp "MASERATI 4200 SPYDER (2002) AIR-BAGS PARTS DIAGRAM")
-part-diagram-130.webp "MASERATI 4200 SPYDER (2002) DASHBOARD INSTRUMENTS PARTS DIAGRAM")
-part-diagram-131.webp "MASERATI 4200 SPYDER (2002) TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-132.webp "MASERATI 4200 SPYDER (2002) FRONT AND REAR LIGHTS PARTS DIAGRAM")
-part-diagram-133.webp "MASERATI 4200 SPYDER (2002) XENO HEADLIGTHS AND HEADLIGHTS WASHER -OPTIONAL PARTS DIAGRAM")
-part-diagram-134.webp "MASERATI 4200 SPYDER (2002) SHIELDS AND OUTSIDE FINISHING PARTS DIAGRAM")
-part-diagram-135.webp "MASERATI 4200 SPYDER (2002) WINDSHIELD - GLASS WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-136.webp "MASERATI 4200 SPYDER (2002) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-137.webp "MASERATI 4200 SPYDER (2002) ENGINE BONNET SENSOR AND CONTROL STATIONS PARTS DIAGRAM")
-part-diagram-138.webp "MASERATI 4200 SPYDER (2002) FRONT PASSENGERS COMPARTMENT CONTROL STATION PARTS DIAGRAM")
-part-diagram-139.webp "MASERATI 4200 SPYDER (2002) PASSENGERS SIDE CONTROL UNITS PARTS DIAGRAM")
-part-diagram-140.webp "MASERATI 4200 SPYDER (2002) RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS PARTS DIAGRAM")
-part-diagram-141.webp "MASERATI 4200 SPYDER (2002) LH SIDE TRUNK BONNET CONTROL UNIT PARTS DIAGRAM")
-part-diagram-142.webp "MASERATI 4200 SPYDER (2002) ANTI THEFT ELECTRICAL BOARDS AND DEVICES PARTS DIAGRAM")
-part-diagram-143.webp "MASERATI 4200 SPYDER (2002) IMMOBILIZER KIT PARTS DIAGRAM")
-part-diagram-144.webp "MASERATI 4200 SPYDER (2002) EVAPORATOR GROUP PARTS DIAGRAM")
-part-diagram-145.webp "MASERATI 4200 SPYDER (2002) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-146.webp "MASERATI 4200 SPYDER (2002) CAR STEREO SYSTEM PARTS DIAGRAM")
-part-diagram-147.webp "MASERATI 4200 SPYDER (2002) STEREO EQUIPMENT - ACCESORIES PARTS DIAGRAM")
-part-diagram-148.webp "MASERATI 4200 SPYDER (2002) PLATES PARTS DIAGRAM")
-part-diagram-000.webp "MASERATI 4200 SPYDER (2002) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI 4200 SPYDER (2002) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI 4200 SPYDER (2002) CRANKSHAFT CONRODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI 4200 SPYDER (2002) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI 4200 SPYDER (2002) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI 4200 SPYDER (2002) TIMING - TAPPETS PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI 4200 SPYDER (2002) TIMING - CONTROLS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI 4200 SPYDER (2002) INJECTION DEVICE - IGNITION PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI 4200 SPYDER (2002) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI 4200 SPYDER (2002) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI 4200 SPYDER (2002) FUEL TANKS AND UNION PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI 4200 SPYDER (2002) ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI 4200 SPYDER (2002) AIR INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI 4200 SPYDER (2002) EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI 4200 SPYDER (2002) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI 4200 SPYDER (2002) LUBRICATION SYSTEM - TANK - HEATER EXCHANGER PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI 4200 SPYDER (2002) WATER-OIL PUMP PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI 4200 SPYDER (2002) NOURICE - COOLING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI 4200 SPYDER (2002) COOLING SYSTEM RADIATOR PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -NOT FOR F1 PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI 4200 SPYDER (2002) CLUTCH AND CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI 4200 SPYDER (2002) PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI 4200 SPYDER (2002) F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI 4200 SPYDER (2002) POWER UNIT AND TANK -VALID FOR F1 PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI 4200 SPYDER (2002) GEARBOX - COVER - GEARBOX OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL BOX - REAR UNDERBODY PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI 4200 SPYDER (2002) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI 4200 SPYDER (2002) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI 4200 SPYDER (2002) INNER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI 4200 SPYDER (2002) OUTER GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI 4200 SPYDER (2002) ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI 4200 SPYDER (2002) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI 4200 SPYDER (2002) BRAKES AND CLUTCH HYDRAULIC CONTROLS PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -NOT FOR GD PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI 4200 SPYDER (2002) BRAKING SYSTEM -VALID FOR GD PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI 4200 SPYDER (2002) BRAKE CALIPERS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI 4200 SPYDER (2002) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI 4200 SPYDER (2002) FRONT UNDER FRAME AND UNDERMOTOR SHIELDS PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI 4200 SPYDER (2002) STEERING BOX PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI 4200 SPYDER (2002) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI 4200 SPYDER (2002) FRONT SUSPENSION - WISHBONES AND STABILIZER BAR PARTS DIAGRAM")
