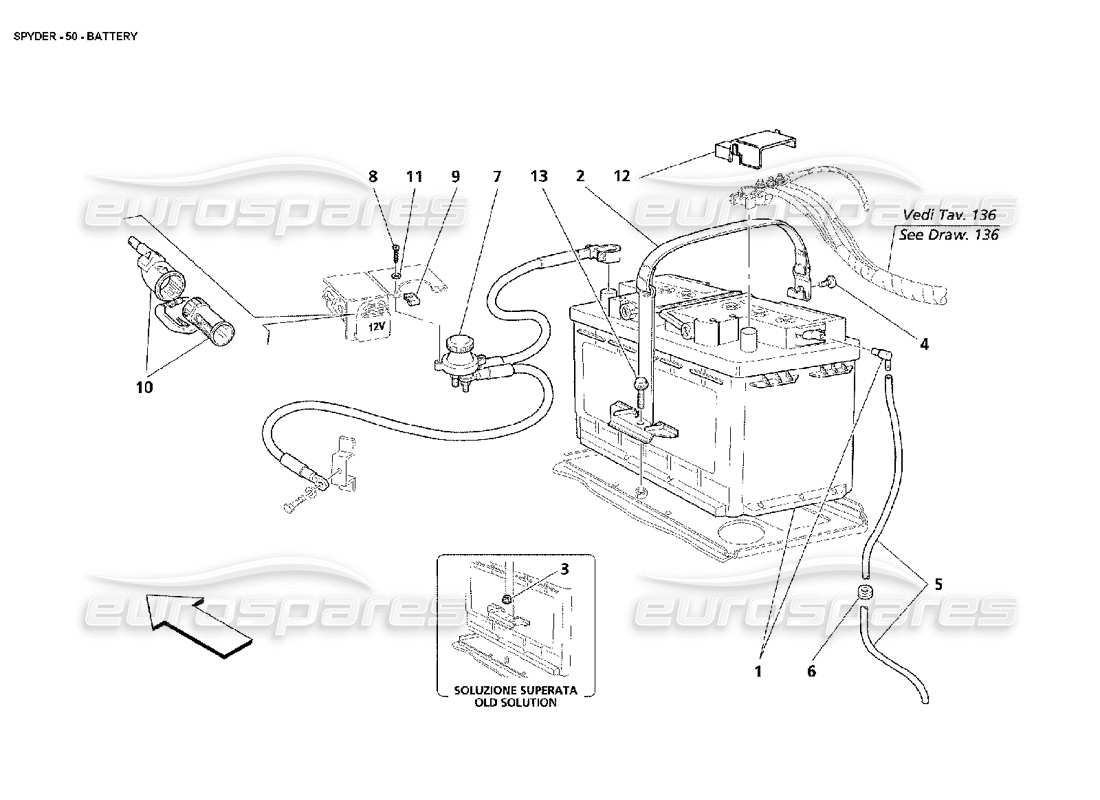

Maserati 4200 Spyder (2002) Battery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 980138304
Battery
Supersession
Supersession
This part replaces part number 980138592
# 002
MPN: 190703
BATTERY FIXING BELT
from £16.10
from £16.10
# 003
MPN: 14040711
NUT
from £0.54
from £0.54
This part replaces part number 14576780
# 004
MPN: 14592487
FIXING BUTTON
- Valid till stock exhaustion
from £0.47
from £0.47
# 004
MPN: 67113400
FIXING BUTTON
- Valid after stock exhaustion of 14592487
from £1.08
from £1.08
# 005
MPN: 383000325
VENT PIPE
from £0.85
from £0.85
# 006
MPN: 386100457
RUBBER
from £1.55
from £1.55
# 007
MPN: 383000322
COMPLETE CUT-OUT SWITCH
from £228.05
from £228.05
This part replaces part number 139607
# 008
MPN: 15689807
SCREW
from £1.08
from £1.08
This part replaces part number 15689675
# 009
MPN: 61067800
BRACKET
from £1.08
from £1.08
# 010
MPN: 190040
SOCKET
from £11.65
from £11.65
# 011
MPN: 12637878
WASHER
from £0.54
from £0.54
# 012
MPN: 185418
COVER FOR POSITIVE TERMINAL
from £24.24
from £24.24
# 013
MPN: 16043921
SCREW
from £1.43
from £1.43
