maserati 4200 spyder (2002) body - outer trims parts diagram

100 - Body - Outer Trims

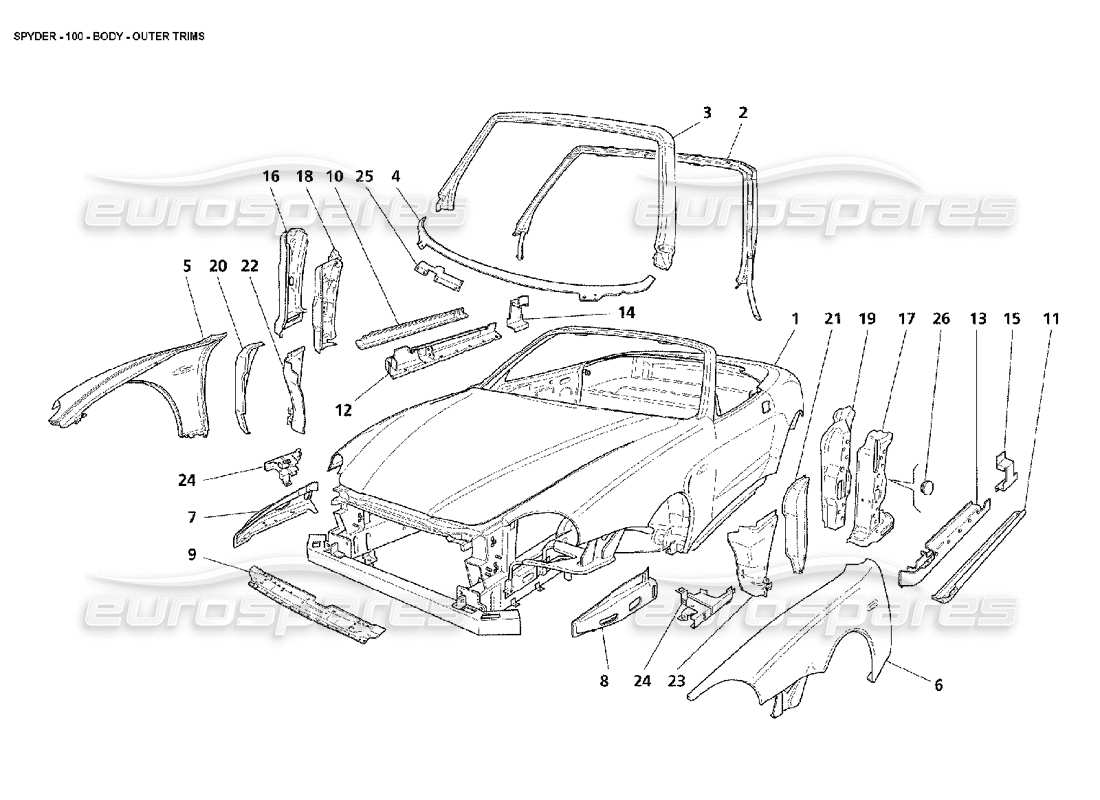

Maserati 4200 Spyder (2002) Body - Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 988100000
                                      COMPLETE BODY WORK FRAME
                                      - Not for USA, CDN and GD - For order specify car number
                                      Supersession
                                      Supersession
                                      # 001
                                      MPN: 988100001
                                      COMPLETE BODY WORK FRAME
                                      - Valid for GD - For order specify car number
                                      from £18,815.31
                                      from £18,815.31
                                      # 001
                                      MPN: 988100002
                                      COMPLETE BODY WORK FRAME
                                      - Valid for USA - For order specify car number
                                      # 001
                                      MPN: 988100003
                                      COMPLETE BODY WORK FRAME
                                      - Valid for CDN - For order specify car number
                                      # 002
                                      MPN: 980001041
                                      COMPLETE WINDSCREEN FRAME
                                      from £640.15
                                      from £640.15
                                      # 003
                                      MPN: 980001042
                                      WINDSCREEN FRAME LINING
                                      from £890.71
                                      from £890.71
                                      # 004
                                      MPN: 66736500
                                      COMPLETE UNDERWINDSCREEN FRAME
                                      from £209.91
                                      from £209.91
                                      This part replaces part number 66196200
                                      # 005
                                      MPN: 66605500
                                      RH COMPLETE FENDER
                                      STANDARD
                                      from £467.25
                                      from £467.25
                                      This part replaces part number 65966800 - and 1 more. Click to view details
                                      # 006
                                      MPN: 65966900
                                      LH COMPLETE FENDER
                                      STANDARD
                                      from £2,502.74
                                      from £2,502.74
                                      # 007
                                      MPN: 67236200
                                      RH COMPLETE FRONT SPRAG
                                      - Valid from car Nr. 7451
                                      from £852.17
                                      from £852.17
                                      This part replaces part number 382500306
                                      # 007
                                      MPN: 980001046
                                      RH COMPLETE FRONT SPRAG
                                      - Valid till car Nr. 7450
                                      from £234.00
                                      from £234.00
                                      # 008
                                      MPN: 67236300
                                      LH COMPLETE FRONT SPRAG
                                      - Valid from car Nr. 7451
                                      from £852.17
                                      from £852.17
                                      This part replaces part number 382501305
                                      # 008
                                      MPN: 980001045
                                      LH COMPLETE FRONT SPRAG
                                      - Valid till car Nr. 7450
                                      from £234.00
                                      from £234.00
                                      # 009
                                      MPN: 980001047
                                      COMPLETE FRONT CROSS MEMBER
                                      from £444.96
                                      from £444.96
                                      # 010
                                      MPN: 66053300
                                      RH OUTER LONGITUDINAL MEMBER REINCFORCEMENT
                                      from £92.09
                                      from £92.09
                                      # 011
                                      MPN: 66053400
                                      LH OUTER LONGITUDINAL MEMBER REINFORCEMENT
                                      from £92.09
                                      from £92.09
                                      # 012
                                      MPN: 66055900
                                      RH FRONT OUTER LONGITUDINAL MEMBER
                                      from £327.08
                                      from £327.08
                                      # 013
                                      MPN: 66056000
                                      LH FRONT OUTER LONGITUDINAL MEMBER
                                      from £305.60
                                      from £305.60
                                      # 014
                                      MPN: 66055700
                                      RH OUTER LONGITUDINAL MEMBER REAR PART
                                      from £68.98
                                      from £68.98
                                      # 015
                                      MPN: 66055800
                                      LH OUTER LONGITUDINAL MEMBER REAR PART
                                      from £68.98
                                      from £68.98
                                      # 016
                                      MPN: 382500310
                                      RH FRONT ROD
                                      - Valid till car Nr. 7450
                                      from £138.67
                                      from £138.67
                                      # 016
                                      MPN: 67236400
                                      RH FRONT ROD
                                      - Valid from car Nr. 7451
                                      from £131.00
                                      from £131.00
                                      # 017
                                      MPN: 382500309
                                      LH FRONT ROD
                                      - Valid till car Nr. 7450
                                      from £138.67
                                      from £138.67
                                      # 017
                                      MPN: 67236500
                                      LH FRONT ROD
                                      - Valid from car Nr. 7451
                                      from £131.00
                                      from £131.00
                                      # 018
                                      MPN: 65825300
                                      RH FRONT INNER ROD REINFORCEMENT
                                      from £154.73
                                      from £154.73
                                      # 019
                                      MPN: 65825400
                                      LH FRONT INNER ROD REINFORCEMENT
                                      from £154.73
                                      from £154.73
                                      # 020
                                      MPN: 382500308
                                      RH FRONT FENDER LINKING
                                      from £139.44
                                      from £139.44
                                      # 021
                                      MPN: 382500307
                                      LH FRONT FENDER LINKING
                                      from £121.12
                                      from £121.12
                                      # 022
                                      MPN: 980001174
                                      COMPLETE RH FRONT ROD REINFORCEMENT
                                      from £255.84
                                      from £255.84
                                      This part replaces part number 65957700
                                      # 023
                                      MPN: 980001173
                                      COMPLETE LH FRONT ROD REINFORCEMENT
                                      from £272.69
                                      from £272.69
                                      This part replaces part number 65957800
                                      # 024
                                      MPN: 66247000
                                      BRACKET FOR LONGITUDINAL MEMBER
                                      from £131.54
                                      from £131.54
                                      # 025
                                      MPN: 66414000
                                      SHIELD FOR WATER FIXING PLATE
                                      - Not for GD
                                      from £18.77
                                      from £18.77
                                      # 025
                                      MPN: 66726500
                                      SHIELD FOR WATER FIXING PLATE
                                      - Valid for GD
                                      from £18.77
                                      from £18.77
                                      # 026
                                      MPN: 14507687
                                      PLUG
                                      from £0.58
                                      from £0.58
