maserati 4200 spyder (2002) passengers compartment carpets parts diagram

107 - passengers compartment carpets

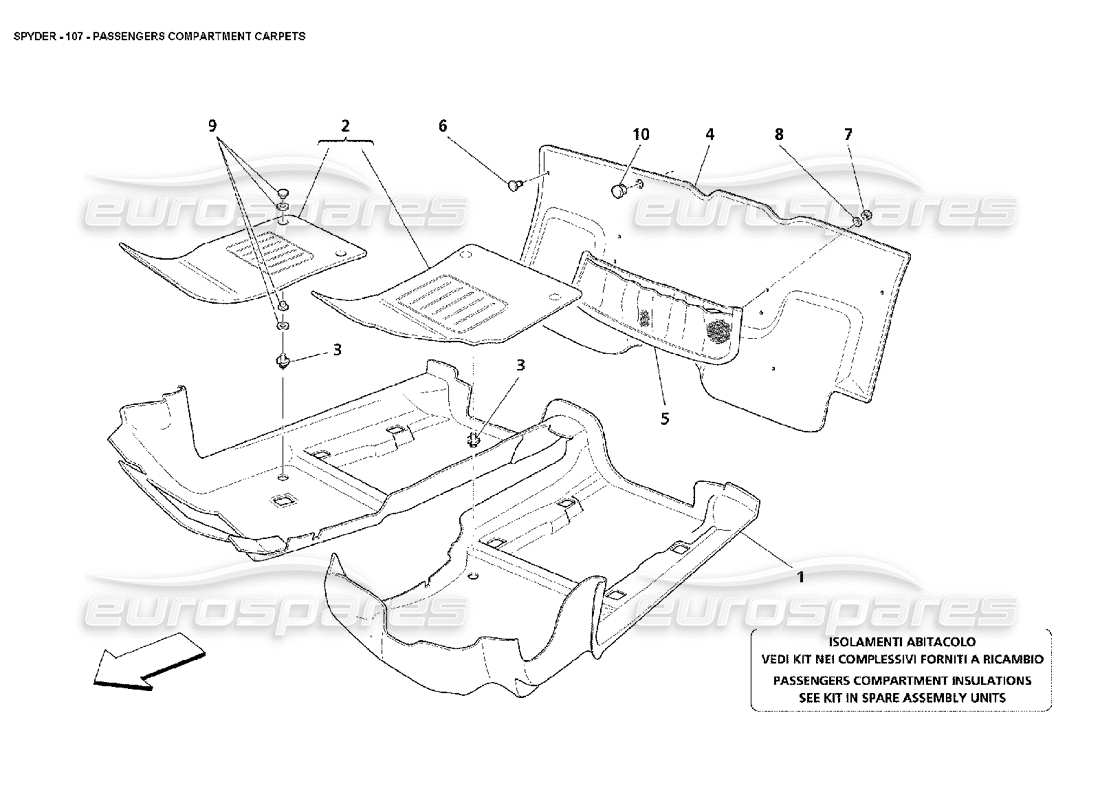

Maserati 4200 Spyder (2002) Passengers Compartment Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 661387..
                COVER FOR PAVEMENT
                - Not for GD - Valid till car Ass. Nr. 9697
                Supersession
                Supersession
                # 001
                MPN: 666650..
                COVER FOR PAVEMENT
                - Valid for GD
                Supersession
                Supersession
                # 001
                MPN: 673927..
                COVER FOR PAVEMENT
                - Not for GD - Valid from car Ass. Nr. 9698
                Supersession
                Supersession
                # 002
                MPN: 9811045..
                REMOVABLE CARPET
                - Standard - Not for GD
                Supersession
                Supersession
                # 002
                MPN: 9811046..
                REMOVEBLE CARPET
                - Optional - Estinguisher - Not for GD
                Supersession
                Supersession
                # 002
                MPN: 9811047..
                REMOVEBLE CARPET
                - Standard - Valid for GD
                Supersession
                Supersession
                # 002
                MPN: 9811048..
                REMOVEBLE CARPET
                - Optional - Estinguisher - Valid for GD
                Supersession
                Supersession
                # 003
                MPN: 67020900
                FIXING BUTTON
                from £1.49
                from £1.49
                This part replaces part number 66423700
                # 004
                MPN: 664200..
                VERTICAL RH REAR CARPET
                - Standard
                Supersession
                Supersession
                # 004
                MPN: 669168..
                VERTICAL RH REAR CARPET
                - Optional - HI FI system
                Supersession
                Supersession
                # 005
                MPN: 66495000
                COMPLETE UTILITY POCKET
                from £61.72
                from £61.72
                # 006
                MPN: 7560860
                FIXING BUTTON
                from £1.70
                from £1.70
                # 007
                MPN: 12574211
                NUT
                from £0.71
                from £0.71
                This part replaces part number 128300060
                # 008
                MPN: 12647601
                WASHER
                from £0.47
                from £0.47
                # 009
                MPN: 980001999
                REMOVEBLE CARPET FIXING KIT
                from £23.34
                from £23.34
                # 010
                MPN: 66423500
                PLUG
                from £3.25
                from £3.25
                This part replaces part number 67901200
