maserati 4200 spyder (2002) passegers compartment upholstery accessories parts diagram

109 - Passegers Compartment Upholstery Accessories

Maserati 4200 Spyder (2002) Passegers Compartment Upholstery Accessories Parts Diagram

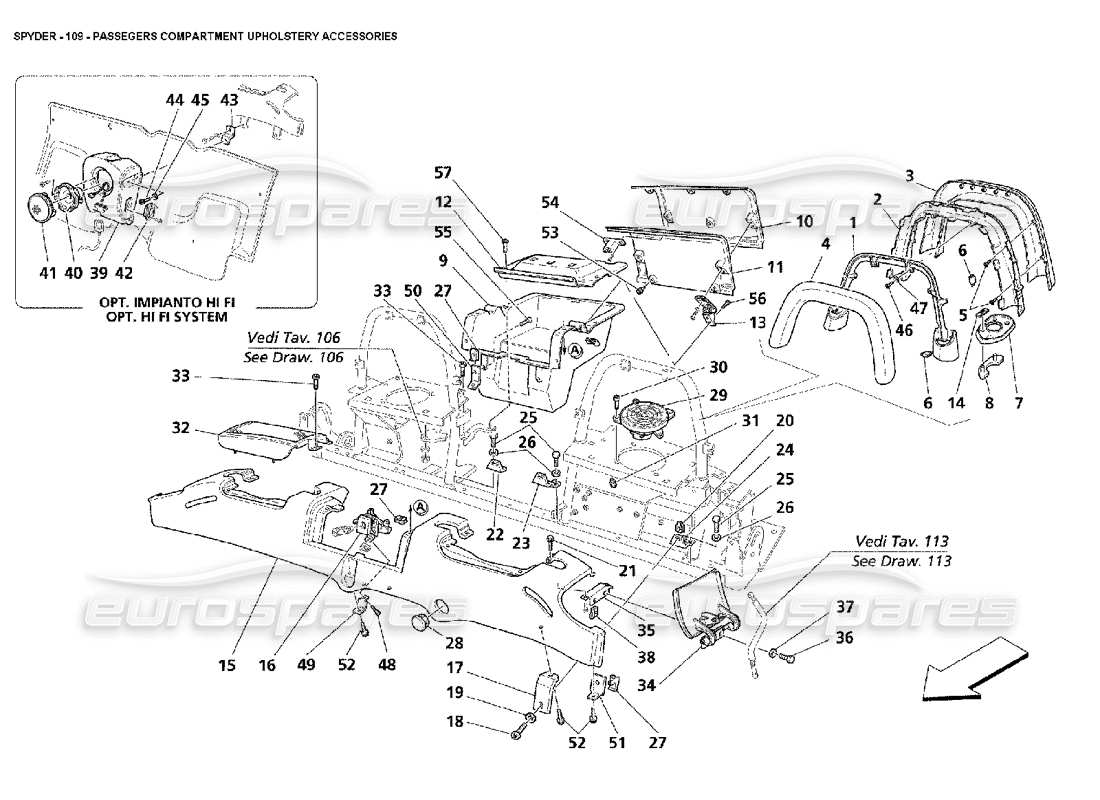

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 980001162
                                                                                        FRONT INNER MOLDING KIT
                                                                                        - Supplyed only couple
                                                                                        from £48.46
                                                                                        from £48.46
                                                                                        # 002
                                                                                        MPN: 980001163
                                                                                        REAR INNER MOLDING KIT
                                                                                        - Supplyed only couple
                                                                                        from £55.33
                                                                                        from £55.33
                                                                                        # 003
                                                                                        MPN: 980001164
                                                                                        REAR OUTER COVERING KIT
                                                                                        - Supplyed only couple
                                                                                        from £43.90
                                                                                        from £43.90
                                                                                        # 004
                                                                                        MPN: 9811049..
                                                                                        FRONT UPHOLSTERED OUTER COVERING KIT
                                                                                        - Supplyed only couple
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 005
                                                                                        MPN: 12678870
                                                                                        SCREW
                                                                                        from £1.31
                                                                                        from £1.31
                                                                                        # 005
                                                                                        MPN: 15914670
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 006
                                                                                        MPN: 66419500
                                                                                        CLIP
                                                                                        from £3.63
                                                                                        from £3.63
                                                                                        # 007
                                                                                        MPN: 980001165
                                                                                        BAR KIT
                                                                                        from £51.24
                                                                                        from £51.24
                                                                                        # 008
                                                                                        MPN: 66738800
                                                                                        BAR SEAL
                                                                                        from £84.78
                                                                                        from £84.78
                                                                                        # 009
                                                                                        MPN: 66720500
                                                                                        REAR DRAWER
                                                                                        from £278.77
                                                                                        from £278.77
                                                                                        # 010
                                                                                        MPN: 66720201
                                                                                        CENTER DOOR
                                                                                        from £62.83
                                                                                        from £62.83
                                                                                        # 011
                                                                                        MPN: 66720300
                                                                                        CENTER DOOR FRAME
                                                                                        from £35.18
                                                                                        from £35.18
                                                                                        # 012
                                                                                        MPN: 66720400
                                                                                        REAR COVER
                                                                                        from £17.47
                                                                                        from £17.47
                                                                                        # 013
                                                                                        MPN: 66720600
                                                                                        BOX HINGE
                                                                                        from £6.42
                                                                                        from £6.42
                                                                                        # 014
                                                                                        MPN: 14227776
                                                                                        PLATE
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 015
                                                                                        MPN: 667201..
                                                                                        SEAT BACK MOULDING
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 015
                                                                                        MPN: 66720100
                                                                                        SEAT BACK MOULDING
                                                                                        Black
                                                                                        from £1,037.43
                                                                                        from £1,037.43
                                                                                        This part replaces part number 667201..
                                                                                        # 016
                                                                                        MPN: 66314600
                                                                                        REAR DRAWER LOCK
                                                                                        - Valid till car Ass. Nr. 7006
                                                                                        from £32.15
                                                                                        from £32.15
                                                                                        # 016
                                                                                        MPN: 67023100
                                                                                        REAR DRAWER LOCK
                                                                                        - Valid from car Ass. Nr. 7007
                                                                                        from £64.07
                                                                                        from £64.07
                                                                                        # 017
                                                                                        MPN: 66720700
                                                                                        BRACKET
                                                                                        from £7.19
                                                                                        from £7.19
                                                                                        # 018
                                                                                        MPN: 13274014
                                                                                        SCREW
                                                                                        from £3.54
                                                                                        from £3.54
                                                                                        # 019
                                                                                        MPN: 12637801
                                                                                        WASHER
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 020
                                                                                        MPN: 66914000
                                                                                        BRACKET
                                                                                        from £2.85
                                                                                        from £2.85
                                                                                        # 021
                                                                                        MPN: 13274177
                                                                                        SCREW
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 022
                                                                                        MPN: 66399000
                                                                                        RH BRACKET
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        # 023
                                                                                        MPN: 66424100
                                                                                        LH BRACKET
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        # 024
                                                                                        MPN: 66486300
                                                                                        BRACKET
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        # 025
                                                                                        MPN: 13274011
                                                                                        SCREW
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 026
                                                                                        MPN: 12637801
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 027
                                                                                        MPN: 14371271
                                                                                        BRACKET
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 028
                                                                                        MPN: 66423500
                                                                                        PLUG
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        This part replaces part number 67901200
                                                                                        # 029
                                                                                        MPN: 184106
                                                                                        REAR LOUD SPEAKER WOOFER
                                                                                        - Standard
                                                                                        from £55.90
                                                                                        from £55.90
                                                                                        This part replaces part number 185973 - and 1 more. Click to view details
                                                                                        # 029
                                                                                        MPN: 185974
                                                                                        REAR LOUD SPEAKER WOOFER
                                                                                        - Optional - HI FI system
                                                                                        from £83.73
                                                                                        from £83.73
                                                                                        # 030
                                                                                        MPN: 15688875
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 031
                                                                                        MPN: 66738400
                                                                                        BRACKET
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 032
                                                                                        MPN: 66139900
                                                                                        GRILLE FOR RH LOUD SPEAKER
                                                                                        from £17.63
                                                                                        from £17.63
                                                                                        # 032
                                                                                        MPN: 66392900
                                                                                        GRILLE FOR LH LOUD SPEAKER
                                                                                        from £17.63
                                                                                        from £17.63
                                                                                        # 033
                                                                                        MPN: 13274177
                                                                                        SCREW
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 034
                                                                                        MPN: 981105000
                                                                                        PAIR BLACK CAPOTE COVERS
                                                                                        from £325.38
                                                                                        from £325.38
                                                                                        # 035
                                                                                        MPN: 66735700
                                                                                        RH BRACKET
                                                                                        from £8.20
                                                                                        from £8.20
                                                                                        # 035
                                                                                        MPN: 66735800
                                                                                        LH BRACKET
                                                                                        from £8.20
                                                                                        from £8.20
                                                                                        # 036
                                                                                        MPN: 14305224
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 037
                                                                                        MPN: 10519424
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                        # 038
                                                                                        MPN: 62766300
                                                                                        CLIP
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 039
                                                                                        MPN: 667062..
                                                                                        SUBWOOFER BOX
                                                                                        - Optional - HI FI system
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 040
                                                                                        MPN: 189405
                                                                                        LOUD SPEAKER SUBWOOFER
                                                                                        - Optional - HI FI system
                                                                                        from £206.84
                                                                                        from £206.84
                                                                                        # 041
                                                                                        MPN: 192241
                                                                                        GRILL FOR LOUD-SPEAKER
                                                                                        - Optional - HI FI system
                                                                                        from £31.14
                                                                                        from £31.14
                                                                                        # 042
                                                                                        MPN: 66706300
                                                                                        Frame
                                                                                        - Optional - HI FI system
                                                                                        from £7.73
                                                                                        from £7.73
                                                                                        # 043
                                                                                        MPN: 66916600
                                                                                        BRACKET FOR FIXING SUBWOOFER
                                                                                        - Optional - HI FI system
                                                                                        from £17.16
                                                                                        from £17.16
                                                                                        # 044
                                                                                        MPN: 14304421
                                                                                        SCREW
                                                                                        - Optional - HI FI system
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 045
                                                                                        MPN: 10730014
                                                                                        WASHER
                                                                                        - Optional - HI FI system
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 046
                                                                                        MPN: 13272017
                                                                                        SCREW
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 047
                                                                                        MPN: 14497701
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 048
                                                                                        MPN: 13270670
                                                                                        SCREW
                                                                                        from £0.85
                                                                                        from £0.85
                                                                                        This part replaces part number 10373221
                                                                                        # 049
                                                                                        MPN: 66720800
                                                                                        BRACKET
                                                                                        from £18.09
                                                                                        from £18.09
                                                                                        # 050
                                                                                        MPN: 66720900
                                                                                        BRACKET
                                                                                        from £17.09
                                                                                        from £17.09
                                                                                        # 051
                                                                                        MPN: 66721000
                                                                                        BRACKET
                                                                                        from £4.17
                                                                                        from £4.17
                                                                                        # 052
                                                                                        MPN: 16083501
                                                                                        SCREW
                                                                                        from £0.49
                                                                                        from £0.49
                                                                                        # 053
                                                                                        MPN: 66736200
                                                                                        RUBBER FOR END OF STROKE
                                                                                        from £58.89
                                                                                        from £58.89
                                                                                        This part replaces part number 67714200
                                                                                        # 054
                                                                                        MPN: 67021000
                                                                                        DOOR CLOSING STRIKER
                                                                                        from £10.44
                                                                                        from £10.44
                                                                                        # 055
                                                                                        MPN: 13299411
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 056
                                                                                        MPN: 13274211
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        # 057
                                                                                        MPN: 13299477
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
