maserati 4200 spyder (2002) closings and cover parts diagram

116 - Closings and Cover

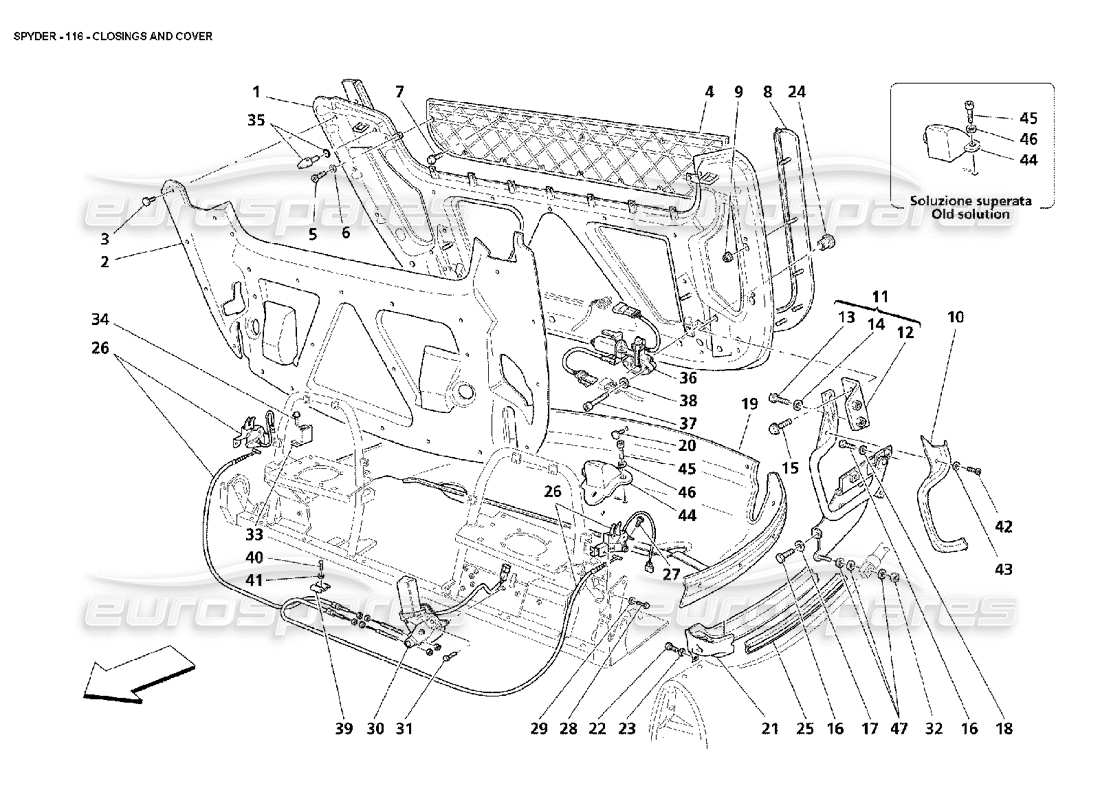

Maserati 4200 Spyder (2002) Closings and Cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 980002009
                                                                                          COMPLETE CAPOTE COVER HOOD
                                                                                          from £1,019.67
                                                                                          from £1,019.67
                                                                                          This part replaces part number 66100800 - and 1 more. Click to view details
                                                                                          # 002
                                                                                          MPN: 66727100
                                                                                          INNER COVER MOULDING
                                                                                          from £29.91
                                                                                          from £29.91
                                                                                          # 003
                                                                                          MPN: 7560860
                                                                                          FIXING BUTTON
                                                                                          from £1.70
                                                                                          from £1.70
                                                                                          # 004
                                                                                          MPN: 670294..
                                                                                          CAPOTE COVER MOULDING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 005
                                                                                          MPN: 13273811
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 006
                                                                                          MPN: 12638101
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 12638121
                                                                                          # 007
                                                                                          MPN: 66736100
                                                                                          PIN
                                                                                          from £5.41
                                                                                          from £5.41
                                                                                          # 008
                                                                                          MPN: 66107600
                                                                                          GASKET
                                                                                          from £398.31
                                                                                          from £398.31
                                                                                          # 009
                                                                                          MPN: 14059111
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 010
                                                                                          MPN: 66956200
                                                                                          RH HINGE COVER
                                                                                          from £9.19
                                                                                          from £9.19
                                                                                          # 010
                                                                                          MPN: 66956300
                                                                                          LH HINGE COVER
                                                                                          from £16.70
                                                                                          from £16.70
                                                                                          # 011
                                                                                          MPN: 980002010
                                                                                          COMPLETE RH HINGE
                                                                                          from £84.21
                                                                                          from £84.21
                                                                                          This part replaces part number 66103100 - and 1 more. Click to view details
                                                                                          # 011
                                                                                          MPN: 980002011
                                                                                          COMPLETE LH HINGE
                                                                                          from £84.21
                                                                                          from £84.21
                                                                                          This part replaces part number 66103200 - and 1 more. Click to view details
                                                                                          # 012
                                                                                          MPN: 980002012
                                                                                          RH HINGE FIXING BRACKET
                                                                                          from £36.25
                                                                                          from £36.25
                                                                                          This part replaces part number 66651100
                                                                                          # 012
                                                                                          MPN: 980002013
                                                                                          LH HINGE FIXING BRACKET
                                                                                          from £36.25
                                                                                          from £36.25
                                                                                          This part replaces part number 66651200
                                                                                          # 013
                                                                                          MPN: 16043624
                                                                                          SCREW
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 014
                                                                                          MPN: 14496501
                                                                                          WASHER
                                                                                          from £0.85
                                                                                          from £0.85
                                                                                          # 015
                                                                                          MPN: 16297921
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 016
                                                                                          MPN: 10902324
                                                                                          SCREW
                                                                                          from £0.52
                                                                                          from £0.52
                                                                                          # 017
                                                                                          MPN: 12643701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 018
                                                                                          MPN: 12648901
                                                                                          WASHER
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 019
                                                                                          MPN: 66583200
                                                                                          CAPOTE LINING
                                                                                          from £83.94
                                                                                          from £83.94
                                                                                          This part replaces part number 66650000
                                                                                          # 020
                                                                                          MPN: 14593487
                                                                                          FIXING BUTTON
                                                                                          from £10.58
                                                                                          from £10.58
                                                                                          # 021
                                                                                          MPN: 66429200
                                                                                          COVER GASKET
                                                                                          from £52.16
                                                                                          from £52.16
                                                                                          # 022
                                                                                          MPN: 13274211
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 023
                                                                                          MPN: 12637801
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 024
                                                                                          MPN: 66102600
                                                                                          RH PLATE FOR COVER
                                                                                          from £3.36
                                                                                          from £3.36
                                                                                          # 024
                                                                                          MPN: 66102700
                                                                                          LH PLATE FOR COVER
                                                                                          from £84.74
                                                                                          from £84.74
                                                                                          # 025
                                                                                          MPN: 66429300
                                                                                          RH GASKET
                                                                                          from £36.25
                                                                                          from £36.25
                                                                                          # 025
                                                                                          MPN: 66650800
                                                                                          LH GASKET
                                                                                          from £36.25
                                                                                          from £36.25
                                                                                          # 026
                                                                                          MPN: 980001075
                                                                                          LH LOCK WITH BOWDEN
                                                                                          from £437.59
                                                                                          from £437.59
                                                                                          # 026
                                                                                          MPN: 980001076
                                                                                          RH LOCK BOWDEN
                                                                                          from £566.65
                                                                                          from £566.65
                                                                                          # 027
                                                                                          MPN: 16296924
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 028
                                                                                          MPN: 16286124
                                                                                          SCREW
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          # 029
                                                                                          MPN: 12640601
                                                                                          WASHER
                                                                                          from £3.16
                                                                                          from £3.16
                                                                                          # 030
                                                                                          MPN: 66193500
                                                                                          CONTROL MOTOR
                                                                                          from £475.53
                                                                                          from £475.53
                                                                                          # 031
                                                                                          MPN: 14306021
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 032
                                                                                          MPN: 104030
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 033
                                                                                          MPN: 66315700
                                                                                          BLOCK FOR COVER
                                                                                          from £6.42
                                                                                          from £6.42
                                                                                          # 034
                                                                                          MPN: 10902411
                                                                                          SCREW
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 035
                                                                                          MPN: 980001080
                                                                                          PIN KIT
                                                                                          from £67.47
                                                                                          from £67.47
                                                                                          # 036
                                                                                          MPN: 66103700
                                                                                          RH PULL DOWN ENGINE
                                                                                          from £587.75
                                                                                          from £587.75
                                                                                          # 036
                                                                                          MPN: 66103800
                                                                                          LH PULL DOWN ENGINE
                                                                                          from £587.75
                                                                                          from £587.75
                                                                                          # 037
                                                                                          MPN: 14306424
                                                                                          SCREW
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 14306421
                                                                                          # 038
                                                                                          MPN: 12642724
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 039
                                                                                          MPN: 66669700
                                                                                          BRACKET
                                                                                          from £3.24
                                                                                          from £3.24
                                                                                          # 040
                                                                                          MPN: 14303021
                                                                                          SCREW
                                                                                          from £1.08
                                                                                          from £1.08
                                                                                          # 041
                                                                                          MPN: 14446821
                                                                                          WASHER
                                                                                          from £9.81
                                                                                          from £9.81
                                                                                          # 042
                                                                                          MPN: 13274077
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 043
                                                                                          MPN: 13577778
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 044
                                                                                          MPN: 66649900
                                                                                          CAPOTE ARCH SMALL BLOCK
                                                                                          - Old solution
                                                                                          from £8.20
                                                                                          from £8.20
                                                                                          # 044
                                                                                          MPN: 67020400
                                                                                          CAPOTE ARCH SMALL BLOCK
                                                                                          from £9.20
                                                                                          from £9.20
                                                                                          # 045
                                                                                          MPN: 14433121
                                                                                          SCREW
                                                                                          - (Quantity 2 for cars with old solution)
                                                                                          from £1.14
                                                                                          from £1.14
                                                                                          # 046
                                                                                          MPN: 12648201
                                                                                          WASHER
                                                                                          - (Quantity 2 for cars with old solution)
                                                                                          from £1.39
                                                                                          from £1.39
                                                                                          # 047
                                                                                          MPN: 67016000
                                                                                          SPACER FOR COVER HINGE
                                                                                          from £1.93
                                                                                          from £1.93
