maserati 4200 spyder (2002) elecrical seat-safety belts parts diagram

123 - Elecrical Seat-Safety Belts

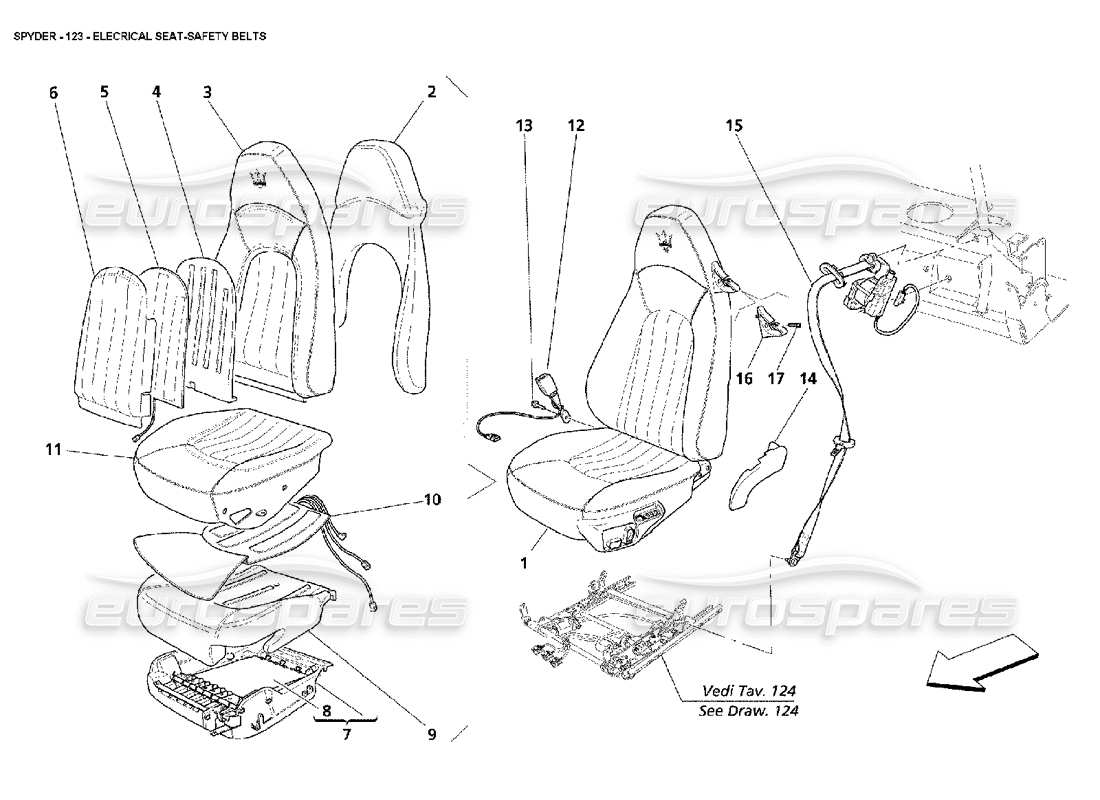

Maserati 4200 Spyder (2002) Elecrical Seat-Safety Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 000
                      MPN: 900114694
                      PAIR OF SEATS
                      # 001
                      MPN: 666638..
                      COMPLETE RH FRONT SEAT
                      - Standard - Valid for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 666639..
                      COMPLETE LH FRONT SEAT
                      - Standard - Valid for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 667797..
                      COMPLETE RH FRONT SEAT
                      - Standard - Not for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 667799..
                      COMPLETE LH FRONT SEAT
                      - Standard - Not for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 668760..
                      COMPLETE RH FRONT SEAT
                      - Optional - Heater - Not for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 668763..
                      COMPLETE LH FRONT SEAT
                      - Optional - Heater - Not for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 669114..
                      COMPLETE RH FRONT SEAT
                      - Optional - Heater - Valid for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 669115..
                      COMPLETE LH FRONT SEAT
                      - Optional - Heater - Valid for GD - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811007..
                      COMPLETE LH FRONT SEAT
                      - Standard - Not for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811008..
                      COMPLETE RH FRONT SEAT
                      - Standard - Not for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811009..
                      COMPLETE LH FRONT SEAT
                      - Optional - Heater - Not for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811011..
                      COMPLETE RH FRONT SEAT
                      - Optional - Heater - Not for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811017..
                      COMPLETE RH FRONT SEAT
                      - Standard - Valid for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811018..
                      COMPLETE RH FRONT SEAT
                      - Optional - Heater - Valid for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811019..
                      COMPLETE LH FRONT SEAT
                      - Standard - Valid for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 001
                      MPN: 9811021..
                      COMPLETE LH FRONT SEAT
                      - Optional - Heater - Valid for GD - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 002
                      MPN: 980001119
                      SEATBACK PERIPHERAL PADDING
                      - Valid till car Ass. Nr. 7270
                      from £58.36
                      from £58.36
                      # 002
                      MPN: 980138100
                      SEATBACK PERIPHERAL PADDING
                      - Valid from car Ass. Nr. 7271
                      from £992.83
                      from £992.83
                      # 003
                      MPN: 9811001..
                      BACKSEAT PERIPHERAL UPHOLSTERY
                      - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 003
                      MPN: 9811002..
                      BACKSEAT PERIPHERAL UPHOLSTERY
                      - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 004
                      MPN: 980001118
                      BACKSEAT CENTRAL PADDING
                      from £58.36
                      from £58.36
                      # 005
                      MPN: 980001121
                      BACKSEAT HEATER
                      from £52.06
                      from £52.06
                      # 006
                      MPN: 9811000..
                      BACKSEAT CENTRAL UPHOLSTERY
                      Supersession
                      Supersession
                      # 007
                      MPN: 66708500
                      COMPLETE RH CUSHION BOTTOM
                      - Valid till car Ass. Nr. 8480
                      from £79.97
                      from £79.97
                      # 007
                      MPN: 66709600
                      COMPLETE LH CUSHION BOTTOM
                      - Valid till car Ass. Nr. 8480
                      from £79.97
                      from £79.97
                      # 007
                      MPN: 980001179
                      COMPLETE LH CUSHION BOTTOM
                      - Valid from car Ass. Nr. 8481
                      from £49.05
                      from £49.05
                      # 007
                      MPN: 980001180
                      COMPLETE RH CUSHION BOTTOM
                      - Valid from car Ass. Nr. 8481
                      from £49.05
                      from £49.05
                      # 008
                      MPN: 980001122
                      CUSHION BOTTOM MEMBRANE
                      from £31.24
                      from £31.24
                      # 009
                      MPN: 66708400
                      RH CUSHION PADDING
                      - Not for GD - Valid till car Ass. Nr. 7270
                      from £108.95
                      from £108.95
                      # 009
                      MPN: 66709500
                      LH CUSHION PADDING
                      - Valid for GD - Valid till car Ass. Nr. 7270
                      from £108.95
                      from £108.95
                      # 009
                      MPN: 66711200
                      RH CUSHION PADDING
                      - Valid for GD - Valid till car Ass. Nr. 7270
                      from £142.26
                      from £142.26
                      # 009
                      MPN: 66712400
                      LH CUSHION PADDING
                      - Not for GD - Valid till car Ass. Nr. 7270
                      from £142.26
                      from £142.26
                      # 009
                      MPN: 980138101
                      LH CUSHION PADDING
                      - Valid for GD - Valid from car Ass. Nr. 7271
                      from £992.83
                      from £992.83
                      # 009
                      MPN: 980138102
                      RH CUSHION PADDING
                      - Not for GD - Valid from car Ass. Nr. 7271
                      from £992.83
                      from £992.83
                      # 009
                      MPN: 980138103
                      LH CUSHION PADDING
                      - Not for GD - Valid from car Ass. Nr. 7271
                      from £992.83
                      from £992.83
                      # 009
                      MPN: 980138104
                      RH CUSHION PADDING
                      - Valid for GD - Valid from car Ass. Nr. 7271
                      from £992.83
                      from £992.83
                      # 010
                      MPN: 980001120
                      CUSHION HEATER
                      from £123.70
                      from £123.70
                      # 011
                      MPN: 9811003..
                      LH FRONT CUSHION UPHOLSTERY
                      - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 011
                      MPN: 9811004..
                      RH FRONT CUSHION UPHOLSTERY
                      - Valid till car Ass. Nr. 7270
                      Supersession
                      Supersession
                      # 011
                      MPN: 9812001..
                      LH FRONT CUSHION UPHOLSTERY
                      - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 011
                      MPN: 9812002..
                      RH FRONT CUSHION UPHOLSTERY
                      - Valid from car Ass. Nr. 7271
                      Supersession
                      Supersession
                      # 012
                      MPN: 388100336
                      PASSENGER SEAT BELT LOCK
                      from £46.99
                      from £46.99
                      # 012
                      MPN: 388100337
                      PILOT SEAT BELT LOCK
                      from £104.67
                      from £104.67
                      # 013
                      MPN: 386900301
                      SCREW
                      from £13.44
                      from £13.44
                      # 014
                      MPN: 66710500
                      RH SEAT JOINT COVER
                      - Not for GD
                      from £13.04
                      from £13.04
                      # 014
                      MPN: 66710800
                      LH SEAT JOINT COVER
                      from £15.38
                      from £15.38
                      # 015
                      MPN: 66311100
                      RH ROLLER
                      - Not for USA and CDN
                      from £143.74
                      from £143.74
                      # 015
                      MPN: 66311200
                      RH ROLLER
                      - Valid for USA and CDN
                      from £148.70
                      from £148.70
                      # 015
                      MPN: 66311300
                      LH ROLLER
                      - Not for USA e CDN
                      from £143.74
                      from £143.74
                      # 015
                      MPN: 66919400
                      LH ROLLER
                      - Valid for USA e CDN
                      from £138.01
                      from £138.01
                      # 016
                      MPN: 66710600
                      BELT HOLDER
                      from £36.62
                      from £36.62
                      This part replaces part number 66710900
                      # 017
                      MPN: 386900408
                      SCREW
                      from £4.25
                      from £4.25
