maserati 4200 spyder (2002) electrical seat-guide and movement parts diagram

124 - Electrical Seat-Guide and Movement

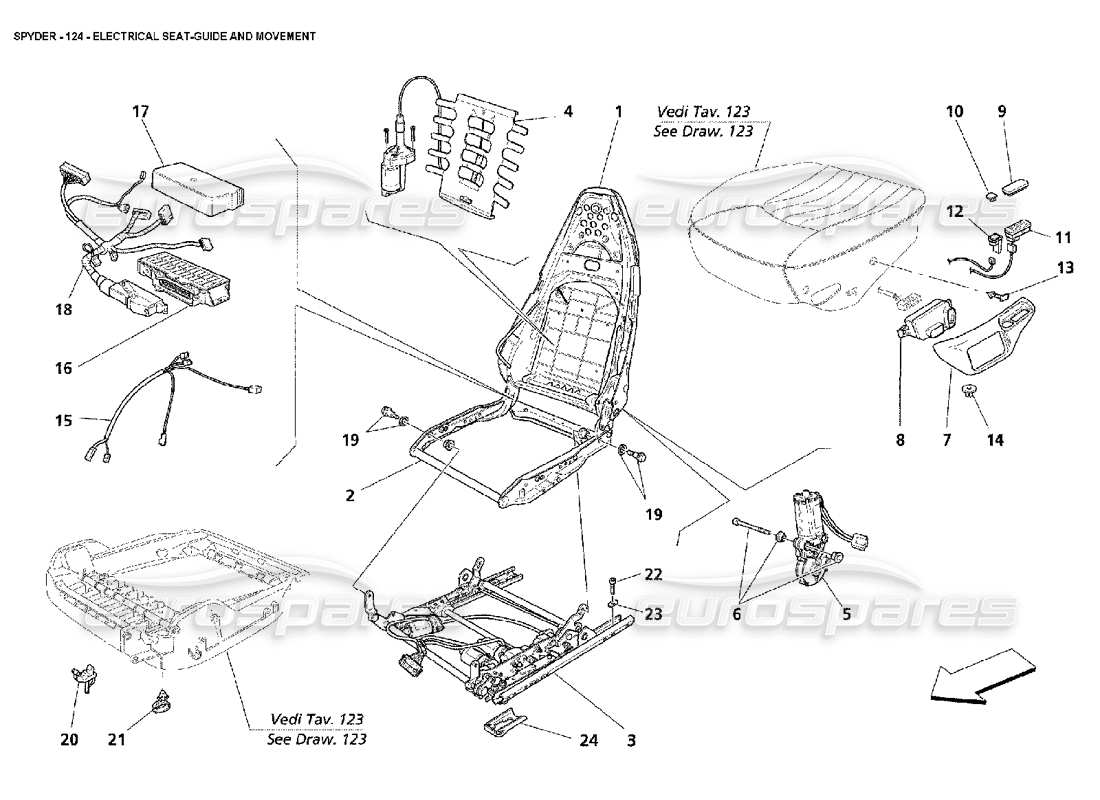

Maserati 4200 Spyder (2002) Electrical Seat-Guide and Movement Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 980001143
                                            LH BACKSEAT FRAME
                                            from £259.68
                                            from £259.68
                                            # 001
                                            MPN: 980001144
                                            RH BACKSEAT FRAME
                                            from £259.68
                                            from £259.68
                                            # 002
                                            MPN: 980001145
                                            LH CUSHION FRAME
                                            - Valid till car Ass. Nr. 8480 - Valid till stock exhaustion - After stock exhaustion replaced by 980001177
                                            Supersession
                                            Supersession
                                            # 002
                                            MPN: 980001146
                                            RH CUSHION FRAME
                                            - Valid till car Ass. Nr. 8480 - Valid till stock exhaustion after stock exhaustion replaced by 980001178
                                            Supersession
                                            Supersession
                                            # 002
                                            MPN: 980001177
                                            LH CUSHION FRAME
                                            - Valid from car Ass. Nr. 8481
                                            from £94.47
                                            from £94.47
                                            This part replaces part number 980001145
                                            # 002
                                            MPN: 980001178
                                            RH CUSHION FRAME
                                            - Valid from car Ass. Nr. 8481
                                            from £95.39
                                            from £95.39
                                            This part replaces part number 980001146
                                            # 003
                                            MPN: 980001111
                                            PILOT SEAT MOVEMENT
                                            from £1,217.13
                                            from £1,217.13
                                            # 003
                                            MPN: 980001112
                                            PASSENGER SEAT MOVEMENT
                                            from £896.89
                                            from £896.89
                                            # 004
                                            MPN: 386900100
                                            LOMBAR ADJUST
                                            from £123.94
                                            from £123.94
                                            # 005
                                            MPN: 386900402
                                            PASSENGERS BACKSEAT ADJUST ENGINE
                                            from £124.54
                                            from £124.54
                                            # 005
                                            MPN: 386901402
                                            PILOT BACKSEAT ADJUST ENGINE
                                            from £275.56
                                            from £275.56
                                            # 006
                                            MPN: 386900403
                                            ENGINE FIXINGS
                                            from £37.56
                                            from £37.56
                                            # 007
                                            MPN: 66710400
                                            RH SEAT CARTER
                                            from £7.30
                                            from £7.30
                                            This part replaces part number 66711800 - and 1 more. Click to view details
                                            # 007
                                            MPN: 66710700
                                            LH SEAT CARTER
                                            from £13.89
                                            from £13.89
                                            This part replaces part number 66712900
                                            # 008
                                            MPN: 386900223
                                            LH SEAT MOVEMENT CONTROL JOISTICK
                                            from £87.27
                                            from £87.27
                                            # 008
                                            MPN: 386900224
                                            RH SEAT MOVEMENT CONTROL JOISTICK
                                            from £82.79
                                            from £82.79
                                            # 009
                                            MPN: 980001124
                                            PLUG FOR MEMORIES BUTTON
                                            from £5.57
                                            from £5.57
                                            # 010
                                            MPN: 980001123
                                            PLUG FOR HEATER BUTTON
                                            from £5.09
                                            from £5.09
                                            # 011
                                            MPN: 386901225
                                            MEMORIER BUTTON PANEL
                                            from £59.47
                                            from £59.47
                                            # 012
                                            MPN: 386901226
                                            HEATHER CONTROL BUTTON
                                            from £12.68
                                            from £12.68
                                            # 013
                                            MPN: 386900404
                                            CARTER FIXING CLIP
                                            from £11.28
                                            from £11.28
                                            # 014
                                            MPN: 386900405
                                            CARTER FIXING NUT
                                            from £3.24
                                            from £3.24
                                            # 015
                                            MPN: 980001113
                                            PASSENGER SEAT CABLE
                                            - Valid for GD
                                            from £229.10
                                            from £229.10
                                            # 015
                                            MPN: 980001114
                                            PASSENGER SEAT CABLE
                                            - Not for GD
                                            from £203.83
                                            from £203.83
                                            # 015
                                            MPN: 980001117
                                            PILOT SEAT CABLE
                                            from £72.76
                                            from £72.76
                                            # 016
                                            MPN: 980001115
                                            PILOT SIDE MEMORIES CONTROL UNIT
                                            from £908.71
                                            from £908.71
                                            # 017
                                            MPN: 980001116
                                            PILOT SIDE CONTROL UNIT COVER
                                            from £32.38
                                            from £32.38
                                            # 018
                                            MPN: 980001129
                                            PILOT SIDE MEMORY CABLE
                                            - Not for GD
                                            from £565.51
                                            from £565.51
                                            # 018
                                            MPN: 980001130
                                            PILOT SIDE MEMORY CABLE
                                            - Valid for GD
                                            from £320.00
                                            from £320.00
                                            # 019
                                            MPN: 980001023
                                            PILOT SEAT MOVEMENT FIXING KIT
                                            from £72.81
                                            from £72.81
                                            # 020
                                            MPN: 386900406
                                            CLIP
                                            from £5.09
                                            from £5.09
                                            # 021
                                            MPN: 386900407
                                            CLIP
                                            from £6.42
                                            from £6.42
                                            # 022
                                            MPN: 376900302
                                            SCREW
                                            from £4.24
                                            from £4.24
                                            # 023
                                            MPN: 386900302
                                            ELASTIC PLATE
                                            from £0.77
                                            from £0.77
                                            # 024
                                            MPN: 388100472
                                            FRONT SHIELD FOR FRONT SEAT GUIDE
                                            from £5.50
                                            from £5.50
