maserati 4200 spyder (2002) tunnel - framework and accessories parts diagram

128 - Tunnel - Framework and Accessories

Maserati 4200 Spyder (2002) Tunnel - Framework and Accessories Parts Diagram

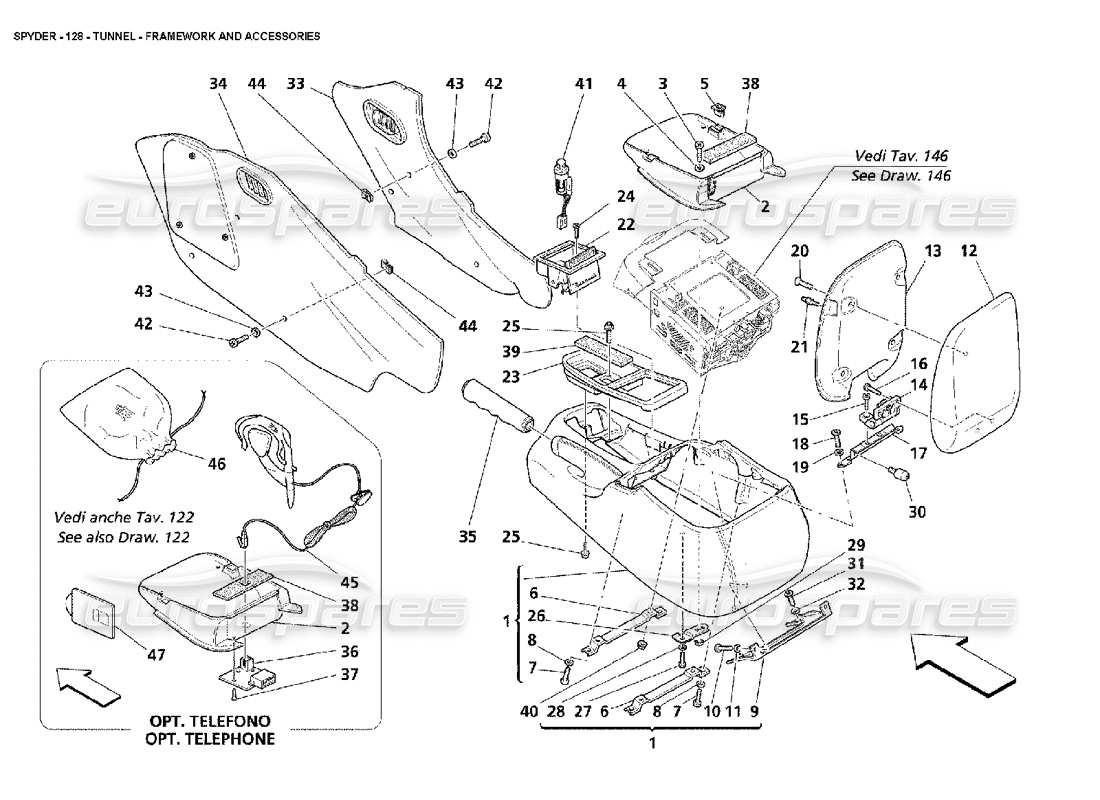

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 667723..
                                                                    COMPLETE TUNNEL COVER CONSOLE
                                                                    - For order specify car number
                                                                    from £399.00
                                                                    from £399.00
                                                                    # 002
                                                                    MPN: 66240900
                                                                    CONTAINER BOX
                                                                    - Standard
                                                                    from £75.75
                                                                    from £75.75
                                                                    # 002
                                                                    MPN: 66724100
                                                                    CONTAINER BOX
                                                                    - Optional - Telephone - Not for USA, CDN and J
                                                                    Supersession
                                                                    Supersession
                                                                    # 003
                                                                    MPN: 13274014
                                                                    SCREW
                                                                    from £3.54
                                                                    from £3.54
                                                                    # 004
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 005
                                                                    MPN: 66498900
                                                                    CLIP
                                                                    from £1.55
                                                                    from £1.55
                                                                    # 006
                                                                    MPN: 66060100
                                                                    BRACKET
                                                                    from £4.17
                                                                    from £4.17
                                                                    # 007
                                                                    MPN: 13273811
                                                                    SCREW
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 008
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 009
                                                                    MPN: 66392600
                                                                    BRACKET
                                                                    from £7.18
                                                                    from £7.18
                                                                    # 010
                                                                    MPN: 15901501
                                                                    SCREW
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 011
                                                                    MPN: 12639924
                                                                    WASHER
                                                                    from £0.84
                                                                    from £0.84
                                                                    # 012
                                                                    MPN: 66772800
                                                                    UPPER GLOVE BOX SHUTTER
                                                                    - For order specify car number
                                                                    from £120.75
                                                                    from £120.75
                                                                    # 013
                                                                    MPN: 66191400
                                                                    Door Frame
                                                                    Supersession
                                                                    Supersession
                                                                    # 014
                                                                    MPN: 66493600
                                                                    BOX HINGE
                                                                    from £57.17
                                                                    from £57.17
                                                                    # 017
                                                                    MPN: 66061700
                                                                    BRACKET
                                                                    from £130.67
                                                                    from £130.67
                                                                    # 018
                                                                    MPN: 13273911
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 019
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 020
                                                                    MPN: 13299177
                                                                    SCREW
                                                                    from £1.85
                                                                    from £1.85
                                                                    # 021
                                                                    MPN: 66498800
                                                                    PIN
                                                                    from £3.17
                                                                    from £3.17
                                                                    # 022
                                                                    MPN: 67520000
                                                                    COMPLETE FRONT ASH TRAY
                                                                    from £237.81
                                                                    from £237.81
                                                                    This part replaces part number 66137400
                                                                    # 023
                                                                    MPN: 66410100
                                                                    FRONT UTILTY PLATE
                                                                    from £191.42
                                                                    from £191.42
                                                                    # 025
                                                                    MPN: 64460500
                                                                    SCREW
                                                                    from £0.61
                                                                    from £0.61
                                                                    # 026
                                                                    MPN: 66609000
                                                                    BRACKET
                                                                    from £5.10
                                                                    from £5.10
                                                                    # 027
                                                                    MPN: 13273911
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 028
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 029
                                                                    MPN: 14074490
                                                                    NUT WITH CAGE
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 030
                                                                    MPN: 66734000
                                                                    ADJUSTMENT PIN
                                                                    from £16.06
                                                                    from £16.06
                                                                    # 031
                                                                    MPN: 13273911
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 032
                                                                    MPN: 12637824
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 033
                                                                    MPN: 667218..
                                                                    RH TUNNEL LATERAL COVER
                                                                    - Valid for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 033
                                                                    MPN: 667314..
                                                                    RH TUNNEL LATERAL COVER
                                                                    - Not for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 034
                                                                    MPN: 667219..
                                                                    LH TUNNEL LATERAL COVER
                                                                    - Valid for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 034
                                                                    MPN: 667315..
                                                                    LH TUNNEL LATERAL COVER
                                                                    - Not for GD
                                                                    Supersession
                                                                    Supersession
                                                                    # 035
                                                                    MPN: 191830
                                                                    HAND BRAKE KNOB
                                                                    from £59.97
                                                                    from £59.97
                                                                    This part replaces part number 388000110
                                                                    # 036
                                                                    MPN: 189555
                                                                    INTIMITY BOOT DEVICE SHEETS
                                                                    - Optional - Telephone - Not for USA, CDN and J
                                                                    from £22.57
                                                                    from £22.57
                                                                    # 037
                                                                    MPN: 15901401
                                                                    SCREW
                                                                    - Optional - Telephone - Not for USA, CDN and J
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 038
                                                                    MPN: 66241000
                                                                    CARPET
                                                                    - Standard
                                                                    from £8.31
                                                                    from £8.31
                                                                    # 038
                                                                    MPN: 66728600
                                                                    CARPET
                                                                    - Optional - Telephone - Not for USA, CDN and J
                                                                    from £12.29
                                                                    from £12.29
                                                                    # 039
                                                                    MPN: 66304300
                                                                    CARPET
                                                                    from £8.93
                                                                    from £8.93
                                                                    # 041
                                                                    MPN: 373380115
                                                                    ELECTRONIC CIGAR LIGHTER
                                                                    from £19.46
                                                                    from £19.46
                                                                    # 042
                                                                    MPN: 15908807
                                                                    SCREW
                                                                    - Valid for GD
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 042
                                                                    MPN: 15909977
                                                                    SCREW
                                                                    - Not for GD
                                                                    from £1.08
                                                                    from £1.08
                                                                    # 042
                                                                    MPN: 15910007
                                                                    SCREW
                                                                    - Valid for GD - Valid till car Nr. 5685
                                                                    from £3.17
                                                                    from £3.17
