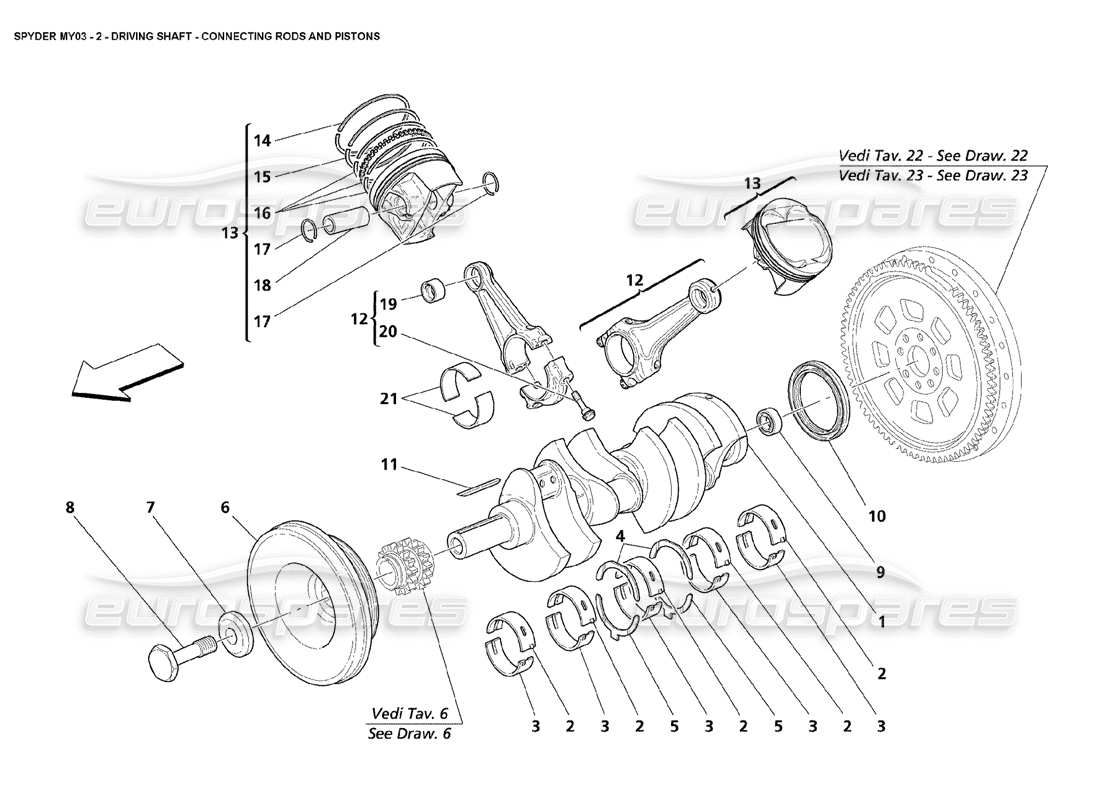

maserati 4200 spyder (2003) crankshaft conrods and pistons parts diagram

002 - crankshaft conrods and pistons

Maserati 4200 Spyder (2003) Crankshaft Conrods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 193169
                          crankshaft
                          from £976.27
                          from £976.27
                          # 002
                          MPN: 182969
                          UPPER HALF BEARING
                          - Blue - Valid till engine Nr. 75465
                          from £7.83
                          from £7.83
                          # 002
                          MPN: 182970
                          UPPER HALF BEARING
                          - Yellow - Valid till engine Nr. 75465
                          from £7.19
                          from £7.19
                          # 002
                          MPN: 188517
                          UPPER HALF BEARING
                          - Green - Standard - Valid till engine Nr. 75465
                          from £36.71
                          from £36.71
                          This part replaces part number 174716
                          # 002
                          MPN: 193000
                          UPPER HALF BEARING
                          - Blue - Valid from engine Nr. 75466
                          from £11.76
                          from £11.76
                          # 002
                          MPN: 193001
                          UPPER HALF BEARING
                          - Yellow - Valid from engine Nr. 75466
                          from £14.79
                          from £14.79
                          # 002
                          MPN: 193002
                          UPPER HALF BEARING
                          - Green - Standard - Valid from engine Nr. 75466
                          from £14.79
                          from £14.79
                          # 003
                          MPN: 182971
                          LOWER HALF BEARING
                          - Blue - Valid till engine Nr. 75465
                          from £6.49
                          from £6.49
                          # 003
                          MPN: 182972
                          LOWER HALF BEARING
                          - Yellow - Valid till engine Nr. 75465
                          from £25.44
                          from £25.44
                          # 003
                          MPN: 188516
                          LOWER HALF BEARING
                          - Green - Standard - Valid till engine Nr. 75465
                          from £41.49
                          from £41.49
                          This part replaces part number 174739
                          # 003
                          MPN: 193003
                          LOWER HALF BEARING
                          - Blue - Valid from engine Nr. 75466
                          from £10.50
                          from £10.50
                          # 003
                          MPN: 193004
                          LOWER HALF BEARING
                          - Yellow - Valid from engine Nr. 75466
                          from £11.56
                          from £11.56
                          # 003
                          MPN: 193005
                          LOWER HALF BEARING
                          - Green - Standard - Valid from engine Nr. 75466
                          from £11.56
                          from £11.56
                          # 004
                          MPN: 179539
                          UPPER SHIM
                          - Standard
                          from £22.95
                          from £22.95
                          # 004
                          MPN: 179540
                          UPPER SHIM
                          - Standard - 1st Oversize
                          from £42.69
                          from £42.69
                          # 004
                          MPN: 179541
                          UPPER SHIM
                          - 2nd Oversize
                          from £42.69
                          from £42.69
                          # 005
                          MPN: 179536
                          LOWER SHIM
                          - 2nd Oversize
                          from £42.69
                          from £42.69
                          # 005
                          MPN: 179537
                          LOWER SHIM
                          - 1st Oversize
                          from £42.69
                          from £42.69
                          # 005
                          MPN: 179538
                          LOWER SHIM
                          - Standard
                          from £23.18
                          from £23.18
                          # 006
                          MPN: 187469
                          torsion damper
                          from £930.25
                          from £930.25
                          # 007
                          MPN: 192106
                          WASHER
                          from £3.67
                          from £3.67
                          # 008
                          MPN: 196216
                          SCREW FOR DAMPER FIXING
                          from £25.12
                          from £25.12
                          This part replaces part number 192005 - and 1 more. Click to view details
                          # 009
                          MPN: 103877
                          PILOT BEARING
                          not as spare part - use part number: 235062
                          from £18.43
                          from £18.43
                          This part replaces part number 235062
                          # 010
                          MPN: 200323
                          SEAL RING
                          from £24.95
                          from £24.95
                          # 011
                          MPN: 186201
                          Key
                          from £0.69
                          from £0.69
                          # 012
                          MPN: 192402
                          COMPLETE CONNECTING ROD
                          from £139.35
                          from £139.35
                          This part replaces part number 175360 which we have in stock - and 1 more. Click to view details
                          # 013
                          MPN: 187199
                          LH PISTON WITH RINGS
                          Supersession
                          Supersession
                          This part replaces part number 187957
                          # 013
                          MPN: 198410
                          RH PISTON WITH RINGS
                          from £110.68
                          from £110.68
                          This part replaces part number 187198 - and 2 more. Click to view details
                          # 014
                          MPN: 175612
                          SEAL RING
                          - 1st groove
                          from £64.38
                          from £64.38
                          This part replaces part number 187955
                          # 015
                          MPN: 187201
                          SEAL RING
                          - 2nd groove
                          from £18.47
                          from £18.47
                          # 016
                          MPN: 175614
                          OIL SCRAPING RING
                          - 3nd groove
                          from £62.51
                          from £62.51
                          This part replaces part number 180022
                          # 017
                          MPN: 178890
                          STOP RING
                          from £3.24
                          from £3.24
                          # 018
                          MPN: 175367
                          PIN
                          from £38.71
                          from £38.71
                          # 019
                          MPN: 184909
                          BUSHING
                          from £23.11
                          from £23.11
                          # 020
                          MPN: 177159
                          CONNECTING ROD TIGHTENING SCREW
                          from £22.16
                          from £22.16
                          # 021
                          MPN: 188520
                          CONNECTING ROD HALF BEARING
                          - Brown
                          from £4.51
                          from £4.51
                          This part replaces part number 176151
                          # 021
                          MPN: 188521
                          CONNECTING ROD HALF BEARING
                          - Green - Standard
                          from £6.64
                          from £6.64
                          This part replaces part number 176150
                          # 021
                          MPN: 190265
                          CONNECTING ROD HALF BEARING
                          - Yellow
                          from £9.58
                          from £9.58
                          This part replaces part number 176152
