maserati 4200 spyder (2003) secondary air system parts diagram

008 - secondary air system

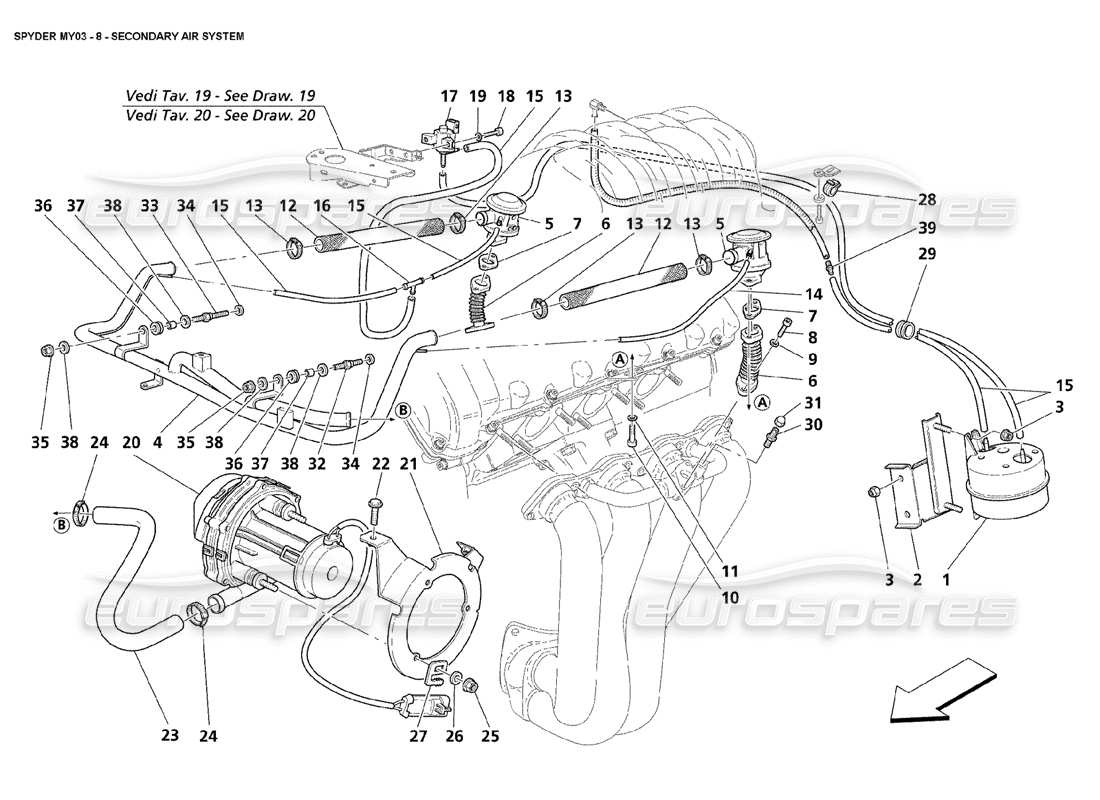

Maserati 4200 Spyder (2003) Secondary Air System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 330328400
                                                                            VACUUM TANK
                                                                            from £9.16
                                                                            from £9.16
                                                                            # 003
                                                                            MPN: 14059211
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 675000181
                                                                            # 004
                                                                            MPN: 195065
                                                                            AIR DELIVERY TUBE TO VALVES
                                                                            - Valid for GD
                                                                            from £124.75
                                                                            from £124.75
                                                                            # 004
                                                                            MPN: 195066
                                                                            AIR DELIVERY TUBE TO VALVES
                                                                            - Not for GD
                                                                            from £128.32
                                                                            from £128.32
                                                                            # 005
                                                                            MPN: 171175
                                                                            SECONDARY AIR VALVE
                                                                            from £103.65
                                                                            from £103.65
                                                                            # 006
                                                                            MPN: 186274
                                                                            SECONDARY AIR VALVE PIPE
                                                                            from £47.13
                                                                            from £47.13
                                                                            # 007
                                                                            MPN: 186781
                                                                            GASKET
                                                                            from £2.89
                                                                            from £2.89
                                                                            # 008
                                                                            MPN: 14305724
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 009
                                                                            MPN: 127494
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 010
                                                                            MPN: 14433124
                                                                            SCREW
                                                                            from £0.51
                                                                            from £0.51
                                                                            # 011
                                                                            MPN: 127494
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 012
                                                                            MPN: 155116
                                                                            SLEEVE
                                                                            from £5.58
                                                                            from £5.58
                                                                            # 013
                                                                            MPN: 178054
                                                                            CLAMP
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 014
                                                                            MPN: 147125
                                                                            LH RUBBER HOSE
                                                                            from £10.43
                                                                            from £10.43
                                                                            # 015
                                                                            MPN: 300100803
                                                                            RUBBER HOSE
                                                                            - Supplied in meters - (Minimum quantity 1m. or multiples)
                                                                            from £54.96
                                                                            from £54.96
                                                                            This part replaces part number 318720329
                                                                            # 016
                                                                            MPN: 146972
                                                                            3 WAY UNION
                                                                            from £2.78
                                                                            from £2.78
                                                                            # 017
                                                                            MPN: 315769
                                                                            ON/OFF SOLENOID VALVE
                                                                            from £28.93
                                                                            from £28.93
                                                                            This part replaces part number 184363
                                                                            # 018
                                                                            MPN: 14304224
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 019
                                                                            MPN: 12601174
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 675000100
                                                                            # 021
                                                                            MPN: 184837
                                                                            BRACKET
                                                                            from £14.77
                                                                            from £14.77
                                                                            # 022
                                                                            MPN: 16296924
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 023
                                                                            MPN: 190992
                                                                            STUD
                                                                            from £16.27
                                                                            from £16.27
                                                                            # 024
                                                                            MPN: 178054
                                                                            CLAMP
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 025
                                                                            MPN: 102948
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 026
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12601270
                                                                            # 027
                                                                            MPN: 162606
                                                                            CLIP
                                                                            from £0.85
                                                                            from £0.85
                                                                            # 028
                                                                            MPN: 159740
                                                                            CLIP
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 029
                                                                            MPN: 388100423
                                                                            RUBBER
                                                                            from £1.55
                                                                            from £1.55
                                                                            # 030
                                                                            MPN: 152630
                                                                            THREADED UNION
                                                                            from £44.39
                                                                            from £44.39
                                                                            # 031
                                                                            MPN: 150595
                                                                            CAP NUT
                                                                            from £0.58
                                                                            from £0.58
                                                                            # 032
                                                                            MPN: 194436
                                                                            STUD
                                                                            from £35.41
                                                                            from £35.41
                                                                            # 033
                                                                            MPN: 194437
                                                                            STUD
                                                                            from £10.38
                                                                            from £10.38
                                                                            # 034
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 035
                                                                            MPN: 159601
                                                                            NUT
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 036
                                                                            MPN: 315520375
                                                                            SUPPORT
                                                                            Supersession
                                                                            Supersession
                                                                            # 037
                                                                            MPN: 397850624
                                                                            SPACER
                                                                            from £2.39
                                                                            from £2.39
                                                                            # 038
                                                                            MPN: 14498801
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 039
                                                                            MPN: 313620303
                                                                            UNION
                                                                            from £0.78
                                                                            from £0.78
