maserati 4200 spyder (2003) fuel pump and pipes parts diagram

009 - fuel pump and pipes

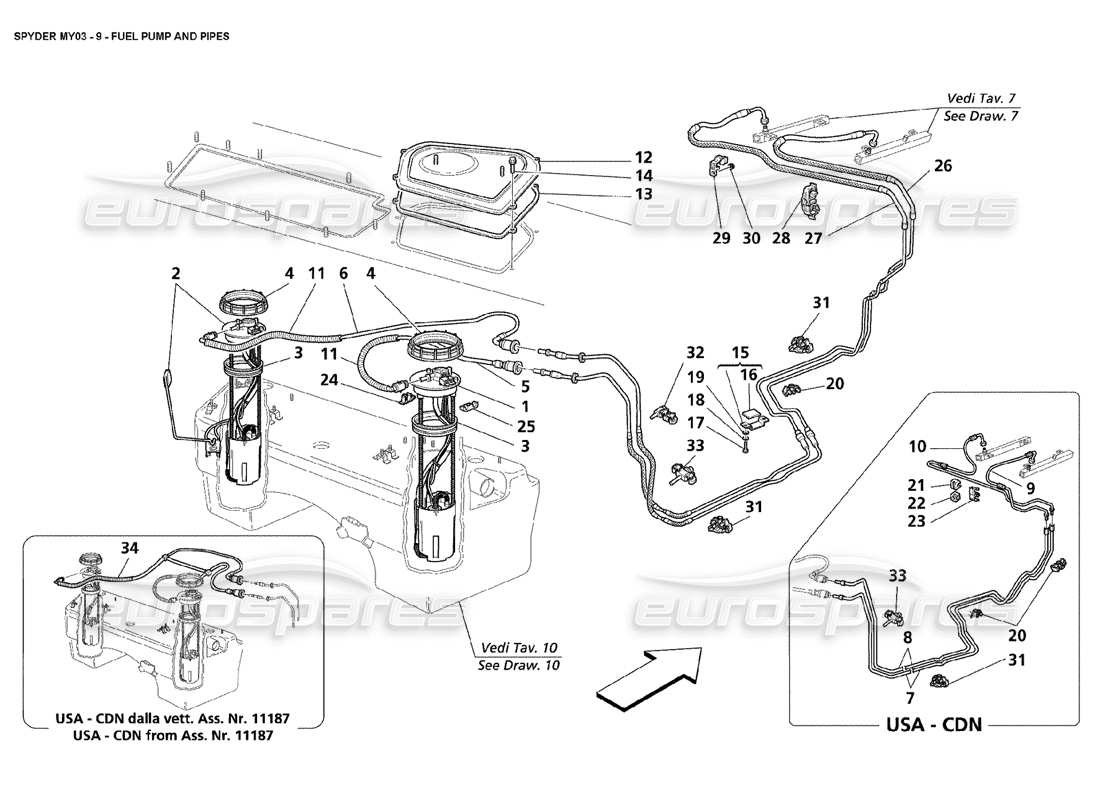

Maserati 4200 Spyder (2003) Fuel Pump and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 184348
                              RH COMPLETE FUEL PUMP
                              from £252.73
                              from £252.73
                              # 002
                              MPN: 184347
                              LH COMPLETE FUEL PUMP
                              from £306.84
                              from £306.84
                              # 003
                              MPN: 181681
                              GASKET
                              from £11.67
                              from £11.67
                              # 004
                              MPN: 181682
                              RING NUT
                              from £7.78
                              from £7.78
                              # 005
                              MPN: 186702
                              RH FUEL DELIVERY TUBE
                              - For cars NOT USA and CDN - valid till Ass. Nr. 11336 - For cars USA and CDN - valid till Ass. Nr. 11186
                              from £29.88
                              from £29.88
                              # 005
                              MPN: 197657
                              RH FUEL DELIVERY TUBE
                              - Not for USA and CDN - Valid from car Ass. Nr. 11337
                              from £207.09
                              from £207.09
                              # 006
                              MPN: 186701
                              LH FUEL DELIVERY TUBE
                              - For cars NOT USA and CDN - valid till Ass. Nr. 11336 - For cars USA and CDN - valid till Ass. Nr. 11186
                              from £32.35
                              from £32.35
                              # 006
                              MPN: 197658
                              LH FUEL DELIVERY TUBE
                              - Not for USA and CDN - Valid from car Ass. Nr. 11337
                              from £47.07
                              from £47.07
                              # 007
                              MPN: 197538
                              RH FUEL DELIVERY UNDERFRAME TUBE
                              - Valid for USA and CDN
                              from £66.79
                              from £66.79
                              # 008
                              MPN: 197539
                              LH FUEL DELIVERY UNDERFRAME TUBE
                              - Valid for USA and CDN
                              from £66.79
                              from £66.79
                              # 009
                              MPN: 183214
                              RH FUEL DELIVERY PIPE TO FLEXIBLE
                              - Valid for USA and CDN
                              from £37.40
                              from £37.40
                              # 010
                              MPN: 183215
                              LH FUEL DELIVERY PIPE TO FLEXIBLE
                              - Valid for USA and CDN
                              from £39.98
                              from £39.98
                              # 011
                              MPN: 97218
                              PIPE
                              - Supplied in meters - (Minimum quantity 1m. or multiples)
                              from £1.86
                              from £1.86
                              This part replaces part number 188340 - and 1 more. Click to view details
                              # 012
                              MPN: 66360600
                              RH PUMP COVER
                              from £30.23
                              from £30.23
                              # 013
                              MPN: 66360500
                              GASKET
                              from £26.98
                              from £26.98
                              # 014
                              MPN: 16296927
                              SCREW
                              from £0.51
                              from £0.51
                              # 015
                              MPN: 187464
                              PIPES PROTECTION BRACKET
                              from £8.20
                              from £8.20
                              This part replaces part number 387400102
                              # 016
                              MPN: 387400402
                              GASKET
                              from £1.55
                              from £1.55
                              # 017
                              MPN: 10977824
                              SCREW
                              from £1.08
                              from £1.08
                              This part replaces part number 16130321 which we have in stock
                              # 018
                              MPN: 11181574
                              WASHER
                              from £0.54
                              from £0.54
                              # 019
                              MPN: 14447025
                              WASHER
                              from £1.39
                              from £1.39
                              # 020
                              MPN: 379200408
                              CLIP
                              - (Quantity defined during at assembly)
                              from £1.08
                              from £1.08
                              # 021
                              MPN: 140731
                              CLIP
                              - Valid for USA and CDN
                              from £0.69
                              from £0.69
                              # 022
                              MPN: 155781
                              ANCHORAGE FOR CLIP
                              - Valid for USA and CDN
                              from £0.47
                              from £0.47
                              # 023
                              MPN: 190410
                              CLIP
                              - Valid for USA and CDN
                              from £2.32
                              from £2.32
                              # 024
                              MPN: 389200406
                              CLIP
                              from £0.54
                              from £0.54
                              # 025
                              MPN: 379200408
                              CLIP
                              from £1.08
                              from £1.08
                              # 026
                              MPN: 197463
                              RH FUEL DELIVERY PIPE TO FLEXIBLE
                              - Not for USA and CDN
                              from £69.48
                              from £69.48
                              This part replaces part number 980138230
                              # 027
                              MPN: 197468
                              LH FUEL DELIVERY PIPE TO FLEXIBLE
                              - Not for USA and CDN
                              from £76.73
                              from £76.73
                              This part replaces part number 980138231
                              # 028
                              MPN: 195052
                              CLIP
                              - Not for USA and CDN
                              from £1.08
                              from £1.08
                              # 029
                              MPN: 159521
                              CLIP
                              - Not for USA and CDN
                              from £1.33
                              from £1.33
                              # 030
                              MPN: 14059111
                              NUT
                              - Not for USA and CDN
                              from £0.47
                              from £0.47
                              # 031
                              MPN: 190410
                              CLIP
                              - (Quantity defined during at assembly)
                              from £2.32
                              from £2.32
                              # 032
                              MPN: 191431
                              CLIP
                              - Not for USA and CDN - (Quantity defined during at assembly)
                              from £1.08
                              from £1.08
                              # 033
                              MPN: 191283
                              CLIP
                              - (Quantity defined during at assembly)
                              from £1.08
                              from £1.08
                              # 034
                              MPN: 193543
                              COMPLETE FUEL DELIVERY TUBE
                              -Valid for USA and CDN -Valid from car Ass. Nr. 11187
                              from £312.57
                              from £312.57
