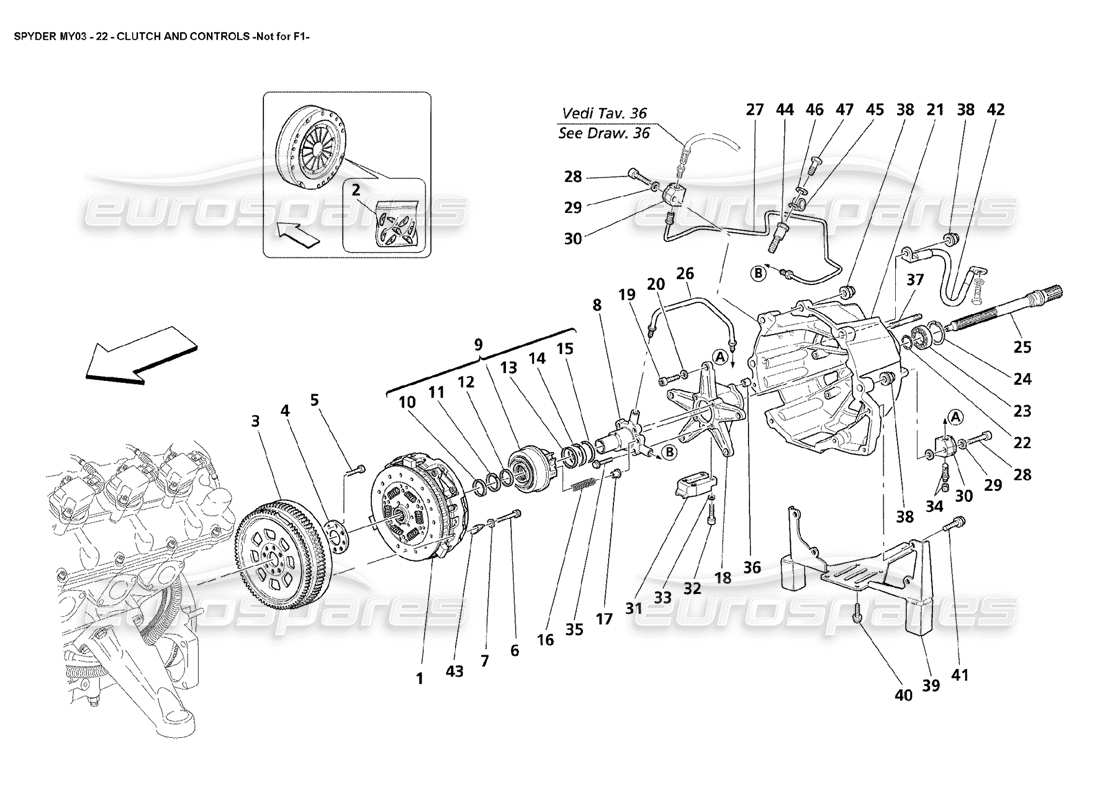

022 - Clutch and Controls - Not for F1

Maserati 4200 Spyder (2003) Clutch and Controls - Not for F1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 196021
                                                                                      COMPLETE CLUTCH
                                                                                      from £1,359.80
                                                                                      from £1,359.80
                                                                                      # 002
                                                                                      MPN: 980001166
                                                                                      CLUTCH BALANCING KIT
                                                                                      from £966.00
                                                                                      from £966.00
                                                                                      # 003
                                                                                      MPN: 230426
                                                                                      FLYWHEEL
                                                                                      from £401.38
                                                                                      from £401.38
                                                                                      This part replaces part number 185983
                                                                                      # 004
                                                                                      MPN: 103876
                                                                                      FLYWHEEL FIXING WASHER
                                                                                      from £2.74
                                                                                      from £2.74
                                                                                      # 006
                                                                                      MPN: 185206
                                                                                      SCREW
                                                                                      from £1.42
                                                                                      from £1.42
                                                                                      # 007
                                                                                      MPN: 11194377
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 008
                                                                                      MPN: 182952
                                                                                      BEARING SUPPORTING FLANGE
                                                                                      from £354.63
                                                                                      from £354.63
                                                                                      # 009
                                                                                      MPN: 171886
                                                                                      COMPLETE THRUST BEARING (MANUAL)
                                                                                      from £465.11
                                                                                      from £465.11
                                                                                      # 010
                                                                                      MPN: 172970
                                                                                      SCRAPER RING
                                                                                      from £12.41
                                                                                      from £12.41
                                                                                      # 011
                                                                                      MPN: 170416
                                                                                      RING
                                                                                      (replaces: 181839)
                                                                                      from £1.21
                                                                                      from £1.21
                                                                                      This part replaces part number 181839
                                                                                      # 011
                                                                                      MPN: 181839
                                                                                      RING
                                                                                      not as spare part - use part number: 170416
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 012
                                                                                      MPN: 172972
                                                                                      SEAL RING
                                                                                      from £12.78
                                                                                      from £12.78
                                                                                      # 013
                                                                                      MPN: 154508
                                                                                      SEAL RING
                                                                                      from £22.87
                                                                                      from £22.87
                                                                                      # 014
                                                                                      MPN: 154507
                                                                                      RING
                                                                                      (replaces: 181829)
                                                                                      from £2.01
                                                                                      from £2.01
                                                                                      This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
                                                                                      # 014
                                                                                      MPN: 181829
                                                                                      RING
                                                                                      not as spare part - use part number 154507
                                                                                      from £4.00
                                                                                      from £4.00
                                                                                      # 015
                                                                                      MPN: 154551
                                                                                      SCRAPER RING
                                                                                      from £16.63
                                                                                      from £16.63
                                                                                      # 016
                                                                                      MPN: 155207
                                                                                      PRELOAD SPRING
                                                                                      from £2.23
                                                                                      from £2.23
                                                                                      # 017
                                                                                      MPN: 155206
                                                                                      SPACER FOR SPRING
                                                                                      from £1.82
                                                                                      from £1.82
                                                                                      # 018
                                                                                      MPN: 184970
                                                                                      CLUTCH CONTROL FLANGE SUPPORT
                                                                                      from £306.16
                                                                                      from £306.16
                                                                                      # 019
                                                                                      MPN: 14305334
                                                                                      SCREW
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 020
                                                                                      MPN: 12604274
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 021
                                                                                      MPN: 184763
                                                                                      CLUTCH HOUSING
                                                                                      from £1,044.75
                                                                                      from £1,044.75
                                                                                      # 022
                                                                                      MPN: 144511
                                                                                      STOP RING
                                                                                      from £1.54
                                                                                      from £1.54
                                                                                      # 023
                                                                                      MPN: 174470
                                                                                      BEARING
                                                                                      from £29.78
                                                                                      from £29.78
                                                                                      # 024
                                                                                      MPN: 182963
                                                                                      STOP RING
                                                                                      from £2.37
                                                                                      from £2.37
                                                                                      # 025
                                                                                      MPN: 182587
                                                                                      CLUTCH SHAFT
                                                                                      from £214.00
                                                                                      from £214.00
                                                                                      # 026
                                                                                      MPN: 182584
                                                                                      CLUTCH OIL BLEED PIPE
                                                                                      from £16.13
                                                                                      from £16.13
                                                                                      # 027
                                                                                      MPN: 182583
                                                                                      CLUTCH OIL DELIVERY TUBE
                                                                                      from £28.79
                                                                                      from £28.79
                                                                                      # 028
                                                                                      MPN: 14305434
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 029
                                                                                      MPN: 12604274
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 030
                                                                                      MPN: 139471
                                                                                      TWO WAY UNION
                                                                                      from £12.84
                                                                                      from £12.84
                                                                                      # 031
                                                                                      MPN: 184900
                                                                                      F1 SENSOR SUPPORT
                                                                                      from £227.40
                                                                                      from £227.40
                                                                                      # 032
                                                                                      MPN: 14304424
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 033
                                                                                      MPN: 10519378
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 034
                                                                                      MPN: 121699
                                                                                      BLEEDER SCREW
                                                                                      from £11.56
                                                                                      from £11.56
                                                                                      # 035
                                                                                      MPN: 16286224
                                                                                      SCREW
                                                                                      from £1.54
                                                                                      from £1.54
                                                                                      # 036
                                                                                      MPN: 102725
                                                                                      CENTERING DOWEL
                                                                                      from £0.64
                                                                                      from £0.64
                                                                                      # 037
                                                                                      MPN: 13546334
                                                                                      STUD
                                                                                      from £0.60
                                                                                      from £0.60
                                                                                      # 039
                                                                                      MPN: 187799
                                                                                      EXHAUST FRONT SUPPORT
                                                                                      - Not for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                      from £78.50
                                                                                      from £78.50
                                                                                      # 039
                                                                                      MPN: 191399
                                                                                      EXHAUST FRONT SUPPORT
                                                                                      - Valid for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                      from £77.15
                                                                                      from £77.15
                                                                                      # 040
                                                                                      MPN: 11730624
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 041
                                                                                      MPN: 16288121
                                                                                      SCREW
                                                                                      from £2.45
                                                                                      from £2.45
                                                                                      # 041
                                                                                      MPN: 16297721
                                                                                      SCREW
                                                                                      from £1.84
                                                                                      from £1.84
                                                                                      # 042
                                                                                      MPN: 182225
                                                                                      CABLE FOR ENGINE FRAME EARTH
                                                                                      - Grams 1 - As necessary
                                                                                      from £12.55
                                                                                      from £12.55
                                                                                      # 043
                                                                                      MPN: 191329
                                                                                      BALANCING MASS
                                                                                      from £25.00
                                                                                      from £25.00
                                                                                      # 043
                                                                                      MPN: 191330
                                                                                      BALANCING MASS
                                                                                      - Grams 2 - As necessary
                                                                                      from £23.10
                                                                                      from £23.10
                                                                                      # 043
                                                                                      MPN: 191331
                                                                                      BALANCING MASS
                                                                                      - Grams 4 - As necessary
                                                                                      from £29.89
                                                                                      from £29.89
                                                                                      # 043
                                                                                      MPN: 191333
                                                                                      BALANCING MASS
                                                                                      - Grams 5 - As necessary
                                                                                      from £7.97
                                                                                      from £7.97
                                                                                      # 043
                                                                                      MPN: 191334
                                                                                      BALANCING MASS
                                                                                      - Grams 6 - As necessary
                                                                                      from £15.73
                                                                                      from £15.73
                                                                                      # 043
                                                                                      MPN: 191335
                                                                                      BALANCING MASS
                                                                                      - Grams 7 - As necessary
                                                                                      from £19.63
                                                                                      from £19.63
                                                                                      # 043
                                                                                      MPN: 191336
                                                                                      BALANCING MASS
                                                                                      - Grams 8 - As necessary
                                                                                      from £46.10
                                                                                      from £46.10
                                                                                      # 043
                                                                                      MPN: 191337
                                                                                      BALANCING MASS
                                                                                      - Grams 9 - As necessary
                                                                                      from £36.46
                                                                                      from £36.46
                                                                                      # 043
                                                                                      MPN: 191338
                                                                                      BALANCING MASS
                                                                                      - Grams 10 - As necessary
                                                                                      from £40.87
                                                                                      from £40.87
                                                                                      # 043
                                                                                      MPN: 191339
                                                                                      BALANCING MASS
                                                                                      - Grams 11 - As necessary
                                                                                      from £8.80
                                                                                      from £8.80
                                                                                      # 043
                                                                                      MPN: 191340
                                                                                      BALANCING MASS
                                                                                      - Grams 12 - As necessary
                                                                                      from £40.87
                                                                                      from £40.87
                                                                                      # 043
                                                                                      MPN: 191341
                                                                                      BALANCING MASS
                                                                                      - Grams 13 - As necessary
                                                                                      from £9.21
                                                                                      from £9.21
                                                                                      # 043
                                                                                      MPN: 191342
                                                                                      BALANCING MASS
                                                                                      - Grams 14 - As necessary
                                                                                      from £95.91
                                                                                      from £95.91
                                                                                      # 043
                                                                                      MPN: 191343
                                                                                      BALANCING MASS
                                                                                      - Grams 15 - As necessary
                                                                                      from £9.21
                                                                                      from £9.21
                                                                                      # 043
                                                                                      MPN: 191344
                                                                                      BALANCING MASS
                                                                                      - Grams 16 - As necessary
                                                                                      from £89.68
                                                                                      from £89.68
                                                                                      # 043
                                                                                      MPN: 191345
                                                                                      BALANCING MASS
                                                                                      - Grams 17 - As necessary
                                                                                      from £10.75
                                                                                      from £10.75
                                                                                      # 043
                                                                                      MPN: 191346
                                                                                      BALANCING MASS
                                                                                      - Grams 18 - As necessary
                                                                                      from £10.75
                                                                                      from £10.75
                                                                                      # 043
                                                                                      MPN: 191347
                                                                                      BALANCING MASS
                                                                                      - Grams 19 - As necessary
                                                                                      from £8.80
                                                                                      from £8.80
                                                                                      # 043
                                                                                      MPN: 191395
                                                                                      BALANCING MASS
                                                                                      - Grams 20 - As necessary
                                                                                      from £89.68
                                                                                      from £89.68
                                                                                      # 044
                                                                                      MPN: 190876
                                                                                      STUD
                                                                                      from £14.07
                                                                                      from £14.07
                                                                                      This part replaces part number 585412900
                                                                                      # 045
                                                                                      MPN: 10441190
                                                                                      BRACKET WITH SHEATH
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 046
                                                                                      MPN: 127494
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 047
                                                                                      MPN: 10979414
                                                                                      SCREW
                                                                                      from £0.51
                                                                                      from £0.51
