025 - Pedals and Electronic Accelerator Control - Valid for GD

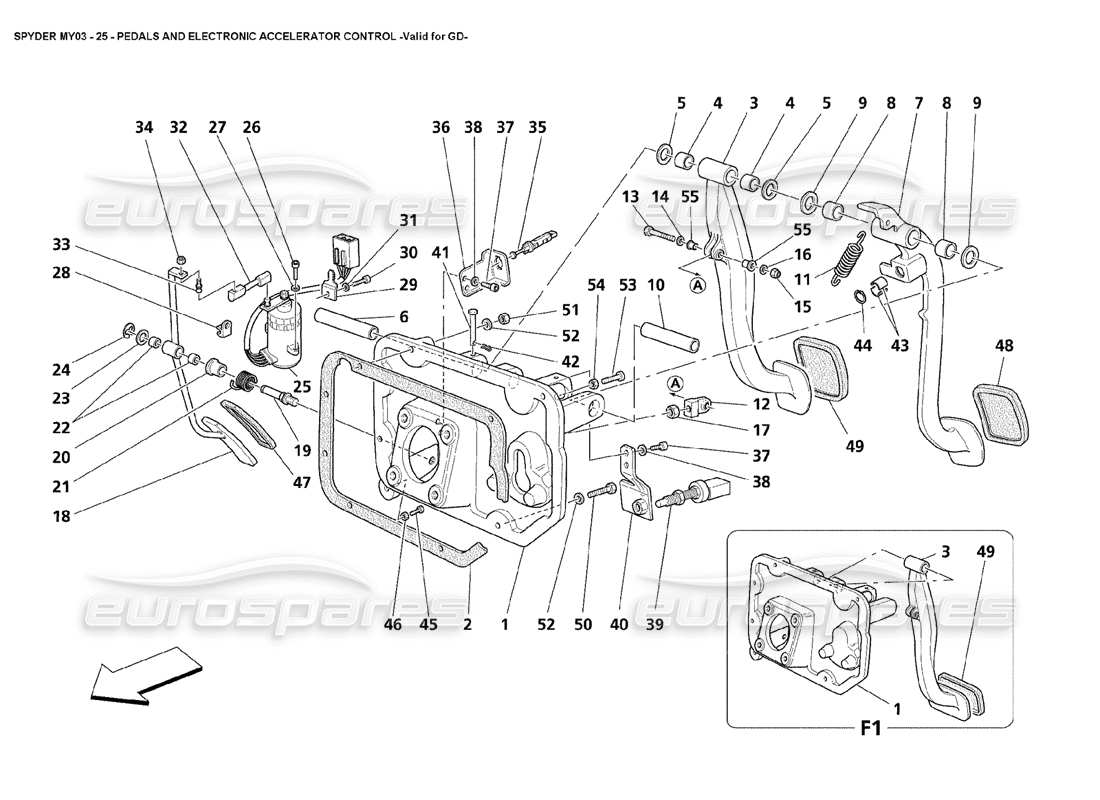

Maserati 4200 Spyder (2003) Pedals and Electronic Accelerator Control - Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 190839
PEDAL SUPPORT
- Not for F1
from £393.75
from £393.75
# 001
MPN: 190840
PEDAL SUPPORT
- Valid for F1
from £346.42
from £346.42
# 002
MPN: 378496348
SUPPORT GASKET
from £9.66
from £9.66
# 003
MPN: 191313
BRAKE PEDAL
- Not for F1
from £142.85
from £142.85
# 003
MPN: 191314
BRAKE PEDAL
- Valid for F1
from £145.77
from £145.77
# 004
MPN: 318420320
BUSHING
from £9.66
from £9.66
# 005
MPN: 368402321
SPACER WASHER
from £1.08
from £1.08
# 006
MPN: 378496329
PEDALS SUPPORT PIN
from £49.15
from £49.15
# 007
MPN: 191312
CLUTCH PEDAL
- Not for F1
from £115.16
from £115.16
# 008
MPN: 318420320
BUSHING
- Not for F1
from £9.66
from £9.66
# 009
MPN: 368402321
SPACER WASHER
- Not for F1
from £1.08
from £1.08
# 010
MPN: 378496329
PEDALS SUPPORT PIN
- Not for F1
from £49.15
from £49.15
# 011
MPN: 101305
RETUTN SPRING FOR PEDAL
- Not for F1
from £5.43
from £5.43
# 012
MPN: 184749
SERVOBRAKE PIN
from £50.54
from £50.54
# 013
MPN: 16044421
SCREW
from £1.31
from £1.31
# 014
MPN: 12654421
WASHER
from £1.08
from £1.08
# 015
MPN: 147985
NUT
from £0.54
from £0.54
# 016
MPN: 14499401
WASHER
from £0.47
from £0.47
# 017
MPN: 16102324
NUT
from £1.08
from £1.08
This part replaces part number 16102311 which we have in stock
# 018
MPN: 192593
Accelerator Pedal
from £218.37
from £218.37
# 019
MPN: 186666
ACCELERATOR PEDAL PIN
from £50.62
from £50.62
# 020
MPN: 388400407
BUSHING
from £26.10
from £26.10
# 021
MPN: 388400364
RETUTN SPRING FOR PEDAL
from £32.59
from £32.59
# 022
MPN: 318420334
BUSHING
from £1.55
from £1.55
# 023
MPN: 388400346
WASHER
from £3.16
from £3.16
# 024
MPN: 11088076
FLEXIBLE RING
from £0.47
from £0.47
# 025
MPN: 183656
ACCELERATOR PEDAL POTENTIOMETER
from £86.44
from £86.44
# 026
MPN: 14432221
SCREW
from £0.71
from £0.71
# 027
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601270
# 028
MPN: 383000318
CLIP
from £1.08
from £1.08
# 029
MPN: 383000315
PLATE
from £4.57
from £4.57
# 030
MPN: 14305121
SCREW
from £0.47
from £0.47
# 031
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601270
# 032
MPN: 82476740
ACCELERATOR PEDALTIE ROD
from £33.79
from £33.79
# 033
MPN: 318420305
BALL PIN
Supersession
Supersession
# 034
MPN: 14075611
NUT
from £1.31
from £1.31
# 035
MPN: 183433
BRAKE PEDAL SWITCH
Supersession
Supersession
This part replaces part number 383300180
# 036
MPN: 190853
BRAKE PEDAL SWITCH SUPPORT
from £37.32
from £37.32
# 037
MPN: 14305121
SCREW
from £0.47
from £0.47
# 038
MPN: 127494
WASHER
from £0.53
from £0.53
# 039
MPN: 133555
BRAKE PEDAL SWITCH
- Not for F1
from £18.60
from £18.60
# 040
MPN: 190854
CLUTCH PEDAL SWITCH SUPPORT
- Not for F1
from £60.66
from £60.66
# 041
MPN: 378496377
PIN
- (Quantity 1 for F1)
from £17.86
from £17.86
# 042
MPN: 58841309
SAFETY CLIP
- (Quantity 1 for F1)
from £1.94
from £1.94
This part replaces part number 670000498 - and 2 more. Click to view details
# 043
MPN: 186664
BUSHING FOR PIN FIXING
- Not for F1
from £130.69
from £130.69
# 044
MPN: 11057876
SEEGER RING
- Not for F1
from £0.53
from £0.53
# 045
MPN: 16043621
SCREW FOR END OF STROKE
from £1.08
from £1.08
# 046
MPN: 16102314
NUT
from £0.47
from £0.47
# 047
MPN: 318420301
ACCELERATOR PEDAL COVER
from £1.51
from £1.51
# 048
MPN: 378430300
PEDAL COVER
- Not for F1
from £79.09
from £79.09
This part replaces part number 191496
# 049
MPN: 378430300
PEDAL COVER
- Not for F1
from £79.09
from £79.09
This part replaces part number 191496
# 049
MPN: 388415300
PEDAL COVER
- Valid for F1
from £11.90
from £11.90
# 050
MPN: 16043834
SCREW
from £0.51
from £0.51
This part replaces part number 16043824
# 051
MPN: 16104421
NUT
from £0.81
from £0.81
# 052
MPN: 14496521
WASHER
from £0.47
from £0.47
# 053
MPN: 187014
CLUTCH PEDAL ADJUSTEMENT PIN
- Not for F1
from £23.81
from £23.81
# 054
MPN: 16102314
NUT
- Not for F1
from £0.47
from £0.47
# 055
MPN: 191316
BUSHING
from £42.04
from £42.04
