maserati 4200 spyder (2003) engine - transmission connections tube and insulators parts diagram

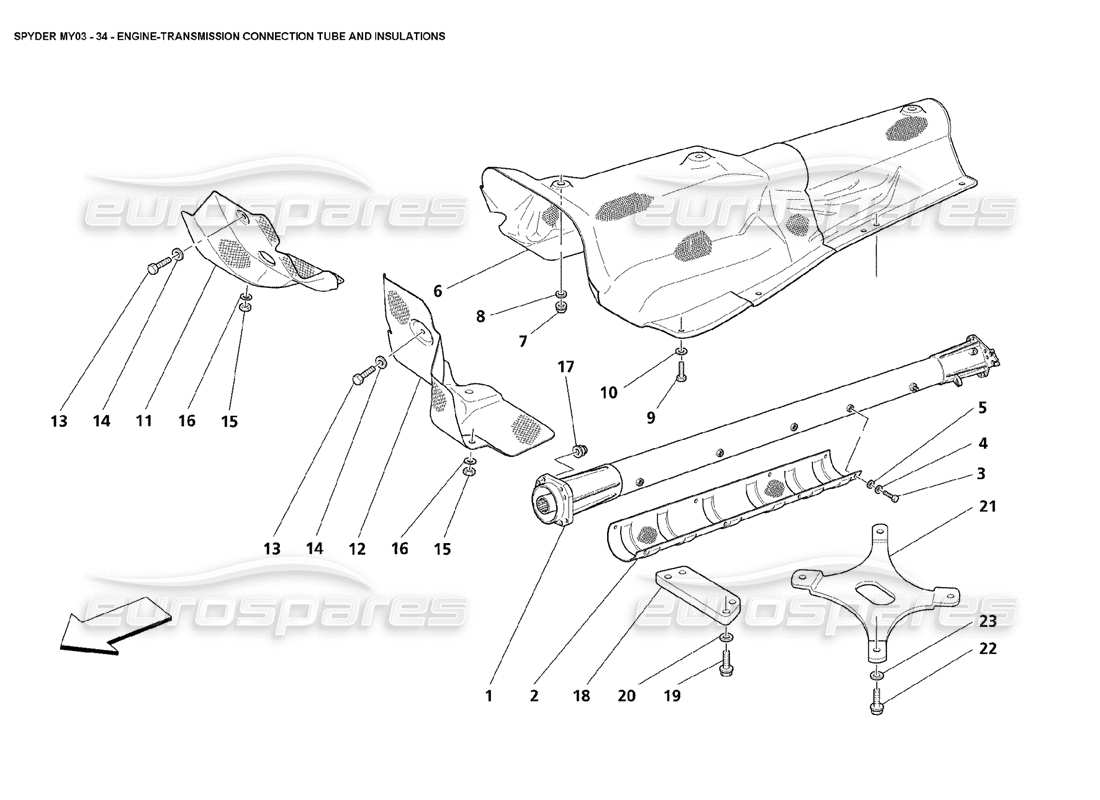

034 - Engine - Transmission Connections Tube and Insulators

Maserati 4200 Spyder (2003) Engine - Transmission Connections Tube and Insulators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 187532
                                              COMPLETE ENGINE TRANSMISSION CONNECTION TUBE
                                              - Valid for F1 -
                                              from £4,693.27
                                              from £4,693.27
                                              This part replaces part number 186739 - and 1 more. Click to view details
                                              # 001
                                              MPN: 196491
                                              COMPLETE ENGINE TRANSMISSION CONNECTION TUBE
                                              - Not for F1
                                              from £1,892.94
                                              from £1,892.94
                                              # 002
                                              MPN: 185559
                                              ANTI HEAT SHIELD
                                              from £20.15
                                              from £20.15
                                              # 003
                                              MPN: 11635724
                                              SCREW
                                              from £0.48
                                              from £0.48
                                              # 004
                                              MPN: 12601274
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 12601270
                                              # 005
                                              MPN: 12644424
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 13550214
                                              # 006
                                              MPN: 67515400
                                              TUNNEL HEAT SHIELD
                                              from £156.12
                                              from £156.12
                                              # 007
                                              MPN: 14059111
                                              NUT
                                              from £0.47
                                              from £0.47
                                              # 008
                                              MPN: 12624124
                                              WASHER
                                              from £0.95
                                              from £0.95
                                              # 009
                                              MPN: 10977824
                                              SCREW
                                              from £1.04
                                              from £1.04
                                              This part replaces part number 16130321 which we have in stock
                                              # 010
                                              MPN: 12624124
                                              WASHER
                                              from £0.92
                                              from £0.92
                                              # 011
                                              MPN: 66584200
                                              RH SHIELD
                                              from £17.67
                                              from £17.67
                                              # 012
                                              MPN: 66582900
                                              LH SHIELD
                                              from £17.67
                                              from £17.67
                                              # 013
                                              MPN: 10977824
                                              SCREW
                                              from £1.08
                                              from £1.08
                                              This part replaces part number 16130321 which we have in stock
                                              # 014
                                              MPN: 12624124
                                              WASHER
                                              from £0.94
                                              from £0.94
                                              # 015
                                              MPN: 13831811
                                              NUT
                                              from £0.53
                                              from £0.53
                                              # 016
                                              MPN: 12624124
                                              WASHER
                                              from £0.95
                                              from £0.95
                                              # 018
                                              MPN: 67497700
                                              CROSS MEMBER TUNNEL
                                              from £58.27
                                              from £58.27
                                              # 019
                                              MPN: 14307821
                                              SCREW
                                              from £0.69
                                              from £0.69
                                              # 020
                                              MPN: 12646821
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              # 021
                                              MPN: 67497800
                                              TUNNEL REINFORCEMENT SPIDER
                                              from £38.04
                                              from £38.04
                                              # 022
                                              MPN: 16287224
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              # 023
                                              MPN: 12642024
                                              WASHER
                                              from £0.53
                                              from £0.53
