maserati 4200 spyder (2003) brakes and clutch hydraulic controls parts diagram

036 - Brakes and Clutch Hydraulic Controls

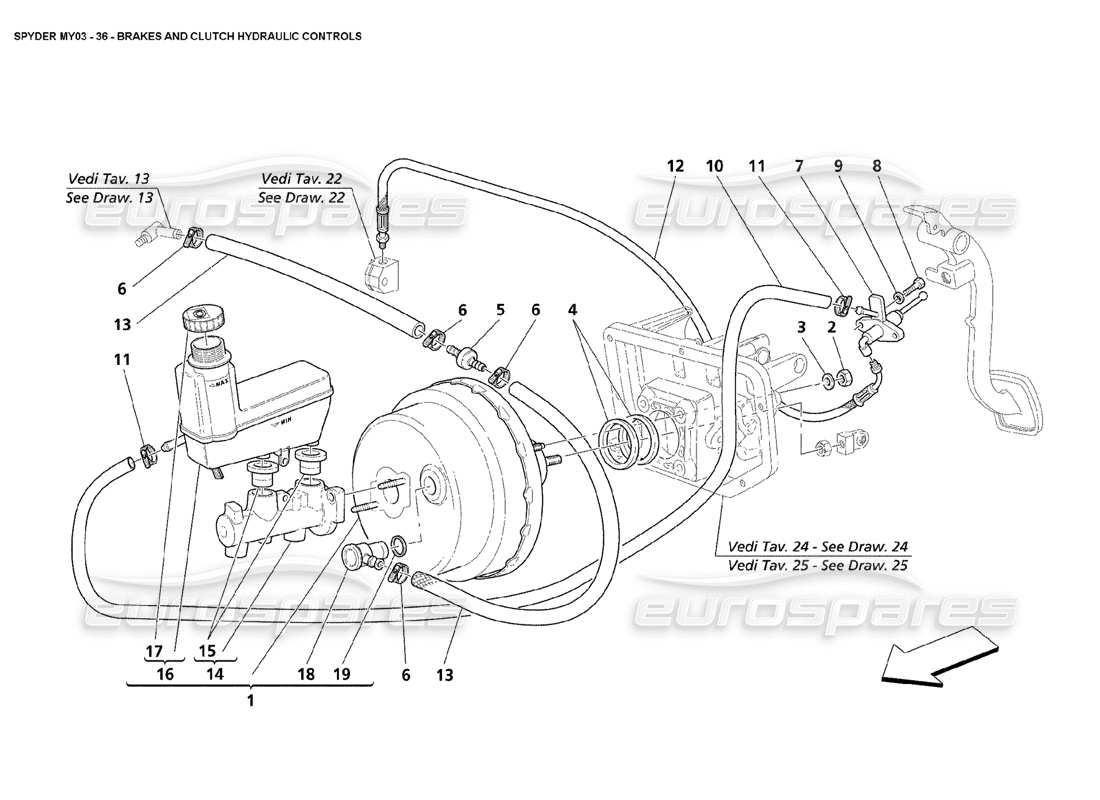

Maserati 4200 Spyder (2003) Brakes and Clutch Hydraulic Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 195560
                      COMPLETE BRAKE BOOSTER
                      - Not for F1
                      from £637.96
                      from £637.96
                      # 001
                      MPN: 196150
                      COMPLETE BRAKE BOOSTER
                      - Valid for F1
                      from £185.01
                      from £185.01
                      # 002
                      MPN: 16104421
                      NUT
                      from £0.81
                      from £0.81
                      # 003
                      MPN: 14496521
                      WASHER
                      from £0.47
                      from £0.47
                      # 004
                      MPN: 367402309
                      GASKET
                      from £1.55
                      from £1.55
                      # 005
                      MPN: 193186
                      DEPRESSION VALVE
                      from £7.05
                      from £7.05
                      # 006
                      MPN: 13000390
                      SCREW COLLAR
                      from £0.51
                      from £0.51
                      This part replaces part number 13121170 - and 1 more. Click to view details
                      # 007
                      MPN: 184753
                      Clutch Pump
                      - Not for F1
                      from £239.29
                      from £239.29
                      # 008
                      MPN: 16043621
                      SCREW
                      - Not for F1
                      from £1.08
                      from £1.08
                      # 009
                      MPN: 12601374
                      WASHER
                      - Not for F1
                      from £0.54
                      from £0.54
                      # 010
                      MPN: 197127
                      BRAKE LIQUID PIPE
                      - Not for F1 - Not for GD
                      from £37.28
                      from £37.28
                      # 010
                      MPN: 197130
                      BRAKE LIQUID PIPE
                      - Not for F1 - Valid for GD
                      from £34.81
                      from £34.81
                      # 011
                      MPN: 13000190
                      SCREW COLLAR
                      - Not for F1
                      from £0.53
                      from £0.53
                      # 012
                      MPN: 181769
                      CLUTCH CONTROL TUBE
                      - Not for F1 - Not for GD
                      from £261.76
                      from £261.76
                      # 012
                      MPN: 189061
                      CLUTCH CONTROL TUBE
                      - Not for F1 - Valid for GD
                      from £44.82
                      from £44.82
                      # 013
                      MPN: 302220611
                      RUBBER HOSE
                      - Supplied in meters - (Minimum quantity 1m. or multiples)
                      from £21.92
                      from £21.92
                      This part replaces part number 192978
                      # 014
                      MPN: 980138133
                      BRAKE PUMP
                      from £671.08
                      from £671.08
                      # 015
                      MPN: 980138134
                      BRAKE PUMP RUBBER
                      from £5.09
                      from £5.09
                      # 016
                      MPN: 197024
                      OIL TANK
                      - Not for F1
                      from £487.19
                      from £487.19
                      # 016
                      MPN: 197025
                      OIL TANK
                      - Valid for F1
                      from £52.57
                      from £52.57
                      # 017
                      MPN: 980138135
                      OIL TANK PLUG
                      from £19.01
                      from £19.01
                      # 018
                      MPN: 980138136
                      UNION
                      from £16.00
                      from £16.00
                      # 019
                      MPN: 980138137
                      GASKET
                      from £8.20
                      from £8.20
