maserati 4200 spyder (2003) steering box parts diagram

042 - Steering box

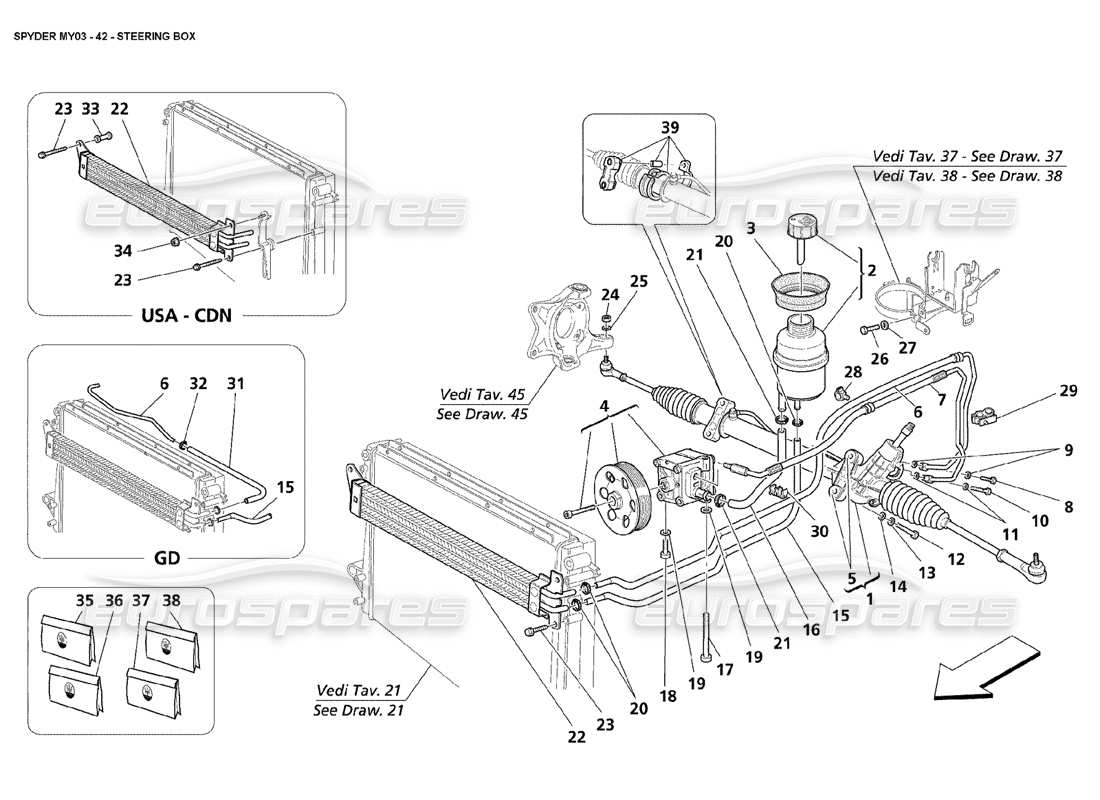

Maserati 4200 Spyder (2003) Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 207275
                                                          STEERING BOX WITH POWER STEERING
                                                          - Valid for GD
                                                          from £2,047.50
                                                          from £2,047.50
                                                          This part replaces part number 195593 - and 1 more. Click to view details
                                                          # 001
                                                          MPN: 207276
                                                          STEERING BOX WITH POWER
                                                          - Not for GD
                                                          from £1,234.82
                                                          from £1,234.82
                                                          This part replaces part number 195592 - and 1 more. Click to view details
                                                          # 002
                                                          MPN: 185820
                                                          COMPLETE OIL TANK FOR SERVOSTEERING
                                                          from £10.45
                                                          from £10.45
                                                          # 004
                                                          MPN: 187920
                                                          COMPLETE HYDRAULIC SERVO PUMP CONTROL
                                                          from £215.09
                                                          from £215.09
                                                          # 005
                                                          MPN: 980138228
                                                          SILENTBLOCK
                                                          from £13.52
                                                          from £13.52
                                                          # 006
                                                          MPN: 188970
                                                          PIPE FROM HYDRODRIVE TO EXCHANGER
                                                          - Not for GD
                                                          from £40.07
                                                          from £40.07
                                                          # 006
                                                          MPN: 193191
                                                          PIPE FROM HYDRODRIVE TO EXCHANGER
                                                          - Valid for GD
                                                          from £147.19
                                                          from £147.19
                                                          # 007
                                                          MPN: 191070
                                                          PIPE FROM PUMP TO DRIVING BOX
                                                          - Not for GD
                                                          from £51.45
                                                          from £51.45
                                                          # 007
                                                          MPN: 193190
                                                          PIPE FROM PUMP TO DRIVING BOX
                                                          - Valid for GD
                                                          from £88.05
                                                          from £88.05
                                                          # 008
                                                          MPN: 193264
                                                          UNION
                                                          from £38.17
                                                          from £38.17
                                                          # 009
                                                          MPN: 10298460
                                                          GASKET
                                                          from £0.47
                                                          from £0.47
                                                          # 010
                                                          MPN: 193018
                                                          UNION
                                                          from £41.96
                                                          from £41.96
                                                          # 011
                                                          MPN: 10280060
                                                          GASKET
                                                          from £0.53
                                                          from £0.53
                                                          # 012
                                                          MPN: 11343821
                                                          SCREW
                                                          from £0.61
                                                          from £0.61
                                                          # 013
                                                          MPN: 11190574
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 014
                                                          MPN: 12641021
                                                          WASHER
                                                          from £1.39
                                                          from £1.39
                                                          # 015
                                                          MPN: 188969
                                                          PIPE FROM EXCHANGER TO TANK
                                                          from £15.19
                                                          from £15.19
                                                          # 016
                                                          MPN: 192205
                                                          PIPE FROM TANK TO HYDRODRIVE
                                                          from £47.55
                                                          from £47.55
                                                          This part replaces part number 188968 - and 1 more. Click to view details
                                                          # 017
                                                          MPN: 160531
                                                          SCREW
                                                          from £5.49
                                                          from £5.49
                                                          This part replaces part number 180604
                                                          # 018
                                                          MPN: 198519
                                                          SCREW
                                                          from £3.62
                                                          from £3.62
                                                          # 019
                                                          MPN: 11193874
                                                          WASHER
                                                          from £0.54
                                                          from £0.54
                                                          # 020
                                                          MPN: 13000390
                                                          SCREW COLLAR
                                                          from £0.52
                                                          from £0.52
                                                          This part replaces part number 13121170 - and 1 more. Click to view details
                                                          # 021
                                                          MPN: 13000490
                                                          SCREW COLLAR
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 13127870 - and 1 more. Click to view details
                                                          # 022
                                                          MPN: 231013
                                                          POWER STEERING EXCHANGER
                                                          - Not for USA and CDN
                                                          from £1,462.01
                                                          from £1,462.01
                                                          This part replaces part number 199892 - and 1 more. Click to view details
                                                          # 023
                                                          MPN: 15698504
                                                          SCREW
                                                          - Valid for USA and CDN
                                                          from £6.04
                                                          from £6.04
                                                          # 023
                                                          MPN: 15699804
                                                          SCREW
                                                          - Not for USA and CDN
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 15534501
                                                          # 024
                                                          MPN: 14047421
                                                          NUT
                                                          from £1.31
                                                          from £1.31
                                                          # 025
                                                          MPN: 12626221
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 026
                                                          MPN: 10902621
                                                          SCREW
                                                          Supersession
                                                          Supersession
                                                          # 027
                                                          MPN: 10523401
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          # 029
                                                          MPN: 177805
                                                          CLIP
                                                          from £1.28
                                                          from £1.28
                                                          This part replaces part number 377890660
                                                          # 030
                                                          MPN: 190953
                                                          CLIP
                                                          from £2.85
                                                          from £2.85
                                                          # 031
                                                          MPN: 193192
                                                          SLEEVE FROM HYDRODRIVE TO EXCHANGER
                                                          - Valid for GD
                                                          from £21.14
                                                          from £21.14
                                                          # 032
                                                          MPN: 13000390
                                                          SCREW COLLAR
                                                          - Valid for GD
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 13121170 - and 1 more. Click to view details
                                                          # 033
                                                          MPN: 193719
                                                          SPACER
                                                          - Valid for USA and CDN
                                                          from £5.96
                                                          from £5.96
                                                          # 034
                                                          MPN: 14040614
                                                          NUT
                                                          - Valid for USA and CDN
                                                          from £0.54
                                                          from £0.54
                                                          # 035
                                                          MPN: 980001703
                                                          PIPES REPLACEMENT KIT FOR STEERING BOX
                                                          - Not for GD
                                                          from £133.60
                                                          from £133.60
                                                          This part replaces part number 980001701
                                                          # 035
                                                          MPN: 980001704
                                                          PIPES REPLACEMENT KIT FOR STEERING BOX
                                                          - Valid for GD
                                                          from £126.76
                                                          from £126.76
                                                          This part replaces part number 980001702
                                                          # 036
                                                          MPN: 980001705
                                                          STEERING ARM
                                                          from £203.40
                                                          from £203.40
                                                          This part replaces part number 980000967
                                                          # 037
                                                          MPN: 980001706
                                                          TRACK ROD END
                                                          from £88.98
                                                          from £88.98
                                                          This part replaces part number 980000968
                                                          # 038
                                                          MPN: 980001707
                                                          STEERING RACK BOOTS KIT
                                                          Pair
                                                          from £90.49
                                                          from £90.49
                                                          This part replaces part number 980000969
                                                          # 039
                                                          MPN: 980138275
                                                          STEERING BOX FIXING KIT
                                                          from £117.39
                                                          from £117.39
