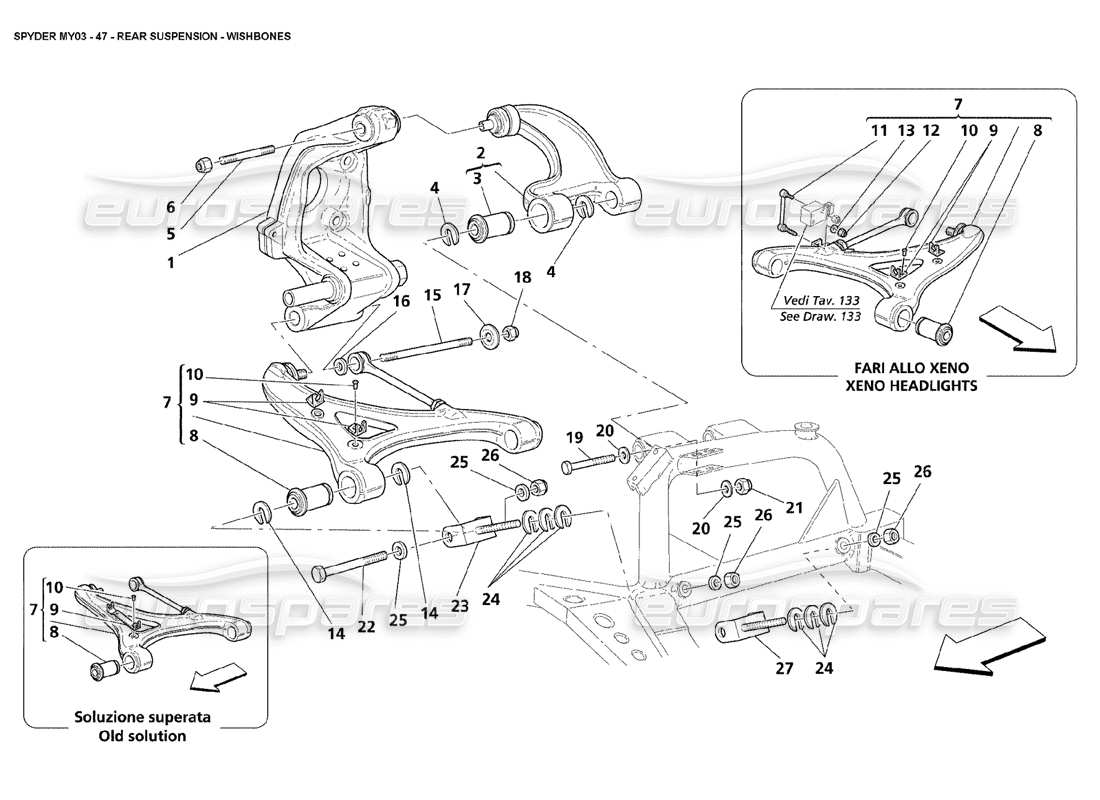

maserati 4200 spyder (2003) rear suspension - wishbones parts diagram

047 - Rear Suspension - Wishbones

Maserati 4200 Spyder (2003) Rear Suspension - Wishbones Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 189334
                                RH REAR HUB HOLDER
                                from £336.00
                                from £336.00
                                # 001
                                MPN: 189335
                                LH REAR HUB HOLDER
                                from £355.38
                                from £355.38
                                # 003
                                MPN: 387000163
                                FLANBLOC
                                Alternative use part No: 169574
                                from £116.96
                                from £116.96

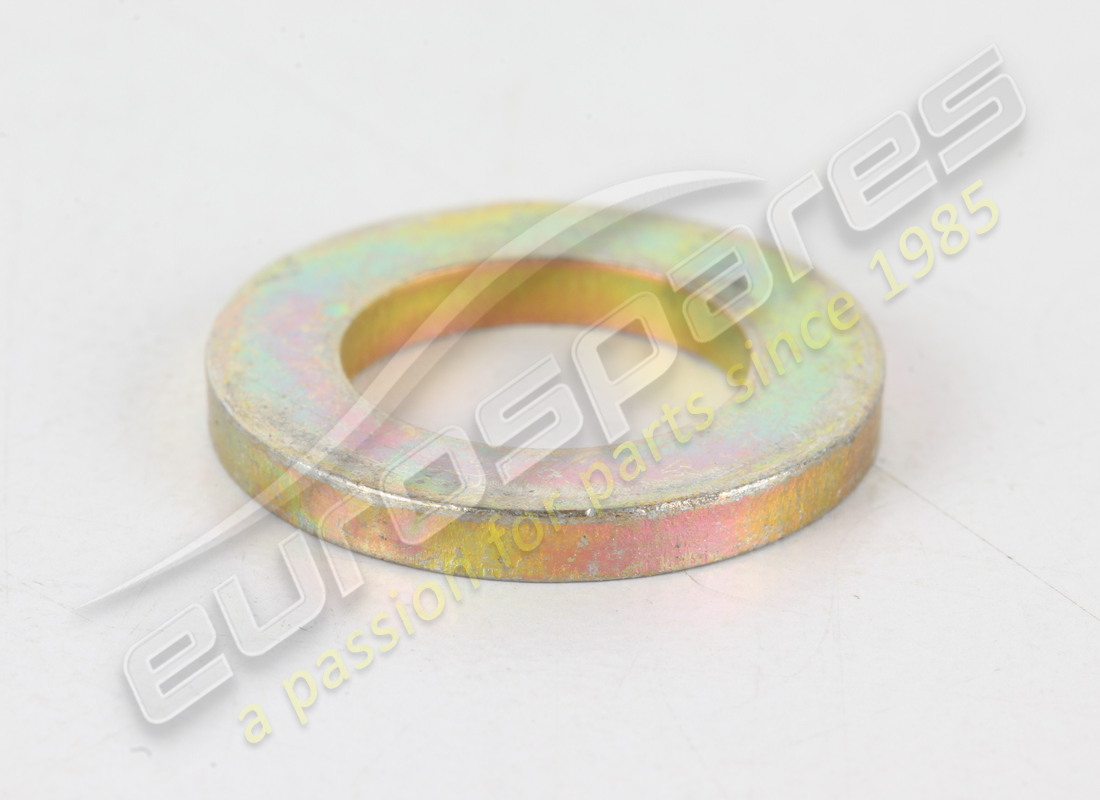

                                # 004
                                MPN: 377030378
                                WASHER
                                - Thickness mm. 0,50
                                from £3.16
                                from £3.16
                                # 004
                                MPN: 377030379
                                WASHER
                                - Thickness mm. 0,75
                                from £3.86
                                from £3.86
                                # 004
                                MPN: 377030380
                                WASHER
                                - Thickness mm. 1,00
                                from £17.23
                                from £17.23
                                # 004
                                MPN: 377030381
                                WASHER
                                - Thickness mm. 1,75
                                from £3.86
                                from £3.86
                                # 004
                                MPN: 377030382
                                WASHER
                                - Thickness mm. 3,00
                                from £4.57
                                from £4.57

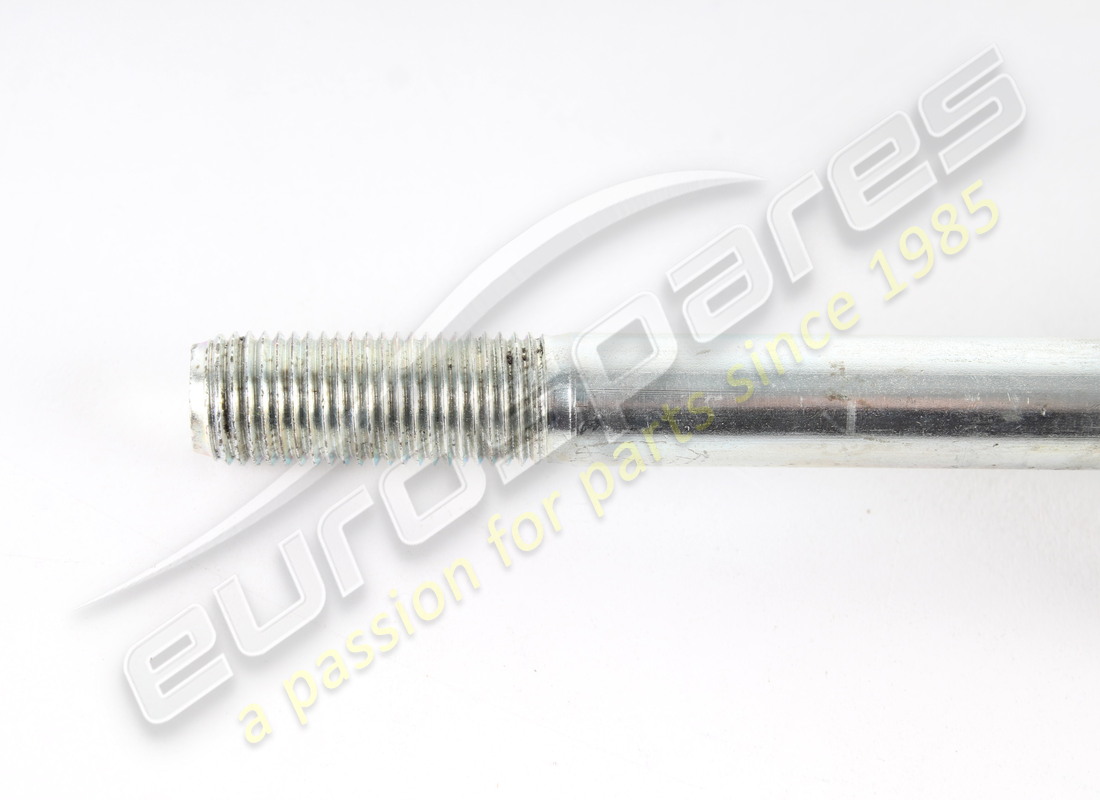

                                # 005
                                MPN: 13530624
                                STUD
                                from £21.56
                                from £21.56
                                # 006
                                MPN: 14048825
                                NUT
                                from £4.57
                                from £4.57
                                # 007
                                MPN: 198501
                                LH REAR LOWER LEVER
                                from £190.68
                                from £190.68
                                This part replaces part number 196039 - and 1 more. Click to view details
                                # 007
                                MPN: 198503
                                RH REAR LOWER LEVER
                                from £190.68
                                from £190.68
                                This part replaces part number 196034 - and 1 more. Click to view details
                                # 007
                                MPN: 198512
                                COMPLETE LH LOWER LEVER
                                - Standard - Valid after stock exhaustion of 196035
                                from £190.68
                                from £190.68
                                This part replaces part number 196035
                                # 007
                                MPN: 198513
                                COMPLETE LH LOWER LEVER
                                - Optional - Xeno headlights - Not for USA and CDN - Valid after stock exhaustion of 196036
                                from £190.68
                                from £190.68
                                This part replaces part number 196036
                                # 008
                                MPN: 386600113
                                FLANBLOC
                                Alternative : 169326
                                from £106.29
                                from £106.29
                                # 009
                                MPN: 187929
                                ABS CABLE BRACKET
                                - Old solution - (See bay)
                                from £48.38
                                from £48.38
                                # 009
                                MPN: 387000393
                                ABS CABLE BRACKET
                                from £72.34
                                from £72.34
                                # 010
                                MPN: 13684370
                                RIVET
                                - Quantity 2 for cars with old solution - (See bay)
                                from £1.39
                                from £1.39
                                # 011
                                MPN: 188632
                                TIE ROD
                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                from £66.30
                                from £66.30
                                # 012
                                MPN: 12574215
                                NUT
                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                from £1.23
                                from £1.23
                                # 013
                                MPN: 14498805
                                WASHER
                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                from £0.54
                                from £0.54
                                # 014
                                MPN: 377030378
                                WASHER
                                - Thickness mm. 0,50
                                from £3.16
                                from £3.16
                                # 014
                                MPN: 377030379
                                WASHER
                                - Thickness mm. 0,75
                                from £3.86
                                from £3.86
                                # 014
                                MPN: 377030380
                                WASHER
                                - Thickness mm. 1,00
                                from £17.23
                                from £17.23
                                # 014
                                MPN: 377030381
                                WASHER
                                - Thickness mm. 1,75
                                from £3.86
                                from £3.86
                                # 014
                                MPN: 377030382
                                WASHER
                                - Thickness mm. 3,00
                                from £4.57
                                from £4.57
                                # 015
                                MPN: 13531734
                                STUD
                                from £17.16
                                from £17.16
                                This part replaces part number 13531634
                                # 016
                                MPN: 13507521
                                WASHER
                                from £2.32
                                from £2.32
                                # 017
                                MPN: 387000329
                                CUP
                                from £3.63
                                from £3.63
                                # 018
                                MPN: 14048825
                                NUT
                                from £4.57
                                from £4.57
                                # 019
                                MPN: 196071
                                SCREW
                                from £4.24
                                from £4.24
                                # 020
                                MPN: 14496825
                                WASHER
                                from £1.11
                                from £1.11
                                # 021
                                MPN: 15503915
                                NUT
                                from £1.63
                                from £1.63
                                # 022
                                MPN: 196071
                                SCREW
                                from £4.24
                                from £4.24
                                # 023
                                MPN: 196521
                                FRONT FORK
                                from £51.82
                                from £51.82
                                # 024
                                MPN: 199644
                                WASHER
                                - Thickness mm. 0,20
                                from £2.32
                                from £2.32
                                # 024
                                MPN: 199645
                                WASHER
                                - Thickness mm. 0,30
                                from £2.32
                                from £2.32
                                # 024
                                MPN: 199646
                                WASHER
                                - Thickness mm. 0,40
                                from £2.32
                                from £2.32
                                # 024
                                MPN: 377030378
                                WASHER
                                - Thickness mm. 0,50
                                from £3.16
                                from £3.16
                                # 024
                                MPN: 377030379
                                WASHER
                                - Thickness mm. 0,75
                                from £3.86
                                from £3.86
                                # 024
                                MPN: 377030380
                                WASHER
                                - Thickness mm. 1,00
                                from £17.23
                                from £17.23
                                # 024
                                MPN: 377030381
                                WASHER
                                - Thickness mm. 1,75
                                from £3.86
                                from £3.86
                                # 024
                                MPN: 377030382
                                WASHER
                                - Thickness mm. 3,00
                                from £4.57
                                from £4.57
                                # 025
                                MPN: 14496825
                                WASHER
                                from £1.14
                                from £1.14
                                # 026
                                MPN: 15503915
                                NUT
                                from £1.63
                                from £1.63
                                # 027
                                MPN: 196522
                                REAR FORK
                                from £48.44
                                from £48.44
                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
