111 - Capote Cloth - Gasket

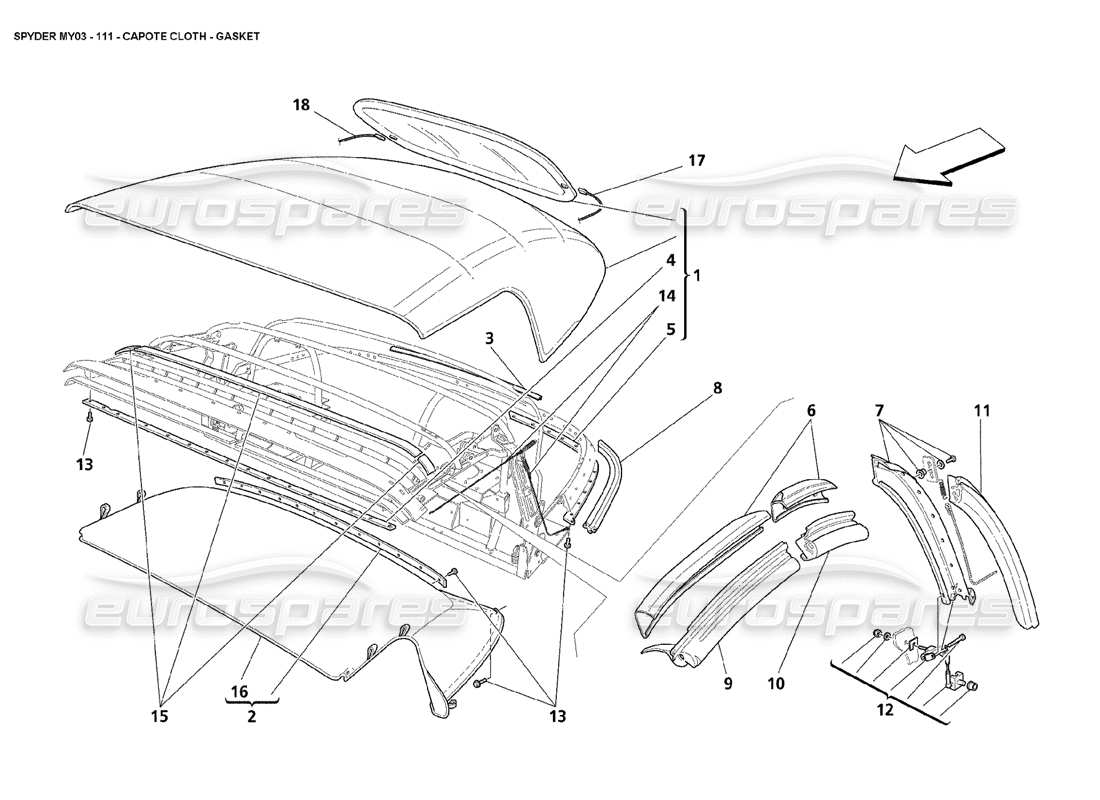

Maserati 4200 Spyder (2003) Capote Cloth - Gasket Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 67241004
CAPOTE LINING WITH REAR WINDOW IN BLUE
- Valid from capote Nr. 1733 in BLUE
from £3,995.00
from £3,995.00
# 001
MPN: 675194..
CAPOTE LINING WITH REAR WINDOW
Supersession
Supersession
# 002
MPN: 67241100
COMPLETE ROOF
from £766.06
from £766.06
# 003
MPN: 67519200
RUBBER CAPOTE ARCH
from £46.53
from £46.53
# 004
MPN: 66100900
CLOTH FIXING PLATE
from £35.48
from £35.48
# 005
MPN: 66101300
CLOTH FIXING PLATE
from £78.05
from £78.05
# 006
MPN: 980001081
LH FRONT GASKET HOLDER
from £104.34
from £104.34
# 006
MPN: 980001082
RH FRONT GASKET HOLDER
from £99.15
from £99.15
# 007
MPN: 980002021
LH REAR GASKET HOLDER
from £186.40
from £186.40
# 007
MPN: 980002022
RH REAR GASKET HOLDER
from £186.40
from £186.40
# 008
MPN: 66366600
CAPOTE ARCH GASKET
from £120.38
from £120.38
This part replaces part number 66104500 - and 1 more. Click to view details
# 009
MPN: 66366000
RH FRONT GASKET
from £153.79
from £153.79
# 009
MPN: 66366100
LH FRONT GASKET
from £153.79
from £153.79
# 010
MPN: 66366200
RH CENTRAL GASKET
from £221.34
from £221.34
# 010
MPN: 66366300
LH CENTRAL GASKET
from £302.88
from £302.88
# 011
MPN: 66366400
RH REAR GASKET
from £263.76
from £263.76
# 011
MPN: 66366500
LH REAR GASKET
from £128.11
from £128.11
# 012
MPN: 980001085
LH GASKET HOLDER MOVEMENT KIT
from £302.02
from £302.02
# 012
MPN: 980001086
RH GASKET HOLDER MOVEMENT KIT
from £280.38
from £280.38
# 013
MPN: 980001088
ROOF AND CLOTH FIXING KIT
from £68.71
from £68.71
# 014
MPN: 66101000
TIGHTENER KIT
from £117.62
from £117.62
# 015
MPN: 66194100
VELCRO KIT
from £38.77
from £38.77
# 016
MPN: 67241200
PLATE
from £130.69
from £130.69
# 017
MPN: 197697
POSITIVE CABLE FOR DEFROSTER REAR WINDOW
from £25.48
from £25.48
# 018
MPN: 197698
NEGATIVE CABLE FOR DEFROSTER REAR WINDOW
from £16.71
from £16.71
