maserati 4200 spyder (2003) capote structure parts diagram

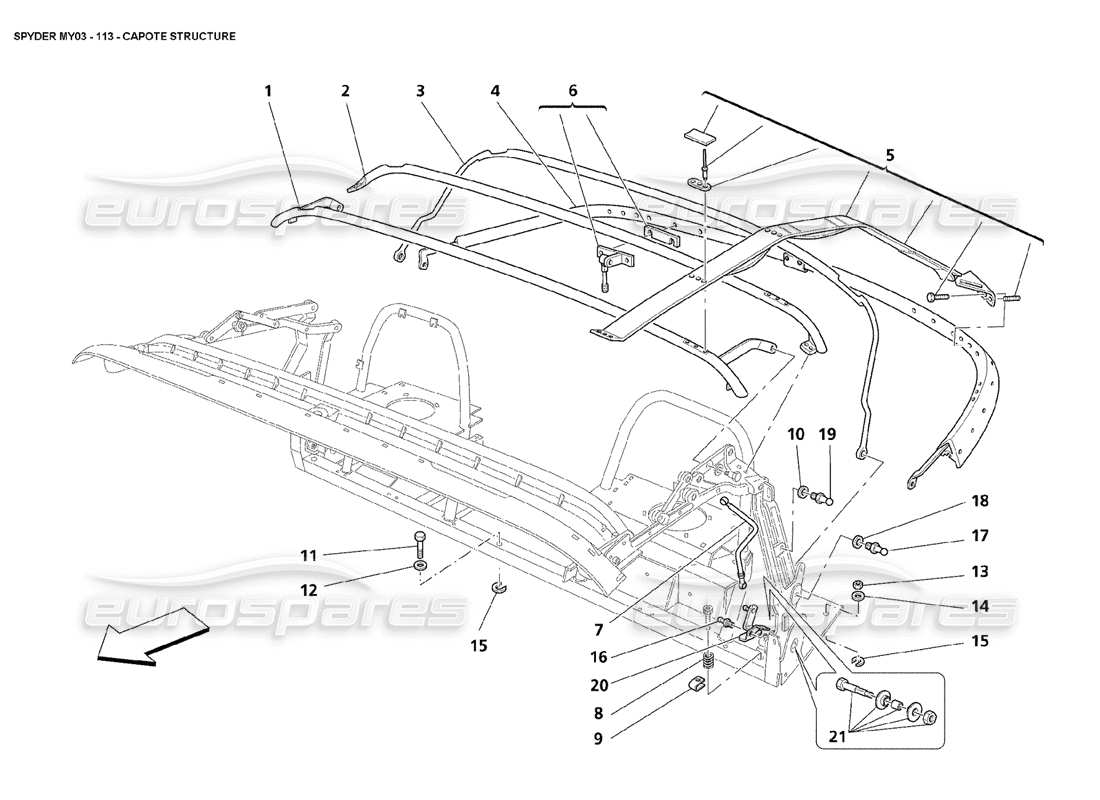

113 - Capote Structure

Maserati 4200 Spyder (2003) Capote Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 000
                                            MPN: 66103963L
                                            EFT SIDE FOLDING FRAME
                                            from £315.00
                                            from £315.00
                                            # 000
                                            MPN: 66103963R
                                            RIGHT SIDE FOLDING FRAME
                                            from £315.00
                                            from £315.00
                                            # 001
                                            MPN: 66103600
                                            FRONT MOVABLE FRAME RIB
                                            from £102.77
                                            from £102.77
                                            # 002
                                            MPN: 67240800
                                            CENTRAL FRAME RIB
                                            from £72.90
                                            from £72.90
                                            # 003
                                            MPN: 67519100
                                            REAR FRAME RIB
                                            from £247.47
                                            from £247.47
                                            # 004
                                            MPN: 67518000
                                            COMPLETE CAPOTE ARCH
                                            from £856.26
                                            from £856.26
                                            # 005
                                            MPN: 980002020
                                            BELTS KIT
                                            from £400.18
                                            from £400.18
                                            # 006
                                            MPN: 980002019
                                            PULL DOWN KIT
                                            from £127.29
                                            from £127.29
                                            # 007
                                            MPN: 66604300
                                            RH TIE ROD FOR CAPOTE LEVERS DOOR
                                            from £317.86
                                            from £317.86
                                            # 007
                                            MPN: 66604400
                                            LH TIE ROD FOR CAPOTE LEVERS DOOR
                                            from £317.86
                                            from £317.86
                                            # 008
                                            MPN: 66319500
                                            SPRING
                                            from £7.12
                                            from £7.12
                                            # 009
                                            MPN: 66319400
                                            SPRING FASTENING PLATE
                                            from £3.01
                                            from £3.01
                                            # 010
                                            MPN: 67641900
                                            WASHER
                                            from £14.15
                                            from £14.15
                                            # 011
                                            MPN: 16044421
                                            SCREW
                                            from £1.31
                                            from £1.31
                                            # 012
                                            MPN: 12601379
                                            WASHER
                                            from £0.88
                                            from £0.88
                                            # 013
                                            MPN: 16100824
                                            NUT
                                            from £0.51
                                            from £0.51
                                            # 014
                                            MPN: 12647021
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 12647024
                                            # 015
                                            MPN: 377030378
                                            WASHER
                                            - Tickness mm. 0,50
                                            from £3.16
                                            from £3.16
                                            # 015
                                            MPN: 377030379
                                            WASHER
                                            from £3.86
                                            from £3.86
                                            # 015
                                            MPN: 377030380
                                            WASHER
                                            - Tickness mm. 1,00
                                            from £17.23
                                            from £17.23
                                            # 015
                                            MPN: 377030381
                                            WASHER
                                            - Tickness mm. 1,75
                                            from £3.86
                                            from £3.86
                                            # 015
                                            MPN: 377030382
                                            WASHER
                                            - Tickness mm. 3,00
                                            from £4.57
                                            from £4.57
                                            # 016
                                            MPN: 66609200
                                            PIN
                                            from £94.83
                                            from £94.83
                                            # 017
                                            MPN: 66430000
                                            PIN
                                            Supersession
                                            Supersession
                                            # 018
                                            MPN: 14496521
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            # 019
                                            MPN: 66649400
                                            PIN
                                            from £46.53
                                            from £46.53
                                            # 020
                                            MPN: 66604500
                                            RH LEVER FOR CAPOTE DOOR MOVEMENT
                                            from £58.04
                                            from £58.04
                                            # 020
                                            MPN: 66604600
                                            LH LEVER FOR CAPOTE DOOR MOVEMENT
                                            from £58.04
                                            from £58.04
                                            # 021
                                            MPN: 980138221
                                            LEVER MOVEMENT PIN KIT
                                            from £232.16
                                            from £232.16
