maserati 4200 spyder (2003) trunk hood bonnet and gas door parts diagram

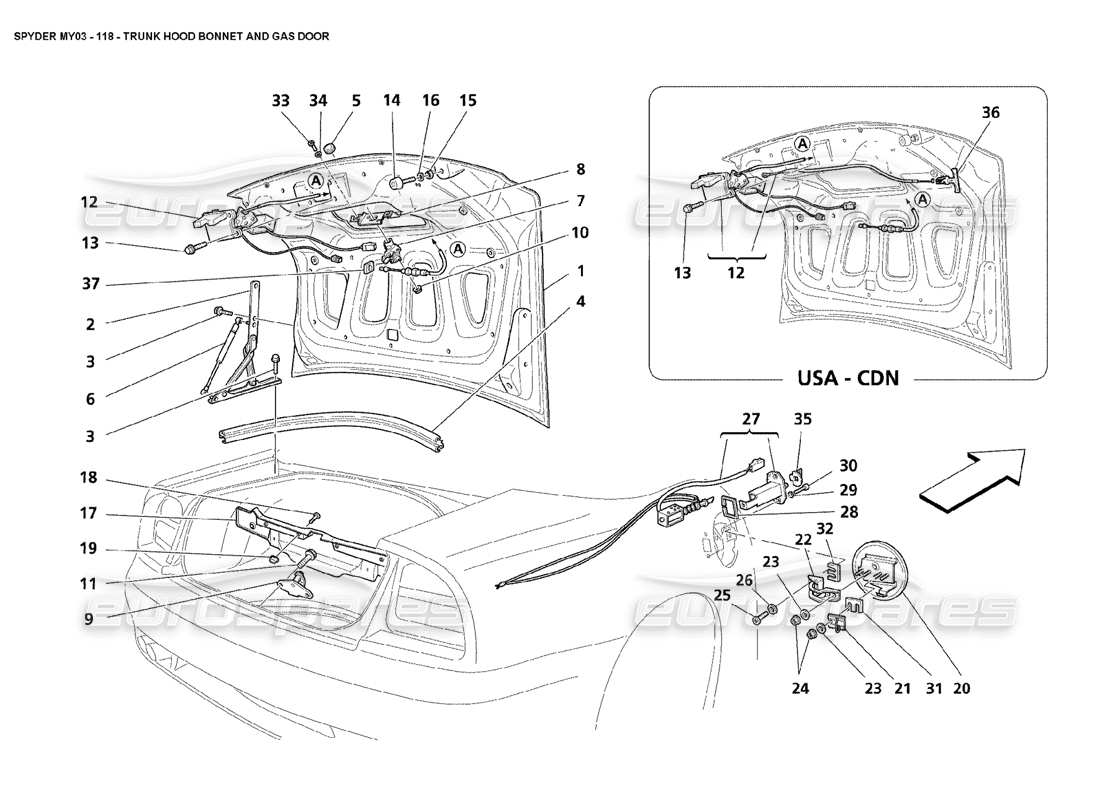

118 - Trunk Hood Bonnet and Gas Door

Maserati 4200 Spyder (2003) Trunk Hood Bonnet and Gas Door Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 66071100
                                                                      COMPLETE REAR DOOR
                                                                      - Standard - Not for USA and CDN
                                                                      from £3,036.29
                                                                      from £3,036.29
                                                                      # 001
                                                                      MPN: 66376100
                                                                      COMPLETE REAR DOOR
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £1,608.33
                                                                      from £1,608.33
                                                                      # 001
                                                                      MPN: 66729100
                                                                      COMPLETE REAR DOOR
                                                                      - Valid for USA and CDN
                                                                      from £1,822.90
                                                                      from £1,822.90
                                                                      # 002
                                                                      MPN: 384700105
                                                                      LH HINGE
                                                                      from £56.41
                                                                      from £56.41
                                                                      # 002
                                                                      MPN: 384700106
                                                                      RH HINGE
                                                                      from £56.41
                                                                      from £56.41
                                                                      # 003
                                                                      MPN: 82448954
                                                                      SCREW
                                                                      from £4.24
                                                                      from £4.24
                                                                      This part replaces part number 18770424
                                                                      # 004
                                                                      MPN: 66313500
                                                                      GASKET FOR TRUNK HOOD
                                                                      from £18.23
                                                                      from £18.23
                                                                      # 005
                                                                      MPN: 82484271
                                                                      GASKET
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 006
                                                                      MPN: 384700118
                                                                      LUGGAGE COMPARTMENT STRUT
                                                                      from £53.83
                                                                      from £53.83
                                                                      # 007
                                                                      MPN: 82484270
                                                                      TRUNK HOOD OPENING CONTROL
                                                                      from £10.97
                                                                      from £10.97
                                                                      # 009
                                                                      MPN: 82487413
                                                                      BOOT LOCK STRIKER
                                                                      from £4.63
                                                                      from £4.63
                                                                      # 010
                                                                      MPN: 13046114
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 011
                                                                      MPN: 10704324
                                                                      SCREW
                                                                      from £1.85
                                                                      from £1.85
                                                                      # 012
                                                                      MPN: 384700125
                                                                      COMPLETE BOOT LOCK BOWDEN CABLE
                                                                      - Not for USA and CDN
                                                                      from £280.93
                                                                      from £280.93
                                                                      # 012
                                                                      MPN: 67554600
                                                                      COMPLETE BOOT LOCK BOWDEN CABLE
                                                                      - Valid for USA and CDN
                                                                      from £319.87
                                                                      from £319.87
                                                                      This part replaces part number 66914200 - and 2 more. Click to view details
                                                                      # 013
                                                                      MPN: 10704324
                                                                      SCREW
                                                                      from £1.85
                                                                      from £1.85
                                                                      # 014
                                                                      MPN: 60616619
                                                                      FLEXIBLE PAD
                                                                      from £3.59
                                                                      from £3.59
                                                                      # 015
                                                                      MPN: 16102311
                                                                      NUT
                                                                      from £0.42
                                                                      from £0.42
                                                                      # 016
                                                                      MPN: 11182277
                                                                      WASHER
                                                                      from £1.85
                                                                      from £1.85
                                                                      # 017
                                                                      MPN: 66244100
                                                                      REAR TRIM
                                                                      from £53.26
                                                                      from £53.26
                                                                      # 018
                                                                      MPN: 15783507
                                                                      SCREW
                                                                      from £1.11
                                                                      from £1.11
                                                                      # 019
                                                                      MPN: 7754387
                                                                      BLOCK FOR SELF TAPPING SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 020
                                                                      MPN: 980001043
                                                                      FUEL INLET LID
                                                                      from £75.68
                                                                      from £75.68
                                                                      # 021
                                                                      MPN: 66057300
                                                                      WIRE ROD
                                                                      from £10.97
                                                                      from £10.97
                                                                      # 022
                                                                      MPN: 382500201
                                                                      HINGE FOR GAS UNION DOOR
                                                                      from £35.41
                                                                      from £35.41
                                                                      # 023
                                                                      MPN: 12638104
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 024
                                                                      MPN: 14075611
                                                                      NUT
                                                                      from £1.31
                                                                      from £1.31
                                                                      # 025
                                                                      MPN: 13283214
                                                                      SCREW
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 026
                                                                      MPN: 10519304
                                                                      WASHER
                                                                      from £0.85
                                                                      from £0.85
                                                                      This part replaces part number 14496304
                                                                      # 027
                                                                      MPN: 66241700
                                                                      COMPLETO ELECTRO MAGNET
                                                                      from £115.50
                                                                      from £115.50
                                                                      This part replaces part number 66241800 - and 1 more. Click to view details
                                                                      # 028
                                                                      MPN: 66240200
                                                                      GASKET
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 029
                                                                      MPN: 10519304
                                                                      WASHER
                                                                      from £0.85
                                                                      from £0.85
                                                                      This part replaces part number 14496304
                                                                      # 030
                                                                      MPN: 13283214
                                                                      SCREW
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 031
                                                                      MPN: 382500554
                                                                      ADJUSTING PLATE
                                                                      from £2.85
                                                                      from £2.85
                                                                      This part replaces part number 66193600
                                                                      # 032
                                                                      MPN: 66919100
                                                                      SHIMMING PLATE
                                                                      from £1.93
                                                                      from £1.93
                                                                      # 033
                                                                      MPN: 13283514
                                                                      SCREW
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 034
                                                                      MPN: 12642801
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 035
                                                                      MPN: 388100355
                                                                      RUBBER
                                                                      from £6.81
                                                                      from £6.81
                                                                      # 036
                                                                      MPN: 66728800
                                                                      HANDLE
                                                                      - Valid for USA and CDN
                                                                      from £19.61
                                                                      from £19.61
                                                                      # 037
                                                                      MPN: 67587700
                                                                      NUT
                                                                      from £3.16
                                                                      from £3.16
