maserati 4200 spyder (2003) electrical seat - safety belt parts diagram

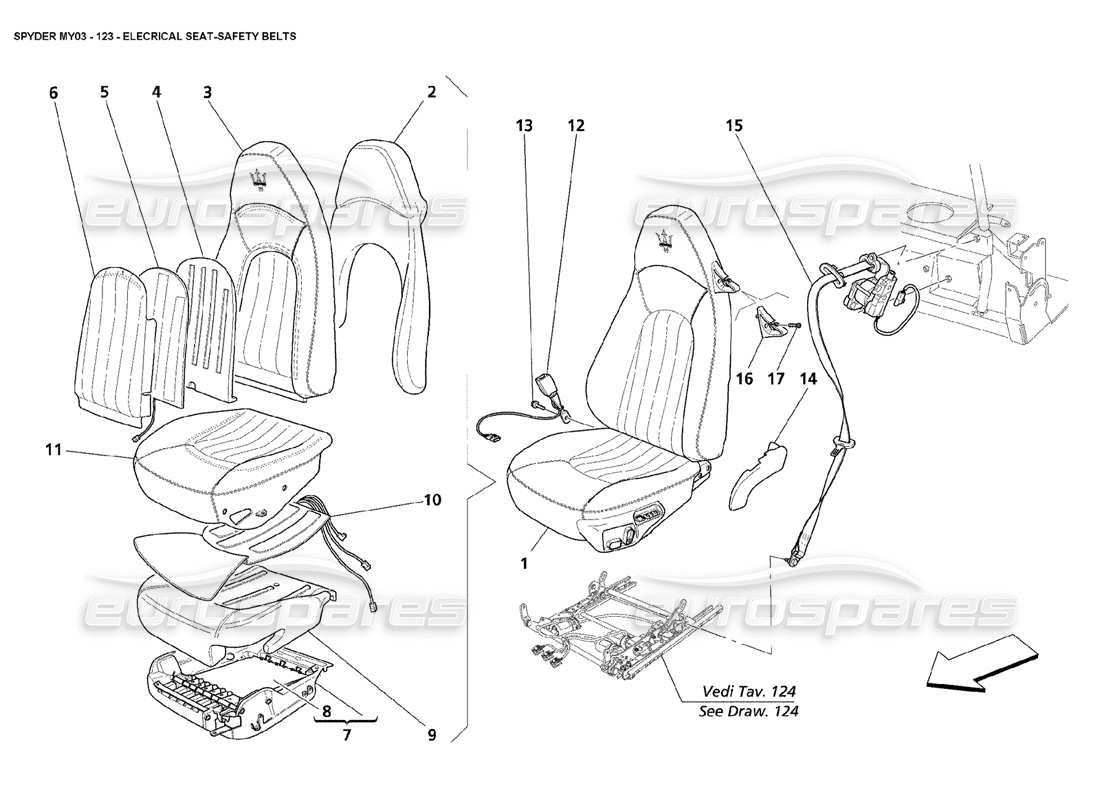

123 - Electrical Seat - Safety Belt

Maserati 4200 Spyder (2003) Electrical Seat - Safety Belt Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 675142..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled - Valid for GD
                          # 001
                          MPN: 675143..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled and heater - Valid for GD
                          # 001
                          MPN: 675146..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled - Valid for GD
                          # 001
                          MPN: 675147..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled and heater - Valid for GD
                          # 001
                          MPN: 675149..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled - Not for GD
                          # 001
                          MPN: 675151..
                          COMPLETE RH FRONT SEAT
                          - Optional - Leather drilled and heater - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 675152..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled - Not for GD
                          # 001
                          MPN: 675153..
                          COMPLETE LH FRONT SEAT
                          - Optional - Leather drilled and heater - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811007..
                          COMPLETE LH FRONT SEAT
                          - Standard - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811008..
                          COMPLETE RH FRONT SEAT
                          - Standard - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811009..
                          COMPLETE LH FRONT SEAT
                          - Optional - Heater - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811011..
                          COMPLETE RH FRONT SEAT
                          - Optional - Heater - Not for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811017..
                          COMPLETE RH FRONT SEAT
                          - Standard - Valid for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811018..
                          COMPLETE RH FRONT SEAT
                          - Optional - Heater - Valid for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811019..
                          COMPLETE LH FRONT SEAT
                          - Standard - Valid for GD
                          Supersession
                          Supersession
                          # 001
                          MPN: 9811021..
                          COMPLETE LH FRONT SEAT
                          - Optional - Heater - Valid for GD
                          Supersession
                          Supersession
                          # 002
                          MPN: 980138100
                          SEATBACK PERIPHERAL PADDING
                          from £993.05
                          from £993.05
                          # 003
                          MPN: 9811002..
                          BACKSEAT PERIPHERAL UPHOLSTERY
                          Supersession
                          Supersession
                          # 004
                          MPN: 980001118
                          BACKSEAT CENTRAL PADDING
                          from £58.36
                          from £58.36
                          # 005
                          MPN: 980001121
                          BACKSEAT HEATER
                          from £52.07
                          from £52.07
                          # 006
                          MPN: 9811000..
                          BACKSEAT CENTRAL UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 006
                          MPN: 9812003..
                          BACKSEAT CENTRAL UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 007
                          MPN: 980001179
                          COMPLETE LH CUSHION BOTTOM
                          from £49.07
                          from £49.07
                          # 007
                          MPN: 980001180
                          COMPLETE RH CUSHION BOTTOM
                          from £49.07
                          from £49.07
                          # 008
                          MPN: 980001122
                          CUSHION BOTTOM MEMBRANE
                          from £31.25
                          from £31.25
                          # 009
                          MPN: 980138101
                          LH CUSHION PADDING
                          - Valid for GD
                          from £993.05
                          from £993.05
                          # 009
                          MPN: 980138102
                          RH CUSHION PADDING
                          - Not for GD
                          from £993.05
                          from £993.05
                          # 009
                          MPN: 980138103
                          LH CUSHION PADDING
                          - Not for GD
                          from £993.05
                          from £993.05
                          # 009
                          MPN: 980138104
                          RH CUSHION PADDING
                          - Valid for GD
                          from £993.05
                          from £993.05
                          # 010
                          MPN: 980001120
                          CUSHION HEATER
                          from £123.73
                          from £123.73
                          # 011
                          MPN: 9812001..
                          LH FRONT CUSHION UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 011
                          MPN: 9812002..
                          RH FRONT CUSHION UPHOLSTERY
                          - Not for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 011
                          MPN: 9812004..
                          LH FRONT CUSHION UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 011
                          MPN: 9812005..
                          RH FRONT CUSHION UPHOLSTERY
                          - Valid for cars with leather drilled seats
                          Supersession
                          Supersession
                          # 012
                          MPN: 388100336
                          PASSENGER SEAT BELT LOCK
                          from £47.00
                          from £47.00
                          # 012
                          MPN: 388100337
                          PILOT SEAT BELT LOCK
                          from £104.70
                          from £104.70
                          # 013
                          MPN: 386900301
                          SCREW
                          from £13.44
                          from £13.44
                          # 014
                          MPN: 66710500
                          RH SEAT JOINT COVER
                          from £13.05
                          from £13.05
                          # 014
                          MPN: 66710800
                          LH SEAT JOINT COVER
                          from £15.38
                          from £15.38
                          # 015
                          MPN: 66311100
                          RH ROLLER
                          - Not for USA and CDN
                          from £215.66
                          from £215.66
                          # 015
                          MPN: 66311200
                          RH ROLLER
                          - Valid for USA and CDN
                          from £148.73
                          from £148.73
                          # 015
                          MPN: 66311300
                          LH ROLLER
                          - Not for USA e CDN
                          from £215.66
                          from £215.66
                          # 015
                          MPN: 66919400
                          LH ROLLER
                          - Valid for USA e CDN
                          from £138.03
                          from £138.03
                          # 016
                          MPN: 66710600
                          BELT HOLDER
                          from £36.63
                          from £36.63
                          This part replaces part number 66710900
                          # 017
                          MPN: 386900408
                          SCREW
                          from £4.24
                          from £4.24
